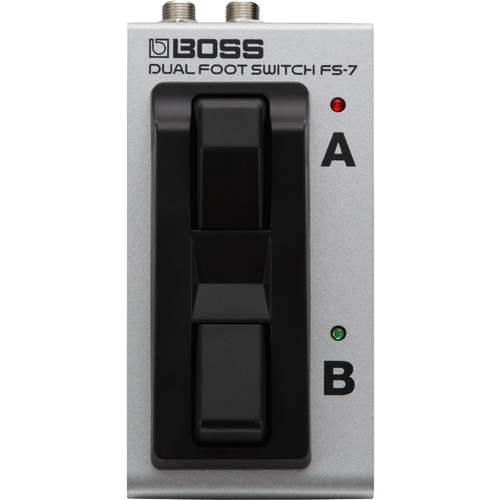

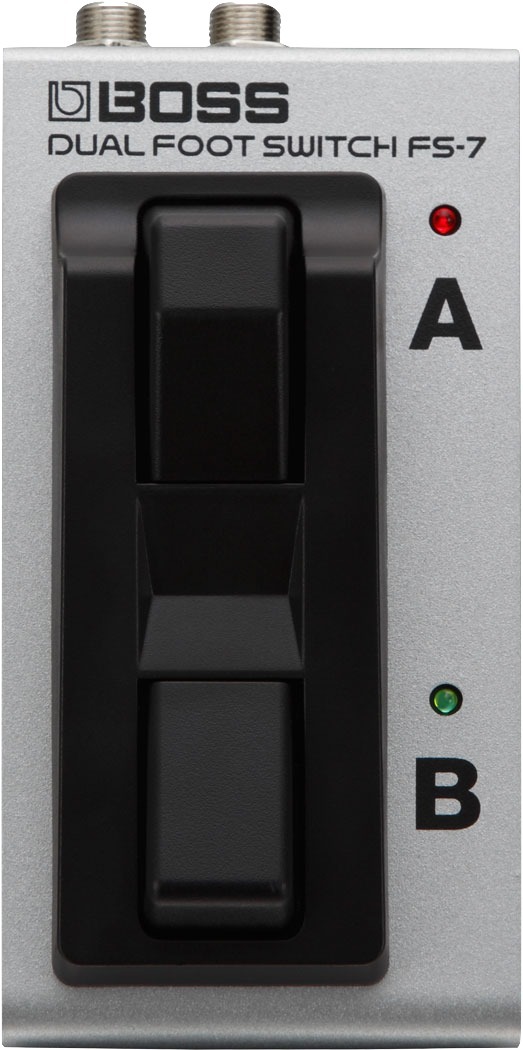

BOSS FS-7

SPACE-SAVING, MULTIFUNCTIONAL DUAL FOOTSWITCH

FS-7 is a compact dual footswitch for remote control of effect pedals or amp channel switching. Two footswitches are arranged in tandem, which saves space on effects pedal boards. Two selectable modes for latch or momentary allow for control of a wide range of equipment.

FEATURES

• Dual footswitch in a small footprint

• Latch/momentary switching function (common to A and B)

• Durable steel chassis

• Battery-free operation ideal for pedal boards

• Power via 9v adapter (power splitter included)

• Operates as momentary switch with no power*

*LEDs will not illuminate without AC power.

SPECIFICATIONS

Connectors:

• A jack: 1/4-inch phone type

• B jack: 1/4-inch TRS phone type (*)

• DC IN jack

* You can also connect a 1/4-inch phone plug.
Indicators: A, B
Controls:

• [MODE] switch

• [POLARITY] switch

Power Supply: AC adaptor (PSA series: sold separately)
Current Draw: 25 mA
Accessories:

• Parallel DC cable

• Owner's Manual

Dimensions
Width: 62 mm, 2-1/2 inches
Depth: 131 mm, 5-3/16 inches
Height: 60 mm, 2-6/16 inches
Weight: 290 g, 0 lbs. 11 oz.

*The specifications are subject to change without notice.
