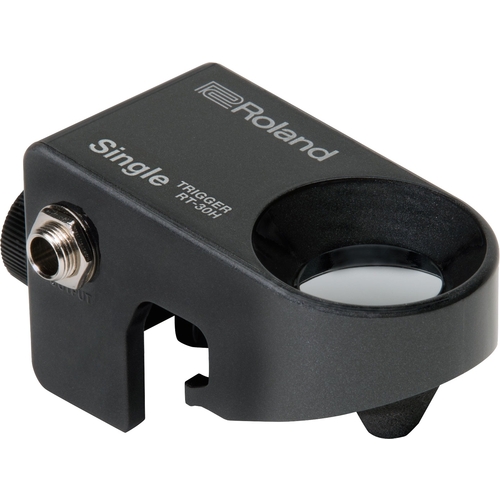

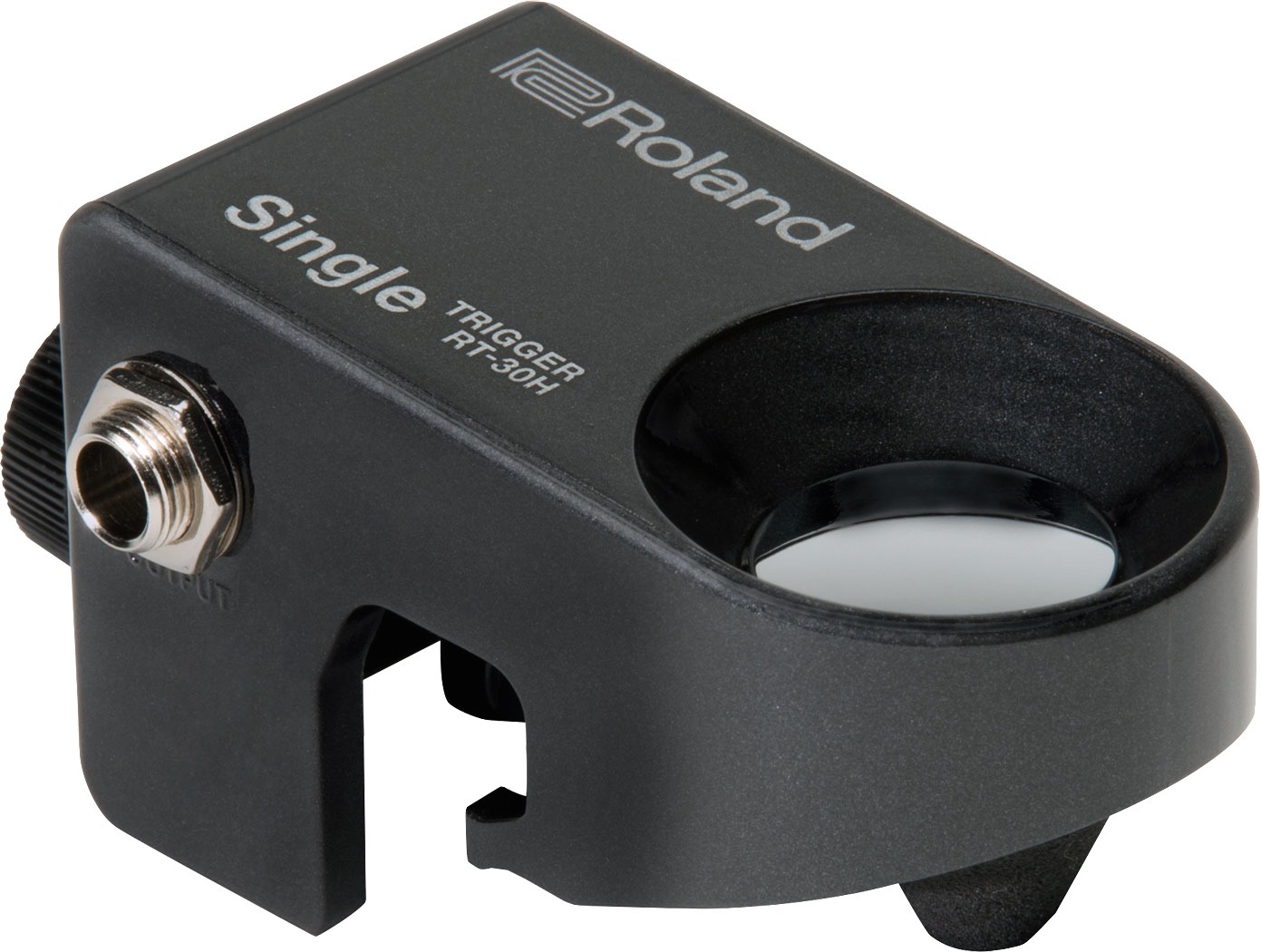

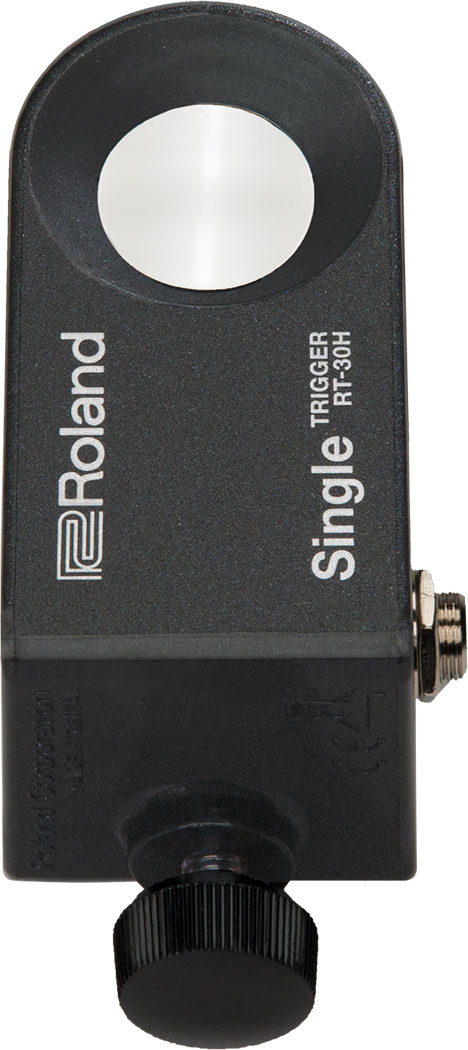

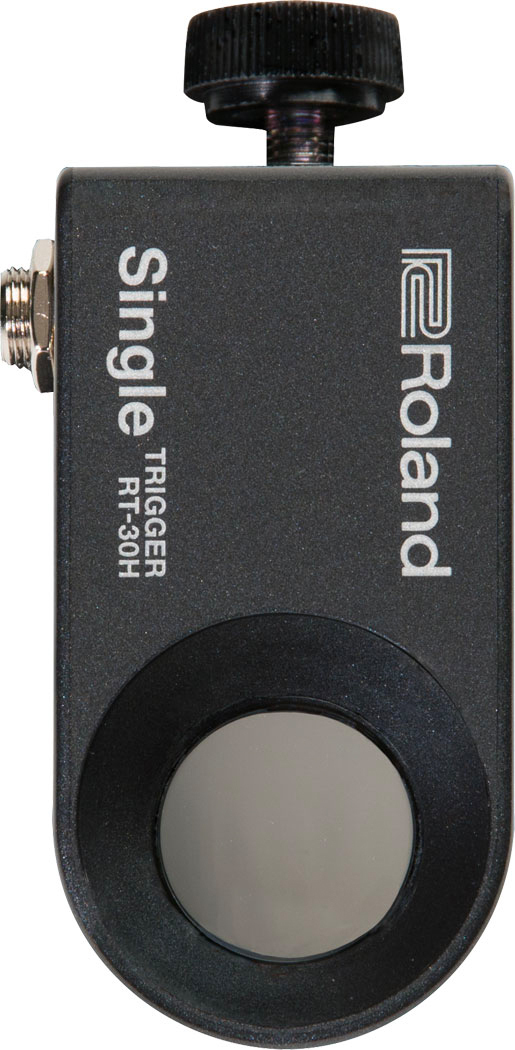

Roland RT-30H

PRO PERFORMANCE FOR HYBRID DRUMMING

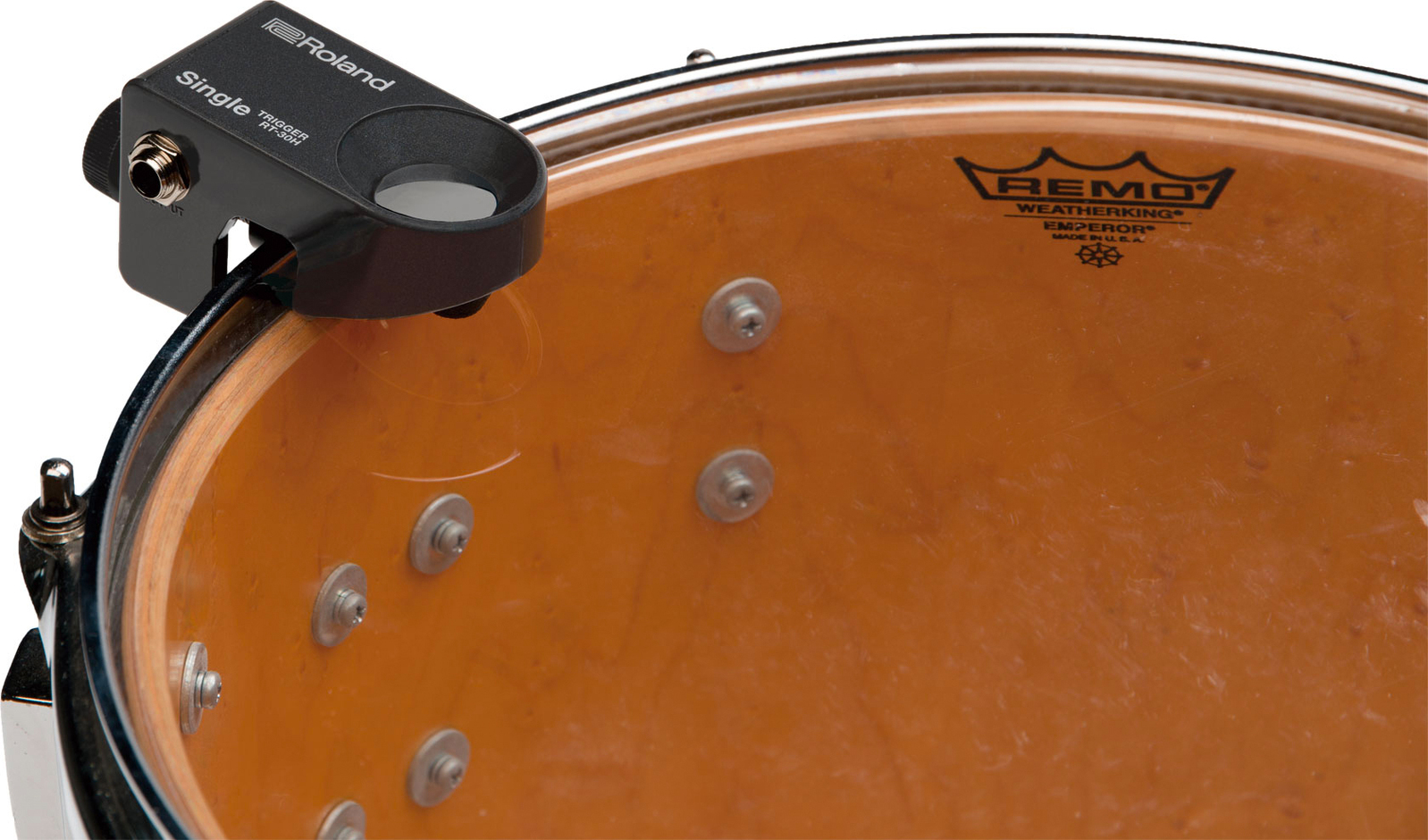

With exceptional trigger sensitivity, ultra-quick installation, and compatibility with the latest drum hardware, the streamlined RT-30 series sets a new standard for anyone wanting to explore hybrid drumming. Easy to install, the single-trigger RT-30H attaches securely to the metal rim of nearly any standard drum. The newly developed self-guided mount automatically sets the sensor in the optimum position against the drumhead, with no fussy mechanical adjustment needed after mounting.

FEATURES

• Advanced head-based trigger device for playing electronic sources from acoustic drums

• Compatible with Roland’s TM-2 Trigger Module, TD-series V-Drums sound modules, and SPD-series percussion pads

• Installs on nearly any metal drum hoop, including the latest inward-curved hoop styles

• Newly developed self-guided mount makes installation quick and easy

• 10 mm lower in profile than previous designs for increased playing comfort

• Durable fiberglass-reinforced ABS body and secure mounting mechanism for dependable operation

• Side-mounted trigger output jack for improved cable management

• TRS connection cable included

SPECIFICATIONS

Trigger: 1 (Head)
Connector: Output Jack (1/4-inch Phone Type)
Accessories:

• Owner's Manual

• Leaflet "USING THE UNIT SAFELY"

• Stereo Cable (3.5 m, 11.48 ft)

Guide for Installation:

• Rim Height: 8mm-13mm (0.31 inch - 0.51 inch), Rim Thickness (Max): 12mm (0.48 inch)

• Inward-Curved Allowance: 5mm (0.20 inch) * in the case of Inward-Curved hoop

Dimensions
Width: 39 mm / 1-9/16 inches
Depth: 112 mm / 4-7/16 inches
Height: 45 mm / 1-13/16 inches
Weight: 67 g / 0 lbs. 3 oz.
