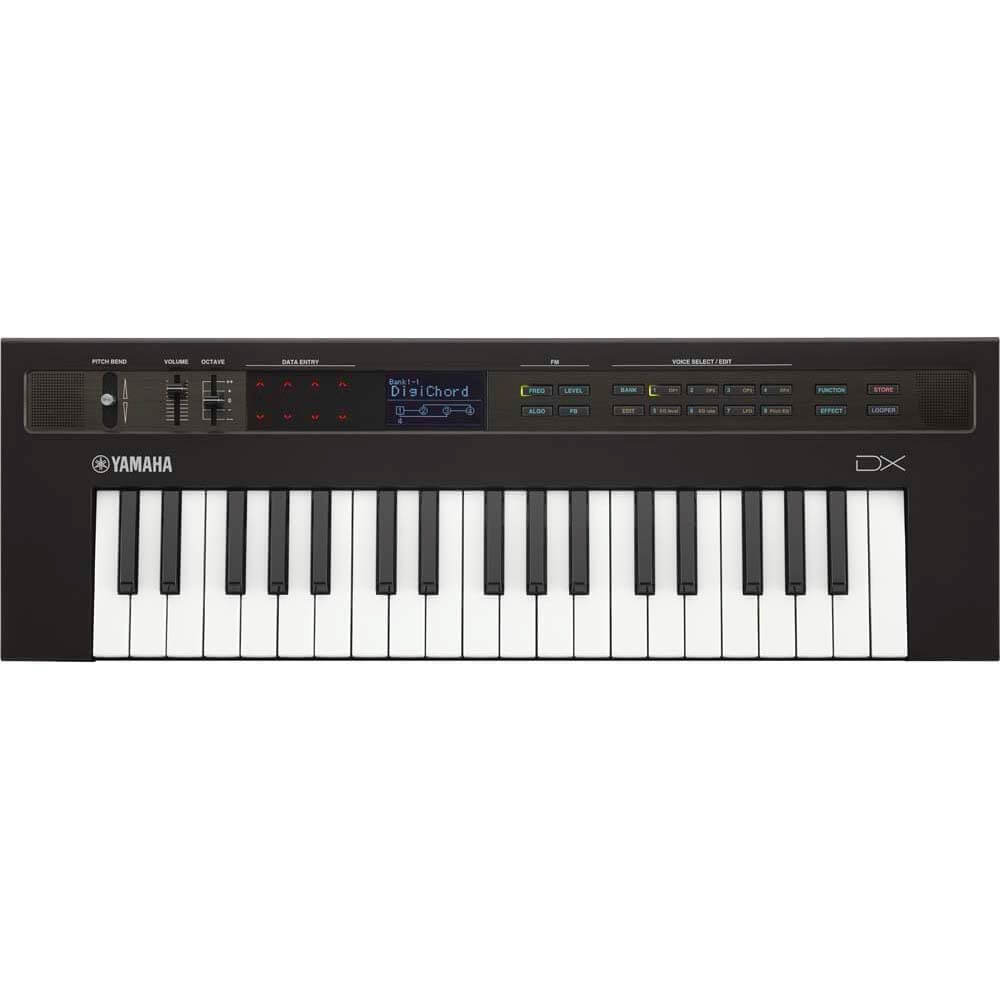

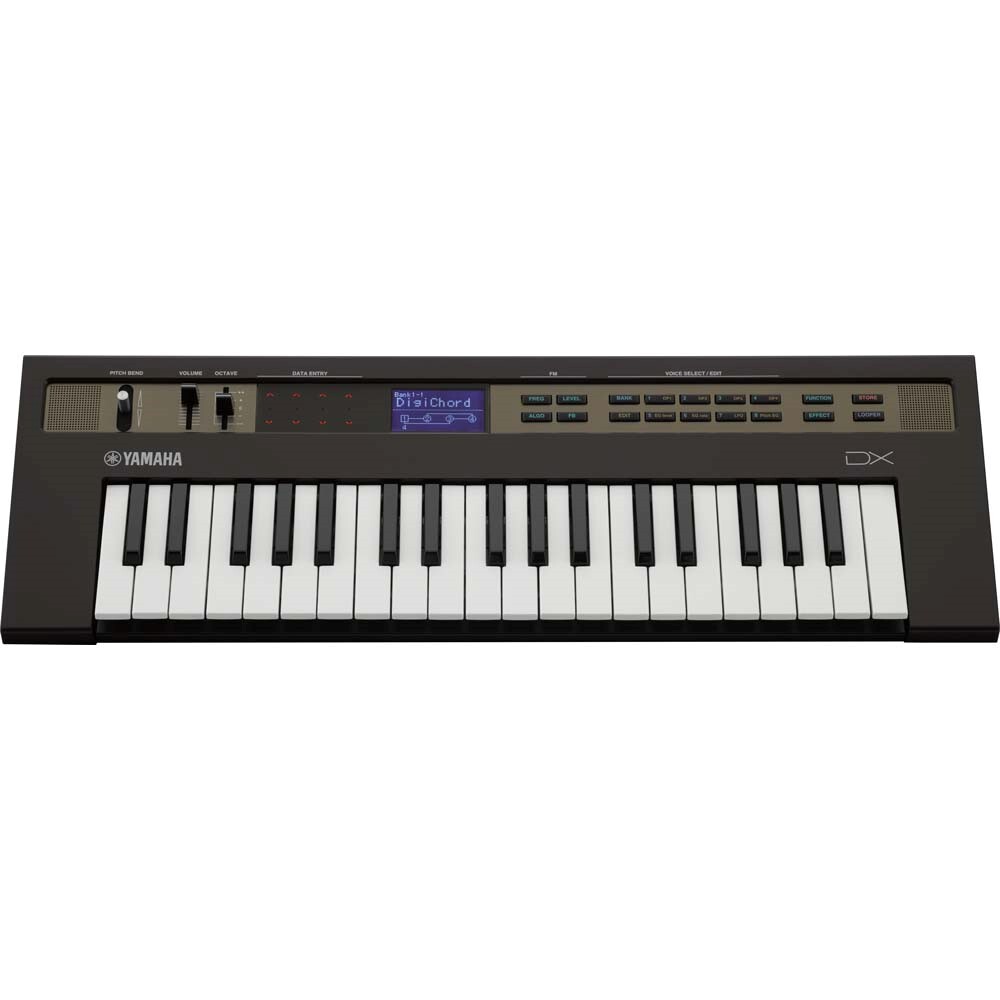

Yamaha Reface DX

Create your sound any place, any time.
For keyboardists, music creators and sound interfaces of classic reface Mobile Mini Keyboards are reimagined interfaces of classic Yamaha keyboards.

• 4-operator FM Sound Engine

• Continuously variable feedback on every operator

• Multi-touch controls

Legendary sound, modern size
Intuitively control big sound in a small size with four unique synth based on legendary Yamaha keyboards.

reface to go
Find inspiration any place, any time with built-in speakers and battery power

FM Section
Powerful and Intuitive FM section lets you easily edit FM sound.

32 presets
reface DX goes retro 80s to cutting edge modern at the flick of a switch.

Advanced Edit
Go from snorkeling to deep sea diving by hitting EDIT! Now you can dial in the exact sound detail that FM synthesis is known for.

Looper
Integrated MIDI Phrase Looper: capture song ideas or just jam

The integrated Looper lets you capture your performance and play it back. This is useful in a number of ways. First, you can use it to jam over top of a bass line or other ostinato part. Second, it's a great way to dial in a sound by tweaking the panel while the Looper plays for you.

2W 3cm stereo speaker system
All reface models feature a speaker system designed to “play right now!” The speakers utilize bass-reflex port technology, producing an unbelievably good sound from a compact speaker.

Long-lasting battery, up to 5 hours
The battery system is perfect for those moments when you’re waiting backstage, feeling inspired by the music you hear in the living room or even sitting in the passenger seat on a long road trip. Six “AA” batteries allow up to five hours of continuous performance. The included power supply allows reface to be used without batteries.

HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing
The HQ-MINI keyboard was developed to achieve the best possible playing feel. Its shape is the result of evaluating the acclaimed FS keyboard from our flagship synthesizers and the sturdy, highly durable pianica keyboard. Thanks to the crisp feel of the keys and the smooth playability throughout their entire range, this is a keyboard you'll love playing for a long time. All reface models come with a standard MIDI breakout I/O cable when you want to play reface from a full-size controller keyboard.

A Professional Connector Panel gives you all that you need on the stage or in the studio
The full sonic potential of the tone generator unfolds when connected to a PA system or a pair of high-quality, active speakers via built-in stereo 1/4" outputs. There's also a stereo 1/4" headphone jack and a foot controller input for sustain (reface CP/DX) or expression (reface CS/YC).

You can even monitor through the speakers or headphone jack via a 1/8" AUX IN.

Reface also features USB MIDI and traditional 5-pin DIN MIDI via an included adapter cable.

SPECIFICATIONS

Amplifiers: 2 W x 2
Speakers: 3 cm x 2
Power Consumption: 6 W (When using PA-130 power adaptor)
Battery Life: Approximately 5 hours
Auto Power Off: Yes
Power Adaptors: PA-130 or an equivalent recommended by Yamaha
Batteries: Six “AA” size batteries or Ni-MH rechargeable batteries
Included Accessories: AC adaptor, MIDI breakout cable, Owner’s Manual, Warranty
Number of Voice Types: 4 Operators, 12 Algorithms
Effects: Distortion/VCM Touch Wah/Chorus/VCM Flanger/VCM Phaser/Delay/Reverb
Number of Voices: 32 (memorable)
Width: 530 mm (20 7/8")
Height: 60 mm (2 3/8")
Depth: 175 mm (6 7/8")
Weight: 1.9 kg (4 lbs, 3 oz) (not including batteries)
Number of Keys: 37 keys
Type of Keys: HQ mini (High-Quality mini)
Initial Touch: Yes
Maximum Polyphony: 8
Engine: FM
Phrase Looper: Yes
Display Type: Full Dot LCD (128 x 64 dots)
DC IN: DC IN (12 V) jack
Headphones: PHONES (6.3 mm, stereo phone jack)
MIDI: MIDI (mini-DIN IN/OUT)
Aux In: AUX IN (3.5 mm, mini stereo phone jack)
Output: L/MONO, R (6.3 mm, TS phone jack, unbalanced)
USB TO HOST: USB (TO HOST)
Pedal Type: SUSTAIN: FC3(A), FC4(A), FC5 (optional)
Half Damper: NO (*Half damper's control message can be sent to external device via MIDI)
