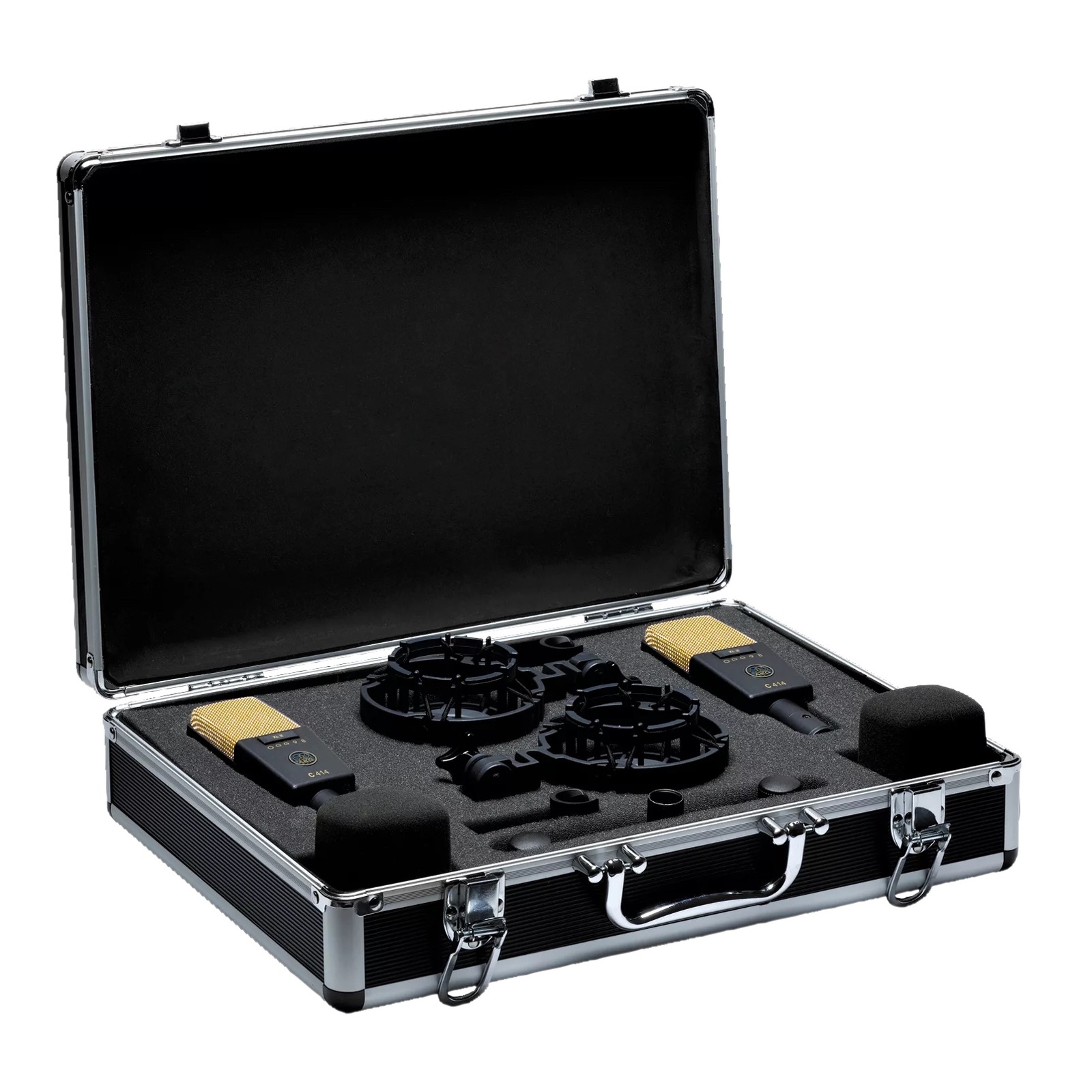

AKG C414 XLII Matched Pair

Perfect twins

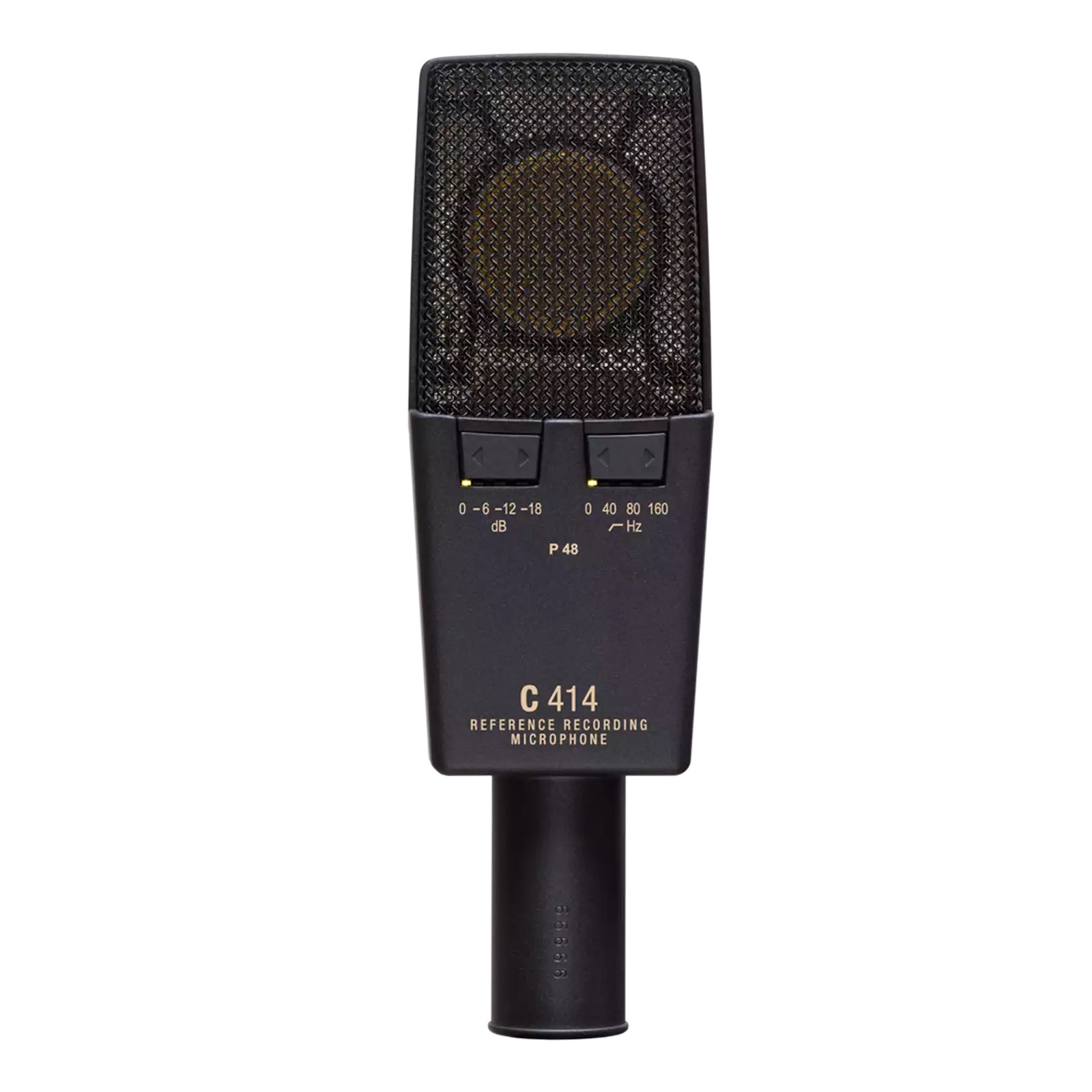

The C414 XLII reference multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

Sonic character of famous AKG C12
Delivers astounding sound quality for lead vocals and solo instruments

Nine selectable polar patterns
For the perfect setting for every application

Three attenuation levels (-6/-12/18dB)
For close-up recording or high-output sources of up to 158dB SPL

Three switchable different bass-cut filters
To reduce wind noise, stage vibration or proximity effect

Overload warning with audio peak hold LED
To detect shortest audio peaks

SPECIFICATIONS

Audio frequency bandwidth: 20 - 20000 Hz
Equivalent noise level: 6 dB-A
Sensitivity: 23 mV/Pa
Signal to Noise: 88 dB-A
Preattenuation Pad: -6; -12; -18 dB
Bass cut filter: 160; 80; 40 Hz
Electrical impedance: 200 Ohms
Recommended load impedance: 2200 Ohms
Polar Patterns: Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, and Figure of Eight

Dimensions

Length: 38 mm
Width: 50 mm
Height: 160 mm
Net Weight: 300 g

Design

Finish: Dark gray/Gold

Audio Output

Type: Balanced XLR
Gender: Male
Contacts: 3-pin

Powering Interface

Voltage: 44 to 52 V
Current: 4.5 mA

Application

Pro Studio: Yes

Instrument

Vocals: Yes
Piano / Strings: Yes
Horns / Woodwinds: Yes
