Charvel Pro-Mod DK24 HH 2PT CM Matte Blue Frost

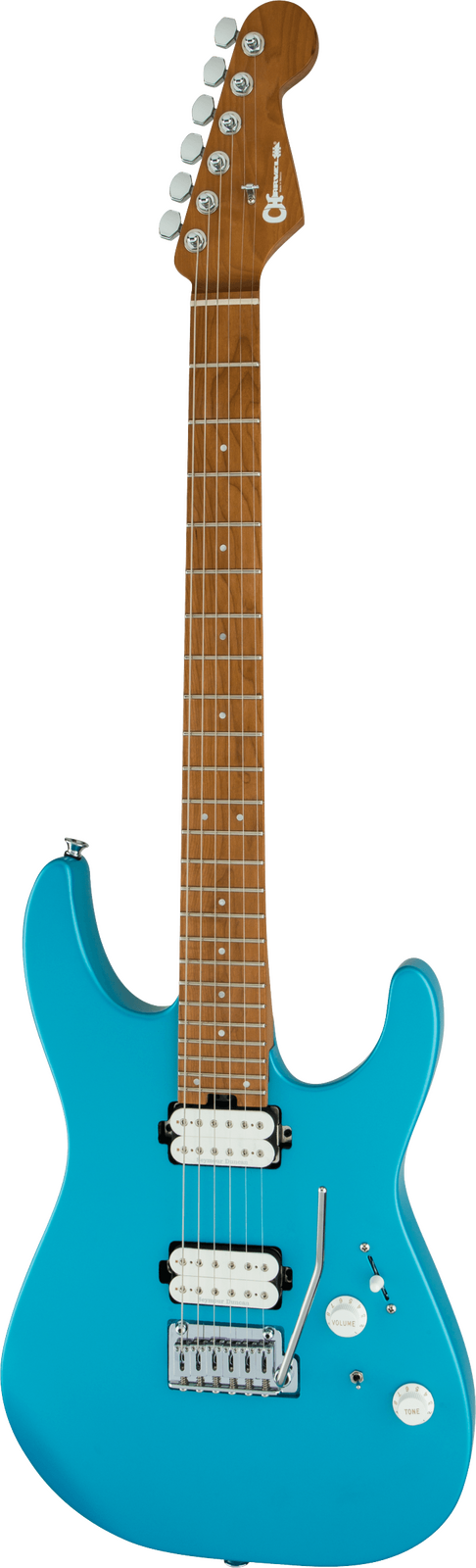

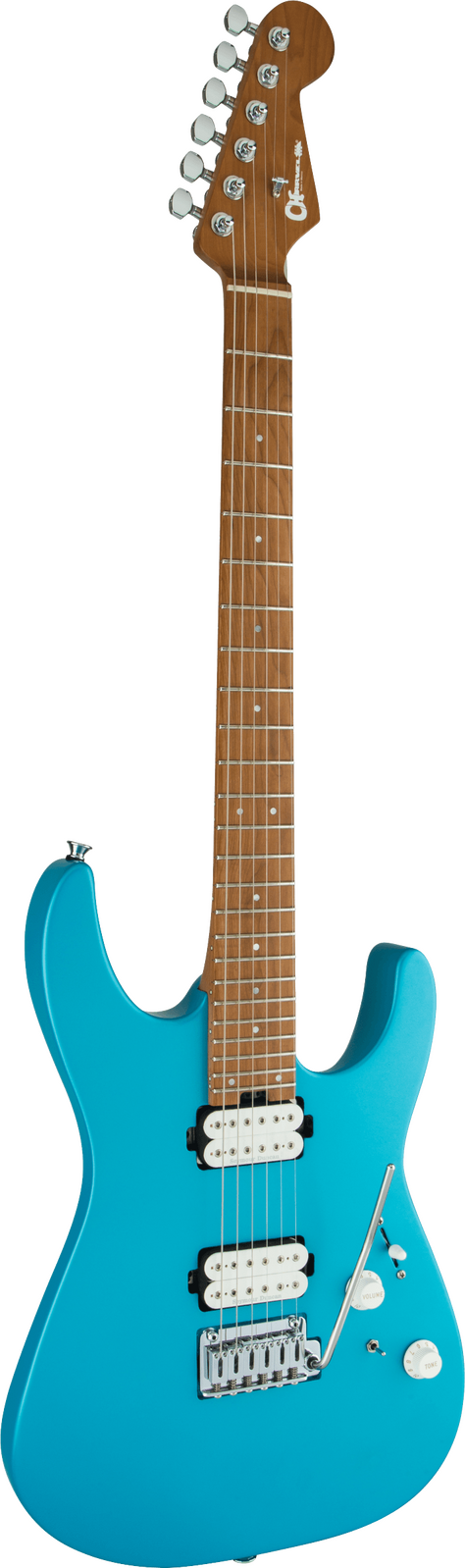

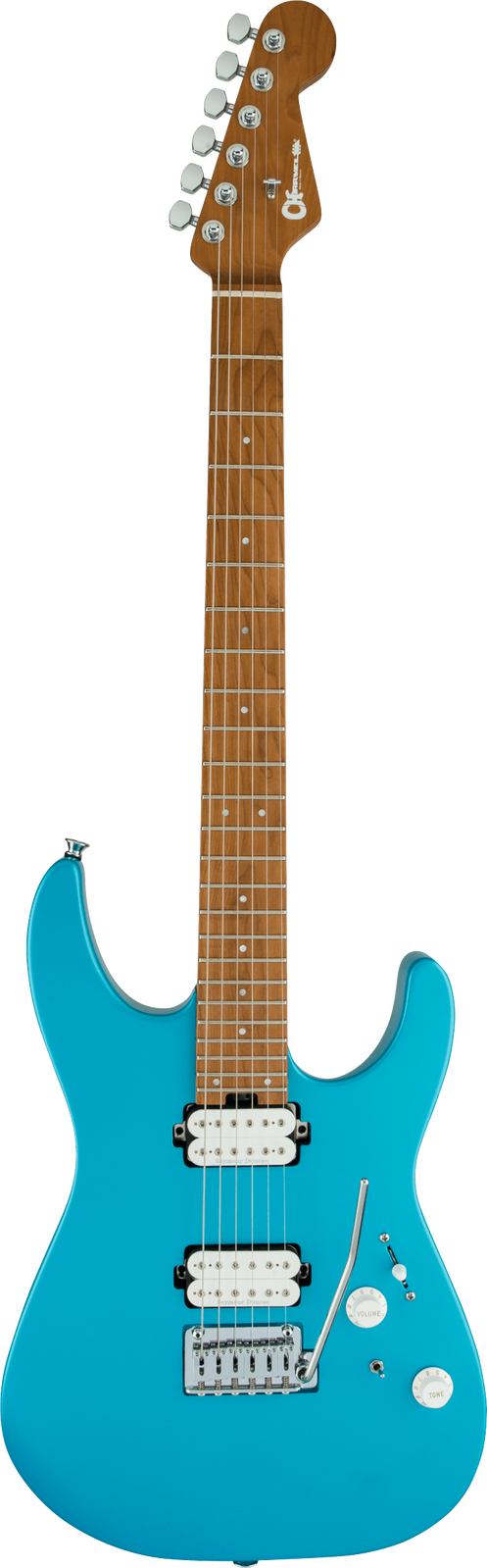

Featuring a sculpted shredder's cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky® style is cloaked in several stage-stealing finishes - Gloss Black, Matte Blue Frost, Satin Burgundy Mist or Three-Tone Sunburst.

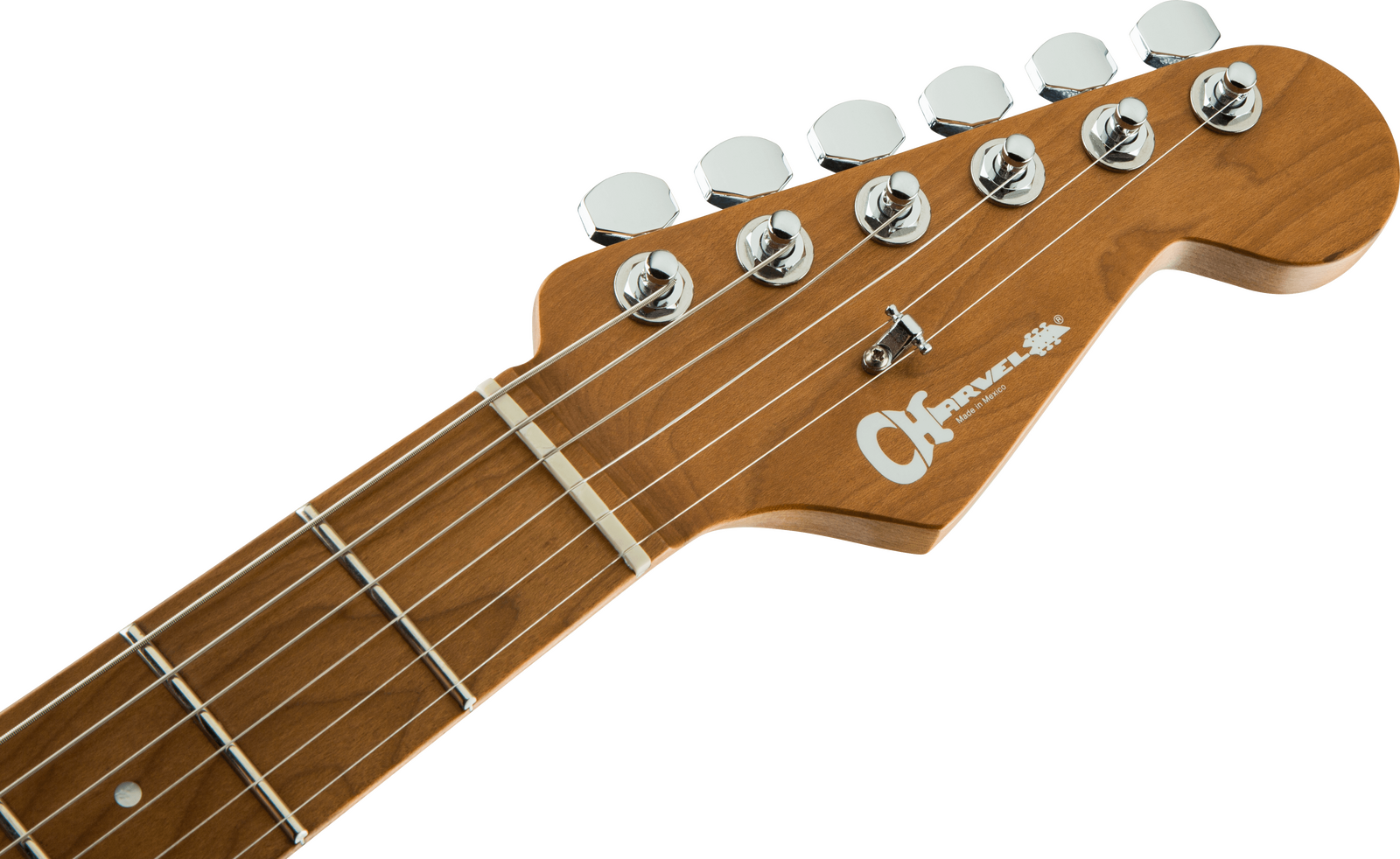

The bolt-on caramelized maple "speed" neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

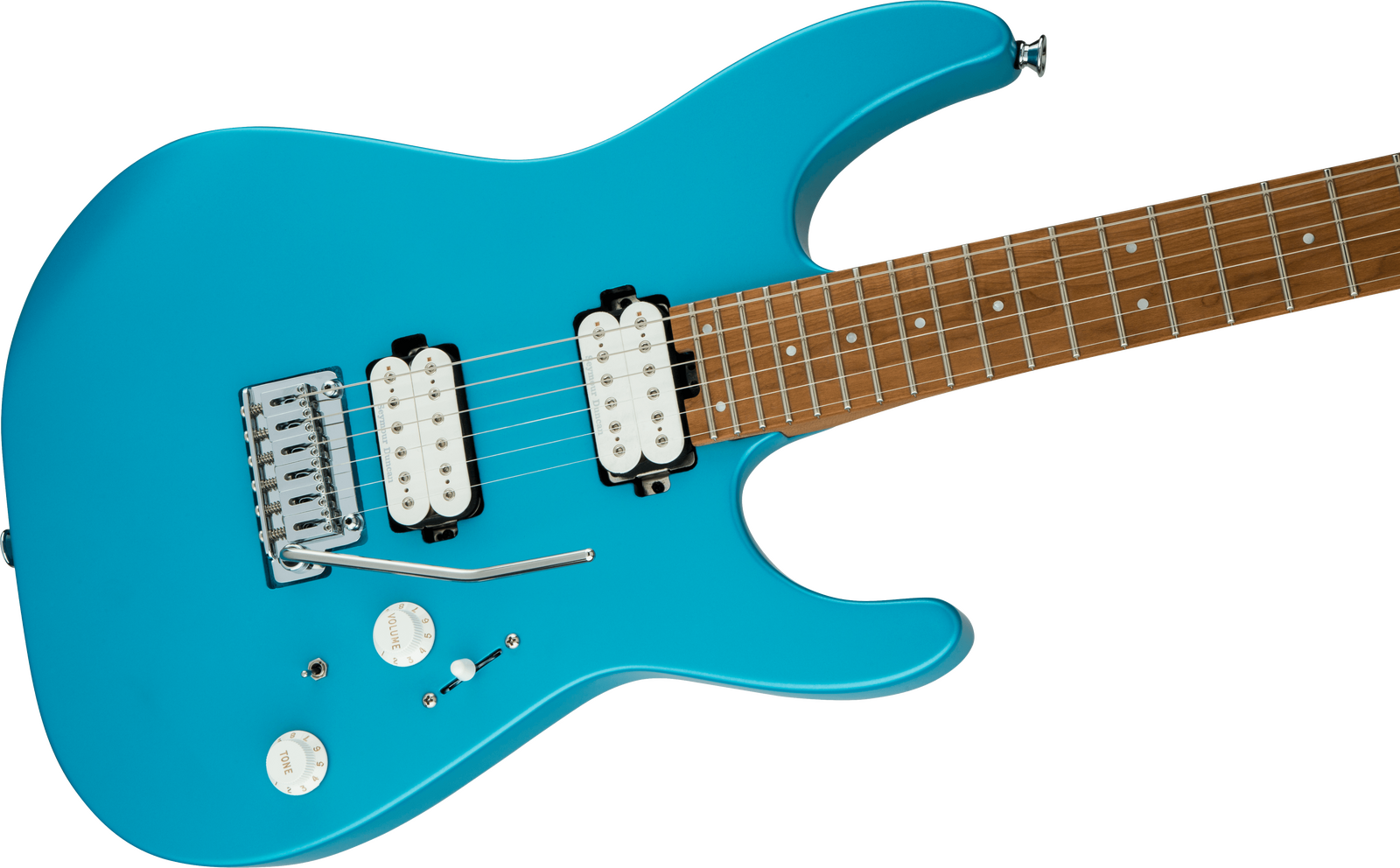

Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred TB-10 bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Blending sophisticated style with assertive tone, the DK24 HH 2PT CM also offers premium modern features such as a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.

• 25.5" scale length

• Alder Dinky® body

• Scalloped lower back bout for easy upper access to fingerboard

• Bolt-on caramelized maple neck with graphite reinforcement

• Sculpted shredder's cut heel

• 12"-16" compound radius caramelized maple fingerboard with 24 jumbo frets and pearloid dot inlays

• Graph Tech® TUSQ® XL nut

• Heel-mount truss rod adjustment wheel

• Direct mount Seymour Duncan® Custom Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico II Pro APH-1N neck pickup

• Five-way blade switch, Stratocaster®-style skirt knobs for no-load tone control and volume knob (with 500K EVH® Bourns™ low-friction potentiometer)

• Mini two-way toggle switch for parallel and series pickup combinations

• Gotoh® Custom 510 recessed tremolo bridge

• Charvel-branded die-cast locking tuners

• Available in Gloss Black, Matte Blue Frost, Satin Burgundy Mist or Three-Tone Sunburst with chrome hardware

SPECIFICATIONS

General
Series: Pro-Mod
Orientation: Right-Hand
Color: Matte Blue Frost
Country Of Origin: MX

Neck
Headstock: Licensed Fender® Stratocaster®
Neck Material: Caramelized Maple
Neck Finish: Hand-Rubbed Urethane
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Construction: Bolt-On with Graphite Reinforcement
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Caramelized Maple
Position Inlays: 4mm Pearloid Dot
Number of Frets: 24
Truss Rod: Dual-Action with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Nut Material: Graph Tech TUSQ XL

Body
Body: Alder
Body Finish: Satin
Body Shape: Dinky®
Body Style: Solid Body
Body Material: Alder

Hardware
Bridge: Gotoh® Custom 510 Tremolo
Pickguard: None
Pickup Covers: Flat Parchment
Control Knobs: Strat®-Style Skirt
Switch Tip: Parchment
Hardware Finish: Chrome
Tuning Machines: Charvel®-Branded Die-Cast Locking
String Trees: Fender® Standard String Guide
Strings: Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Gotoh®
Neck Plate: None - 4-Bolt Sculpted Heel
Strap Buttons: Standard

Electronics
Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
Pickup Configuration: HH
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
Auxiliary Switching: 2-Position Mini Toggle Down/All Series, Up/All Parallel

Measurements
Dimensions: 4.50x15.20x42.00 IN
Shipping Weight: 10.45 LB
Fret Size: Jumbo
Scale Length: 25.5" (64.77 cm)
Shipping Length: 42.00 IN
Shipping Height: 4.50 IN
Shipping Width: 15.20 IN

Accessories
Saddle Height Wrench: Yes
