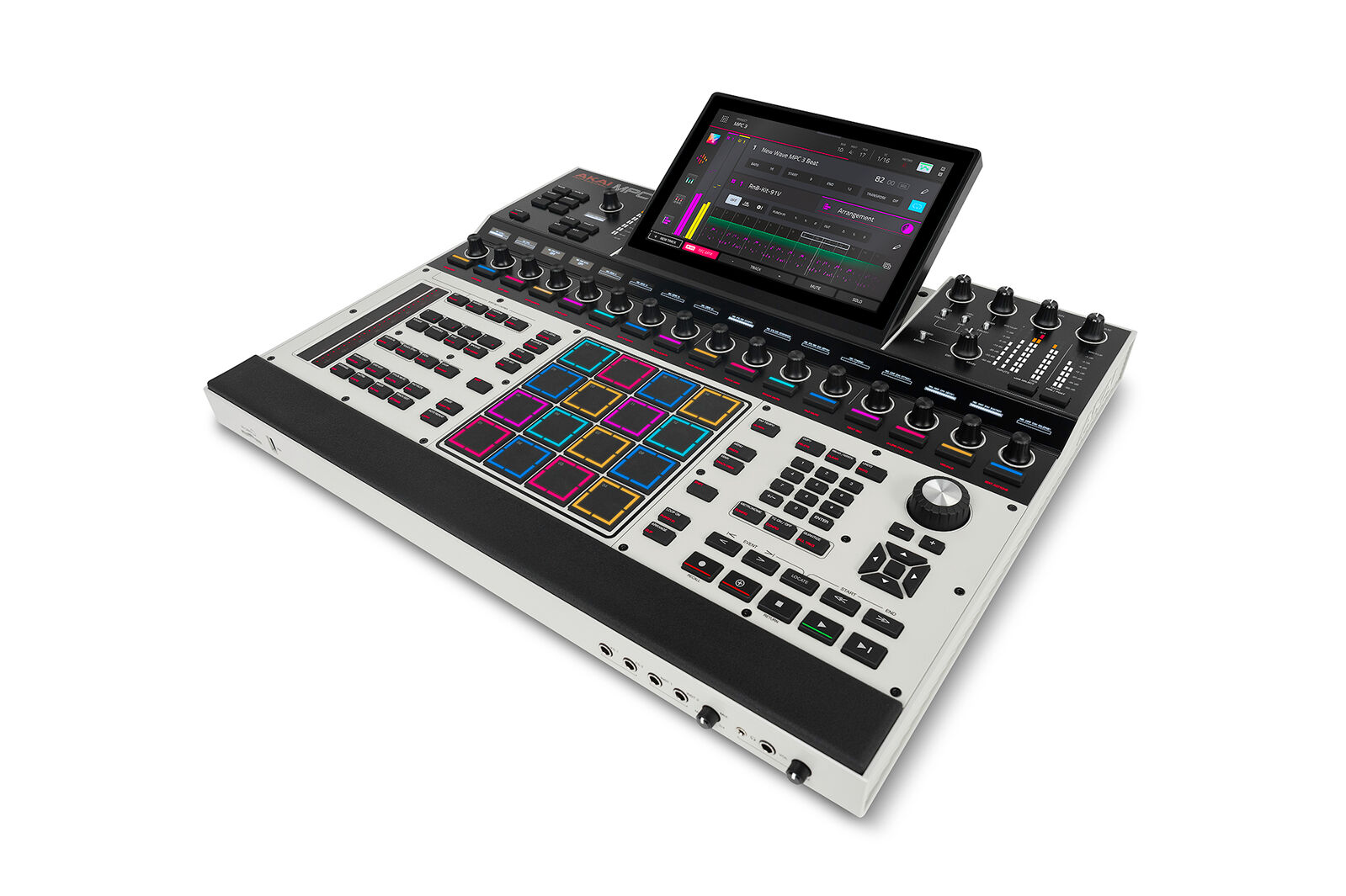

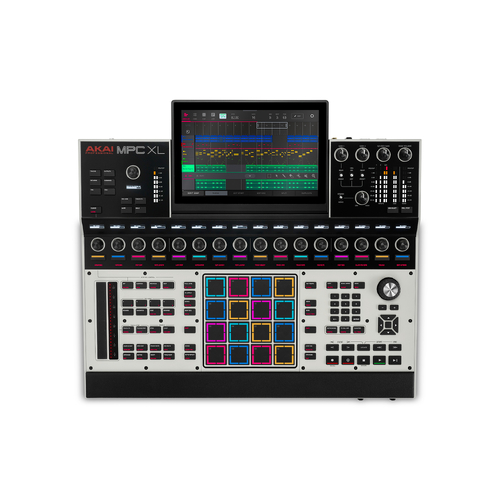

Akai MPC XL

$4,499.00
RRP $4,799.00

See more from AKAI

SKU: 69MPC-XL

In stock at warehouse. Allow additional days for shipping or to collect in-store.

Important Warehouse Shipping Information

Our website has the ability to display products that are in stock at our various supplier warehouses around the country, which allows us to provide a much broader product range for our customers. This is one of those products.

Some of our suppliers are able to ship products directly to you, while others need to ship to us before they are shipped to you. It is important to note that for products that are shipping from one of our supplier warehouses, either directly to you or via our Hobart store, we are unable to control how quickly the order will be dispatched, or the shipping method or service that will be used.

If you would like to know more information about shipping times and methods that apply to this product, please feel free to contact us.

Calculate Shipping

Free Shipping - $0.00
Shipping will be booked with the relevant carrier based on your location.

MPC XL puts the power of a full studio right at your fingertips. The most advanced MPC yet, this all-in-one production hub is made for more than sampling and sequencing alone. It’s designed to give you complete creative freedom over every sound, loop, sample, sequence, or idea for your next best beat. It’s your entire workflow—made to work for you.

The Akai Pro MPC XL elevates the legacy of the world’s most influential sampling drum machine: the MPC.

Designed for computer-free, music-making workflows, MPC XL is the pinnacle of standalone power. This studio centerpiece features ultra-responsive MPCe pads, a dedicated step sequencer with 16 function modes, 16 touch-responsive Q-Links with OLED displays, a next-gen 8-core processor, 16 GB RAM, a hands-on performance touch-strip, and one-to-one surface control buttons. Building on the flexible, performance-first features MPC users love, MPC XL offers advanced sequencing, clip launching, pro stem separation, high-quality time-stretching, and powerful I/O connectivity.

Seamlessly integrated with MPC3 OS, this all-in-one system can load up to 32 plugin instruments and 16 audio tracks, with support for up to 256 simultaneous voices, making it a studio-grade workhorse that’s perfect for today's fast-moving producers.

FEATURES

Standalone hardware with MPC3 OS for a streamlined workflow
Gen 2 8-core processor with 4x the processing power of previous MPCs
16GB RAM for running multiple plugins simultaneously
256GB internal SSD storage for saving projects, plug-in instruments, samples, and presets

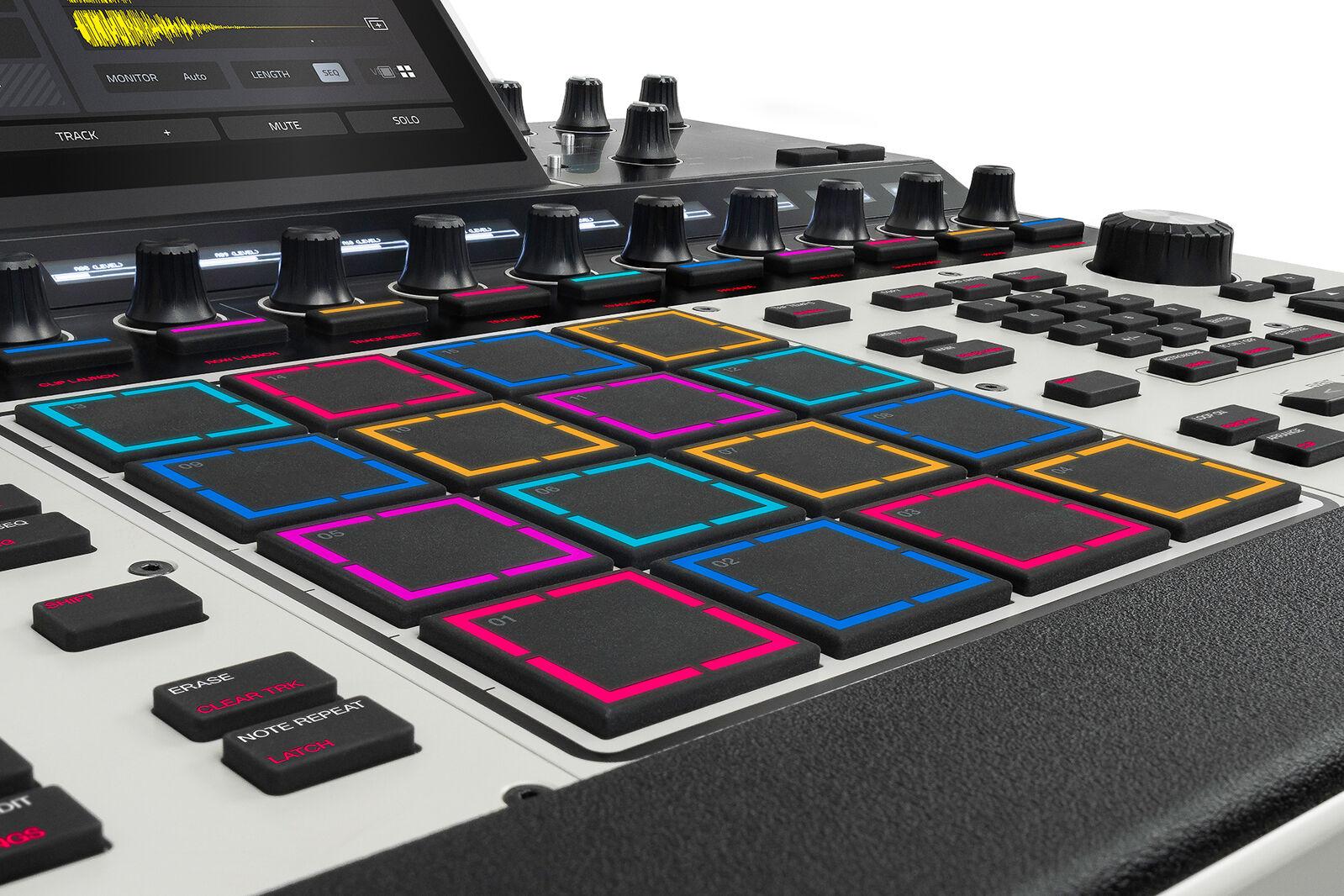

Expressive MPCe pads with 3D-sensing technology with 4 quadrants per pad
Assignable performance touch-strip for tactile control of Performance FX, note repeats, Channel faders, and more
Step sequencer with 16 RGB function buttons
16 Q-Link knobs with performance-control OLEDs for immediate visual feedback

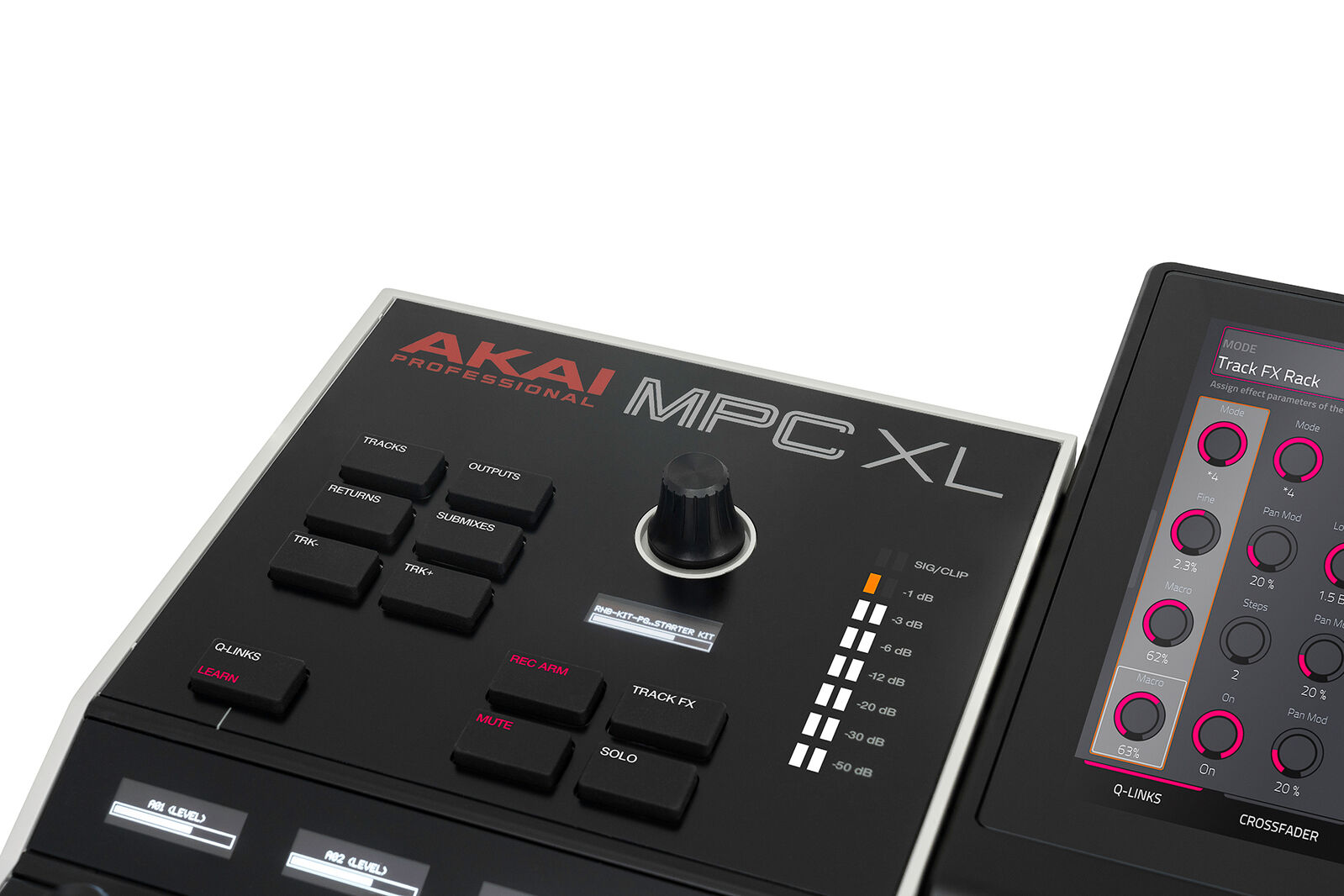

XL Channel Command allows for quick access to mixing and recording parameters (including level, sends, and outputs) at the touch of a button—with a dedicated OLED display and encoder for parameter control and visual feedback
One-to-one function buttons for immediate access to every feature
10.1” HD multi-gesture touchscreen with tilt
2 XLR/TRS combo inputs with mic preamps and phantom power for crystal-clear recordings
2 dedicated instrument inputs for recording guitars and keyboards
8 separate line outputs for external routing and mixing
USB-C connectivity for 24 channels of audio I/O, 32 channels of MIDI IO, and easy connectivity to sample from smart devices
8 stereo 1/8” CV/Gate outputs for a total of 16 CV outs
Wi-Fi and Bluetooth To enable wireless collaboration and file transfer
MPC Pro Pack. Powered by next-gen MPC3 OS and enhanced with new MPC Pro Pack features like studio-grade time-stretch, clip-launching, expanded CV control, and new pro plugins
Clip Matrix. Clip launch workflow for enhanced song arranging and performance

SPECIFICATIONS

Digital Audio System
ADCs: 24-bit @ 44.1, 48, or 96 kHz
DACs: 24-bit @ 44.1, 48, 88.2, or 96 kHz
Digital Signal Processing: 32-bit floating point

Mic Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm): TRS
Frequency Response: 20 Hz – 20 kHz (+0.19 / -0.16 dB)
Dynamic Range: 109.8 dB (A-weighted)
SNR: 109.3 dB (1 kHz, +4 dBu, A-weighted)
THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
Preamp EIN: -134 dBu (max gain, 40 Ω source, A-weighted) -129 dBu (max gain, 150 Ω source, unweighted)
Maximum Input Level: +12.7 dBu
Sensitivity: -45.5 dBu
Gain Range: 58.2 dB

Line Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm): TRS
Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
Dynamic Range: 109.8 dB (A-weighted)
SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
Maximum Input Level: +20.1 dBu
Sensitivity: -9.6 dBu
Gain Range: 29.7 dB

Line Inputs 3–4
(2) balanced XLR+1/4” (6.35 mm): TRS
Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
Dynamic Range: 110.8 dB (A-weighted)
SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
Maximum Input Level: +20.3 dBu
Sensitivity: -10.3 dBu
Gain Range: 30.6 dB

Instrument Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm): TRS
Frequency Response: 20 Hz – 20 kHz (+0.15 / -0.05 dB)
Dynamic Range: 111.0 dB (A-weighted)
SNR: 109.6 dB (1 kHz, +0 dBu, A-weighted)
THD+N: 0.0013% (1 kHz, +0 dBu, -1 dBFS)
Maximum Input Level: +10.1 dBu
Sensitivity: -19.6 dBu
Gain Range: 29.7 dB

Phono Inputs
(2) unbalanced RCA
Dynamic Range: 103.3 dB (A-weighted, 65 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)
SNR: 97 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)
THD+N: 0.036% (1 kHz, -46 dBu, -1 dBFS)
Maximum Input Level: 65 mVrms (1 kHz)
Sensitivity: 2 mVrms (1 kHz)

Main Outputs 1–2
(2) impedance-balanced 1/4” (6.35 mm) TRS
Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
Dynamic Range: 115.6 dB (A-weighted)
THD+N: 0.003% (1 kHz, -1 dBFS)
Maximum Output Level: +20.3 dBu
Output Impedance: 100 Ω

Line Outputs 3–8
(6) impedance-balanced 1/4” (6.35 mm) TRS
Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.24 dB)
Dynamic Range: 116.3 dB (A-weighted)
THD+N: 0.005% (1 kHz, -1 dBFS)
Maximum Output Level: +20.4 dBu
Output Impedance: 100 Ω

Headphone Output
(1) 1/4” (6.35 mm) stereo headphone
(1) 1/8” (3.5 mm) stereo headphone
Dynamic Range: 100.6 dB (A-weighted)
THD+N: 0.025% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)
Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
Maximum Power Delivered: 260 mW (<1% THD, 32 Ω headphones)
Maximum Output Level: +20.4 dBu
Output Impedance: 32 Ω

Pads:

(16) velocity- and pressure-sensitive pas with 3D-sensing technology
(8) banks (selectable via Pad Bank buttons)

Knobs:

(17) 360° touch-sensitive Q-Link knobs
(1) 360° encoder with push
(7) 270° knobs (gain, mix, level)

Buttons:

(105) dedicated buttons
(36) single-color LED
(43) dual-color LED
(1) dual color + red
(17) RGB LED
(8) unlit

Display:

(1) 1280×800 full-color, optically bonded, multi-touch display (10.1” / 256.5 mm)
(17) monochrome 128×32 OLED displays

CPU
Processor: 8-core processor
RAM: 16 GB
Storage: 256 GB internal NVMe SSD + SATA expansion bay

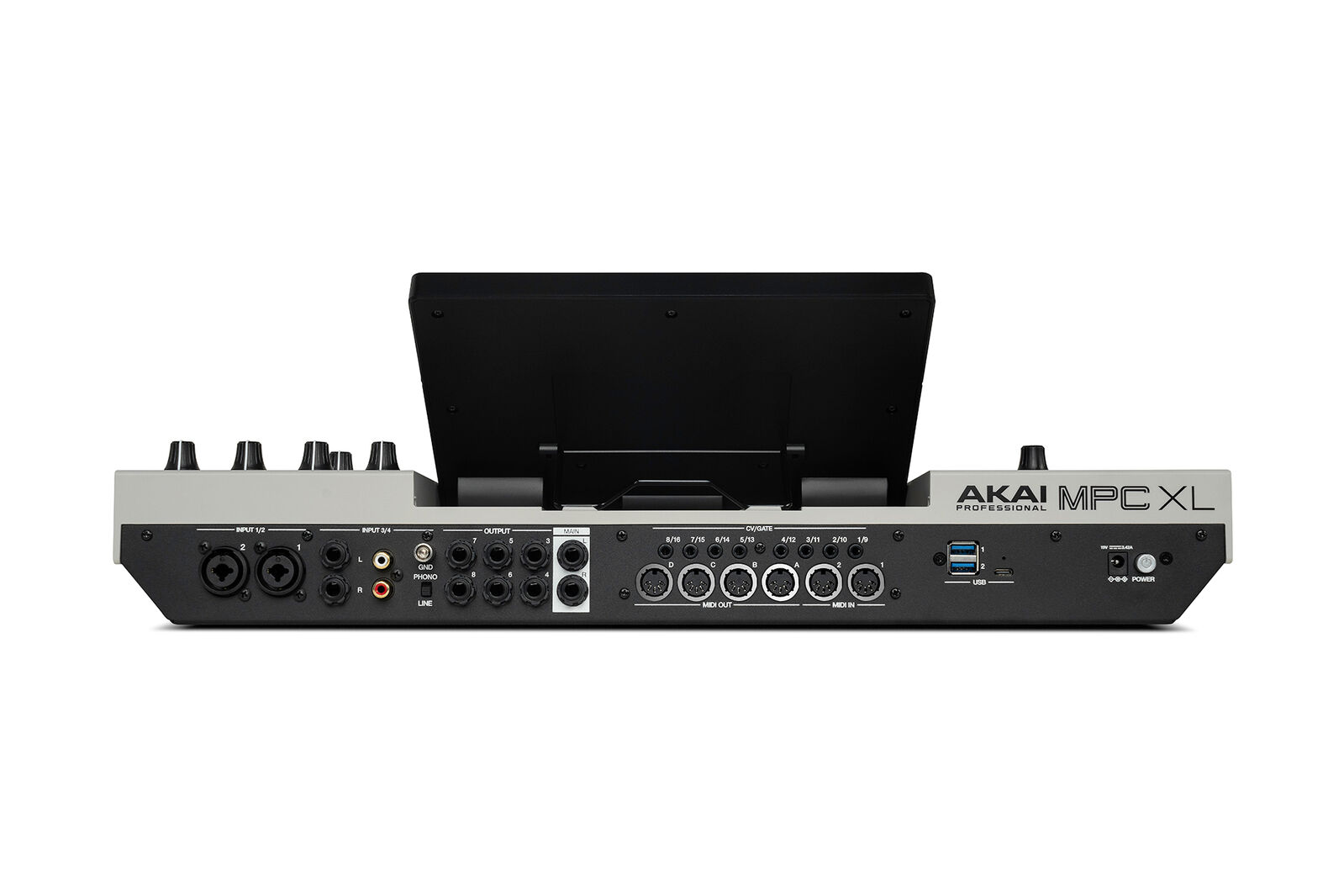

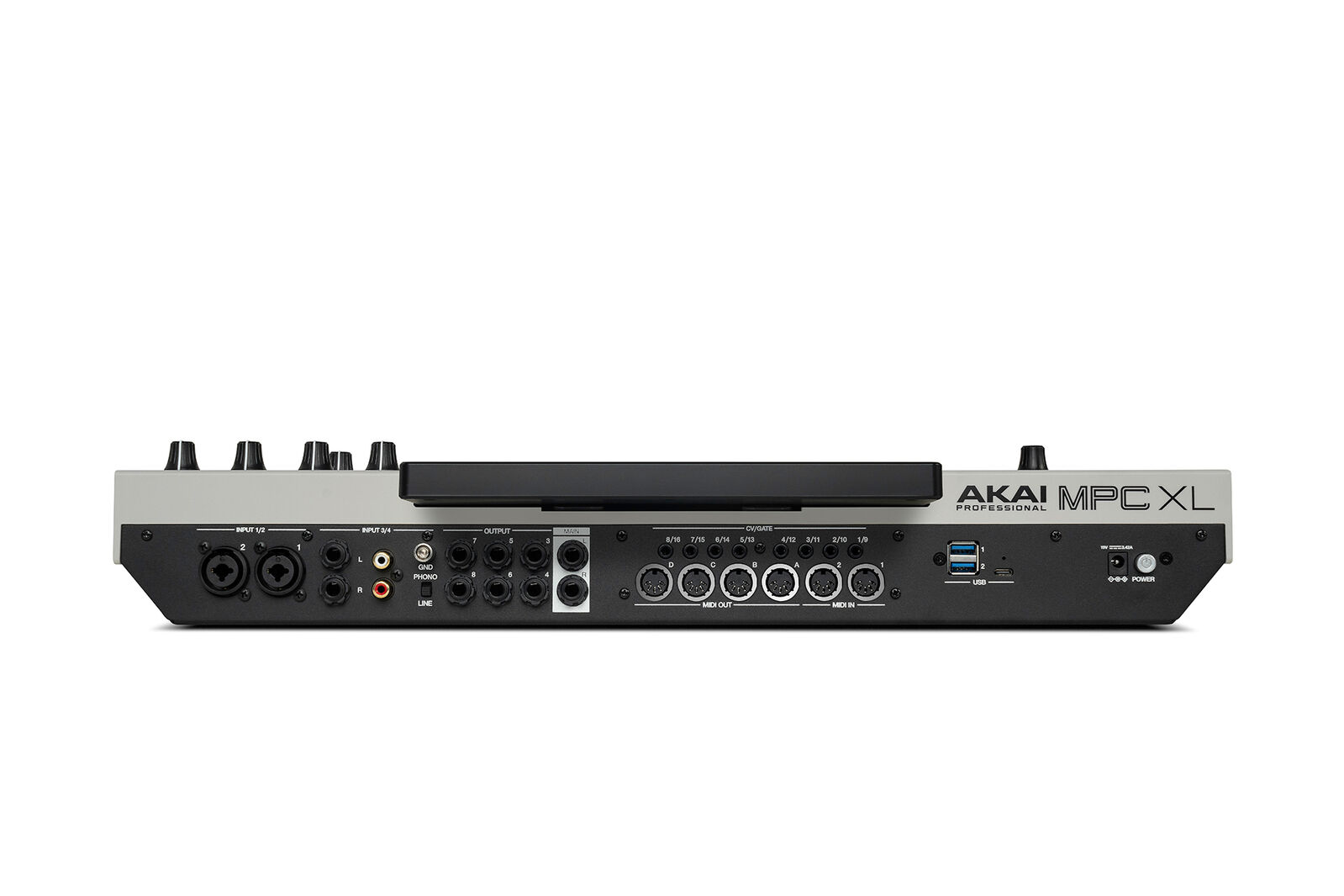

Connections:

(2) 1/4” (6.35 mm) combo XLR/TRS inputs (stereo pair)
(2) 1/4” (6.35 mm) TRS line inputs (stereo pair)
(2) RCA phono inputs (stereo pair)
(2) 1/4” (6.35 mm) instrument inputs
(2) 1/4” (6.35 mm) TS footswitch inputs
(8) 1/4” (6.35 mm) TRS outputs (4 stereo pairs)
(1) 1/4” (6.35 mm) stereo headphone output
(1) 1/8” (3.5 mm) stereo headphone output
(4) 5-pin MIDI outputs
(2) 5-pin MIDI inputs
(8) stereo 1/8” (3.5 mm) CV/Gate outputs
(1) USB Type-C port
(3) USB Type-A ports
(1) SD card slot
(1) power adapter input
(1) drive bay for 2.5” SATA drive

Wireless

Wi-Fi
Bluetooth

Power

via power adapter:
19 V, 3.42 A, center-positive (adapter included)

Dimensions

21.4” × 19.2” × 3.7”
543 × 488 × 94 mm

Weight

15.87 lbs
7.2 kg
