Alesis Strike Amp 12 MK2

Powerful Partner for Electronic Drums

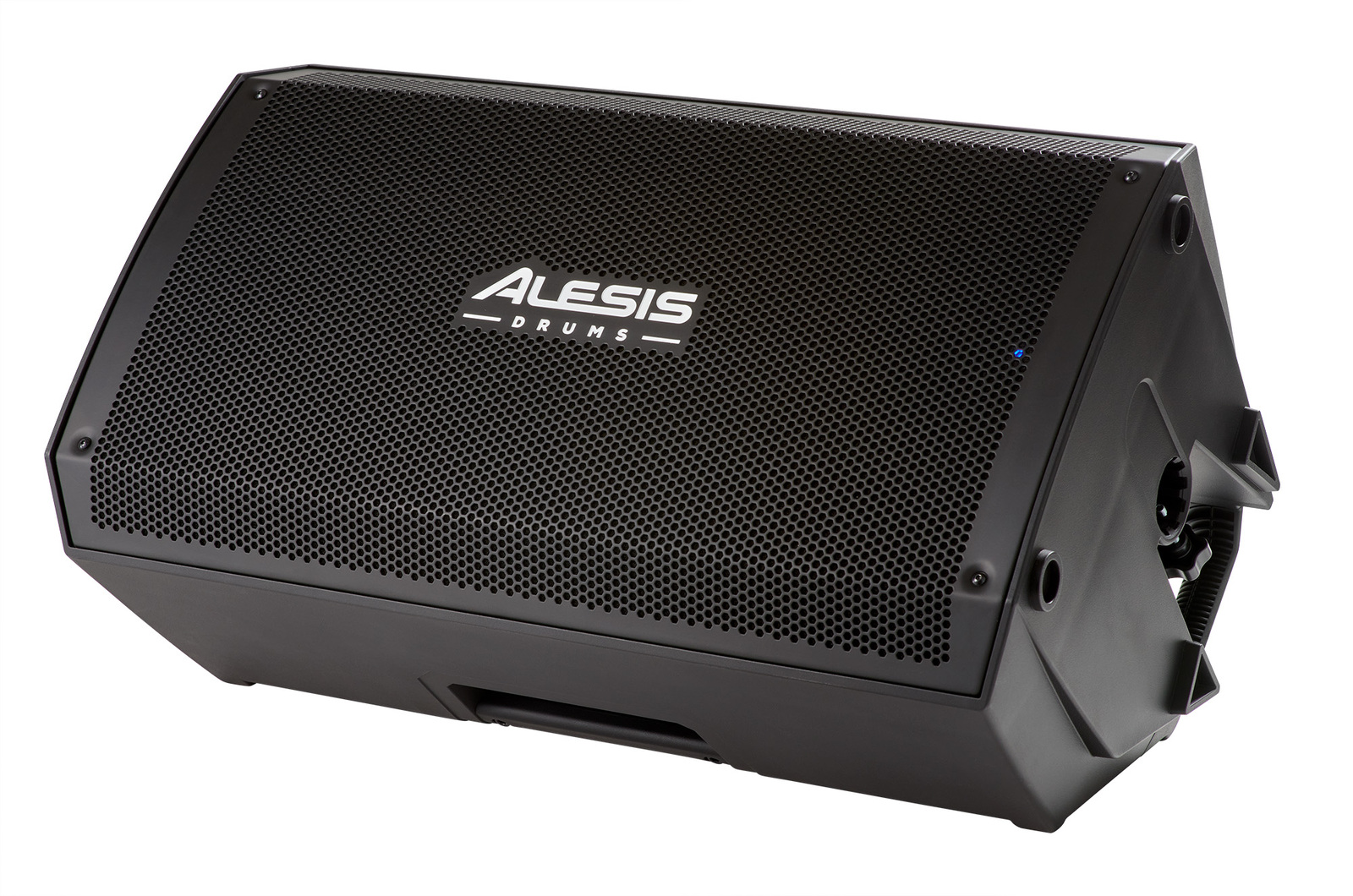

The Alesis Strike Amp 12 MK2 is a high-performance bi-amped speaker specially designed for Electronic Drums. It outputs a massive 2500 watts, so you have enough headroom for almost any performance or rehearsal. The heavy duty 12” woofer and 1” high-frequency compression driver are tuned for a flat response across the spectrum to deliver the most accurate and authentic representation of acoustic and electronic drum sounds from your instrument. Strike Amp 12 MK2’s performance is exceptional, with a max 132dB SPL and a 44-20kHz frequency range; wide enough to deliver the full thump of your kick drum, right up to the crystal-clear snap of your snare and hi-hats.

FEATURES

• Powerful, Professional Sound
  2500 watts of peak power ensures you have enough headroom for almost any live performance or rehearsal

• Precision-Tuned for Electronic Drums
  The cabinet design, 12” woofer, and 1” HF compression driver are designed to deliver a full and realistic reproduction of acoustic and electronic drum sounds

• Bluetooth® Enabled
  Stream music wirelessly from your mobile device into Strike Amp 12 MK2’s dedicated Bluetooth® channel

• All the Connectivity You Need
  Two combo XLR + 1/4" inputs with independent volume controls and an XLR direct mix output allow for chaining multiple speakers or sending your mix to front-of-house

• Quickly Adapts to Venues and Rooms
  Strike Amp 12 MK2 has a ground lift switch for eliminating noise issues caused by ground loops and a HPF EQ switch to help cut through muddy stage mixes

• Lightweight, Flexible and Sturdy
  Weighing just 34.7lbs / 15.7kg, Strike Amp MK2 is rugged yet easy to transport and can be used in a wedge, upright, or pole-mounted position

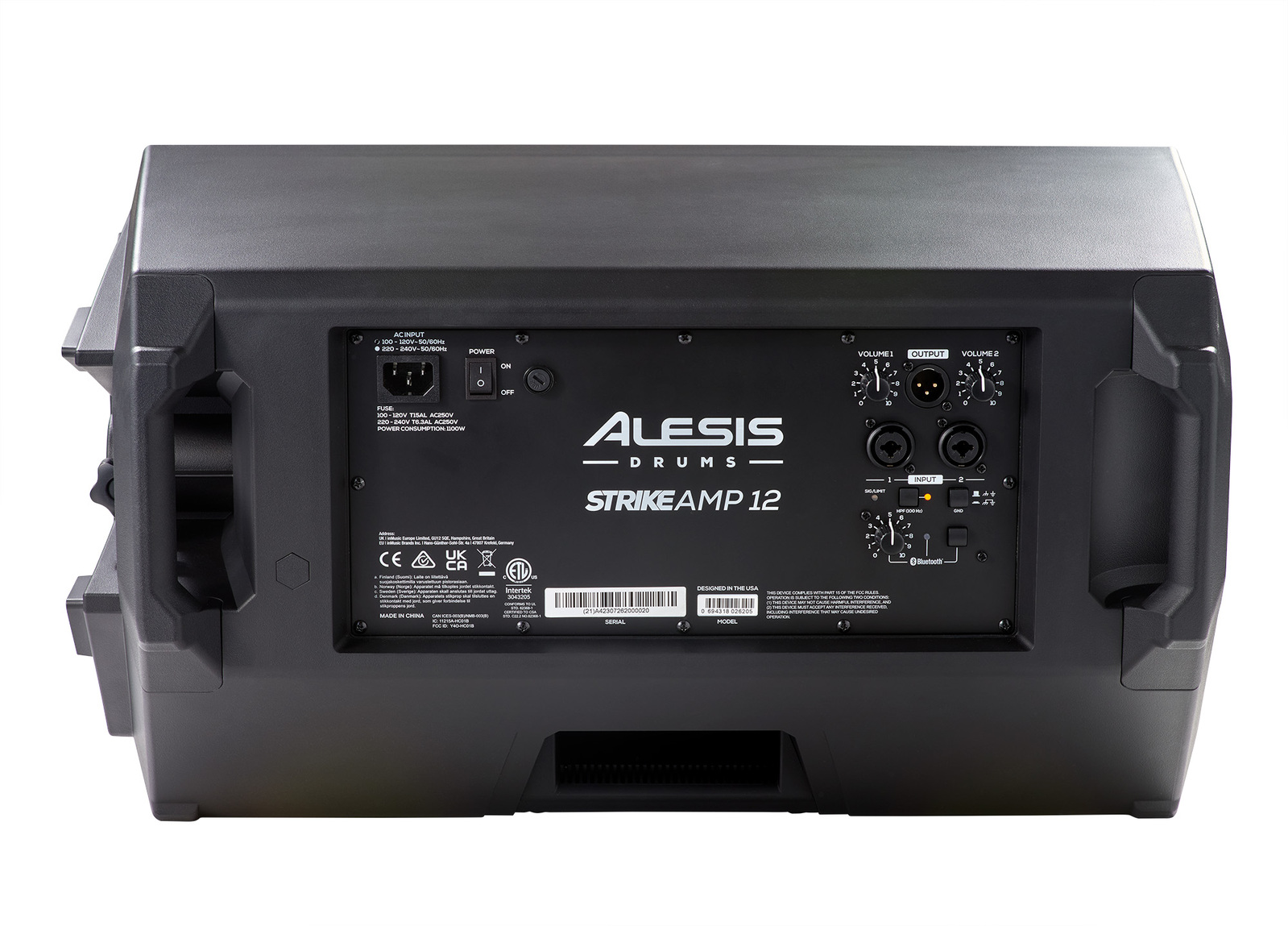

All the Connections You Need - including Bluetooth®
Strike Amp 12 MK2 features two combo XLR + 1/4" combo inputs for connecting your electronic drum kit and/or a multipad instrument, each with their own independent volume controls. You can also wirelessly connect a mobile device to the Strike Amp 12 MK2 via Bluetooth, so you can stream music wirelessly while rehearsing or during set breaks. There is also an XLR output for chaining more than one speaker together or sending the signal from your Strike Amp out to a front of house mix.

Adapts to Any Stage or Room
Stages and rehearsal rooms can easily become dense and muddy sounding as lower frequencies from different instruments battle each other; Strike Amp 12 MK2 has a HPF EQ switch to quickly pull troublesome frequencies out and make sure your tone sits perfect in the mix. Unwanted electrical noise can also be a common problem; Strike Amp 12 MK2’s ground lift switch can eliminate hums and buzzes resulting from ground loops.

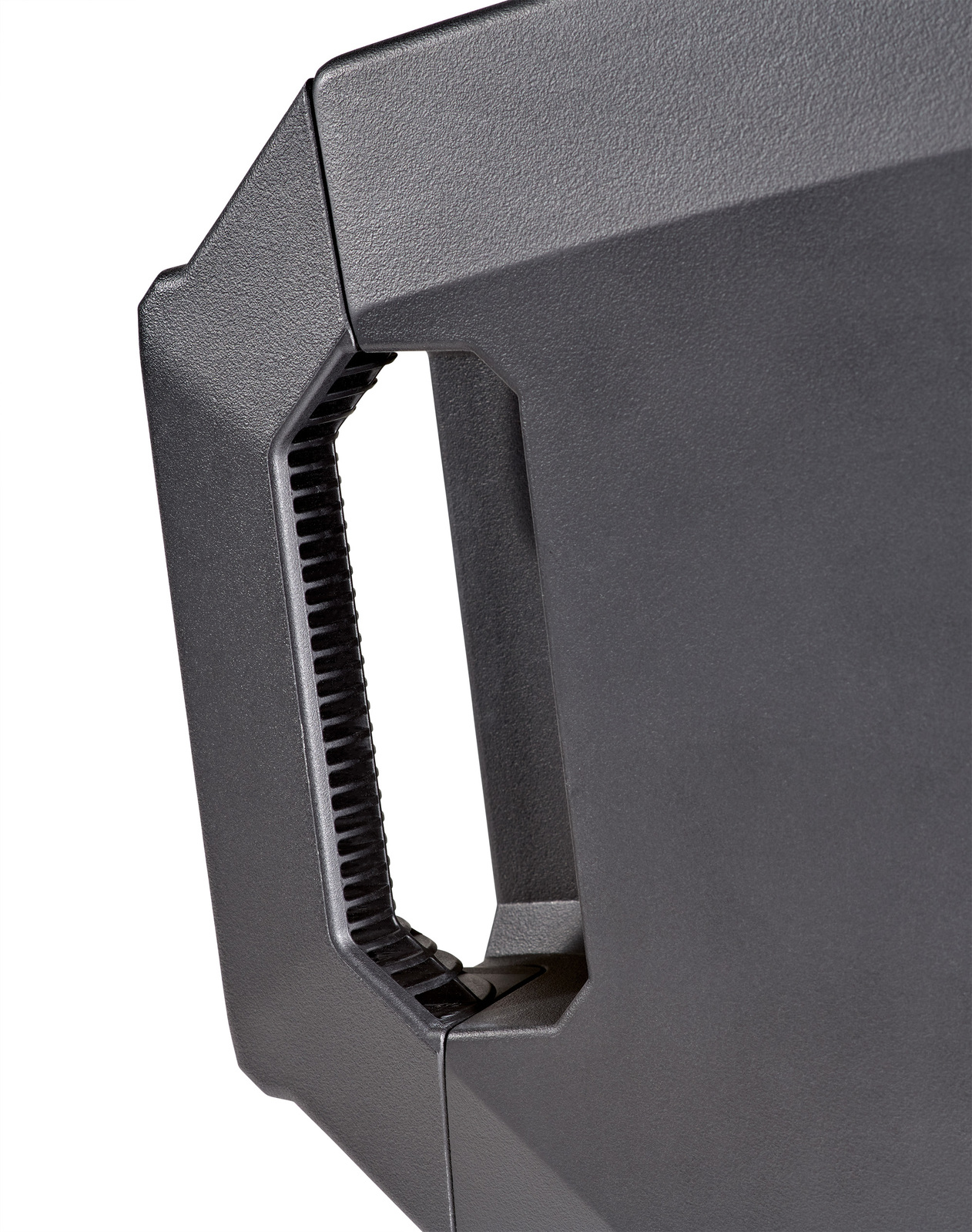

Road-Ready Lightweight Design
Strike Amp 12 MK2 is rugged yet lightweight and easy to transport (at 34.7lbs / 15.7kg) making load-ins at the gig or rehearsal space easier than ever. While you can use Strike Amp 12 MK2 in its intended wedge position, its versatile design means that it can also be used in an upright or pole-mounted position, making it easier to direct your sound wherever you need it, which is especially helpful at outdoor gigs or other places where PA backline is limited.

SPECIFICATIONS

Output Power: 2500 W

Drivers
Low-Frequency: 12.0” (305 mm) driver, 2.5” (63 mm) high-temperature voice coil.
High-Frequency: 1.0” (25 mm) exit ceramic driver with 1.4” (35 mm) coil.

Crossover Frequency: 2 kHz
Maximum SPL: 132 dB (peak) dB-SPL @ 1 m
Frequency Response: 53 Hz – 20 kHz (+/-3 dB)
Frequency Range: 44 Hz – 20 kHz (-10 dB)
Horn Coverage: 90° horizontal x 60° vertical (nominal)
Connectors:

• (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced)
• (1) XLR output (Link)
• (1) IEC power cable input

Input Impedance: Line: 10 KΩ balanced, 20 KΩ unbalanced
Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
HPF Switch: 100 Hz

Bluetooth
Version: 5.0
Profile: A2DP, AVRCP
Codec: SBC
Range: up to 100 feet (30.5m)

Power
Connection: IEC
Input Voltage: 100-120V, 50/60 Hz; 220-240V, 50/60 Hz
Consumption: 1100W
Fuse: T15AL AC250V; 220-240V T6.3AL AC250V

Protection: Electronic clip, thermal, and transducer overdrive protection
Mounting/Installation: Standard 36 mm pole socket
Operating Temperature: 14°F to 113°F (-10°C to 45°C)
Dimensions: 351 mm x 354 mm x 607 mm
Weight: 15.7 kg

What's In The Box

• Strike Amp 12 Mk2

• IEC Power Cable

• User Guide

• Safety and Warranty Manual
