AlphaTheta RMX-IGNITE

Ready to take your performances to new heights? Meet the RMX-IGNITE, the next-generation effector from AlphaTheta designed to spark your creativity. More than a decade after the launch of the RMX-1000 – the model released in 2012 that’s still highly respected by top DJs worldwide – this completely renewed effector combines dynamic sound-shaping control with advanced effects to enable new levels of live performance.

Create visually and sonically striking performances with the RMX-IGNITE by using the levers and large knobs to intuitively control its array of effects. Whether you’re playing in a club or on a live stream or video, you can captivate your audience by uniting sound and motion. It’s easy to make live remixes with the enhanced sampler section and you can add groove and expression to your samples with the new Groove Roll feature. And, with the latest DSP and high-grade audio converters, the unit delivers professional-level sound quality.

FEATURES

• 20 built-in samples - Make your own rhythm instantly

• Sample Trigger Pad - Intuitive sample playback

• 6 Lever FX - Echo, Reverb, Juggle, Reverse, Solo, Stretch

• Sampler Color FX - Add character to your samples

• Sample Roll - Perfect for buildups and fills

• 6 Isolate FX- Tape Echo, Reverb, Drive, Filter, Ducker, Rhythm

• Release Echo - Reset changes with a single action

• 2.8″ multicolor screen

• High-fidelity design

• High-quality sound design

• TS analog connections

• PRO DJ LINK compatible

• Play your samples from USB drives

• Digital send/return

Unleash your energy and IGNITE the dancefloor.

Refined layout and design
Engineered for clarity and precision, the interface supports your creativity.

Get the crowd moving
Energize your sound with expressive, hands-on control. Maximize every nuance of the music through advanced effects.

Understand your gear at a glance
From above, the CDJ, DJM, and RMX-IGNITE form a clear, aligned layout. All the controls can be read at a glance, so you know exactly what to adjust – even before you start playing.

Multiple machines, 1 instrument
Pads, knobs, and faders blend into 1 layout. With your CDJs, mixer, and other gear aligned, your setup becomes a single instrument at your fingertips.

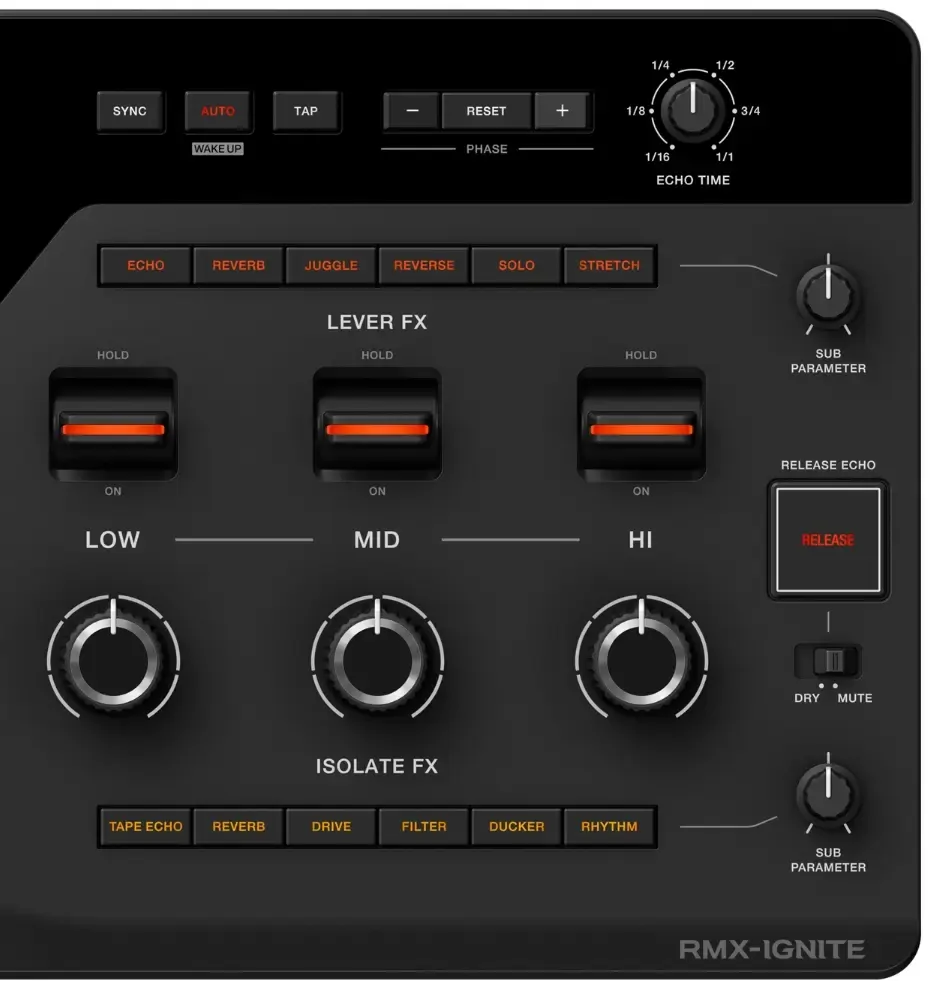

3-Band FX
The 3-Band FX section includes Lever FX and Isolate FX, and you can apply each to the high, mid, or low frequency bands. Combining the 2 effect types opens diverse performance options and, with the sub-parameter knobs, you can refine the tone for richer, more expressive sounds.

Lever FX
Use the 3 large levers to apply instant, dramatic effects: Echo, Reverb, Juggle, Reverse, Solo, and Stretch.

Isolate FX
3 large knobs enable smooth and dynamic control of Tape Echo, Reverb, Drive, Filter, Ducker, and Rhythm.

Release Echo
With a single button, you can instantly clear effects and samples, returning smoothly to the original track with an echo tail.

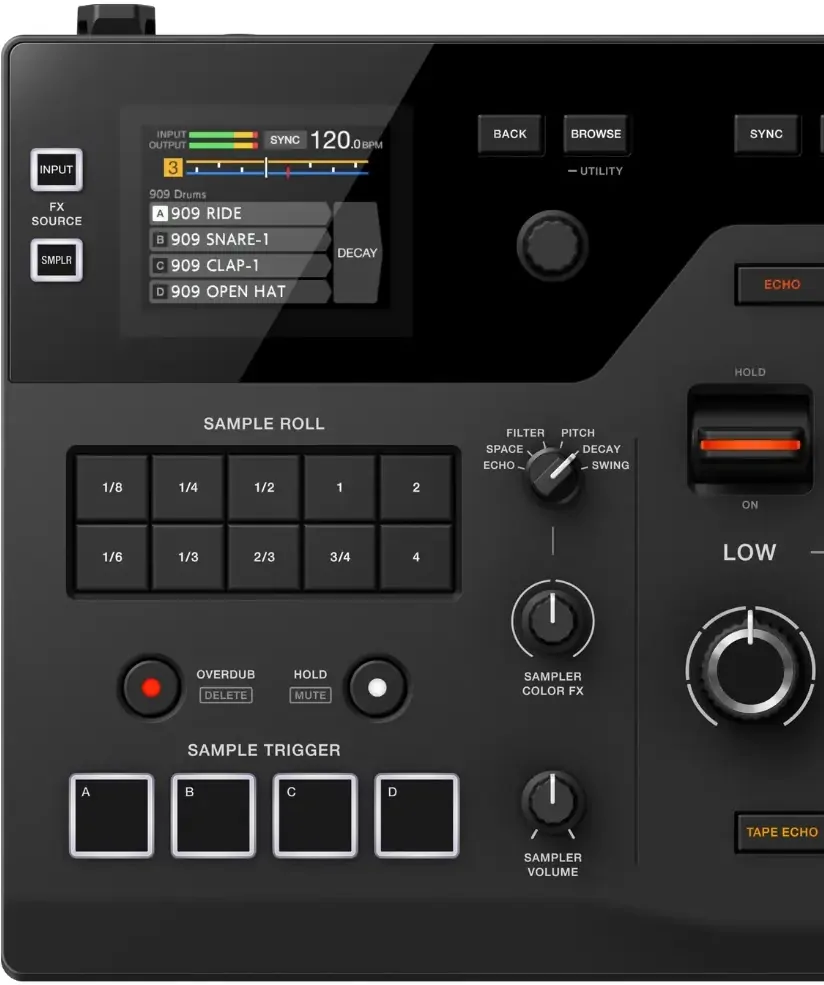

Sample Trigger Pad
Use the 4 responsive pads to intuitively trigger 20 built-in samples from Loopmasters. In Overdub mode, you can loop 1-bar phrases and layer samples to build dynamic progressions.

Sample Roll
Samples triggered with the pads can be rolled in 10 patterns. With the new Groove Roll, you can press multiple buttons at once to create accented, flowing rolls that show your individuality and bring energy to your buildups.

Sampler Color FX
Control 6 dedicated effects – Echo, Space, Filter, Pitch, Decay, and Swing – with 1 knob to instantly reshape samples with added depth or groove.

RMX-IGNITE Sample Manager
Play your own samples from a USB drive or any PRO DJ LINK–connected multi player.

Digital send/return
Quick setup means you can start playing right away. Simply connect a USB cable to your mixer’s MULTI I/O terminal. (DJM-A9 & DJM-V10 compatible)

1. No risk of connection errors.
2. Sound quality does not degrade.
3. Receives non-audio data, including BPM and grid information.

PRO DJ LINK - Sample playback
Load samples directly from PRO DJ LINK–connected players without dedicated sample storage.
BPM and grid information are synced automatically.

High-fidelity design
Studio-quality 96 kHz / 64-bit DSP and ESS 32-bit AD/DA converters reproduce the music with striking clarity and depth. Every component is tuned to let the original sound breathe, capturing subtle details and expression. What you hear is true to the source, the moment, and your touch.

ADC: ES9821Q (32bit, 120dB)
DAC: ES9017S (32bit, 120dB) / 4ch sum 124 dB
DSP MIXING: 96kHz/64bit

SPECIFICATIONS

Power requirements: AC 100 V – 240 V, 50 Hz / 60 Hz
Power consumption: DC 15 V, 3.0 A
Power consumption (OFF): 0.3 W
Max. external dimensions (W × D × H): 340.0 × 213.3 × 72.8 mm / 13.4″ × 8.4″ × 2.9″
Main unit weight: 2.3 kg / 5.1 lbs.
Operating temperature: +5 °C – +35 °C
Operating humidity: 5% – 85% (no condensation)

Audio
Sampling rate: 96 kHz
A/D, D/A converter: 32 bit
Frequency response: 20 Hz – 40 kHz

S/N ratio (rated output, A-weighted)
CONNECTION switch (MST): 115 dB
CONNECTION switch (SEND/RETURN): 114 dB
CONNECTION switch (CDJ): 108 dB

Total harmonic distortion (20 Hz – 20 kHz BW): 0.0018 %

Standard input level / Standard output level
CONNECTION switch (MST): +4 dBu / +4 dBu
CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
CONNECTION switch (CDJ): -6 dBu / -12 dBu

Input impedance: 47 kΩ
Output impedance: 680 Ω or less
Rated output level / Load impedance:

• CONNECTION switch (MST): 21 dBu / 10 kΩ

• CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ

• CONNECTION switch (CDJ): 3 dBu / 10 kΩ

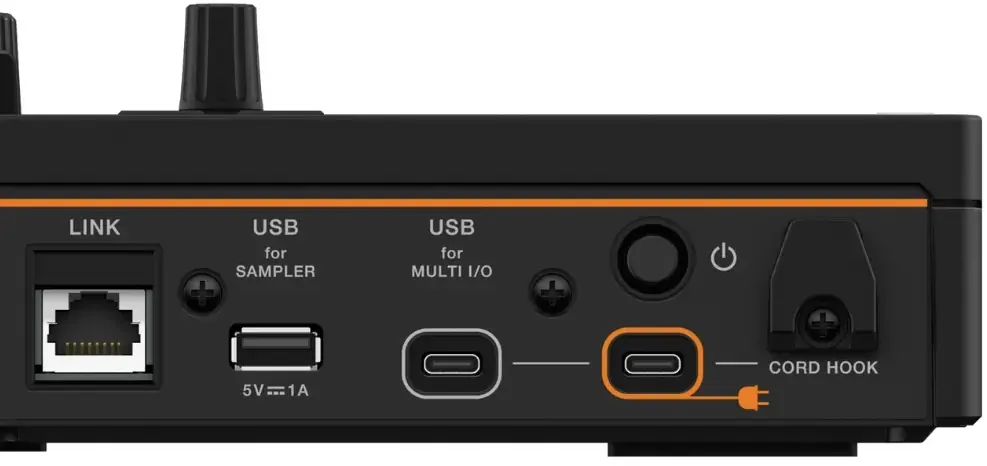

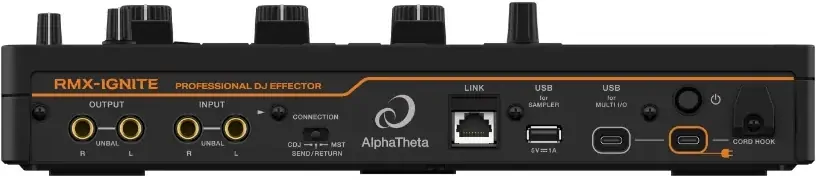

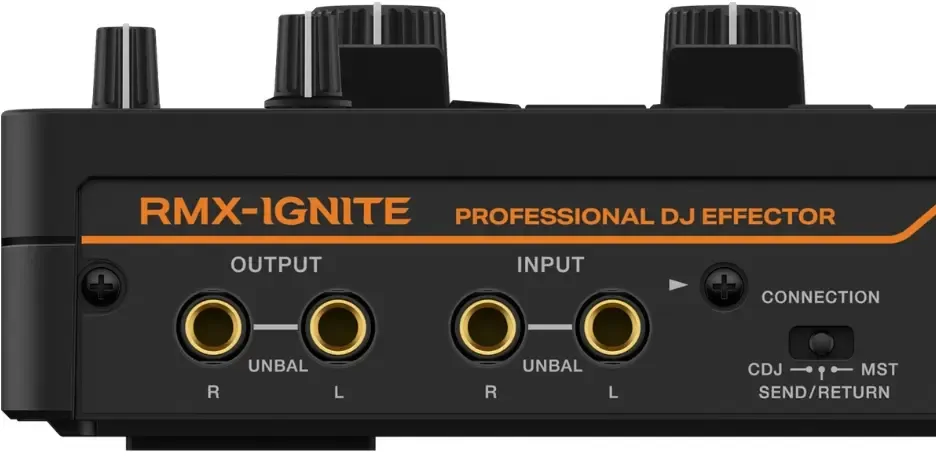

Input / Output terminals
Input: 1/4″ TS jack × 1
Output: 1/4″ TS jack × 1
USB Type-A (for SAMPLER): 1 set (Power supply : 5 V/1 A or less)
USB Type-C (for MULTI I/O, AC adapter): 2 sets
LINK: LAN (100BASE-TX) × 1

The specifications and design of this product are subject to change without notice.

Supported file formats

WAV
Bit depth: 16 bit / 24 bit
Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz

AIFF
Bit depth: 16 bit / 24 bit
Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz

*Some files may not be playable, even if they are in a supported format.
