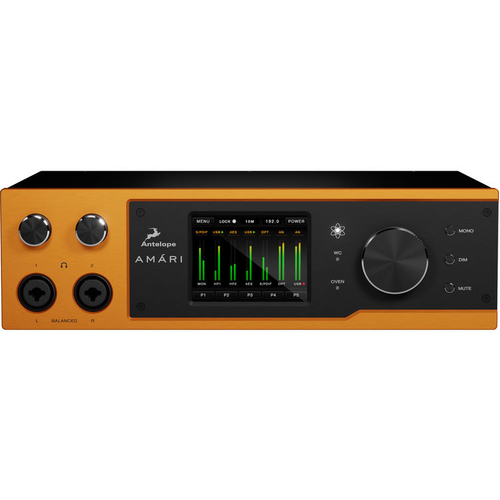

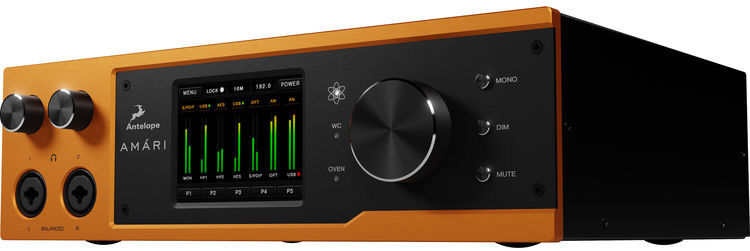

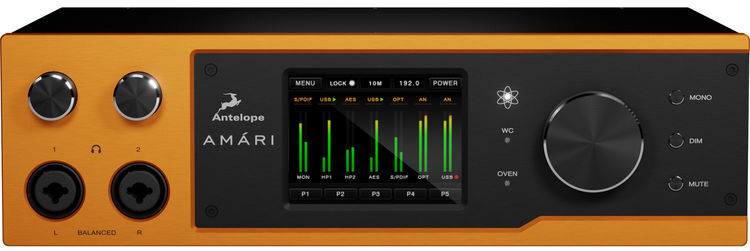

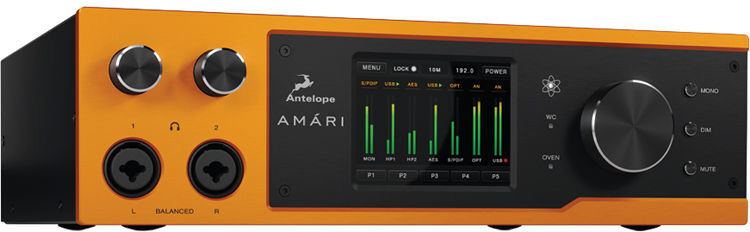

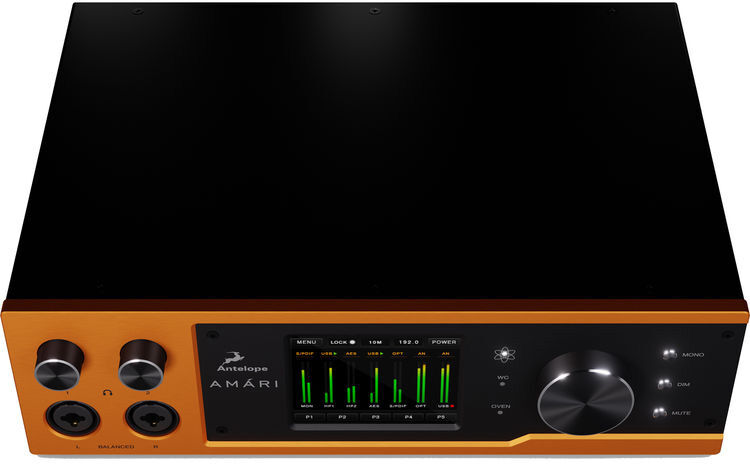

Antelope Audio AMÁRI

Fully Equipped

For mastering engineers and home audio enthusiasts who seek high-end sound quality for critical listening and audio archiving, AMÁRI is a reference-grade AD/DA converter with 24-bit, 384 kHz conversion and signature Antelope clocking. An easy-to-use interface and 2 headphone outputs with user-adjustable impedance complete AMÁRI’s unique profile.

384kHz, 24-bit Conversion, Antelope Clocking
An array of audiophile-grade converters and Antelope’s oven-controlled crystal oscillator clocking with proprietary 64-bit algorithms ensure precise, musical conversion quality for mastering and home audio applications.

Multi DAC Topology
AMÁRI offers best-in-class D/A converter performance by implementing an unique 8 × DAC architecture (4 × CS43198 chips per channel). This enhances the stereo image, expands depth perception and unveils all the musical details with an unmatched 138 dB dynamic range. Likewise, the headphone outputs feature a dual DAC architecture using one AK5578 chip per channel to boost the dynamic range up to 128dB.

Exploring Negative Impedance
Negative impedance is no mere feature, but a philosophical concept. It permits a certain ambiguity of the final result and the way music reaches us. Music will always sound different, depending on headphones, temperature and even our mood, as mood itself is a kind of electricity inside the brain. Otherwise, digital audio would be just maths and digits.

17 Steps of Output Impedance
AMÁRI’s 2 high-power stereo headphone outputs (on XLR connectors) feature individual volume controls (capped at 20dBu max), with digital trim and adjustable output impedance – from -4.6 to 85.3 Ohm, in 17 discrete steps. These options let you configure AMÁRI for ideal compatibility with your favorite headphones, matching their impedance for best performance. AMÁRI’s high-fidelity headphone drivers offer fully differential input per amplifier. It is a dual-amp design, optimized to eliminate possible temperature drifts and deliver differential signal quality. The headphone outs also feature dual DAC architecture for maximum performance.

SPECIFICATIONS

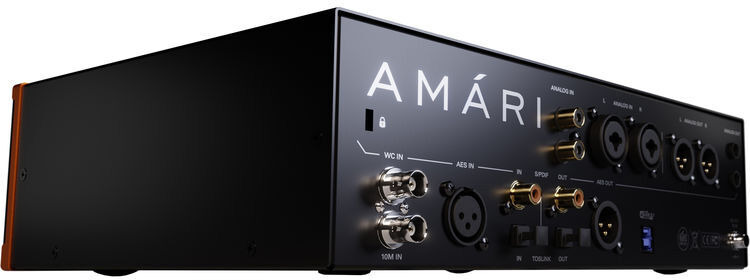

Inputs Analog: 1x Stereo pair either or balanced Combo XLR (24dBu max input level) or unbalanced RCA (8,2dBu / 6dBv max input level)
Inputs Digital:

• 1x AES/EBU up to 192kHz

• 1x S/PDIF up to 192kHz

• 1x TOSLINK up to 96kHz

Outputs Analog:

• 1x Stereo Pair balanced either on XLR or TRS. Output Level: 24dBu max (XLR) and 18dBu max (TRS), digital trim available

• 2x Stereo Headphone outs on ComboXLR with individual volume control knobs. Output Power: 1,4 Watts max. Selectable output impedance from -4.6 to 85.3 Ohm available in 17 steps

• Headphone outputs are also configurable to drive 1 pair fully balanced headphone set with dedicated volume control

Outputs Digital:

• 1x AES/EBU up to 192kHz

• 1x S/PDIF up to 192kHz

• 1x TOSLINK up to 96kHz

Sync Inputs:

• 1× World Clock

• 1× Atomic 10M

Bi-directional: 1x USB 3.1 Gen.1 on Type-B connector up to 384kHz

AD Conversion:

• 2x AK5778 A/D Converter chips

• 24 bit 384kHz

• Input: Full Differential Inputs

• S/(N+D): 112 dB (S/N: 124 dB)

• Dynamic Range: 128dB

DA Conversion:

• 8x CS43198 D/A Converter chips

• 24-bit 384kHz PCM *

• Dynamic Range: 138dB

* DSD over PCM playback is not currently supported. We are looking into resolving this, but no estimate can be provided for the time being. We apologize for the inconvenience caused

Clock Technology: 4th Generation 64-bit Acoustically focused clock technology
Sample-rates supported: AD and DA PCM: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 352.8kHz, 192kHz, 384kHz

Power:

• DC Power Inlet with lock nut

• Device equipped with wall wart power supply
