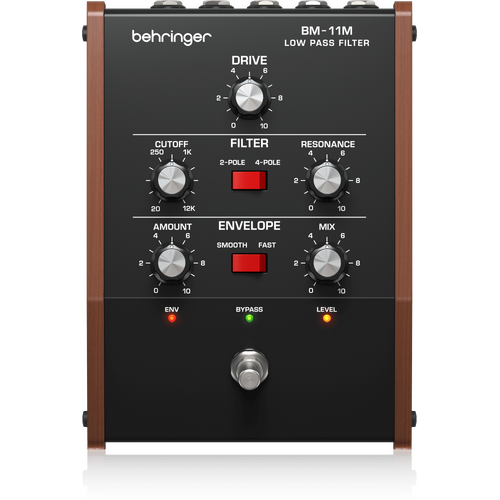

Behringer BM-11M

Sculpt guitar tones, shape synth lines, or add movement to drum loops with the Behringer BM-11M LOW PASS FILTER that delivers warm, resonant filtering to your pedalboard or studio rig with an unmistakable analog character.

FEATURES

• Smooth and creamy 2-pole and 4-pole low pass filter with resonance control

• Authentic recreation of the Moog* MF-101 from the ’90s

• Envelope control for dynamic and expressive filter effects

• USB/MIDI control for ultimate control and flexibility

• Drive control for input gain

• Versatile filter design for subtle tonal shaping or radical filtering

• Expression pedal input for real-time control

• Compact and rugged design for easy transport and onstage use

• Combine with other pedals for even more creative possibilities

Dynamic Expression at Your Feet
At the heart of BM-11M is a powerful envelope follower that reacts to your playing dynamics and input signal in real time. Dig in, and the filter opens up with a growl; back off and it mellows out. With dedicated controls for Cutoff, Resonance, Envelope Amount, Drive and a blendable Mix, you’re in total command of your sound – whether you’re chasing subtle warmth or screaming resonance.

Built for Creative Play
BM-11M plays well with whatever you plug into it whether it's a guitar, bass, synth or a drum machine. It’s built for creators who want movement, texture, and that unmistakable analog mojo. With expression inputs, it’s ready for pedalboards and modular rigs. The internal circuitry offers studio-grade headroom and thick harmonic response that makes anything sound better.

SPECIFICATIONS

Signal Connections

Audio in
Connector: 1 x 1/4" TS, unbalanced
Impedance: 1 MΩ

Audio out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 680 Ω

Control Connections

Cutoff
Connector: 1 x 1/4" TRS
Impedance: 100 kΩ, unbalanced
CV input range: 0 V to +10 V

Mix
Connector: 1 x 1/4" TRS
Impedance: 33 kΩ, unbalanced
CV input range: 0 V to +5 V

Reso
Connector: 1 x 1/4" TRS
Impedance: 100 kΩ, unbalanced
CV input range: 0 V to +5 V

Amount
Connector: 1 x 1/4" TRS
Impedance: 30 kΩ, unbalanced
CV input range: 0 V to +5 V

Env out
Connector: 1 x 1/4" TRS
Output impedance: 680 Ω, unbalanced
CV input range: ±2.8 V
MIDI in: 1 x 5-pin DIN, 16 channels

Controls
Drive: 1 x rotary knob
Cutoff: 1 x rotary knob, 20 Hz - 12 kHz, adjustable
2-pole / 4-pole: 1 x rocker switch
Resonance: 1 x rotary knob
Amount: 1 x rotary knob
Smooth / fast: 1 x rocker switch
Mix: 1 x rotary knob
Bypass: 1 x footswitch

System
Frequency response: 20 Hz to 20 kHz (-4 / -2.8 dB)
Dynamic range: >73 dB, 20 Hz to 20 kHz
Signal-to-noise ratio: >67 dB
Overall gain: +25 dBu

Power Supply / Voltage
Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
Power consumption: 3.6 W

Dimensions / Weight
Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
Weight: 1.02 kg (2.24 lbs)
