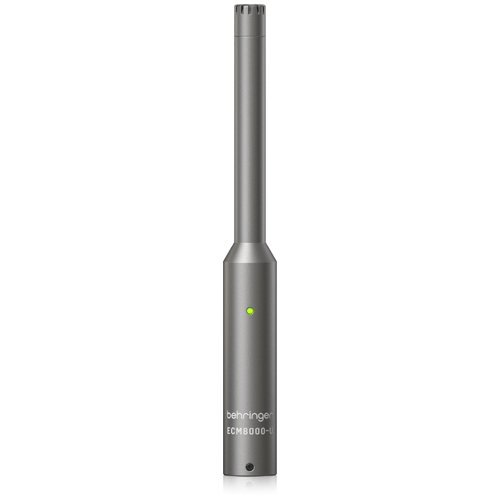

Behringer ECM8000-U Calibrated Measurement Mic

The Behringer ECM8000‑U is a plug‑and‑play USB calibrated measurement microphone designed for precise, studio‑grade sound analysis. Featuring an ultra‑linear, true omnidirectional 6 mm electret capsule, it delivers accurate frequency response from 20 Hz to 20 kHz with excellent resolution—ideal for room, live sound, car audio calibration, and monitor alignment. With 24‑bit / 48 kHz audio quality, high SPL handling, and a simple USB‑C connection compatible with Windows, macOS, Android, and Linux, the ECM8000‑U requires no drivers or external power. Compact and lightweight, it comes complete with a microphone clamp and protective zipper case, making professional acoustic measurement easy and portable.

FEATURES

• Ultra-linear USB microphone for precision measurements and studio calibration

• Ideal for room, live, car acoustics calibration, and monitor alignment applications

• Exceptionally linear frequency response and ultra-high sound resolution

• True omnidirectional pattern for accurate sound capture

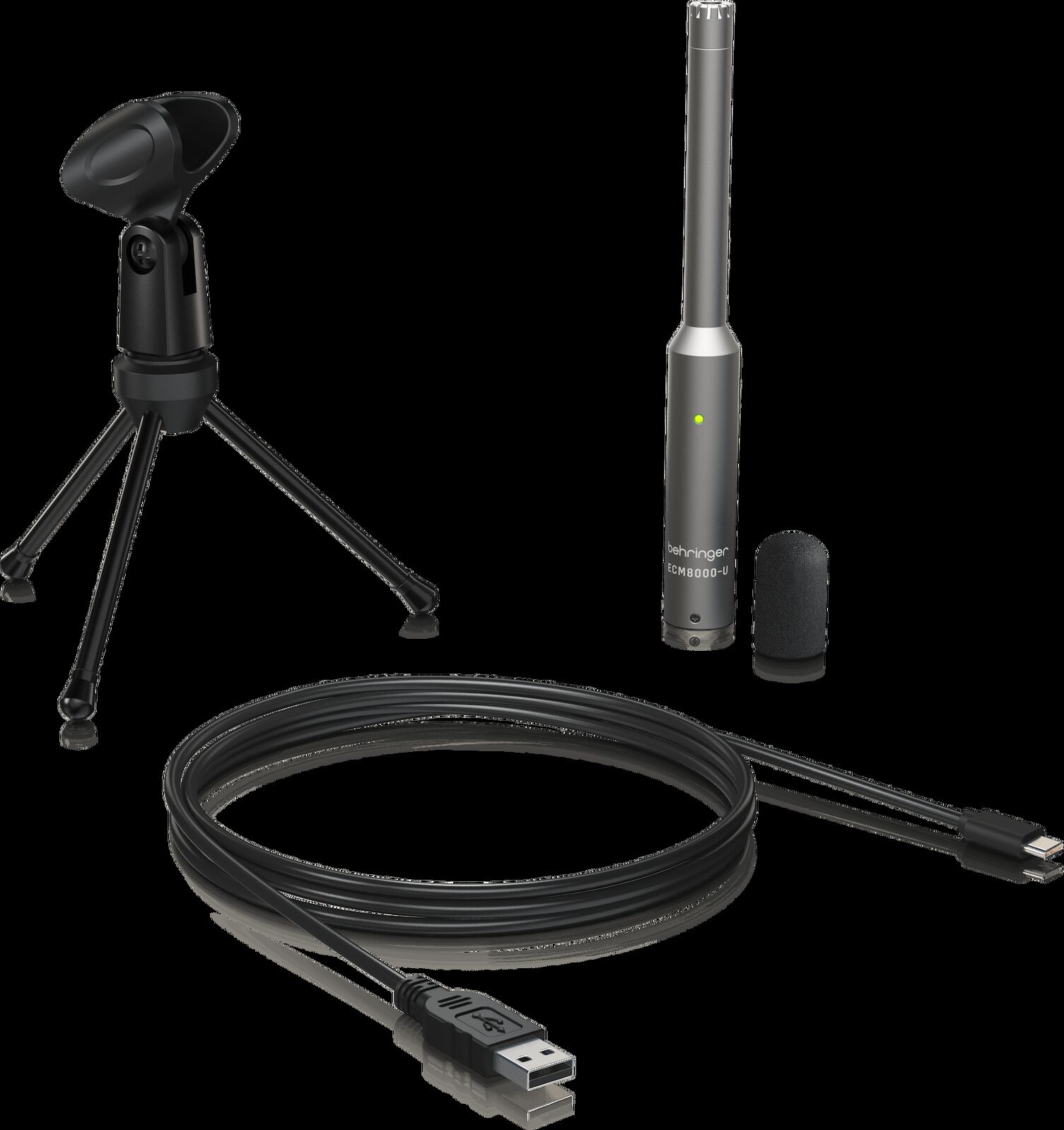

• USB plug-n-play interface for Windows, Mac & Linux, with included microphone clamp and zipper case for easy mounting and protection

SPECIFICATIONS

Power Requirements:

• USB Powered(5V)

• Green LED indicates unit under Power

Sample Rate: 48 kHz
Bit Depth: 24-bit
Capsule Type: Precision 6 mm electret
Polar Pattern: omnidirectional
Freq.Response: 20 Hz - 20 kHz
Sensitivity: -6 dB FS/Pa @ +20 dB gain setting
Max SPL for 1% THD @ 1kHz: 134 dB SPL @ -14 dB gain setting
SNR: 65 dB (A-weighted)
Output Connection: USB Type-C connector
OS Requirements: Windows/MacOS/Android.etc
Current consumption: 18 mA
Weight: 130 g
Dimensions: 20.5 mm (Diameter) x 180 mm (Length)
