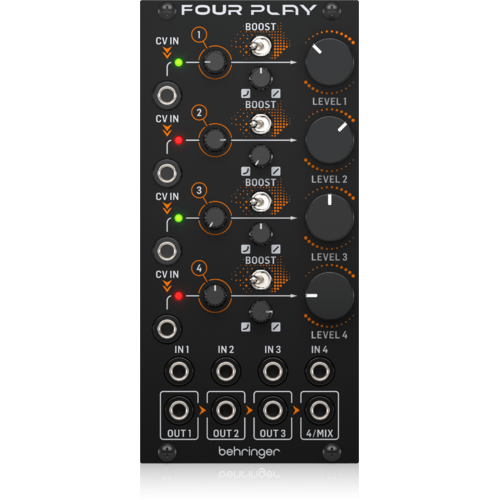

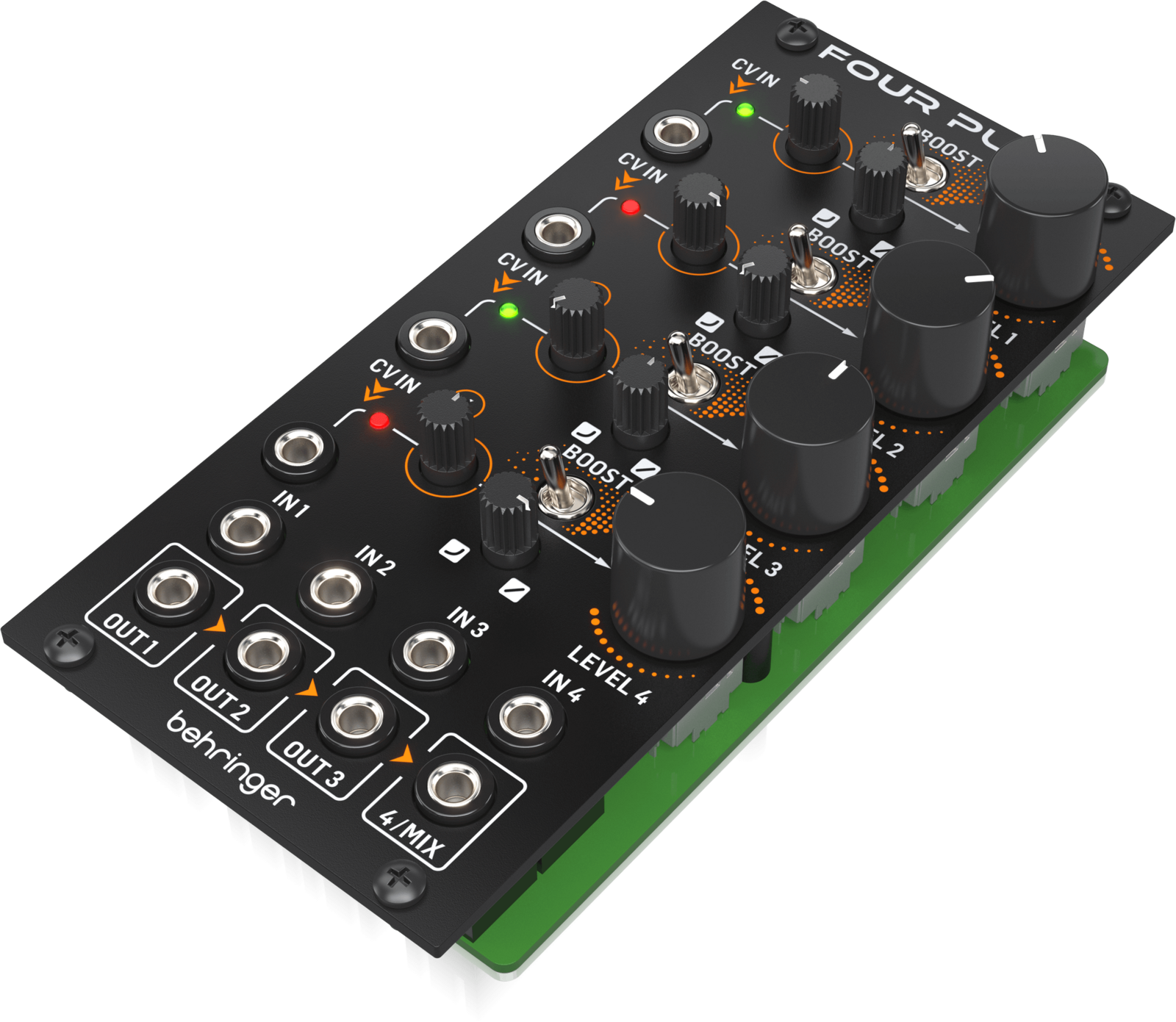

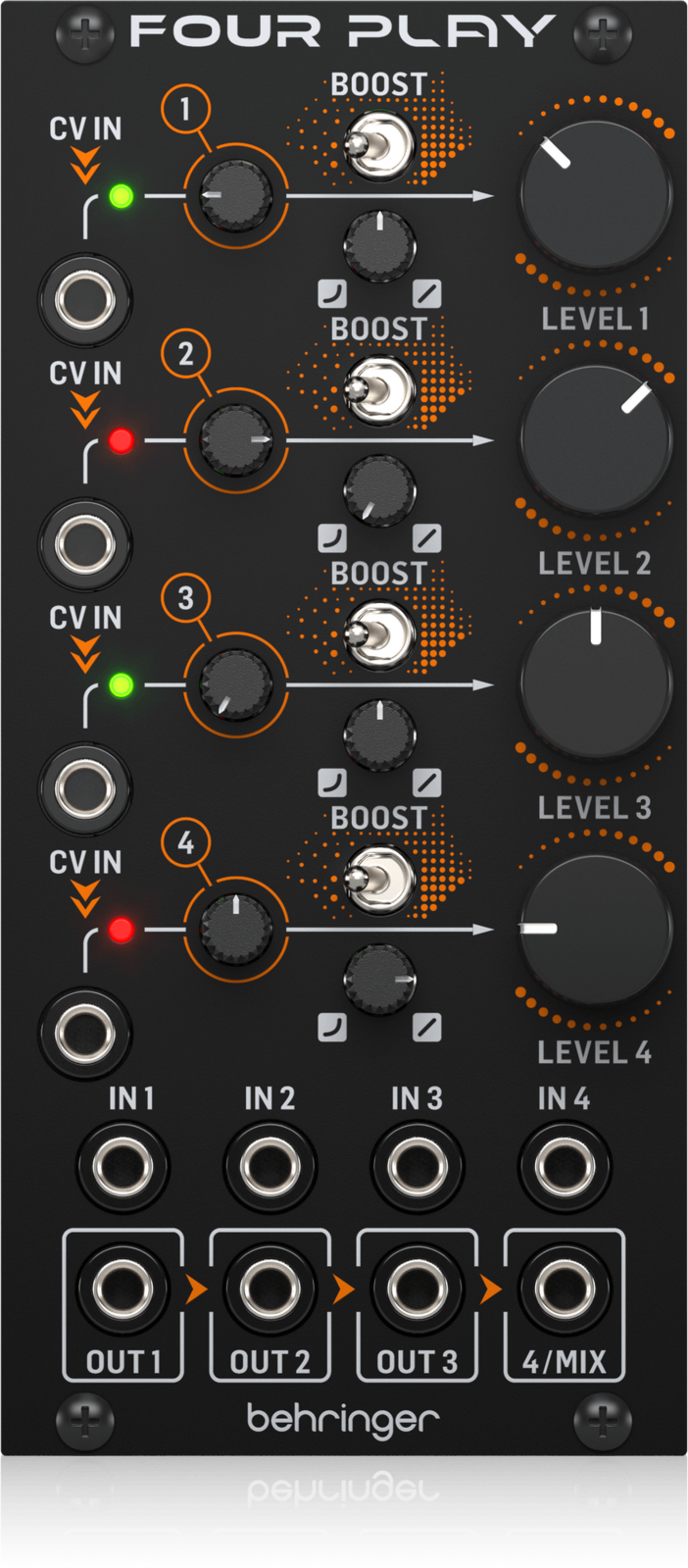

Behringer Four Play Quad Volt Module

Quad Voltage Controlled Amplifiers and Mixer Module for Eurorack

FOUR PLAY
This is the Behringer FOUR PLAY. A high performance quad VCA and mixer module that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the FOUR PLAY in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Mix It Up
The FOUR PLAY is a feature rich quad VCA module with CV input attenuators, each with a bi-color LED to indicate CV input activity and polarity. Input boost switches add extra gain for lower level input signals. The curve controls allow you to setup the ideal CV response curve from fully exponential to linear, or any combination of the two. The level controls set the VCA gain and allow manual control of the signal output level, both when used as independent VCA’s or when used as a mixer. The VCA’s are DC coupled so can process both audio signals and CV signals.

Ins and Outs
The FOUR PLAY gives you comprehensive connectivity, 4 CV inputs for control or modulation of the VCA’s which are cascaded allowing all 4 VCA’s to be controlled by a single CV input if required. 4 signal input jacks with excellent headroom and the 4 VCA outputs are cascaded so that if only the 4/MIX output jack is used, the module becomes a 4-input voltage-controlled mixer, other combinations are easily selected according to which output jacks are inserted, such as a dual 2 input mixers for ultimate flexibility.

Eurorack Ready
Installing the FOUR PLAY is easy as it is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and screw in the module using the included screws. This allows the FOUR PLAY to be mixed with other synth modules for a truly unique set up.
