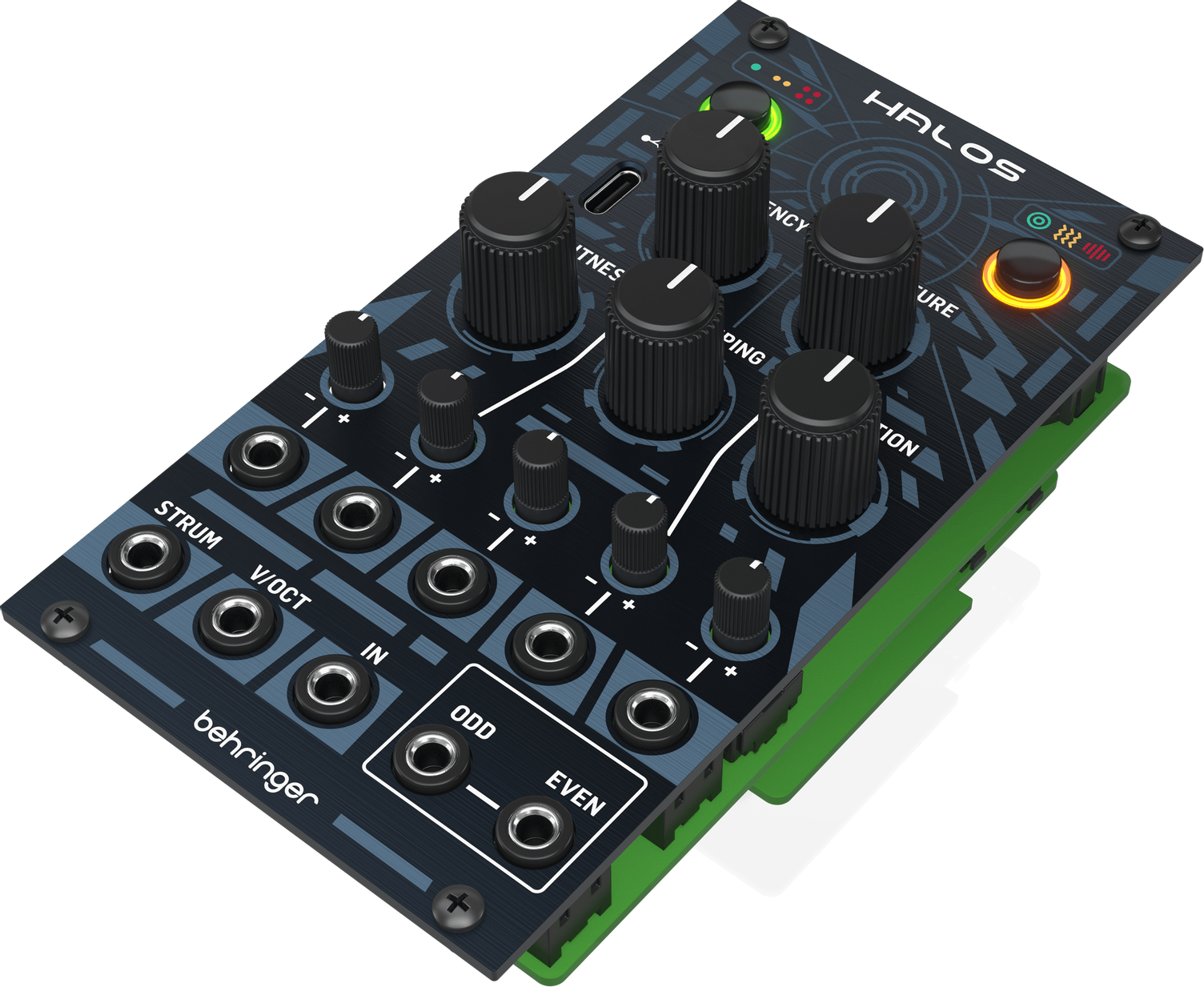

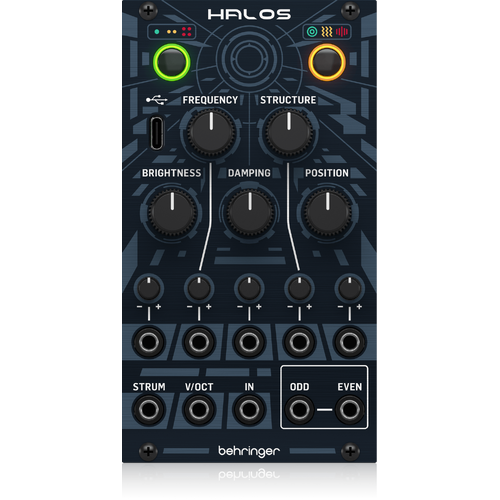

Behringer HALOS

Whether you’re building a sequence or sculpting a soundscape, sometimes, a patch needs that earthy, organic resonance to feel complete. The Behringer HALOS delivers exactly that – an expressive resonator that breathes life into your modular system by turning simple inputs into evolving, acoustic-like textures. By modelling how real materials like string and plate resonate, HALOS adds rich natural character to any sound.

FEATURES

• Powerful Resonator designed to be excited by your favorite source – envelopes, triggers, noise, and more

• Inspired by Mutable Instruments RINGS*

• Features three families of vibrating structures with full CV control over key parameters

• Accurately models strings, membranes, and tubes using advanced resonator (modal synthesis) algorithms

• Includes three resonator modes: Modal Resonator, Sympathetic Strings, and Non-Linear/ Dispersion Strings

• Delivers pseudo-polyphony of up to 4 notes, adding depth and complexity to your patches

• Offers high-resolution CV control – up to 16-bit accuracy for ultra-precise modulation

• Eurorack Specs: 14 HP, +12 V: 50 mA, -12 V: 20 mA

Organic Polyphony, Naturally Expressive
HALOS features an intelligent polyphonic engine that supports up to four simultaneous voices. Notes overlap and decay naturally, like strumming strings or striking tuned percussion. The result? Melodic sequence and lush pads that shimmer with realism and depth.

Shape Your Sound
Dial in the exact tone you want with intuitive controls: set pitch with Frequency, morph material properties with Structure, and fine-tune decay with Damping. Position and Brightness add expressive nuance, and full CV control means HALOS is as dynamic as your patch demands.

Eurorack Ready
HALOS is designed to fit in a Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix HALOS with other modules in your setup and start creating unique sounds that add a unique character to your music.

SPECIFICATIONS

USB
USB: Type C socket

Inputs
Brightness CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Frequency CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Damping CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Structure CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Position CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Strum: 3.5 mm TS jack, 0 V to +8 V range, impedance 50 kΩ
V/Oct: 3.5 mm TS jack, -1.5 V to + 5.5 V range, impedance 50 kΩ
In: 3.5 mm TS jack, 0 V to +6 V RMS range, impedance 50 kΩ

Outputs
Audio Outputs left & right: 2 x 3.5 mm TS jack, AC coupled, impedance 1 kΩ

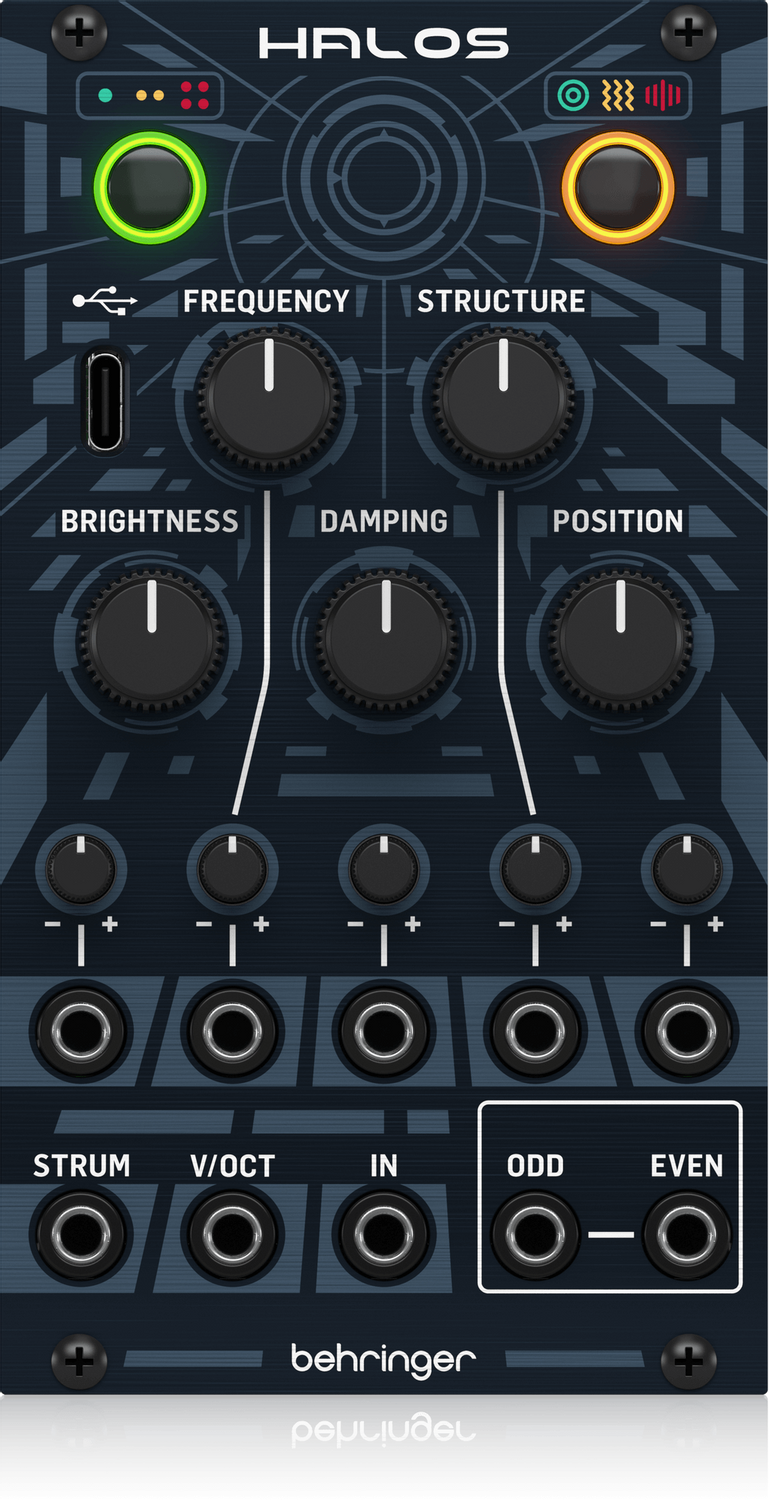

Controls:

• Brightness / Brightness attenuverter

• Frequency / Frequency attenuverter

• Damping / Damping attenuverter

• Structure / Structure attenuverter

• Position / Position attenuverter

Buttons:

• Polyphony

• Resonator

Power Consumption: 120 mA (+12 V) / 5 mA (-12 V)

Physical
Standard operating temperature: 5° C to 45° C (41° F to 113° F)
Dimensions: 71.10 x 128.40 x 55.70 mm (2.80 x 5.05 x 2.19")
Eurorack: 14 hp
Weight: 157 g (5.54 oz)
