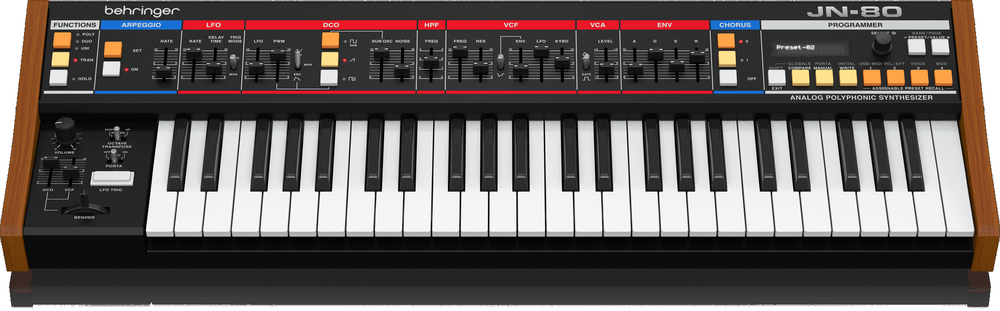

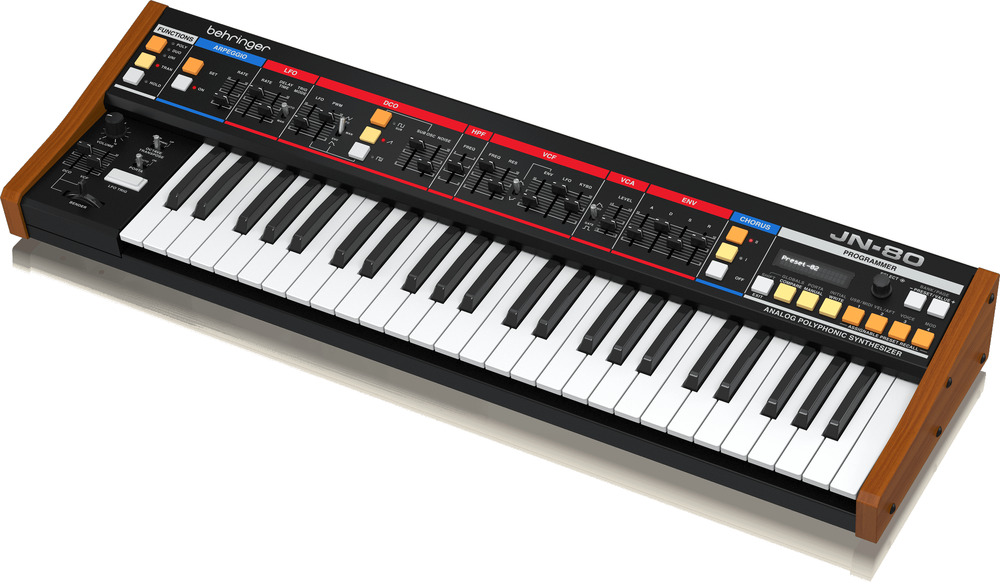

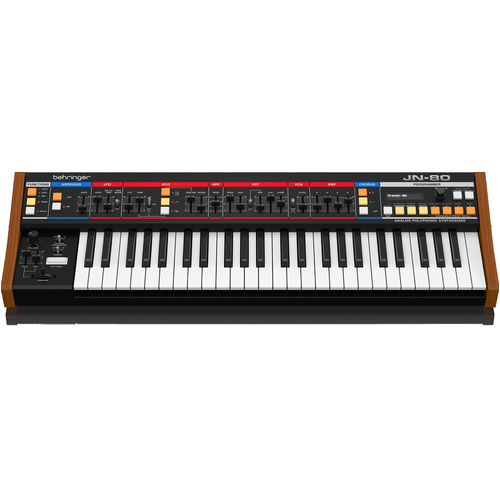

Behringer JN-80

Classic Analog 8-Voice Programmable Polyphonic Synthesizer with 3109 VCFs, BBD Chorus and 49-Key Keyboard with After Touch

FEATURES

• Analog polyphonic synthesizer and reproduction of legendary Juno 60 from the ‘80s

• Pure analog signal path based on authentic DCO, 3109 VCF and 662 VCA designs

• 8 polyphonic voices with warm sounding and discrete oscillators featuring saw, square and pulse width waveforms

• Classic 24 dB lowpass filter based on discrete 3109 circuitry with resonance and positive/negative envelope control

• Unison, double or poly modes for powerful 8 VCO lead, massive bass, 4-voice double or 8-voice single VCO sounds

• Amazing multi-stage BBD chorus for rich and lively sounds

• 49 semi-weighted full-size keys featuring Aftertouch and velocity sensitivity

• Sub-oscillator with one octave down adds powerful depth and bass to your patches

• Global noise generator dramatically expands sound creation

• Sophisticated arpeggiator with manual and external tempo control plus up, down and up-down modes

• Powerful LFO to control pulse width modulation, pitch and filter cutoff

• LCD display with encoder for rapid menu parameter editing

• Assignable preset recall switches for immediate program selection

• 256 user program memories with “compare and match” feature to quickly match all analog controls to values stored in program

• Polyphonic portamento for amazing and musical glide effects

• Spring-loaded pitch and modulation wheels provide total hands-on performance

• CV/pedal inputs for connection to expression pedals and footswitches

• Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)

SPECIFICATIONS

Synthesizer Architecture
Number of voices: 8
Type: VCO
Oscillators: 8
LFO: 1
VCF: 1 low pass 4-pole, 24 dB / oct slope
HPF: 1 variable frequency
Envelopes: 1

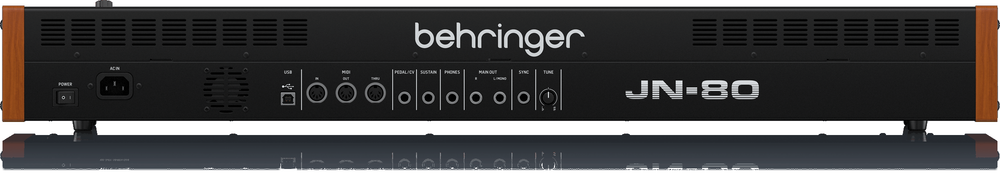

Connectivity
MIDI In/Out/Thru: 5-pin DIN / 16 channels
USB (MIDI): USB 2.0, type B
Main output: 2 x 6.35 mm (1/4") TRS, balanced, max. 22 dBu
Impedance: 50 Ω
Headphones: 6.35 mm (1/4") TRS, stereo, max 25 mW dBu
Impedance: 25 Ω
Assignable CV: 6.35 mm (1/4") TS
Foot switches: Sustain 6.35 mm (1/4") TS

USB
Type: Class-compliant USB 2.0, type B
Supported operating systems: Windows 7 or higher Mac OS X 10.10 or higher

Manual Section
Controls: Volume: 0 to 10. DCO Bend Level, VCF Bend Level, Bender
Switches: Octave Transpose, Portamento On / Off / Auto, LFO Manual Trigger

Function Section
Buttons: Poly / Duo / Unison, Transposition, Hold

Arpeggiator Section
Controls: Rate
Switches: Settings, On.

LFO Section
Controls: LFO Rate, Delay Time
Switches: Trigger Mode (Auto / Manual)

DCO Section
Controls: LFO, Pulse width, Sub-Oscillator Level, Noise Level
Switches: Pulse Width Modulation Source

Buttons: Sub-Oscillator On / Off, Sawtooth On / Off, Pulse Wave On / Off

HPF Section
Controls: Frequency

VCF Section
Controls: Frequency, Resonance, Envelope, LFO, Keyboard
Switches: Envelope Invert

VCA Section
Controls: Level
Switches: Envelope / Gate

Envelope Section
Controls: Attack, Decay, Sustain, Release

Chorus Section
Buttons: II, I, Off

Programmer Section
Controls: Select encoder
Buttons: Shift, Compare, Manual, Write, Preset / value -, Preset / value +
LED: 2 x line, 16-digit LCD display

Assignable Preset Recall Section
Switches: 1 / USB / MIDI, 2 / vel / aft, 3 / voice, 4 / mod
Keyboard: 49 full-size keys with velocity and aftertouch

Power Requirements
Mains connector: Standard IEC C13 receptacle
Power consumption: 36 watt max
Internal switch-mode PSU: Autorange 100-240 V, (50 / 60 Hz)

Physical
Standard operating temperature range: 5°C – 45°C (41°F – 113°F)
Dimensions (H x W x D): 108.7 x 826.3 x 261.1 mm (4.3" x 32.5" x 10.3")
Weight: 7.28 kg (16.02 lbs)
