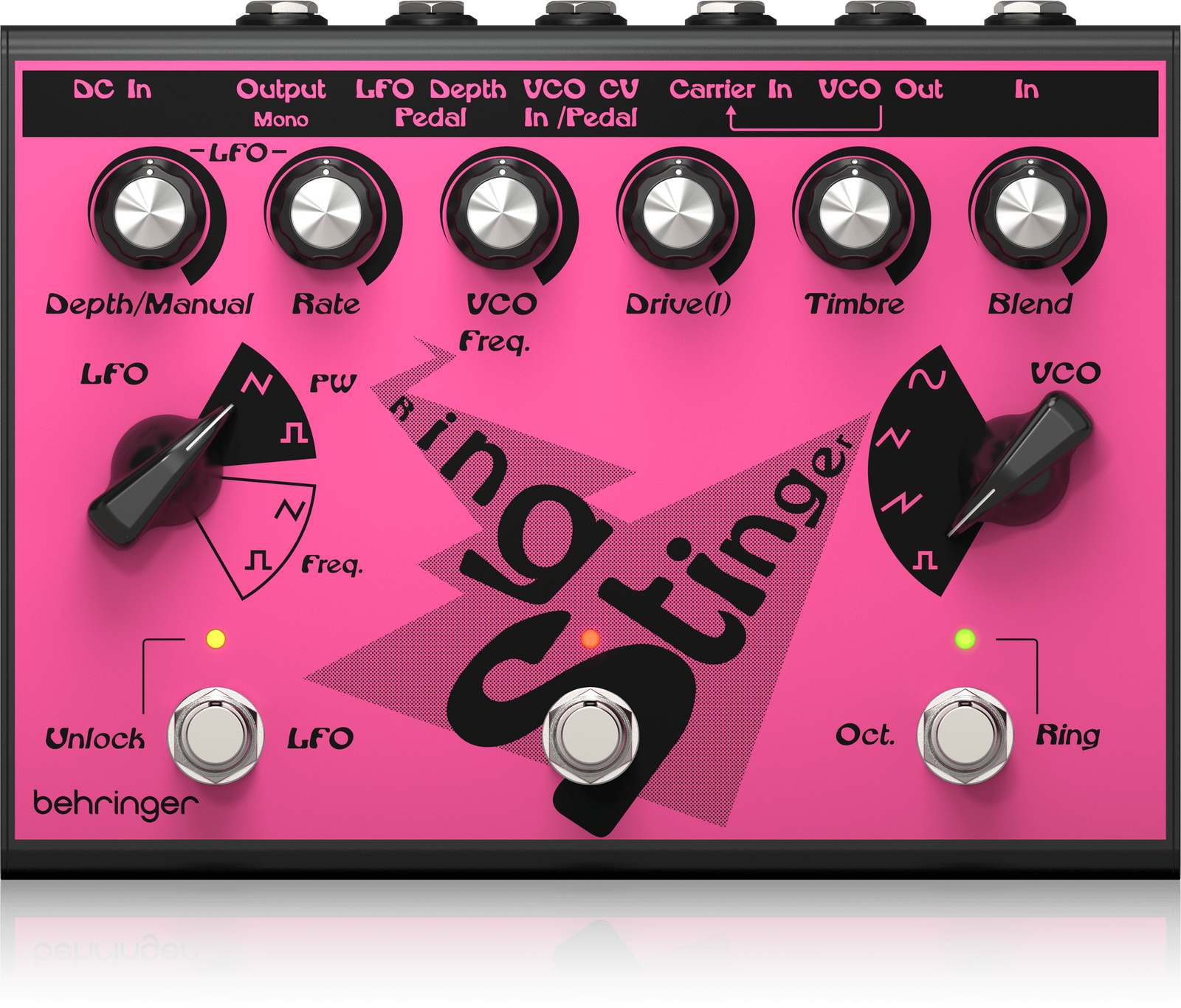

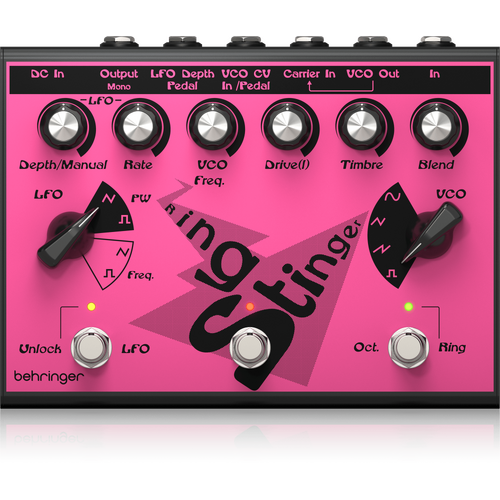

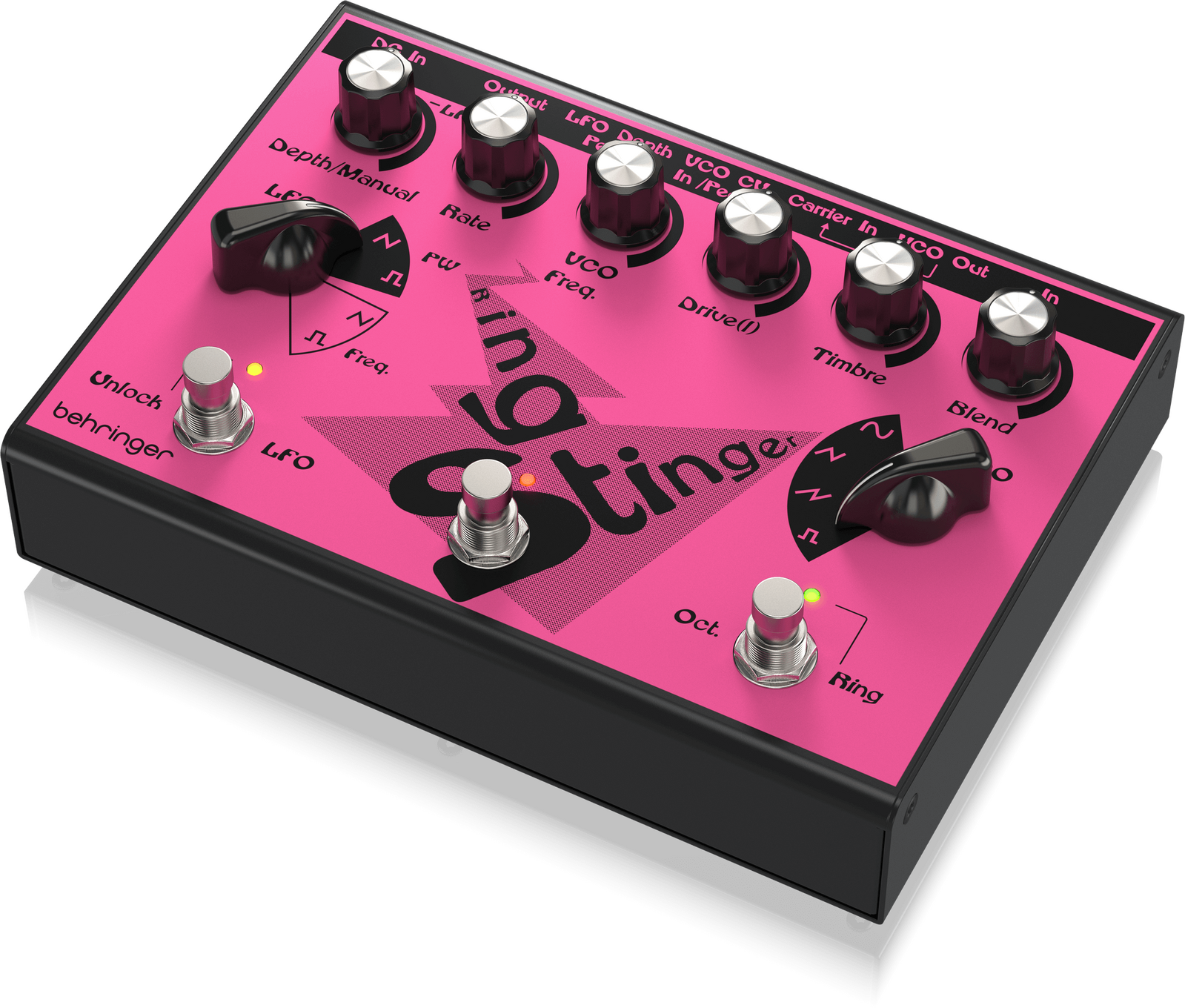

Behringer Ring Stinger

Welcome to a world of sound sculpting carnage like something before! Yes that’s right, this box of madness brings back to life the DNA of a boutique 90’s gem that had previously been lost to time. Jammed packed with a concoction of Ring Modulation and Fuzz, the tones produced by this box truly have to be heard to be understood.

FEATURES

• Ring Modulation: Core feature that creates metallic and harmonic overtones through signal manipulation

• Pitch Shifting: Allows for real-time control of pitch modulation, producing unique and experimental tones

• Expression Pedal Compatibility: Enables dynamic control of various parameters, adding expressiveness

• Low-Frequency Oscillator (LFO): Provides rhythmic modulation patterns for dynamic soundscapes

• Harmonic Generation: Generates harmonics and sidebands for complex and evolving textures

• Filter Section: Incorporates filters to shape and sculpt the modulated signal

• Mix Control: Balances the dry and modulated signals for precise tonal blending

• Waveform Selection: Offers different modulation waveform options for versatility

• Frequency Control: Adjusts the frequency range of the ring modulation effect

• Voltage-Controlled Oscillator (VCO): Adds a VCO for even more control over pitch and modulation

• Assignable Parameters: Allows users to assign expression control to various parameters

• True Bypass: Maintains the integrity of the dry signal when the effect is disengaged

• Vintage Aesthetic: Features a distinctive, retro design that stands out on pedalboards

• Powered Options: Works with a standard DC power supply

Experimentation is firmly at the beating heart of this pedal, so it only makes sense that you get a massive amount of control to bend sound to your will. One tweak can send you hurtling in a new direction. The control does not stop there, add to the mix, control of LFO Depth and VCO frequency via external expression, plus the ability to input your own carrier signal and you are beginning to unravel the world of possibilities available to you.

Guitarists, synth players, bassists, harpists, electric violinists and everything in between. You’re all welcome here! No matter what you’re looking to sonically tear apart and reinvent, Ring Stinger will welcome you with open arms. In fact the more creative the input the source the better! Explore an entirely new soundscape for your instrument with a pedal previously reserved for boutique collectors.

SPECIFICATIONS

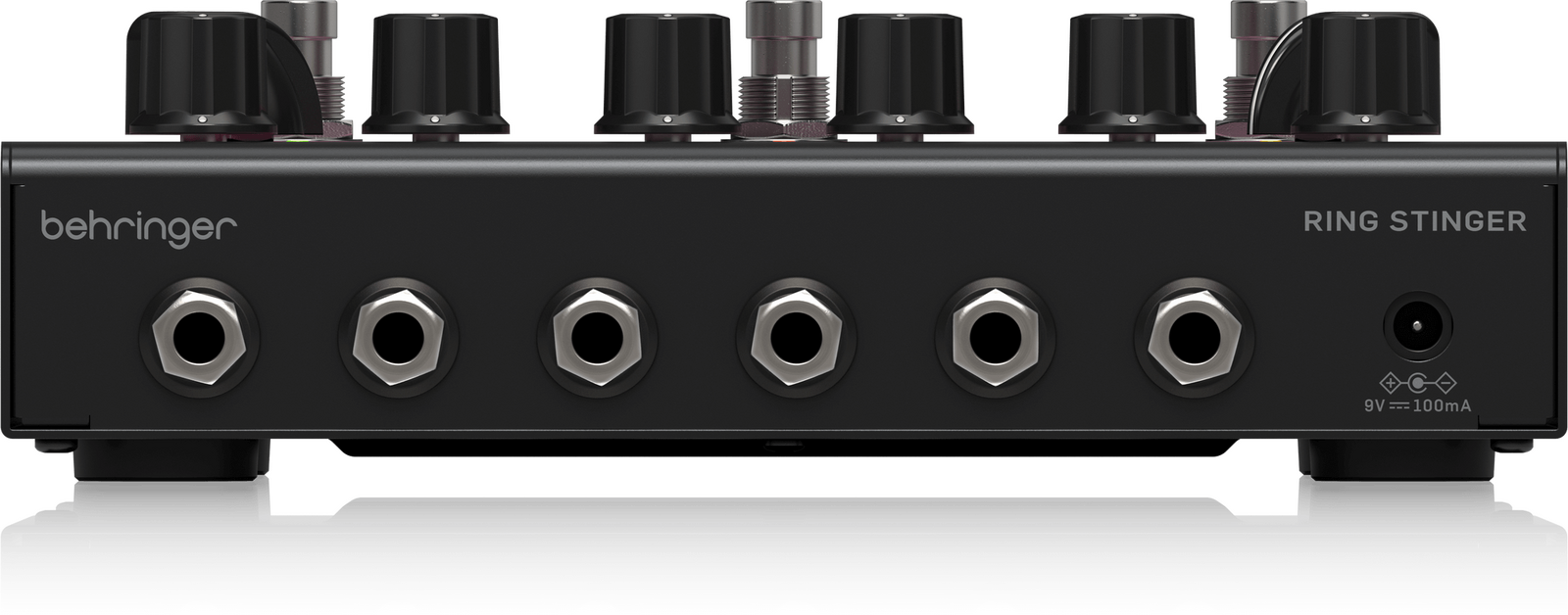

Audio Connections
Input
Connector: 1 x 1/4" TS, unbalanced
Impedance: 1 MΩ

VCO Out
Connector: 1 x 1/4" TS, unbalanced
Output impedance: 470 Ω
Carrier In impedance: 97 kΩ

Output mono
Connector: 1 x 1/4" TS, unbalanced
Impedance: 470 Ω

Control Connections
LFO Depth Pedal
Connector: 1 x 1/4" TRS
Impedance: 810 Ω, unbalanced
CV input range: 0 V to +5 V

VCO CV In/Pedal
Connector: 1 x 1/4" TRS
Impedance: 1 MΩ, unbalanced
CV input range: 0 V to +5 V

Controls
Depth / Manual: 1 x rotary knob
Rate: 1 x rotary knob
VCO Freq.: 1 x rotary knob
Drive (l): 1 x rotary knob
Timbre: 1 x rotary knob
Blend: 1 x rotary knob
LFO (Triangle/Square/ Triangle/Square): 1 x rotary switch
VCO (Sine/Triangle/ Sawtooth/Square): 1 x rotary switch
LFO (Unlock): 1 x footswitch
Bypass: 1 x footswitch
Oct./Ring: 1 x footswitch

System
Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)
Dynamic range: > 86 dB
Signal-to-noise ratio: > 76 dB
Overall gain: +15 dB

Power Supply / Voltage
Power input: Standard 9 V DC, centre negative, > 400 mA
Power consumption: 0.7 W

Dimensions / Weight
Dimensions (H x W x D): 62.3 x 200.1 x 148.5 mm (2.5'' x 7.9'' x 5.9")
Weight: 1087.0 g (38.3 oz)
