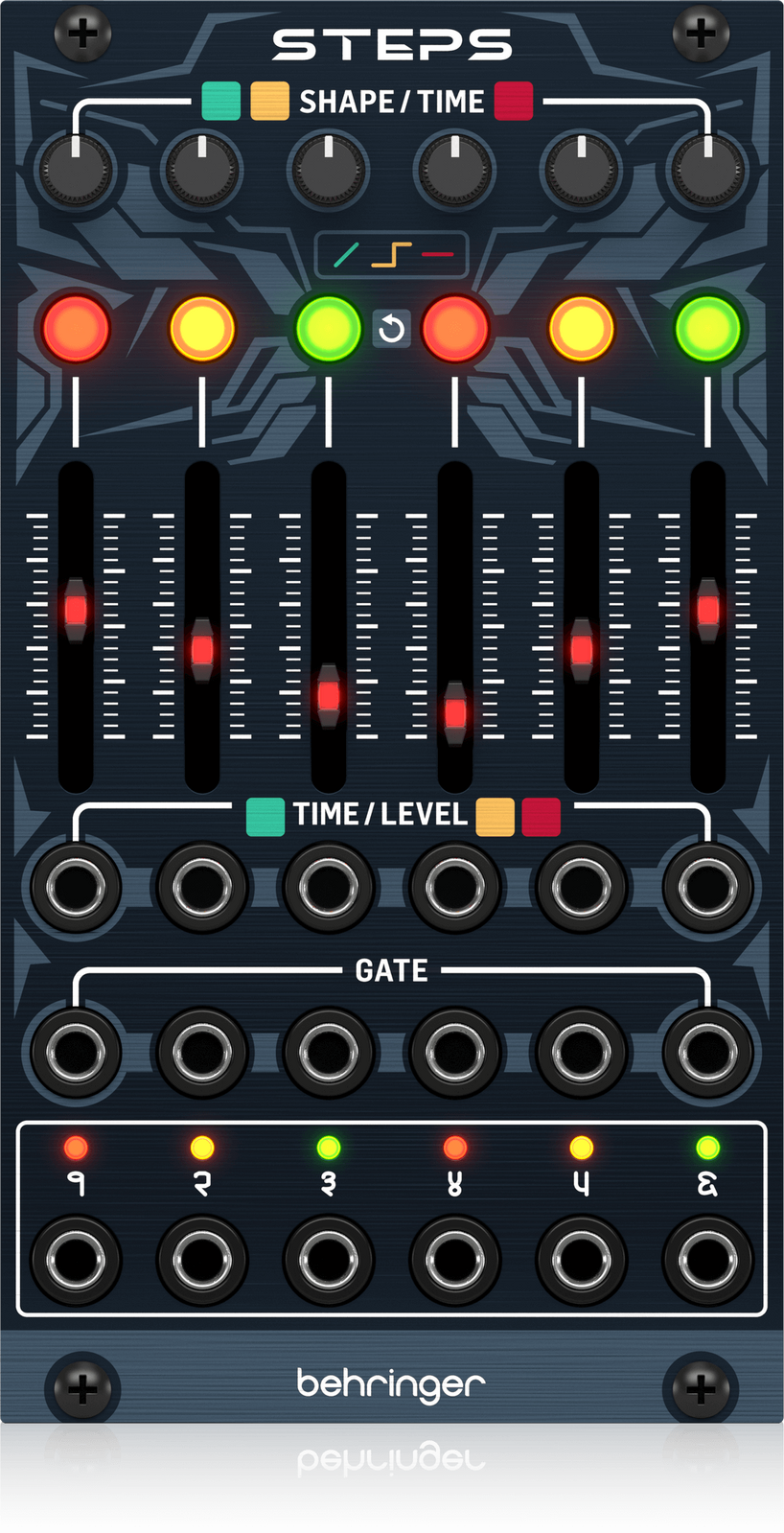

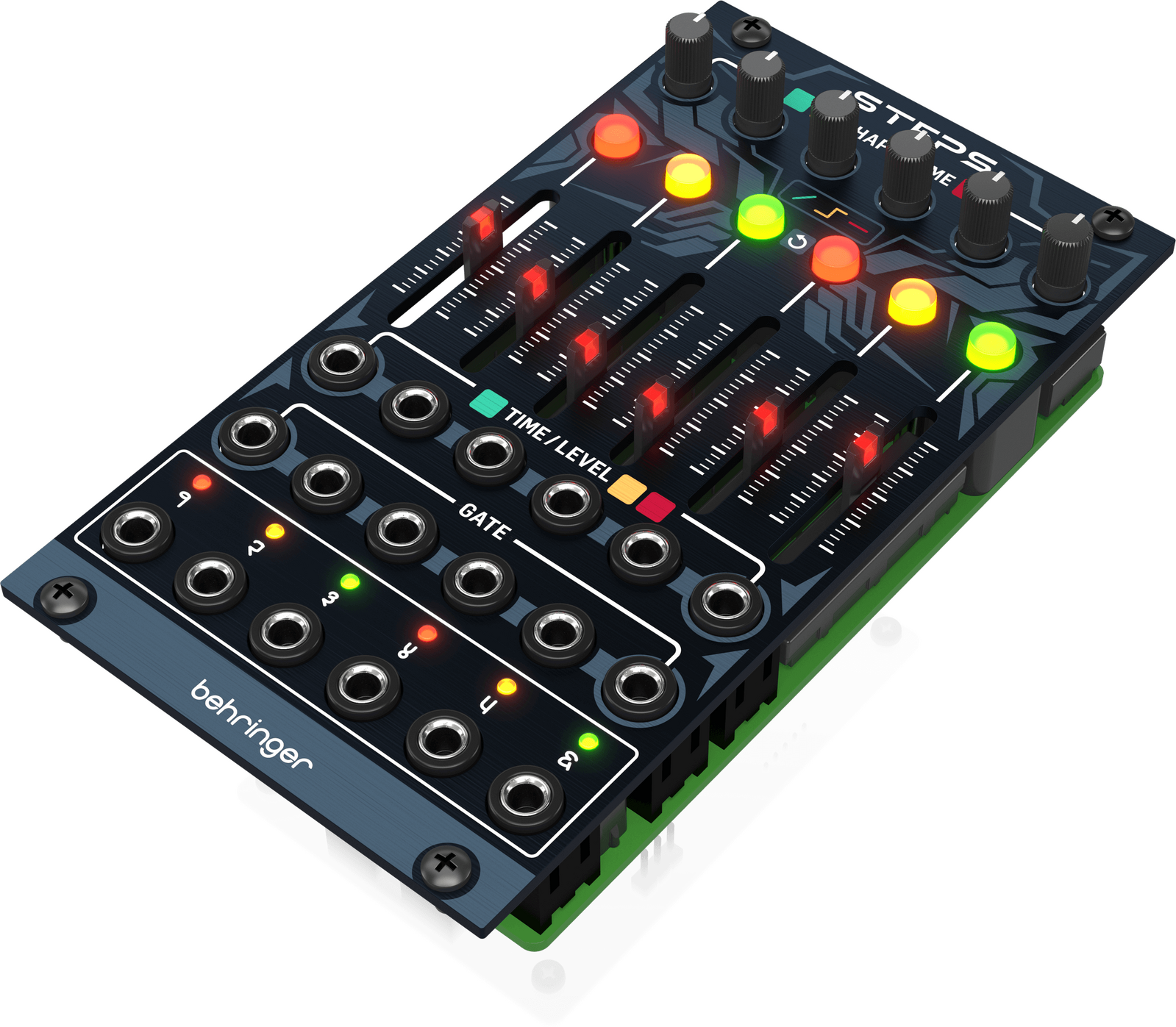

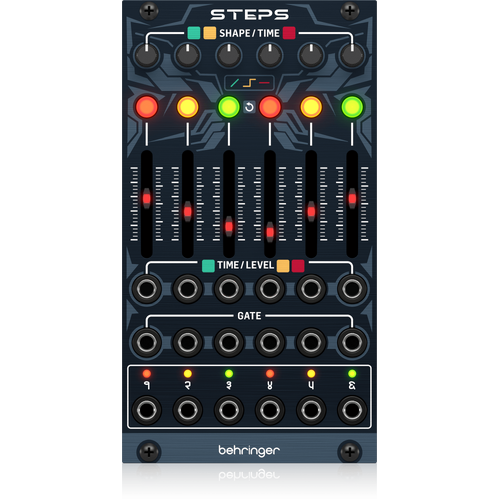

Behringer Steps

It’s one giant step for modulation! The Behringer STEPS is a Eurorack format six-stage function generator that can be configured in various ways to generate different types of modulation.

FEATURES

• Ultra-flexible 6-stage envelope, 4-step sequencer and LFO module

• Based on Mutable Instruments Stages

• High-resolution 24-bit/48 kHz synthesis for unsurpassed sound quality

• Single and grouped segment looping capabilities

• 3 different segment types include Ramp, Hold and Step

• Single segment processing with duration from 1 ms to 16 s

• Up to 14 CV generation with extremely accurate resolution

• Eurorack specs: 14 HP, +12 V 80 mA, -12 V 20 mA

Master the Elements of Sound
STEPS is capable of creating intricate LFO waveshapes, sequences and envelopes to name a few. The 6-stage envelope broken down into smaller and smaller segments and these can be as complex as you want them to be.

Single and Grouped Segment
How can you get single or grouped segments you ask? It’s all in how you patch STEPS. Patching a signal into one of the gate inputs of STEPS groups any gate to the right of it into the envelope. For example, if you patch into gate 3, then gates 4, 5 and 6 are included, creating a 4-stage envelope. Patching into gate 6 will give you a single segment envelope or you can go crazy and patch into all 6 gates and output them to any module of your choice to create six single stage envelopes. You can even chain 6 STEP modules together to get a whopping 36 segments to experiment with incredible and super complex envelopes.

Three Segment Types
Each segment of steps has three modes: Ramp, Hold and Step, which determine how the output reaches the target voltage. These modes are controlled and modified via the segment’s corresponding potentiometer and slider.

Eurorack Ready
STEPS is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix STEPS with other modules in your setup and start creating unique sequences that add a whole new dimension to your sound.

SPECIFICATIONS

Inputs
Time/Level: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 6
Gate: 3.5 mm TS jack, +1.5 V to + 8 V range, impedance 50 kΩ x 6

Outputs
Voltage: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ x 6
Controls: Shape/Time x 6
Buttons: Mode x 6
Sliders: Time/Level x 6
Power Consumption: 100 mA (+12 V) / 30 mA (-12 V)

Physical
Dimensions (W x H x D): 70.80 x 128.50 x 47.20 mm (2.79 x 5.06 x 1.86")
Eurorack: 14 hp
Weight: 0.182 kg (0.401 lb)
