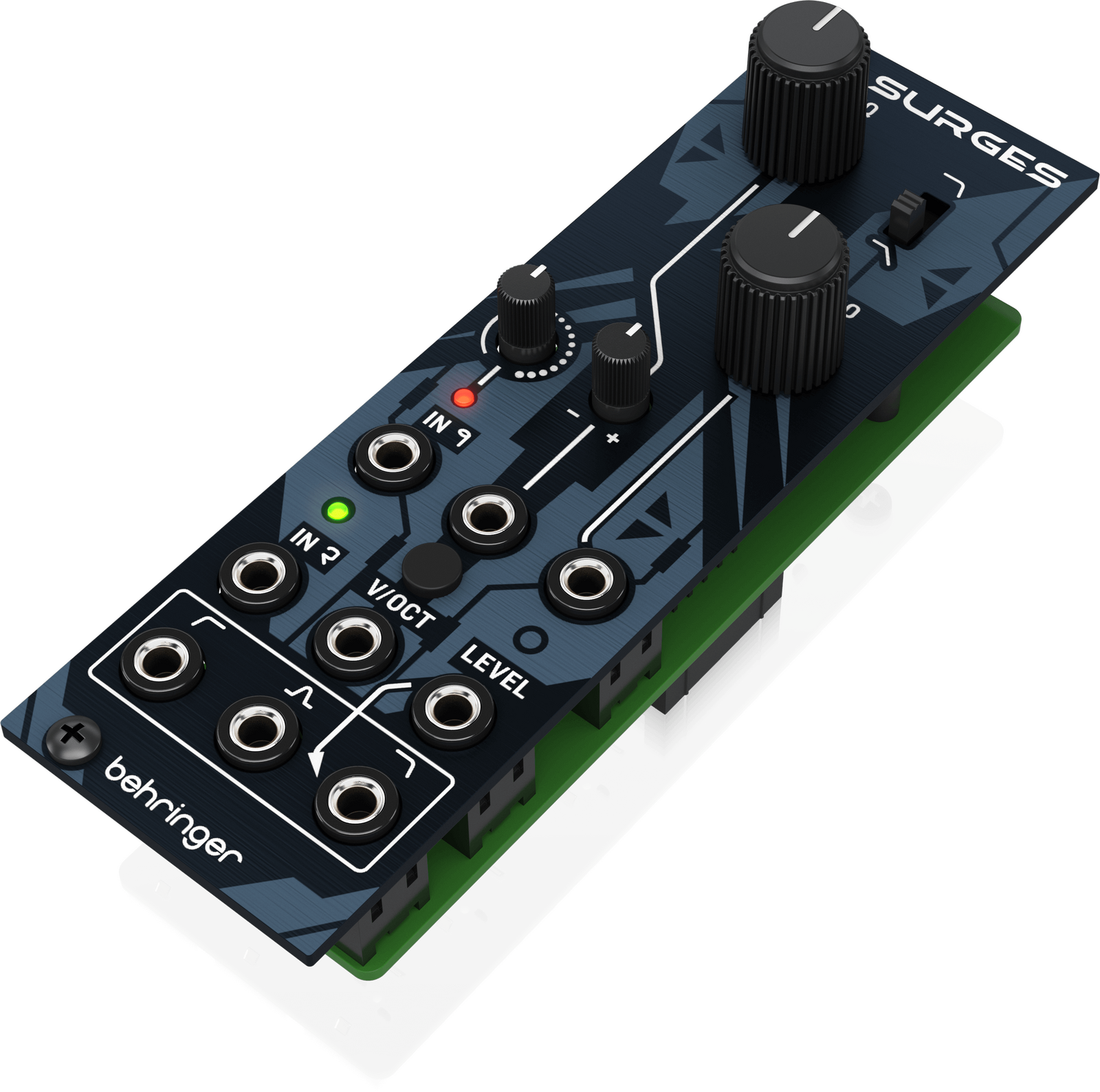

Behringer SURGES Eurorack Module

Let your riffs, beats and patches flow like water with the Behringer SURGES multi-mode filter Eurorack module!

FEATURES

• Voltage controlled multimode filter which provide high-pass, band-pass and low-pass. The slope of the band-pass and low-pass output is switchable (2-pole or 4-pole)

• Based on Mutable Instruments Ripples

• “Liquid” and musical tone coloration reminiscent of SH/Jupiter filters

• Loudness compensation with increased resonance

• Wide frequency range from 18 Hz to 18 kHz

• Purely analog circuitry based on legendary 2164 and 13700 semiconductors

• Eurorack specs: 8 HP, 35 mA +12 V, 35 mA -12 V

Go with the Flow
SURGES is a voltage controlled filter capable of high-pass, band-pass and low-pass output, with additional 2-pole or 4-pole settings for band- and low-pass.

Additional Ins and Outs

• Audio inputs – signals from input 1 and 2 are mixed together with input 1 having a dedicated level knob that can result in an overdriven sound when pushed

• CV inputs – resonance and cutoff modulation

• Voltage controlled gain for low-pass output – externally control the level of the LP signal

Eurorack Ready
SURGES is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix SURGES with other modules in your setup and start creating unique sequences that add a whole new dimension to your sound.

SPECIFICATIONS

Inputs
Audio Input 1: 3.5 mm TS jack, impedance 100 kΩ
Audio Input 2: 3.5 mm TS jack, impedance 100 kΩ
Frequency CV: 3.5 mm TS jack, range -8 V to +8 V
Resonance CV: 3.5 mm TS jack, range -8 V to +8 V
Volt/octave: 3.5 mm TS jack, range -3 V to +7 V
LPF output level: 3.5 mm TS jack range 0 V to +7 V

Outputs
High Pass Filter: 3.5 mm TS jack, impedance 1 kΩ
Band Pass Filter: 3.5 mm TS jack, impedance 1 kΩ
Low Pass Filter: 3.5 mm TS jack, impedance 1 kΩ

Controls

• Frequency

• Resonance

• Frequency CV

• Attenuverter

• Input 1 Gain

Switches: Filter Slope
