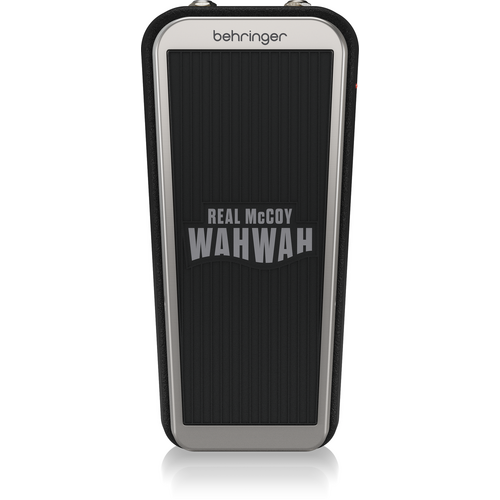

Behringer WAHWAH

Vintage WahWah Pedal with '60s Voicing, Holy Grail Inductor and Compact Footprint

The wah is the oldest trick in the rock guitar book — and the hardest to get right. WAHWAH gets it right. Authentic Real McCoy '60s voicing. All-analog circuitry built around a 'holy grail' halo-style inductor — the magic ingredient that gave the original its vocal, almost human midrange. A custom-tapered potentiometer recreates the legendary vintage sweep, with that creamy, expressive heel-to-toe response that imitations never quite capture.

Compact pedalboard-friendly footprint, robust housing built to take a beating, true bypass for ultimate signal integrity. Runs on 9V battery or the optional Behringer PSU-SB DC power supply. The wah they thought you couldn't afford. Make it talk.

FEATURES

• WahWah pedal with authenticReal Mcoy '60s voicing

• Custom taper potentiometer for vintage sweep

• Robust housing with compact pedalboard friendly footprint

• True bypass for ultimate signal integrity

• Runs on 9 V battery or the Behringer PSU-SB DC powersupply (not included)

SPECIFICATIONS

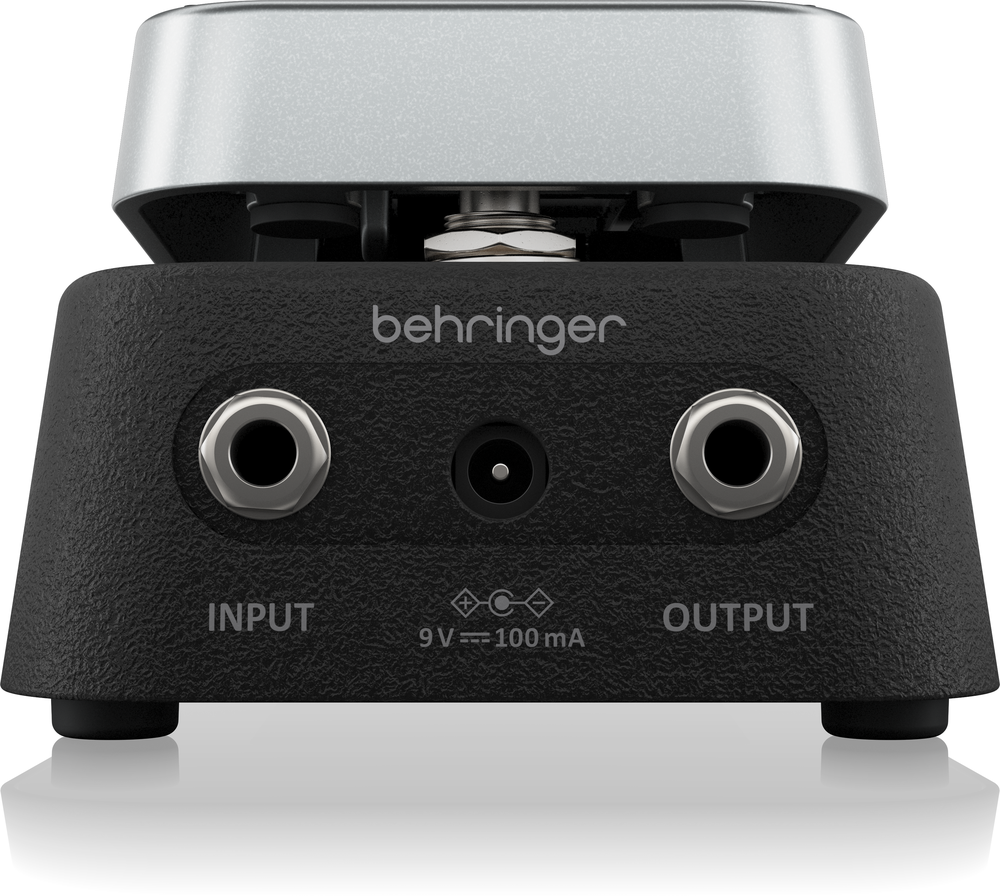

Connector: 1 x 1/4" TS, unbalanced
Impedance: 1 MΩ
Impedance: 1.5 kΩ
Heel down: 85 dB
Toe down: 85 dB
Wah range: 500 Hz to 2 kHz
Filter gain: 10 dB
Bypass type: True bypass
Power input: Standard 9 V DC, centre negative, > 300 mA (power supply not included)
Power adapter: Behringer PSU-SB
Power consumption: 0.9 W
Dimensions (H x W x D): 203.07 x 101.46 x 66.80 mm (8.00 x 4.00 x 2.63")
Weight: 2.30 kg (5.06 lbs)
