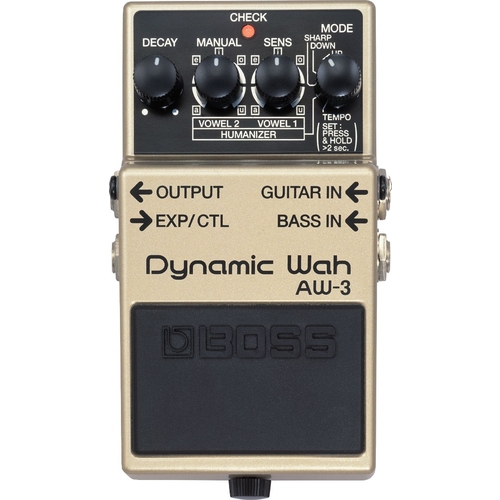

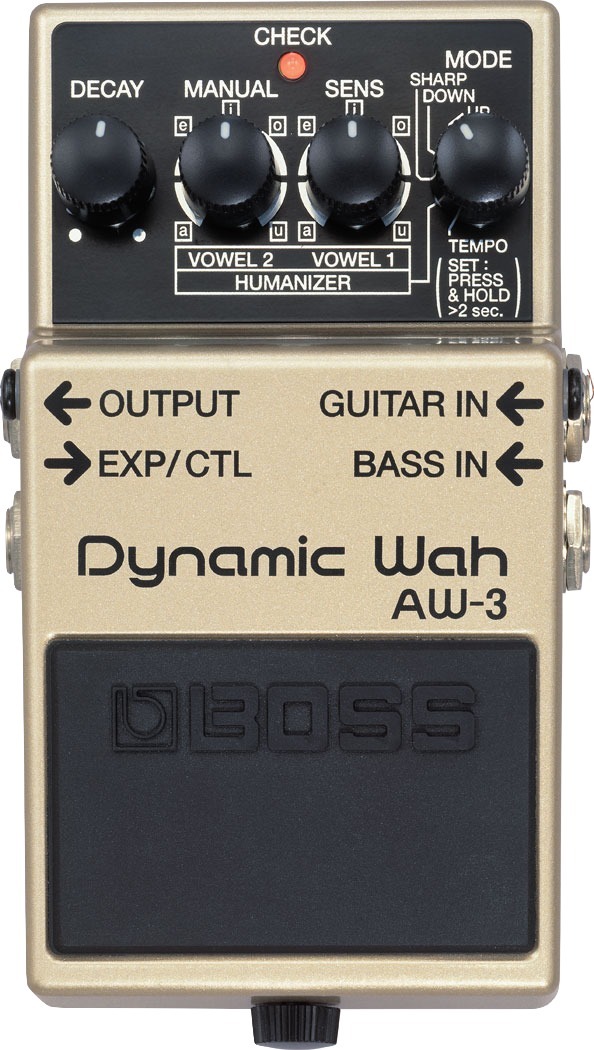

BOSS AW-3 Dynamic Wah

UNBELIEVABLE “TALKING” WAH EFFECTS!

The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.

FEATURES

• Compact pedal creates a variety of classic "wah" effects

• Dynamic wah sounds provide variable effect based on picking strength

• "Humanizer" effect creates human voice-type vowel sounds

• Dedicated Bass input for processing bass guitar

• EXP Pedal mode allows wah control via optional expression pedal

• Tempo can be set for pedal control or at fixed rate via Manual mode

• BOSS five-year warranty

A “Talking” Pedal
The AW-3 Dynamic Wah is the first compact wah pedal to incorporate human voice-type sounds through a new “Humanizer” Mode. Of course, you can also choose from standard up-and-down wah effects, plus a Tempo Mode and resonant synth-like Sharp Mode.

Endless Possibilities
Choose from both fixed and auto wah settings using the Manual control or pedal for tempo input. By connecting an optional expression pedal, the AW-3 can also be used for Pedal Wah effects. A dedicated Bass input permits direct processing of bass guitars.

SPECIFICATIONS

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:

• MODE knob

• SENS knob

• MANUAL knob

• DECAY knob

• Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)
Connectors:

• GUITAR IN jack: 1/4-inch phone type

• BASS IN jack: 1/4-inch phone type

• OUTPUT jack: 1/4-inch phone type

• EXP/CTL jack: 1/4-inch phone type

• DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 50 mA
Expected battery life under continuous use: Alkaline: Approx. 8 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
Options (sold separately):

AC adaptor: PSA series
Expression Pedal: EV-30/FV-500H/FV-500L, Roland EV-5
Footswitch(momentary-type): FS-5U/FS-6/FS-7

Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 430 g, 1 lb

* 0 dBu = 0.775 Vrms
* The specifications are subject to change without notice.
