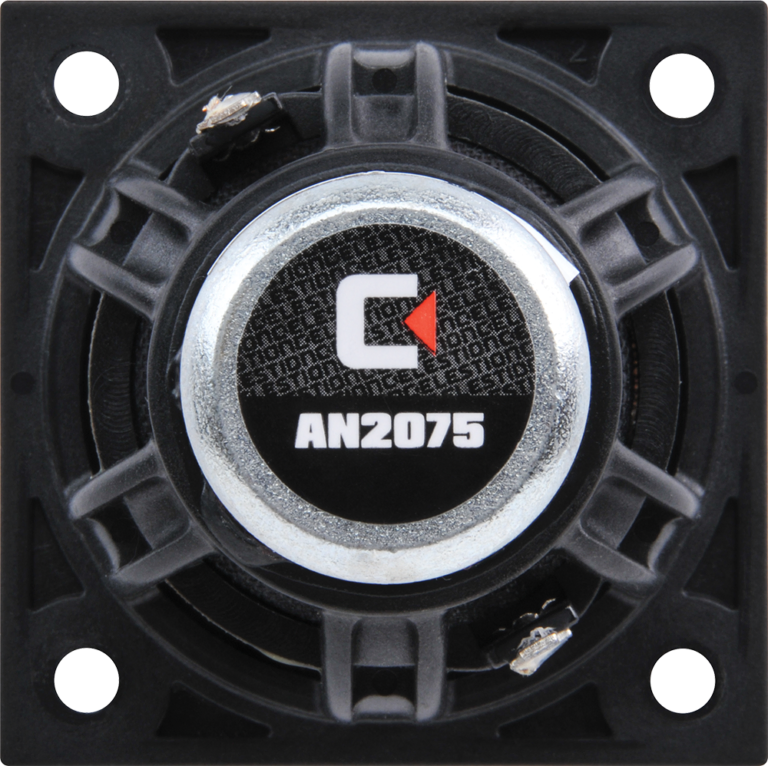

Celestion AN2075 2" 20W Full Range Driver - 8Ω

2-inch neodymium magnet compact full range driver.

• Square chassis profile for close coupling

• Integrated waveguide for greater HF dispersion

• Rigid aluminium cone

• Half roll elastomer surround

• Weatherproof

SPECIFICATIONS

Nominal diameter: 50mm / 2in
Power rating: 20W
Continuous power rating: 40W
Rated impedance: 8Ω
Sensitivity: 80dB
Frequency range: 160-19,000Hz
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Voice coil diameter: 20mm / 0.75in
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Suspension: Single
Gap height (Hg): 3mm / 0.12in
VC winding height (Hvc): 6mm / 0.24in
Additional impedances: 32Ω

PARAMETERS

Sd: 12.56cm2 / 1.95in2
Fs: 153.4Hz
Mms: 1.49g / 0.05oz
Qms: 5.281
Qes: 0.998
Qts: 0.839
Re: 5.33Ω
Vas: 1.51l / 0.05ft3
BI: 2.71Tm
Cms: 0.72mm/N
Rms: 0.27kg/s
Le (at 1kHz): 0.04mH
Xmax: 2.25mm / 0.09in

MOUNTING INFORMATION

Overall size: 56.2x56.2mm / 2.2x2.2in
Overall depth: 43.5mm / 1.7in
Cut-out diameter: 51.1mm / 2.0in
Fitting: 4 x M4 holes
Mounting hole PCD: 62mm / 2.45in
Unit weight: 0.97kg / 0.2lb
