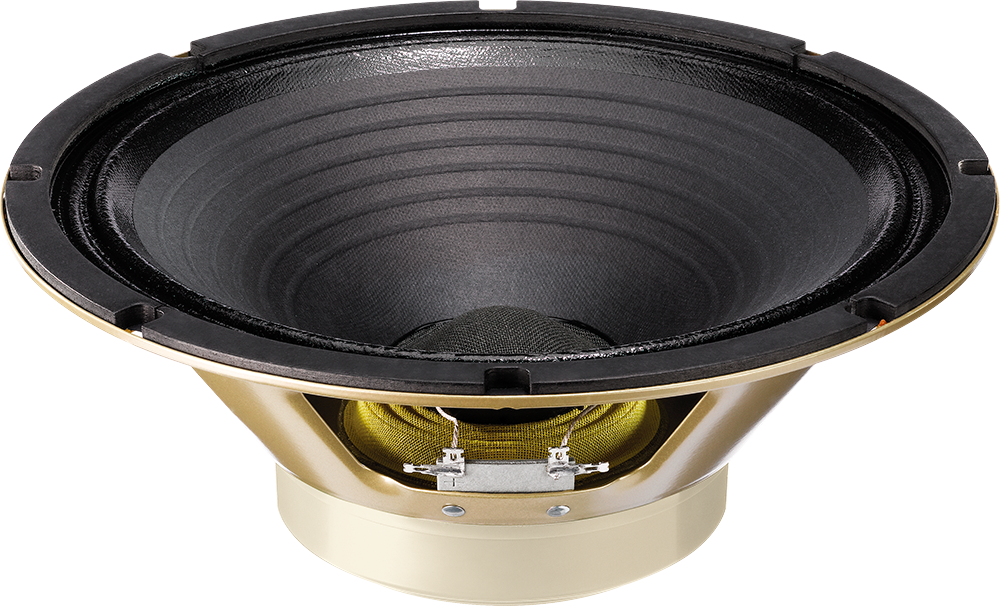

Celestion G10 Creamback 10" 45W - 8Ω

The new G10 Creamback packs everything guitar players love about Creamback speakers into a 10-inch format. Hand-built in the UK using the same production methods and materials developed for the 12-inch models, the G10 Creamback uses a ceramic magnet and a 1.75-inch voice coil to deliver 45-watt power handling. With all the punch and dynamics typical of a 10 its overall tone is warm expressive detailed and well-balanced.

SPECIFICATIONS

Nominal Diameter: 10in/254mm
Nominal Power Rating: 45W
Rated Impedance: 8Ω or 16Ω
Sensitivity: 96dB
Frequency Range: 95-5500Hz
Resonance Frequency, Fs: 98Hz
DC Resistance, Re: 6.4Ω or 12.05Ω
Voice Coil Diameter: 44mm / 44mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 14oz
Voice Coil Material: Round copper

MOUNTING INFORMATION

Cut-out Diameter: 9.0in/229mm
Diameter: 10.0in/253mm
Magnet Structure Diameter: 4.9in/124mm
Mounting Hole Dimensions: Ø 0.25 x 0.43in / 6.5 x 11mm
Mounting Hole PCD: 9.6in/245mm
Number of Mounting Holes: 8
Overall Depth: 4.0in/102mm
Unit Weight: 3.5lb/1.6kg
