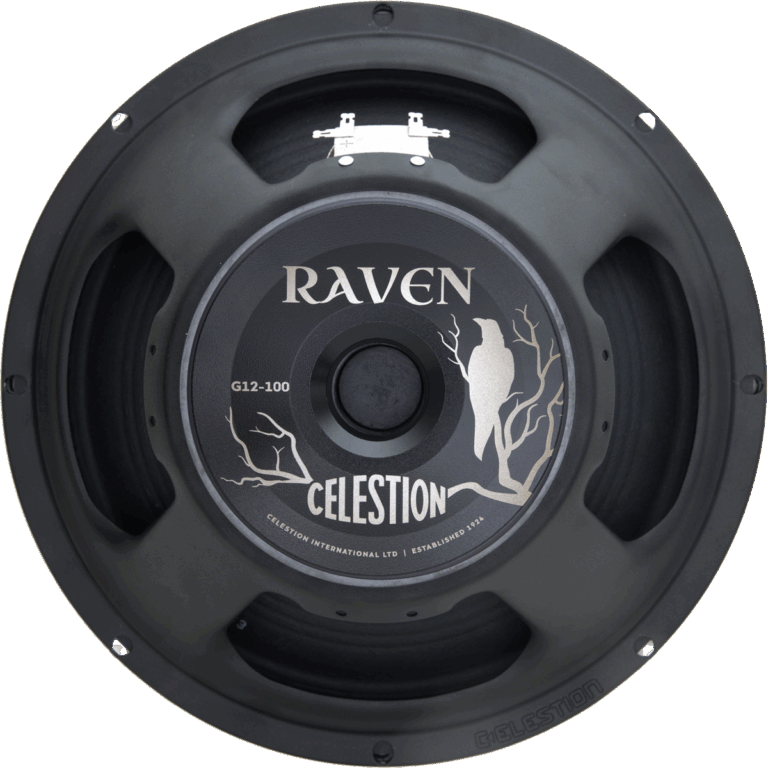

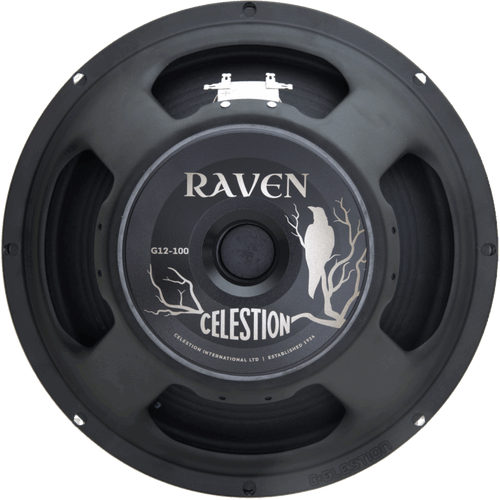

Celestion G12-100 Raven 12" 100W

$269.00

See more from Celestion

SKU: 28G12-100-16

Available for pre-order
This product is estimated to ship in November 2026, but that ETA is subject to change. If you would like an up to date ETA before placing an order, please give us a call or send us an email.

More info.

Make 4 payments of $67.25 over 8 weeks and get it now!

Calculate Shipping

Enter post code to calculate shipping

Boasting a formidable 100W power rating, and a new-design, low-weight ceramic magnet structure, the Raven is engineered to handle crushing lead lines and seismic low-end riff-work. Beyond the raw power lies a truly premium tone, delivering a detailed mid-range punch, brooding highs, and a firm, authoritative low end.

The Raven is defined by its ability to deliver tons of tone, while remaining light as a feather. At the heart of this capability is a reimagined ceramic magnet assembly; a unique new motor structure that massively lowers the speaker’s overall weight—to just 2.5 kg (5.5 lb)—without compromising the huge magnetic forces required to power such a gargantuan tone machine.

SPECIFICATIONS

Nominal diameter: 305mm / 12in
Power rating: 100W
Rated impedance: 8Ω or 16Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 0.85kg / 30oz
Voice coil diameter: 2in / 50mm
Voice coil material: Round copper
Frequency range: 70-5000Hz
Resonance frequency, Fs: 72Hz

Mounting Information
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 134mm / 5.28in
Mounting hole dimensions: 7.9mm / 0.31in Ø
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 8
Chassis depth (inc gasket): 123.3mm / 4.85in
Magnet depth: 29.3mm / 1.15in
Overall depth: 123.3mm / 4.85in
Unit weight: 2.5kg / 5.5lb
