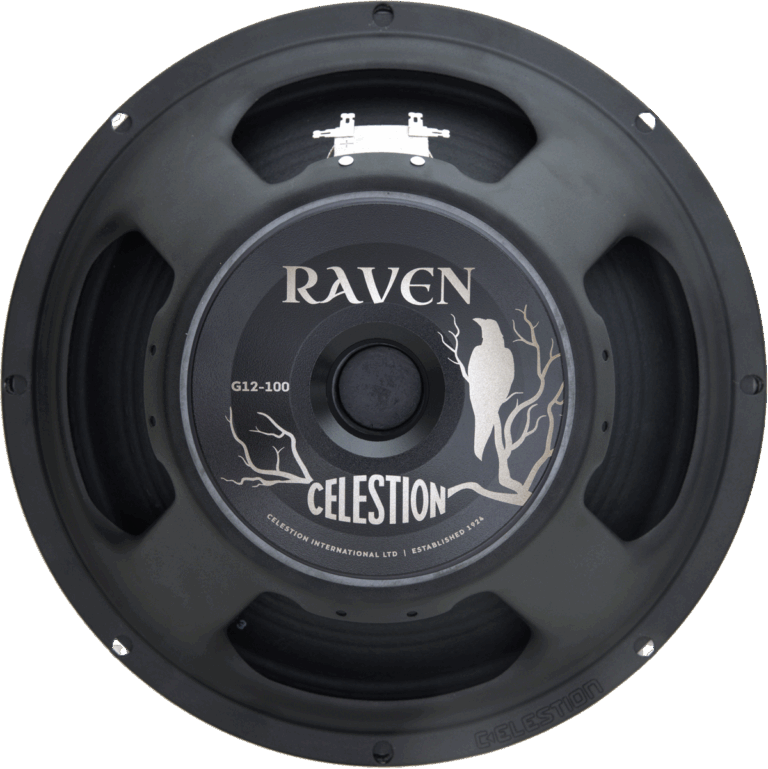

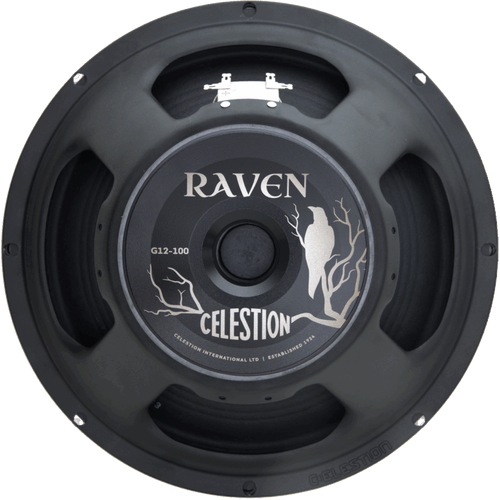

Celestion G12-100 Raven 12" 100W - 8Ω

Boasting a formidable 100W power rating, and a new-design, low-weight ceramic magnet structure, the Raven is engineered to handle crushing lead lines and seismic low-end riff-work. Beyond the raw power lies a truly premium tone, delivering a detailed mid-range punch, brooding highs, and a firm, authoritative low end.

The Raven is defined by its ability to deliver tons of tone,  while remaining light as a feather. At the heart of this capability is a reimagined ceramic magnet assembly; a unique new motor structure that massively lowers the speaker’s overall weight—to just 2.5 kg (5.5 lb)—without compromising the huge magnetic forces required to power such a gargantuan tone machine.

SPECIFICATIONS

Nominal diameter: 305mm / 12in
Power rating: 100W
Rated impedance: 8Ω or 16Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 0.85kg / 30oz
Voice coil diameter: 2in / 50mm
Voice coil material: Round copper
Frequency range: 70-5000Hz
Resonance frequency, Fs: 72Hz

Mounting Information
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 134mm / 5.28in
Mounting hole dimensions: 7.9mm / 0.31in Ø
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 8
Chassis depth (inc gasket): 123.3mm / 4.85in
Magnet depth: 29.3mm / 1.15in
Overall depth: 123.3mm / 4.85in
Unit weight: 2.5kg / 5.5lb
