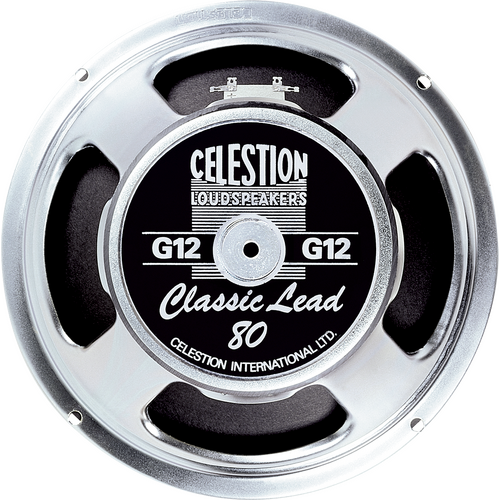

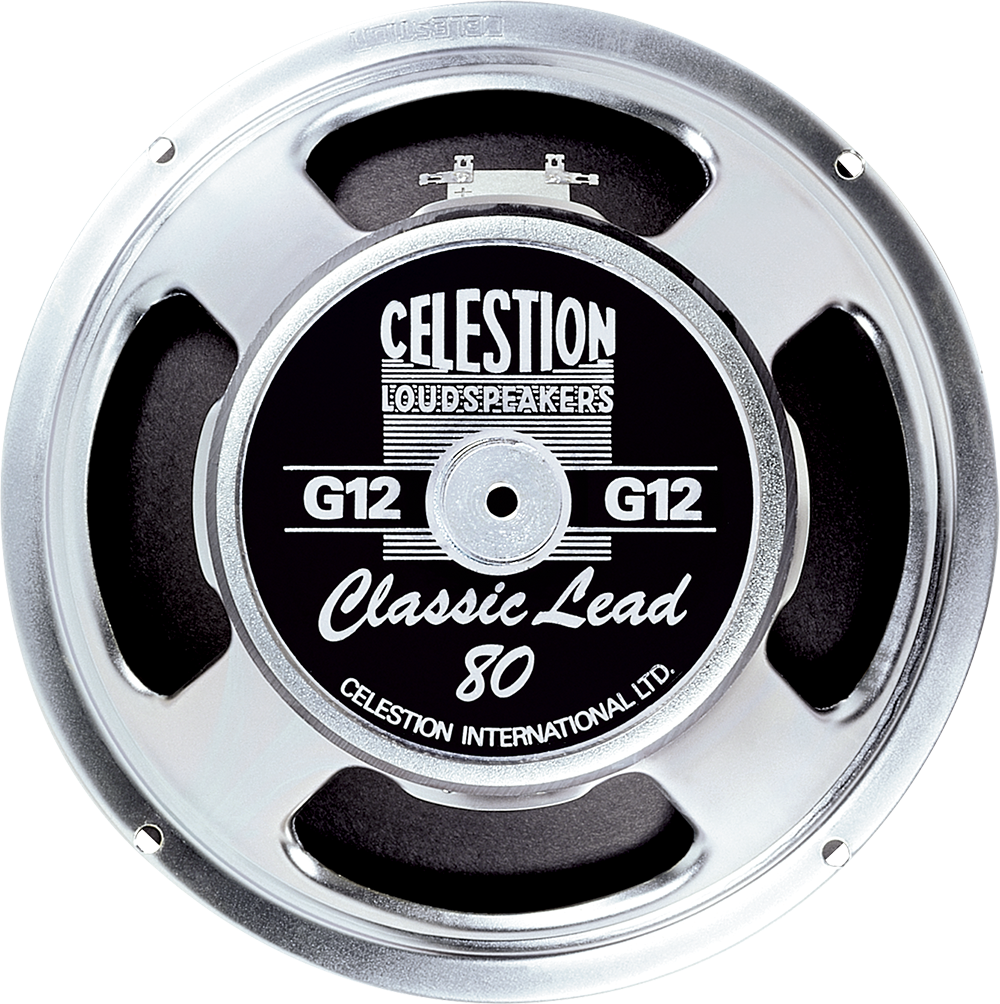

Celestion G12 Classic Lead 80 12" 80W - 8Ω

Developed in the late ’70s the Classic Lead guitar speaker uses a fibreglass voice coil former to deliver an 80W power rating and a unique dynamic sound.A firm favourite with lead guitarists the Classic Lead features a tightly controlled low-end with strong high bass / low mid punch aggressive mid range attack and a powerful yet controlled top-end.For power chords it has the tone to make its presence felt but the subtle high-frequency roll- off makes it ideal for solos able to project single notes on loud stages without becoming shrill.

SPECIFICATIONS

Nominal Diameter: 12in/305mm
Nominal Power Rating: 80W
Nominal Impedance: 8Ω
Sensitivity: 99dB
Frequency Range: 80-5000Hz
Resonance frequency Fs: 85Hz
DC Resistance, Re: 6.9Ω
Voice coil diameter (mm): 55.5mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Voice coil material: Round copper

MOUNTING INFORMATION

Cut-out Diameter: 11.1in/283mm
Diameter: 12.2in/309mm
Magnet structure diameter: 6.1in/156mm
Mounting hole dimensions: Ø 0.31in/7.9mm
Mounting hole PCD: 11.7in/297mm
Number of mounting holes: 4
Overall Depth: 5.3in/135mm
Unit Weight: 10lb/4.7kg
