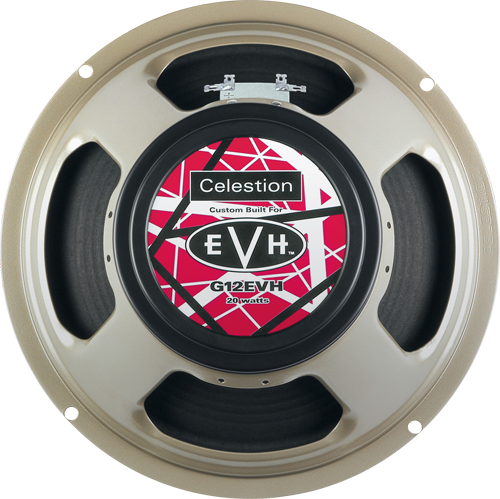

Celestion G12 EVH 12" 20W - 8Ω
Model No. T5658
In stock at warehouse.
Allow additional days for shipping or to collect in-store.
Important Warehouse Shipping Information
Our website has the ability to display products that are in stock at our various supplier warehouses around the country, which allows us to provide a much broader product range for our customers. This is one of those products.
Some of our suppliers are able to ship products directly to you, while others need to ship to us before they are shipped to you. It is important to note that for products that are shipping from one of our supplier warehouses, either directly to you or via our Hobart store, we are unable to control how quickly the order will be dispatched, or the shipping method or service that will be used.
If you would like to know more information about shipping times and methods that apply to this product, please feel free to contact us.
More infoCalculate Shipping
Enter post code to calculate shipping
Throughout his career, whether in the studio or on the stage, the Celestion 20-watt 'Greenback' has played an essential role to Edward Van Halen in making the tones that rewrote the book on guitar sound.
When it came time to select speakers for his new EVH Brand 5150-III signature amp, there was only one choice - Celestion.The Heritage Series G12M guitar speaker faithfully reproduces the sonic qualities of the original '60s version Greenback used to make EVH tone from day one. With the addition of a black rear can featuring the EVH logo and his unmistakable red, white and black stripes, the G12EVH was born. Unmistakable look, but more importantly unmistakable tone.
SPECIFICATIONS
Nominal Diameter: 12in/305mm
Nominal Power Rating: 20W
Nominal Impedance: 8Ω or 15Ω
Sensitivity: 96dB
Frequency Range: 75-5000Hz
Resonance Frequency, Fs: 75Hz
DC Resistance, Re: 6.57Ω & 12.13Ω
Voice Coil Diameter: 44mm / 44mm
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 35oz/0.99kg
Voice Coil Material: Round copper
MOUNTING INFORMATION
Cut-out Diameter: 11.1in/283mm
Diameter: 12.2in/309mm
Magnet Structure Diameter: 5.9in/150mm
Mounting Hole PCD: 11.7in/297mm
Number of Mounting Holes: 4
Overall Depth: 5.1in/130mm
Unit Weight: 7.9lb/3.6kg
For more information, click here to visit the manufacturers website.
