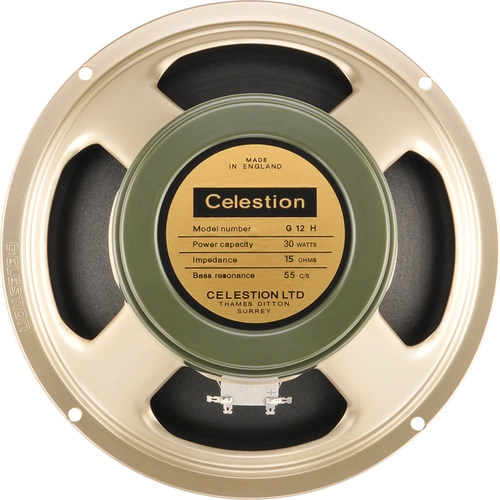

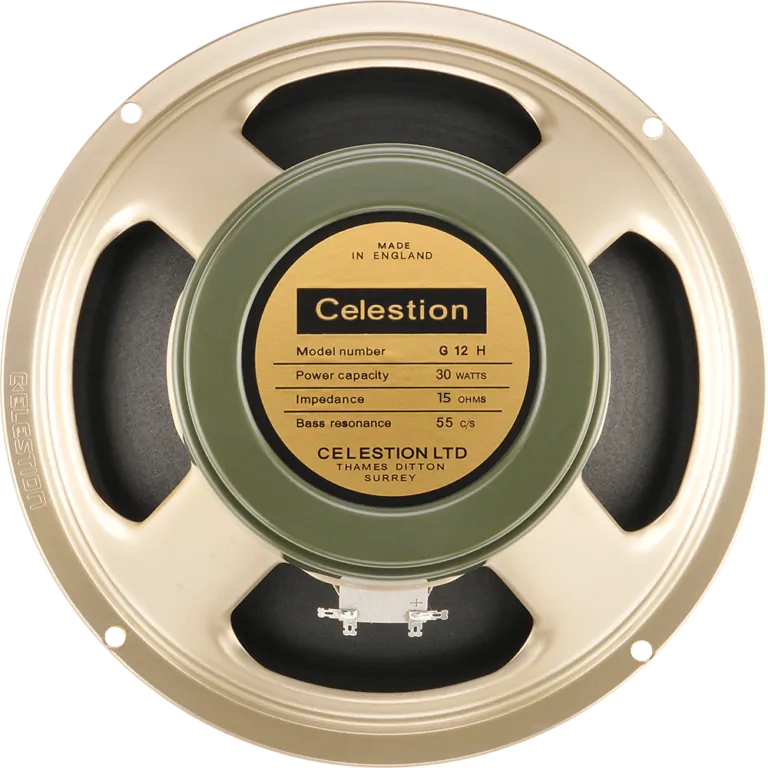

Celestion G12H Heritage 12" 30W 55Hz - 15Ω
Model No. T1281
Available for pre-order
This product is estimated to ship in October 2026, but that ETA is subject to change. If you would like an up to date ETA before placing an order, please give us a call or send us an email.
More infoCalculate Shipping
Enter post code to calculate shipping
It’s hard to escape the sound of the G12H; just listen to any Hendrix recording and chances are you’ll be hearing a whole raft of them powering the guitar out of the mix.These faithful re-creations capture the unmistakeable mojo of late 60s rock guitar tones. Unsurpassed in a 4×12 for cranking out towering huge power chords the Heritage Series G12H (55) features the 55c/s ‘bass’ cone. This model is famous for its thick syrupy tones with a deep growling back end densely complex mid-range and a finely detailed top end.
SPECIFICATIONS
Nominal diameter: 305mm / 12in
Power rating: 30W
Rated impedance: 8Ω or 15Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 1.42kg / 50oz
Voice coil diameter: 1.75in / 44.5mm
Frequency range: 55-5000Hz
Resonance frequency, Fs: 55Hz
DC resistance, Re: 6.53Ω and 12.11Ω
Mounting Information
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 168mm / 6.6in
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 4
Overall depth: 135mm / 5.3in
Unit weight: 4.7kg / 10.4lb
For more information, click here to visit the manufacturers website.
