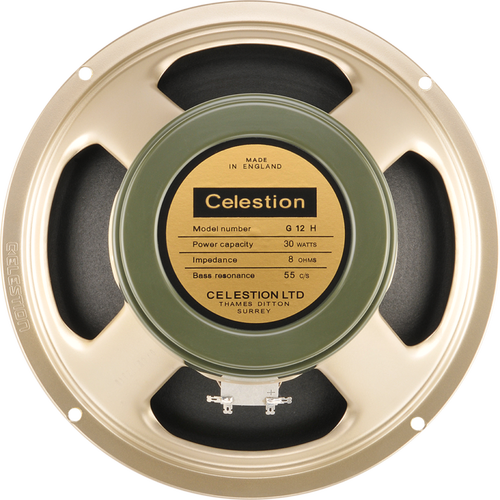

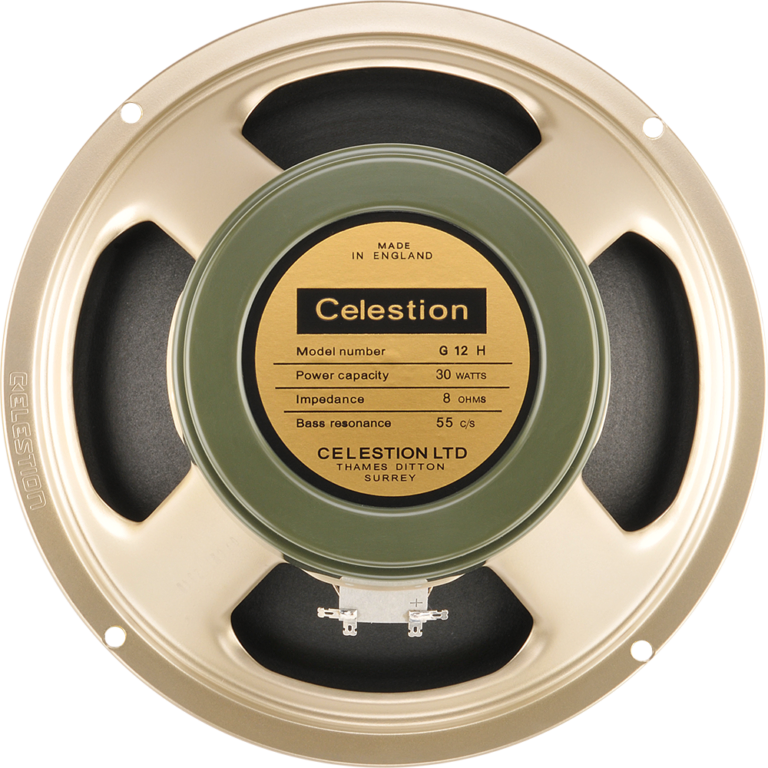

Celestion G12H Heritage 12" 30W 55Hz - 8Ω
Model No. T1234
In stock at warehouse.
Allow additional days for shipping or to collect in-store.
Important Warehouse Shipping Information
Our website has the ability to display products that are in stock at our various supplier warehouses around the country, which allows us to provide a much broader product range for our customers. This is one of those products.
Some of our suppliers are able to ship products directly to you, while others need to ship to us before they are shipped to you. It is important to note that for products that are shipping from one of our supplier warehouses, either directly to you or via our Hobart store, we are unable to control how quickly the order will be dispatched, or the shipping method or service that will be used.
If you would like to know more information about shipping times and methods that apply to this product, please feel free to contact us.
More infoCalculate Shipping
Enter post code to calculate shipping
It’s hard to escape the sound of the G12H; just listen to any Hendrix recording and chances are you’ll be hearing a whole raft of them powering the guitar out of the mix.These faithful re-creations capture the unmistakeable mojo of late 60s rock guitar tones. Unsurpassed in a 4×12 for cranking out towering huge power chords the Heritage Series G12H (55) features the 55c/s ‘bass’ cone. This model is famous for its thick syrupy tones with a deep growling back end densely complex mid-range and a finely detailed top end.
SPECIFICATIONS
Nominal diameter: 305mm / 12in
Power rating: 30W
Rated impedance: 8Ω or 15Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 1.42kg / 50oz
Voice coil diameter: 1.75in / 44.5mm
Frequency range: 55-5000Hz
Resonance frequency, Fs: 55Hz
DC resistance, Re: 6.53Ω and 12.11Ω
Mounting Information
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 168mm / 6.6in
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 4
Overall depth: 135mm / 5.3in
Unit weight: 4.7kg / 10.4lb
