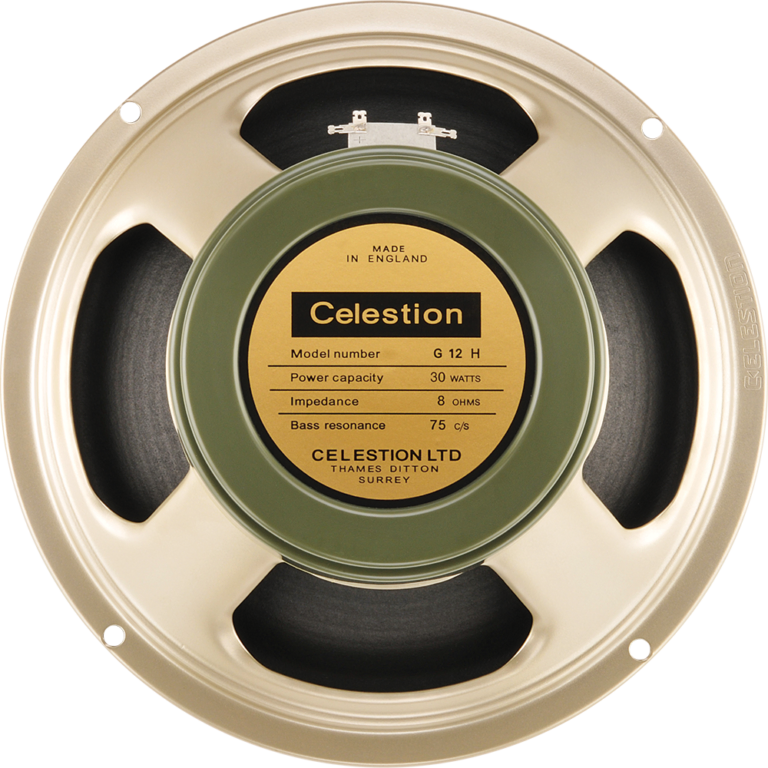

Celestion G12H Heritage 12" 30W 75Hz

$329.00

See more from Celestion

SKU: 28G12H-75-8

Available for pre-order
This product is estimated to ship in October 2026, but that ETA is subject to change. If you would like an up to date ETA before placing an order, please give us a call or send us an email.

More info.

Make 4 payments of $82.25 over 8 weeks and get it now!

Calculate Shipping

Enter post code to calculate shipping

It’s hard to escape the sound of the G12H; just listen to any Hendrix recording and chances are you’ll be hearing a whole raft of them powering the guitar out of the mix. These faithful re-creations capture the unmistakeable mojo of late 60s rock guitar tones. The Heritage Series G12H (75) features a 75 c/s ‘lead’ cone for an alternative tonal balance that places a little less emphasis on bass frequencies. Choose this version if you prefer a tighter bottom end with a punchy upper mid-range and sparkling highs.

SPECIFICATIONS

Nominal diameter: 305mm / 12in
Power rating: 30W
Rated impedance: 8Ω or 15Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 1.42kg / 50oz
Voice coil diameter: 1.75in / 44.5mm
Voice coil material: Round copper
Frequency range: 75-5000Hz
Resonance frequency, Fs: 75Hz
DC resistance, Re: 6.53Ω and 12.11Ω

Mounting Information
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 168mm / 6.6in
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 4
Overall depth: 135mm / 5.3in
Unit weight: 4.7kg / 10.4lb

For more information, click here to visit the manufacturers website.
