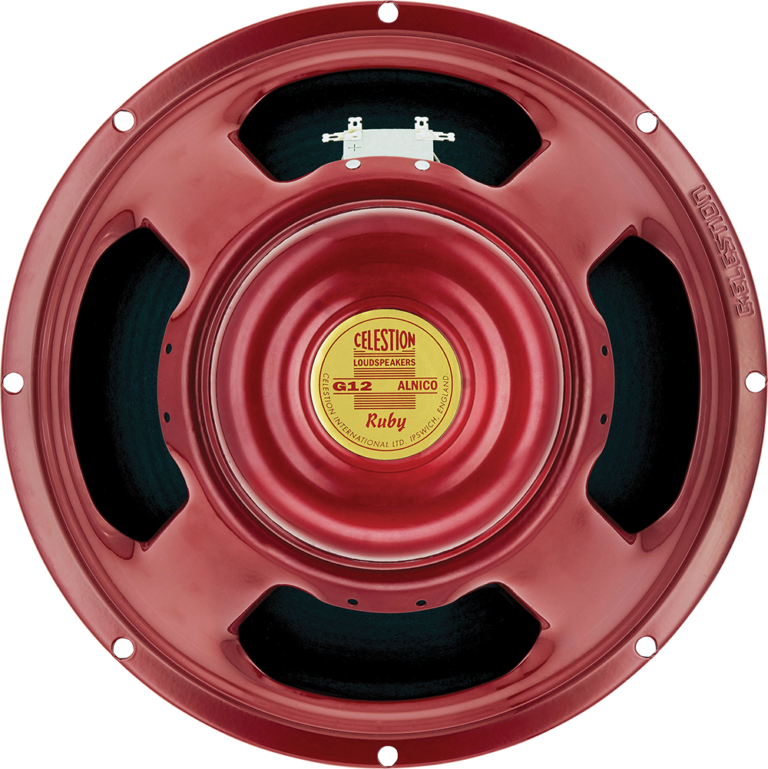

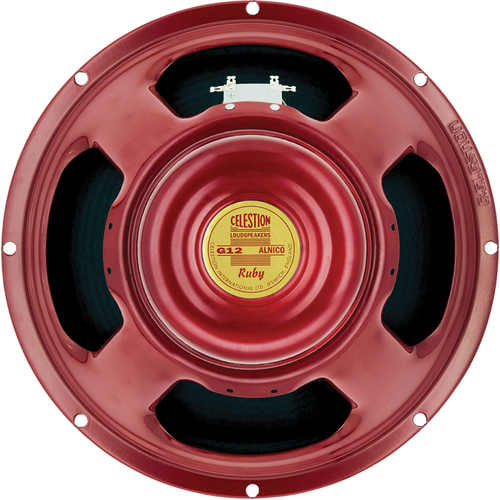

Celestion Ruby 12" 35W - 8Ω

The Ruby is an alnico-magnet guitar speaker that’s purpose-built to create vintage tones – and at 35-watts power handling it’s ideal for use with mid-powered amps and combos. Bringing the instantly familiar Celestion alnico vibe with its glorious dampened attack; the Ruby oozes a richly musical vintage warmth with mellow highs and a smooth sophisticated midrange.

SPECIFICATIONS

Nominal Diameter: 12in/305mm
Nominal Power Rating: 35W
Nominal Impedance: 8Ω
Sensitivity: 100dB
Chassis Type: Pressed steel
Magnet Type: Alnico
Voice coil diameter (mm): 44mm
Voice coil diameter (in): 1.75in
Frequency Range:  75-5000Hz
Resonance frequency Fs: 75Hz
DC resistance, Re: 6.7Ω

MOUNTING INFORMATION

Cut-out diameter: 283mm / 11.1in
Diameter: 12.2in/309mm
Magnet structure diameter: 5in/128mm
Mounting slot dimensions: Ø 0.31in/7.9mm
Mounting slot PCD: 11.7in/297mm
Number of mounting slots: 8
Chassis Depth (inc. gasket): 92mm/3.63in
Magnet Depth: 2.87in/73mm
Overall Depth: 6.5in/165mm
Unit Weight: 9.3lb/4.2kg
