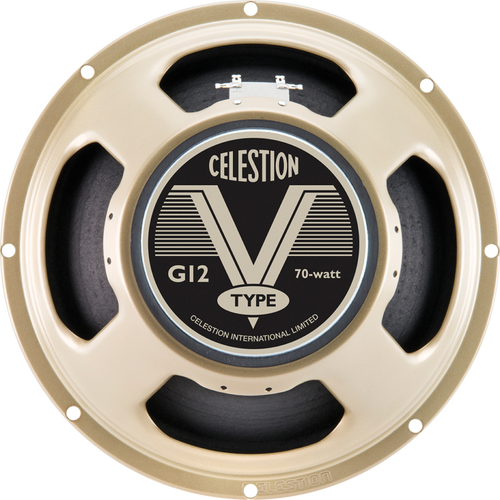

Celestion V-Type 12" 70W - 8Ω

Combining decades of experience with advanced measurement and analysis the V-Type has been built using a carefully balanced ‘recipe’ of old and new design techniques. It produces a heady exciting modern vintage sound that just makes you want to keep on playing: a guitar speaker that delivers authentic Celestion tone whatever your style.The V-type is a sweet sounding speaker with a superbly balanced tonal signature that imparts a vintage musicality to your tone. Clean sounds are true across the lows mids and highs with just enough upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and raw rock tones with plenty of mid-band warmth to give body and substance to lead note playing.

SPECIFICATIONS

Nominal Diameter: 12in/305mm
Nominal Power Rating: 70W
Nominal Impedance: 8Ω
Sensitivity: 98dB
Chassis Type: Pressed steel
Magnet Type: Ceramic
Magnet Weight: 31oz/0.88kg
Voice coil diameter (mm): 44mm
Voice coil diameter (in): 1.75in
Voice coil material: Round Copper
Frequency Range:  75-5000Hz
Resonance frequency Fs: 75Hz
DC resistance, Re: 7.3Ω

MOUNTING INFORMATION

Cut-out diameter: 283mm / 11.1in
Diameter: 12.2in/309mm
Magnet structure diameter: 5.3in/134mm
Mounting slot dimensions: Ø 0.31in/7.9mm
Mounting slot PCD: 11.7in/297mm
Number of mounting slots: 8
Chassis Depth (inc. gasket): 94mm/3.73in
Magnet Depth: 1.18in/30mm
Overall Depth: 4.8in/123mm
Unit Weight: 7.2lb/3.3kg
