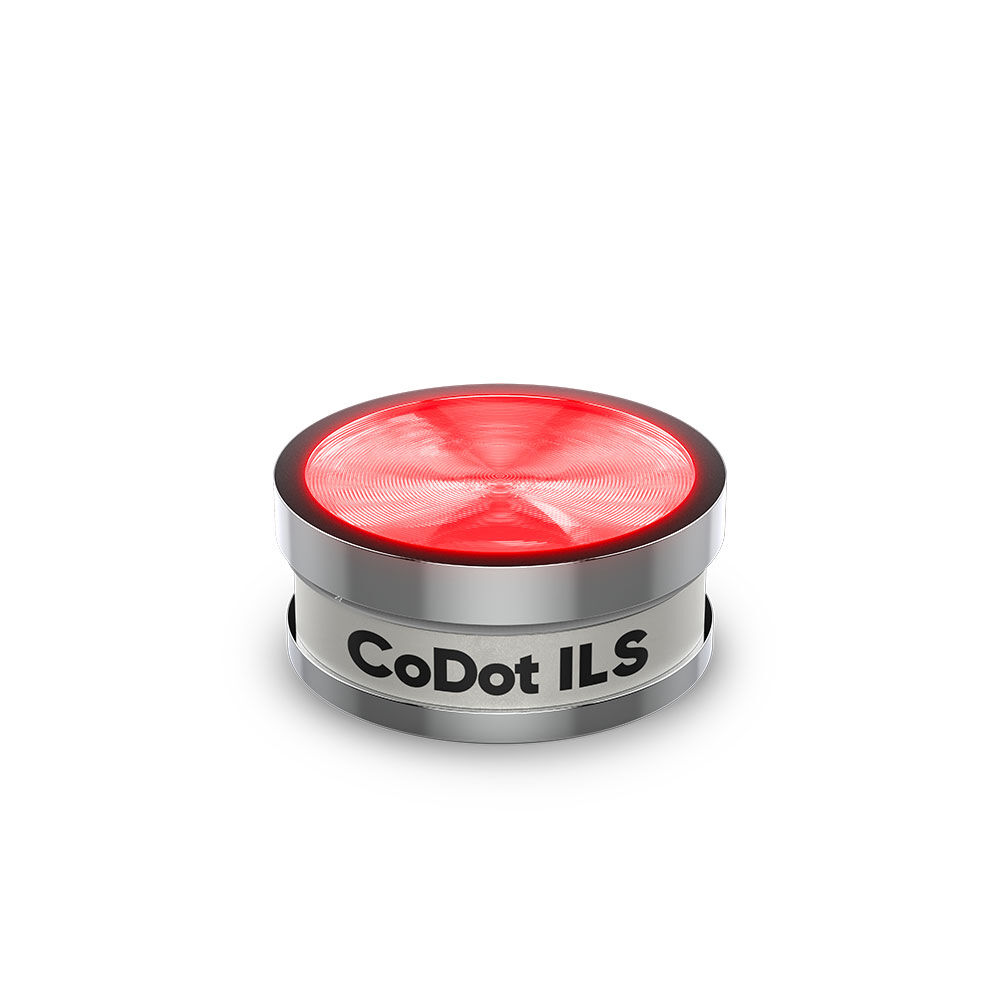

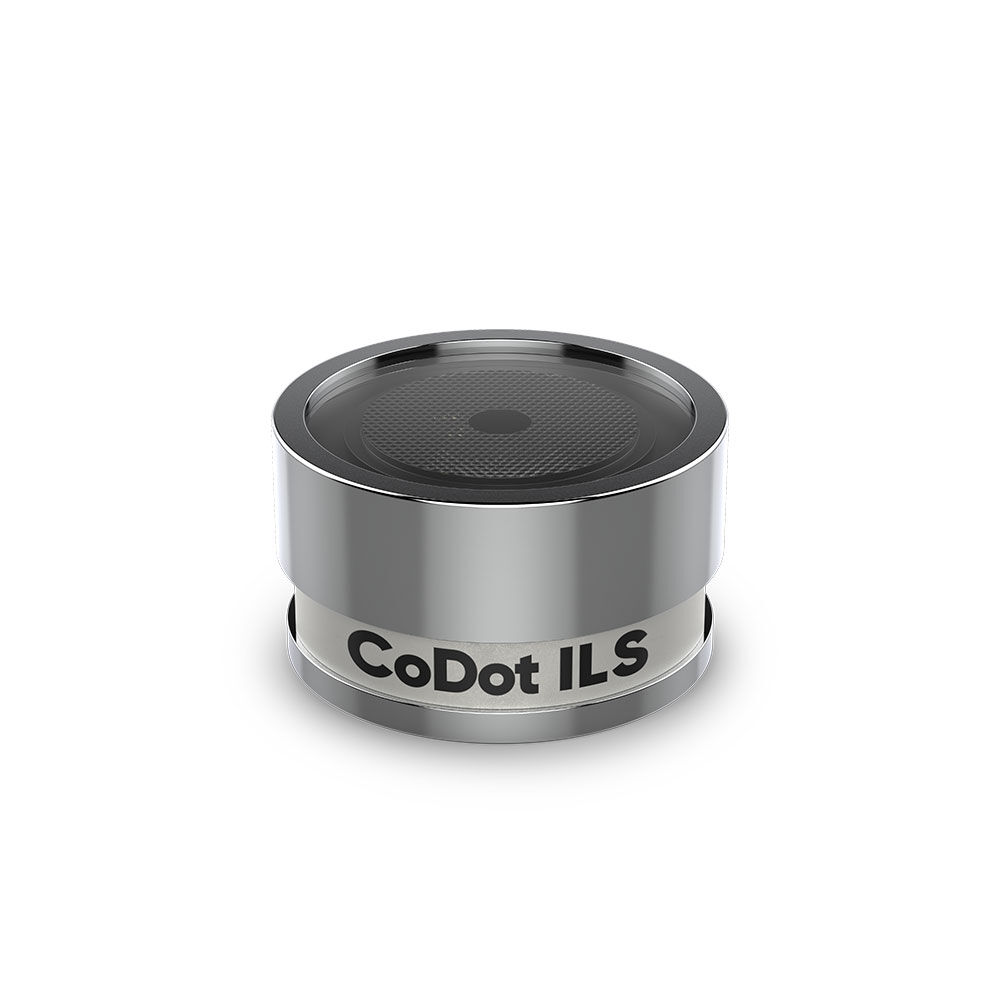

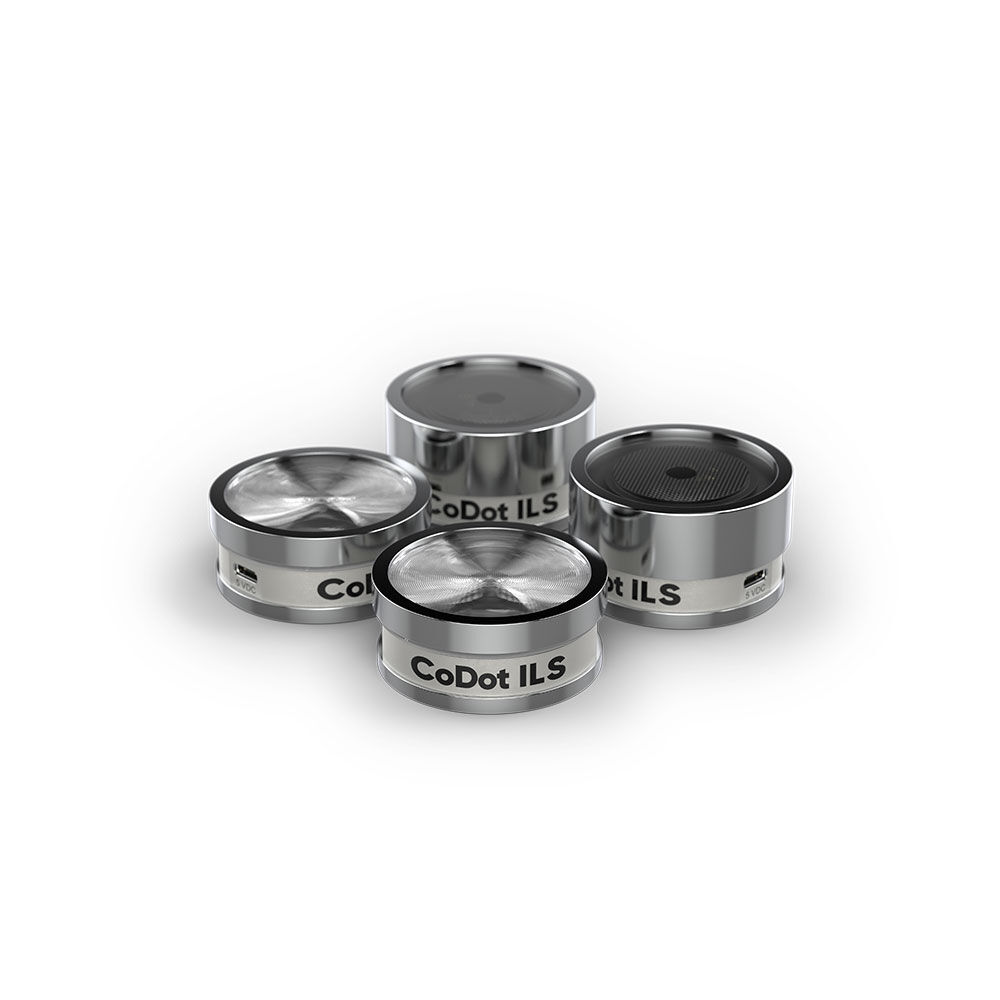

Chauvet DJ CoDot ILS Compact Wash Lights

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit various applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

FEATURES

• Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit

• Includes two lens options to meet different application criteria

• Magnetic base easily mounts to metal surfaces

• Threaded insert is compatible with camera tripods and accessories

• ILS compatibility for use in the ILS ecosystem

• Built-in DFI transceiver communicates DMX or ILS signals wirelessly

• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

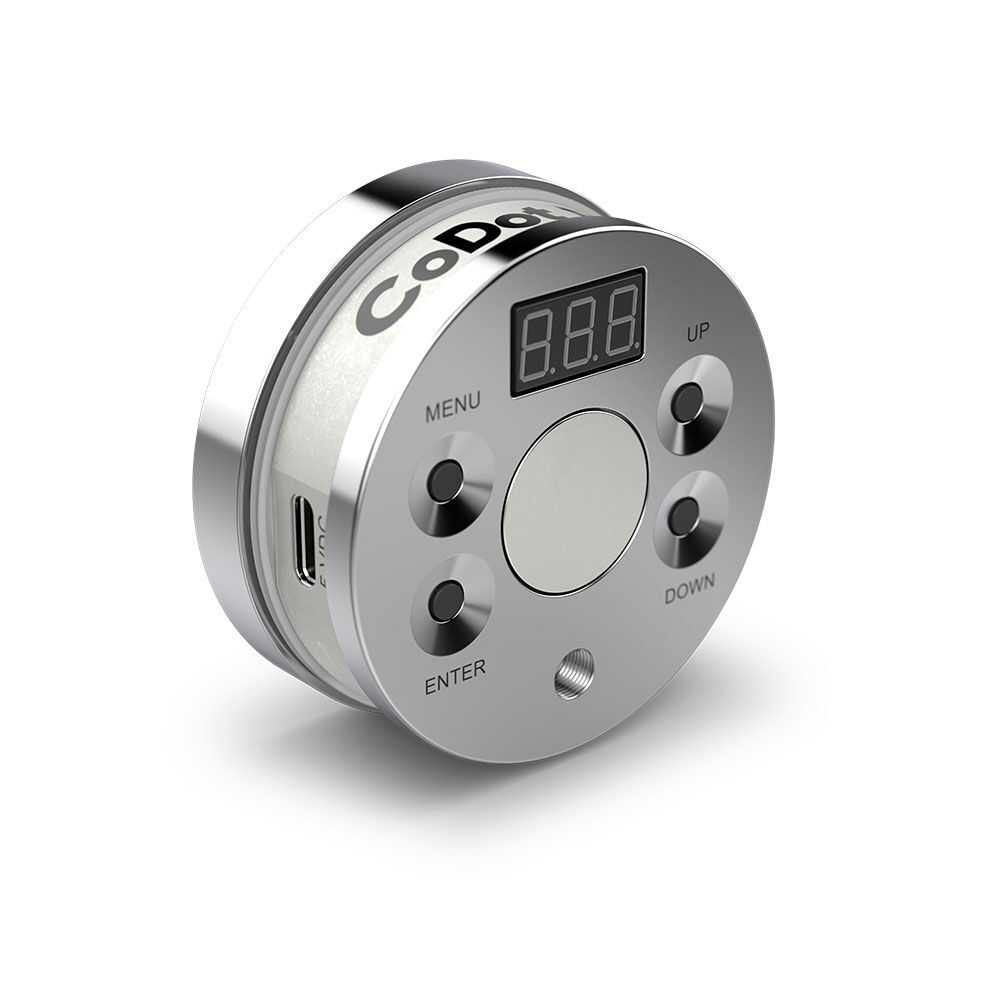

• Easy navigation and access all functions directly from the LED display

• Power linking multiple units from the USB type-C in and out

SPECIFICATIONS

DMX Channels: 4 or 6
Max Unobstructed Distance: 183 m
Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Operating Frequency: 2.4 GHz
Power Linking: 4 units @ 120 V; 4 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight: 0.1 kg
Size: 57 x 54 x 24 mm
Approvals: CE, ROHS, UKCA, FCC
Beam Angle: 19° (installed lens) / 14° (included lens)
Illuminance: 256 lux @ 2 m (installed lens) / 442 lux @ 2 m (included Lens)
Operating Frequency: 2.4 GHz
Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
Optional Controllers: ILS Command, RFC, RFC-XL
Threaded Insert: M6 thread

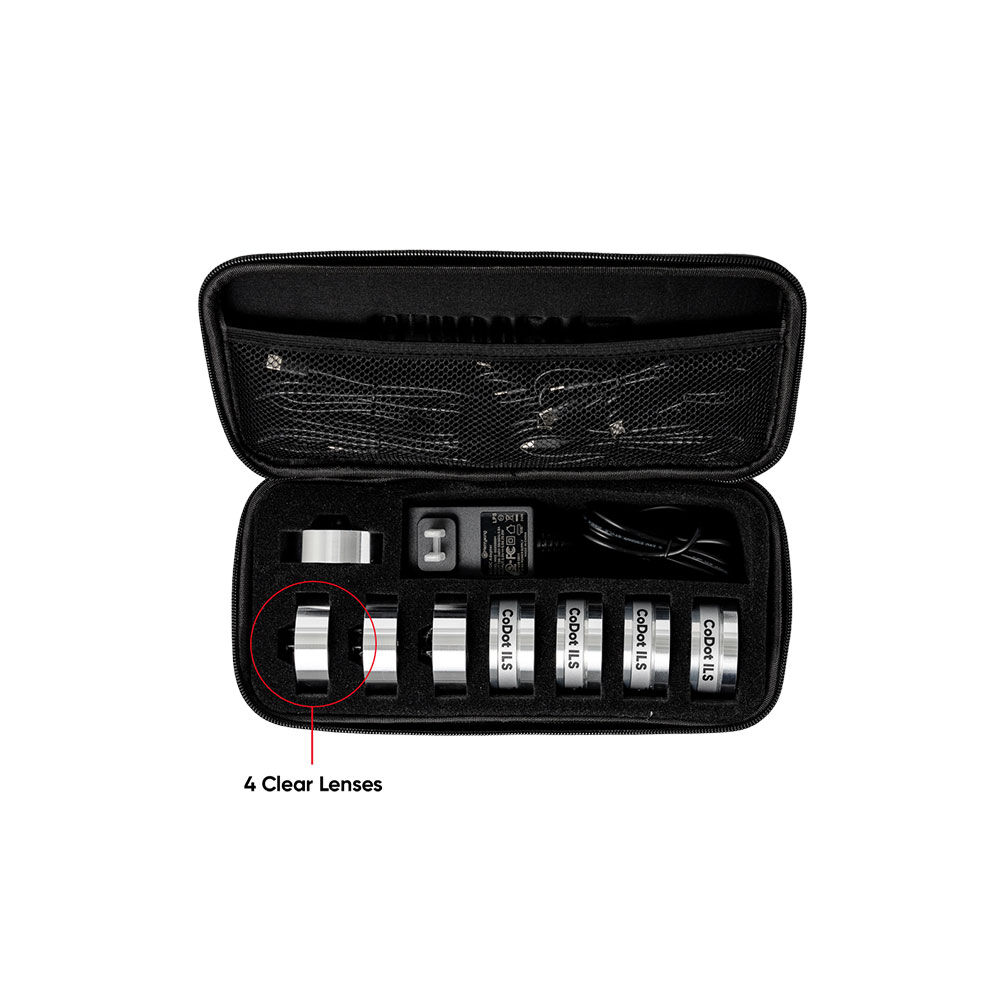

What's Included:

• 4 CoDot ILS8 lenses

• 3 short USB cables (0.5m)

• 3 long USB cables (2m)

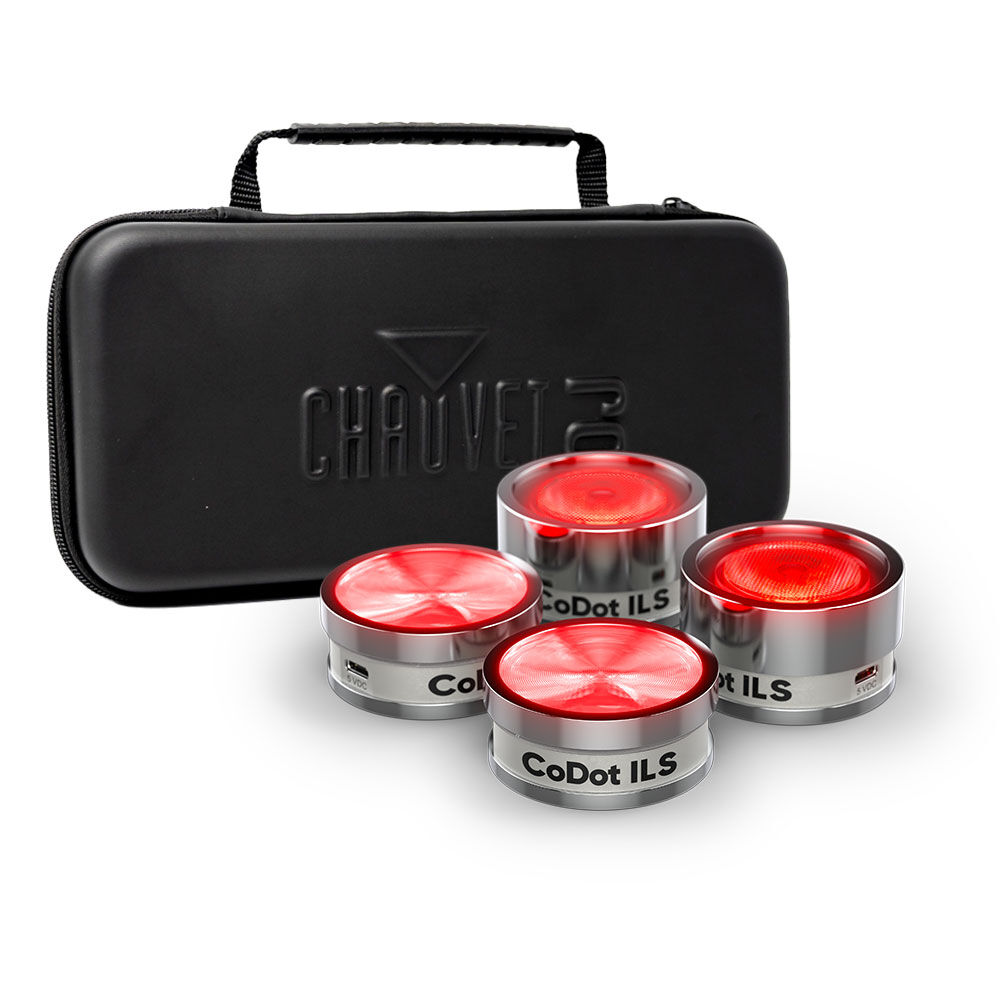

• 1 carry case

• 1 external power supply

• Quick Reference Guide
