Chauvet DJ D-Fi Hub Wireless DMX Transceiver

D-Fi Hub is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an “auto” function which automatically finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi-ready fixtures simultaneously, and operate them using the simple navigation on the OLED digital display.

FEATURES

• Compact, easy-to-use wireless D-Fi™ transmitter and receiver in a single unit

• Wirelessly synchronize an unlimited number of D-Fi™-ready fixtures and receivers simultaneously

• Built-in options include manual or automatic channel selection

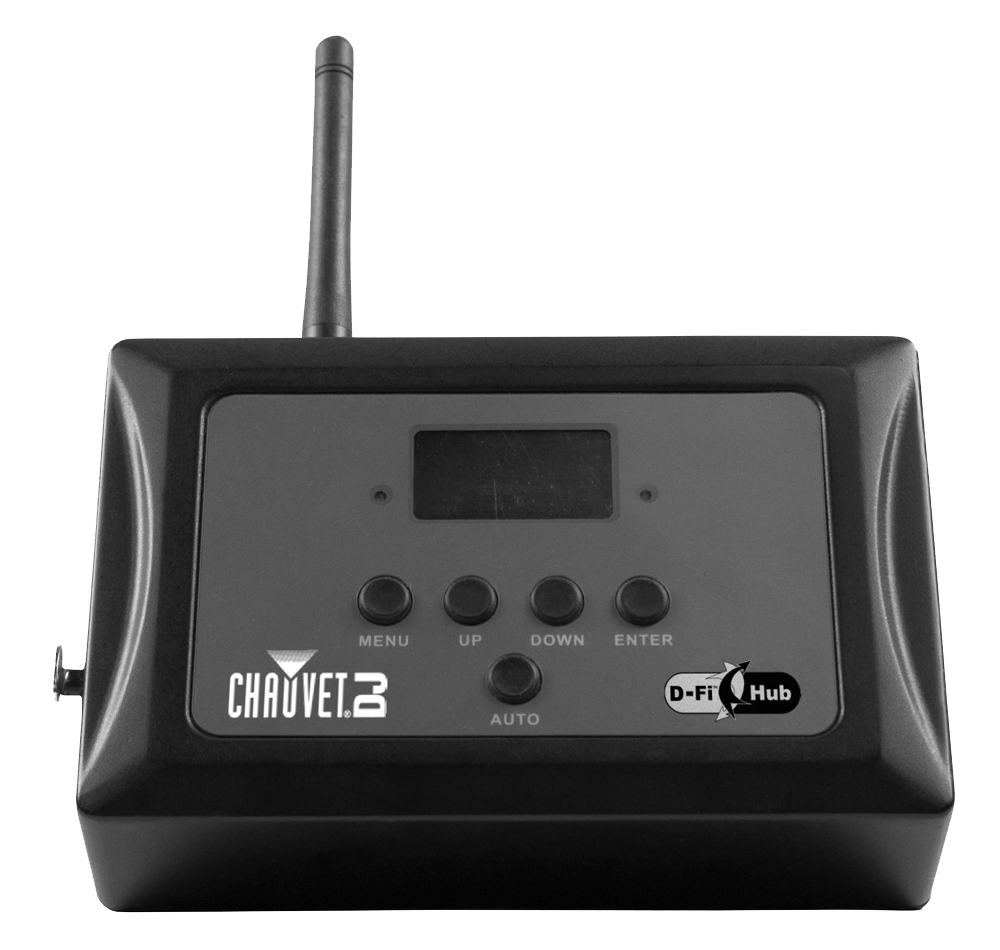

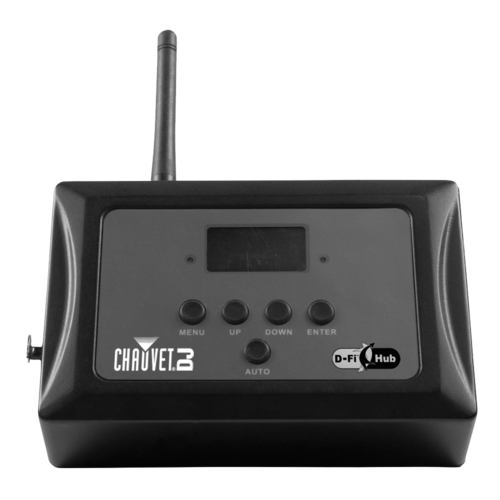

• Simple navigation and text readout using the OLED digital display

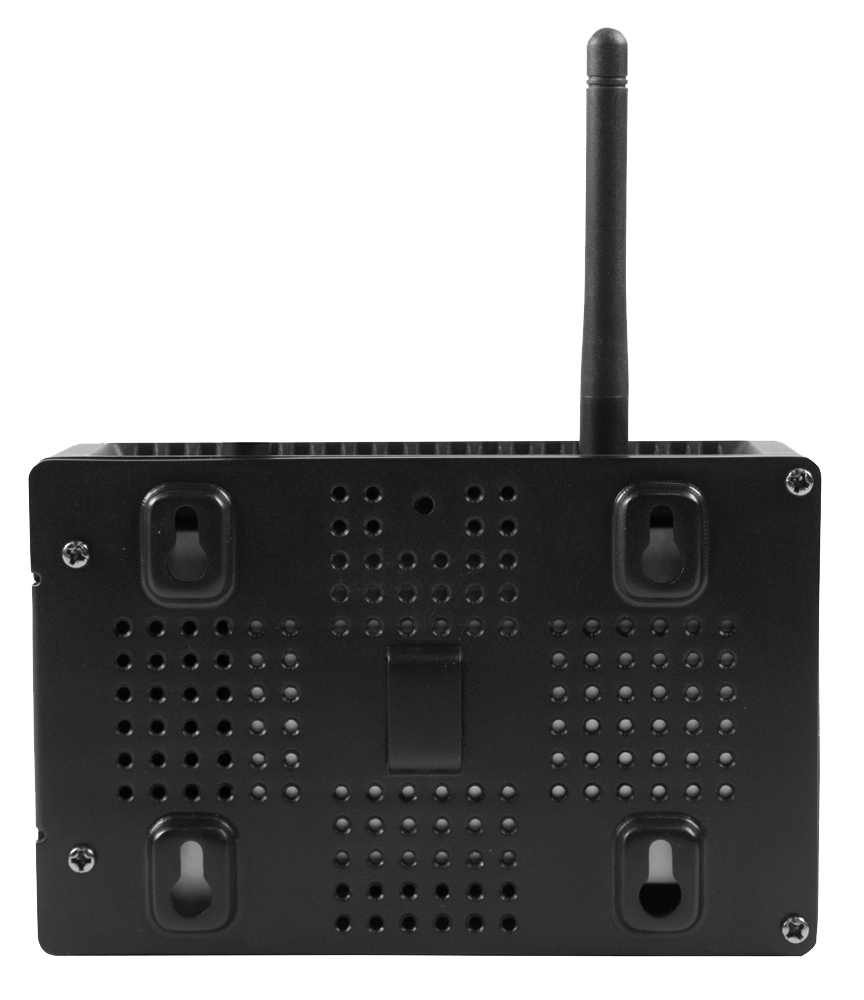

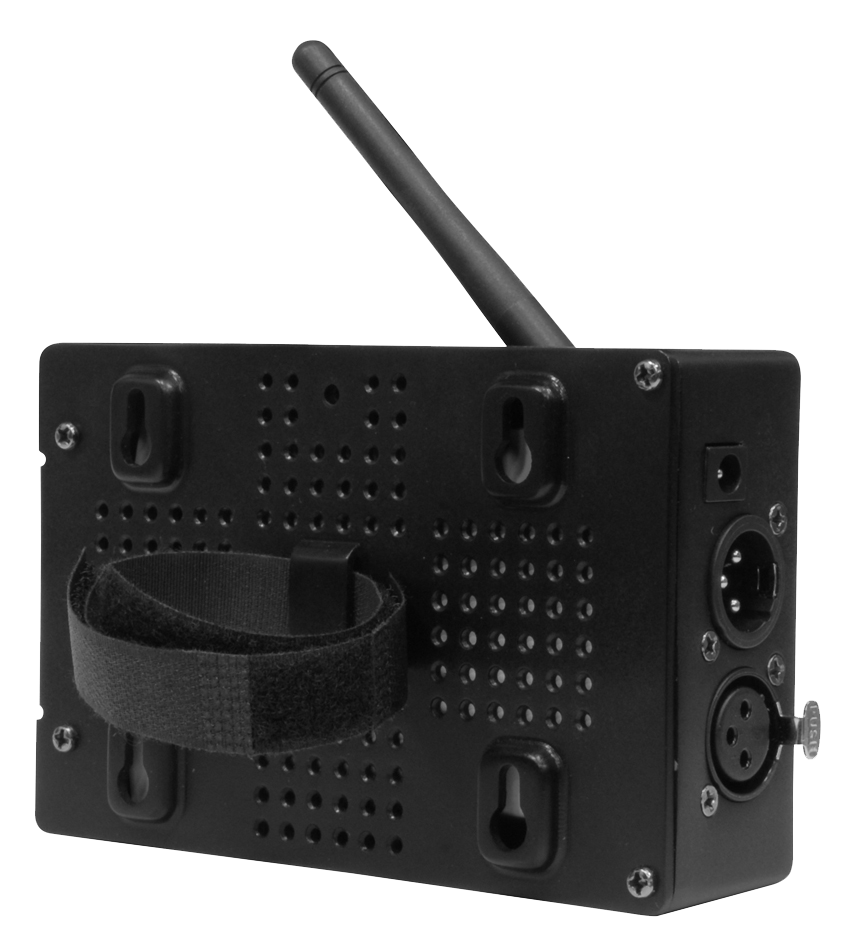

• Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss

• Fully FCC/RTTE compliant

SPECIFICATIONS

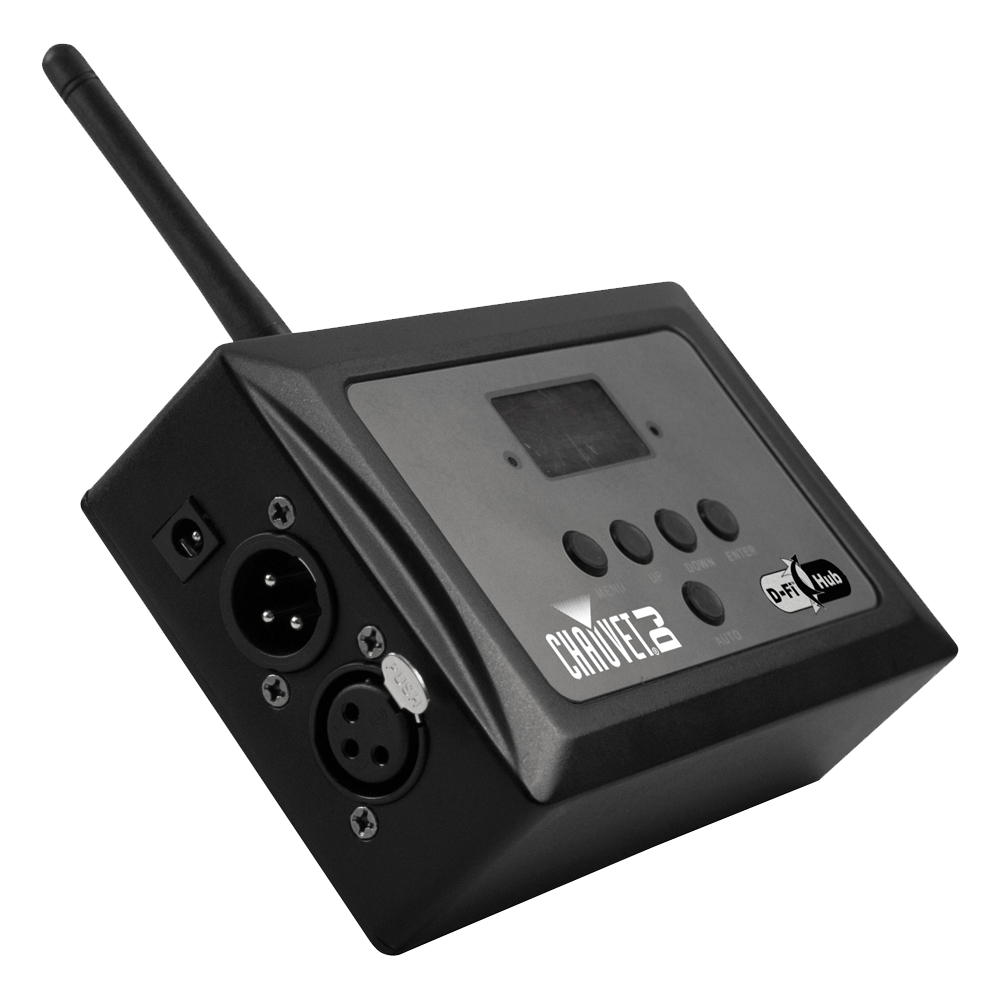

• DMX Connectors: 3-pin XLR

• Operating Frequency: 2.412 to 2.484 GHz

• Antenna connection: RP-SMA

• Max Unobstructed Distance: 200 m

• Input Voltage: 9 VDC, 500 mA (external power supply: 240 VAC, 50 Hz)

• Power and Current: 4 W, 0.1 A @ 230 V, 50 Hz

• Weight: 0.6 kg

• Size: 102 x 82 x 41 mm

• Approvals: CE, FCC
