Chauvet DJ GigBAR 3 ILS LED Lighting System

$999.00

See more from CHAUVET DJ

SKU: GIGBAR3-ILS

Contact Us For Availability
This item is currently out of stock, click below to request an ETA, and we will be in touch soon.

More info.

Make 4 payments of $249.75 over 8 weeks and get it now!

Calculate Shipping

Enter post code to calculate shipping

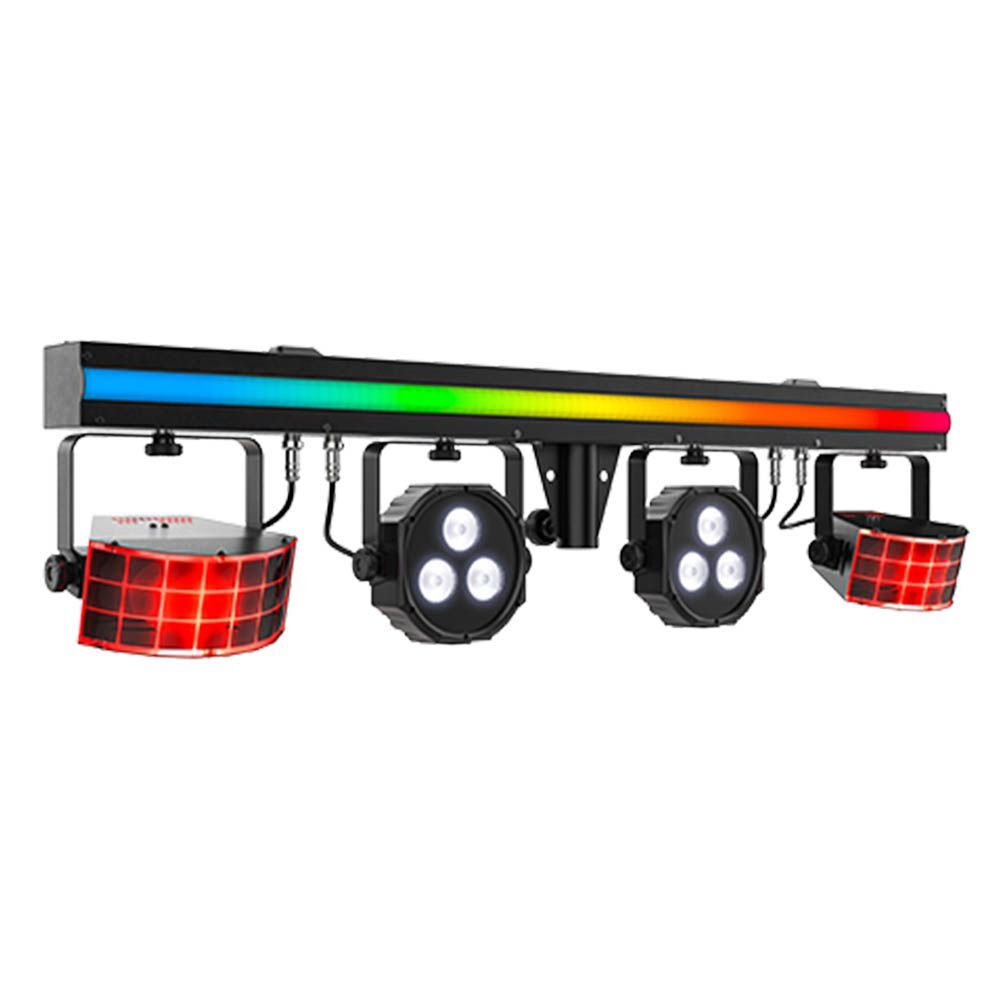

The Chauvet DJ GigBAR 3 ILS (3-in-1 Lighting System) integrates LED derbies, LED pars and an LED strip into one portable bar lighting fixture designed for professional event and mobile lighting applications. Featuring Instant Light Show technology, it enables wireless syncing of multiple units without cables, facilitating quick setup and complex light shows. It includes tripod mounting, wireless footswitch control, and carrying bags for convenient transport and deployment. The lighting effects cover wide angles, producing multicoloured chasing beams, colour washes, and eye-catching strip effects suitable for a variety of event environments.

FEATURES

3-in-1 lighting combining LED derbies, LED pars, and an LED strip on a single bar
Instant Light Show (ILS) compatibility for wireless multi-fixture syncing
Built-in D-Fi transceiver for wireless DMX or ILS communication
Supports mounting up to 4 additional fixtures for expanded setups
Reversible tripod bracket for standard or upside down mounting
Full-color LCD display for configuration and control
Includes tripod, wireless footswitch, RF remote, and carrying bags for fast setup and transport
Automated, sound-activated programs combining all effects for complete shows
Control options include display, RF remote, wireless footswitch, or DMX
Power linking capability for connecting multiple units without extra cables

SPECIFICATIONS

DMX Channels: 2, 21, or 132
DMX Connectors: 3-pin XLR
Strobe Rate: 0 to 20 Hz
Operating Frequency: 2.412 to 2.484 GHz
Power Linking: 11 units 120 V; 18 units 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 47 W, 0.7A 120 V, 60 Hz; 45 W, 0.4 A 230 V, 50 Hz
Weight: 13.2 lbs. (6 kg)
Size: 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
Approvals: CE, ROHS, FCC
Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W (1A), 50,000 hours life expectancy
Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (0.03 A), 50,000 hours life expectancy
Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (0.6 A), 50,000 hours life expectancy
Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
Tripod Leg Width: 3.9 ft (1.2 m)
Fits Tripod Size: 1.5 in (37.4 mm)
Beam Angle (pars): 13°
Field Angle (pars): 24°
Coverage Angle (Derby): 114°
Coverage Angle (LED Strip): 174°
Cable Length: 9 ft (2.844 m)
Foot Switch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch Battery: 9 V 300mA
Optional Controllers: ILS Command, RF Remote
What's Included:

Gig Bar 3 ILS
Power cord
Stealth filter
Wireless footswitch
RF remote
Tripod
Carrying bag
Tripod bag
User Manual
