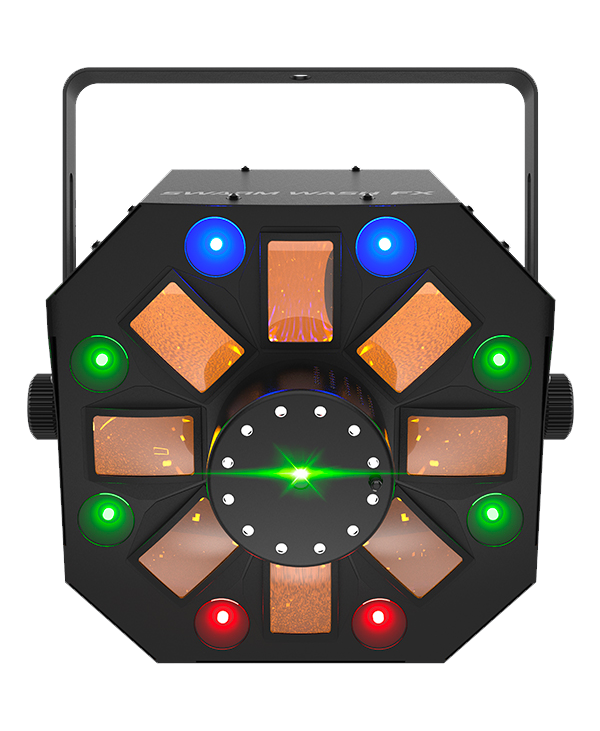

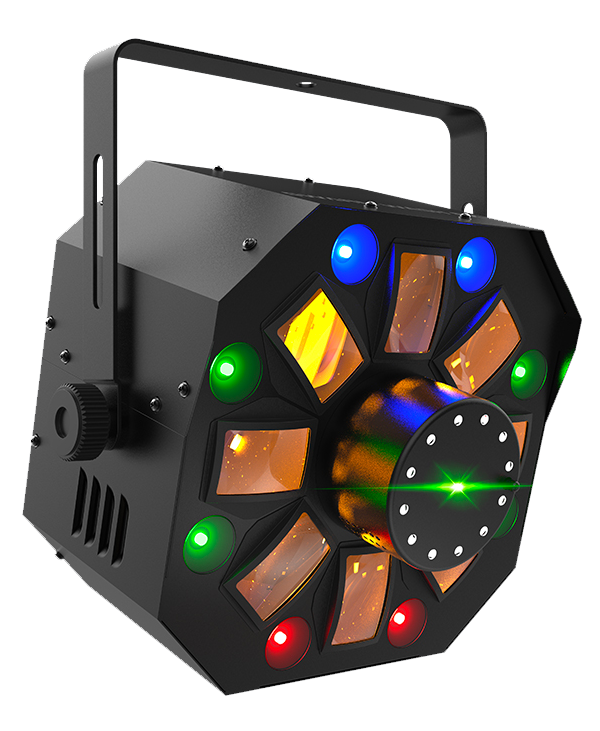

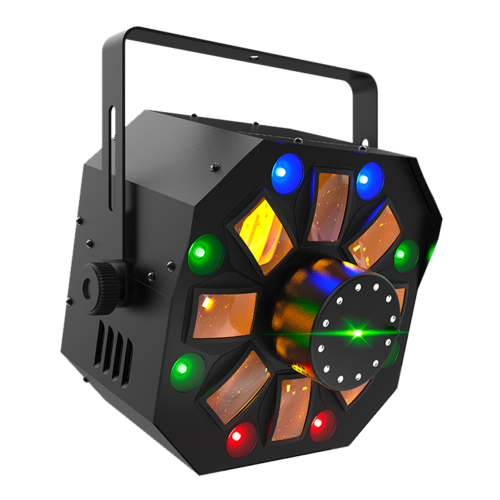

Chauvet DJ Swarm Wash FX Multi-Effect Light Fixture

Swarm Wash FX is a 4-in-1 LED effect fixture that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Create an endless array of looks by individually controlling each effect via DMX and master/slave modes. Other features include automated and sound activated programs and a user-friendly menu structure. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-40 VIP Gear Bag.

HIGHLIGHTS

• 4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes

• Endless possible looks with individual control of each effect via DMX and Master/Slave modes, or IRC-6

• Improved menu structure for ease of use

• Red and green laser beams project thousands of beams for maximum coverage

• Quick set up with automatic and sound-activated programs

• Control clutter and save time running cables and extension cords by power linking multiple units

• Fits best inside the CHS-40 VIP Gear Bag

SPECIFICATIONS

• DMX Channels: 2 or 18

• DMX Connectors: 3-pin XLR

• Light Source: (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 2 W (650 mA) 50,000 hours life expectancy

• (Wash): 8 LEDs (quad-color RGB+UV) 1.5 W (600 mA), 50,000 hours life expectancy

• (Strobe) 12 LEDs (white) 1 W (300 mA), 50,000 hours life expectancy

• (Laser): 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode

• Strobe Rate: 0 to 20 Hz

• Power Linking: 15 units @ 120 V; 26 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 40 W, 0.5 A @ 120 V, 60 Hz

• 38 W, 0.3A @ 230 V, 50 Hz

• Weight: 9.2 lb (4.2 kg)

• Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)

• Approvals: CE, FDA

• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

• Optional controllers: IRC-6

WHAT'S INCLUDED

• Power cord

• Hanging Bracket w/ mounting hardware

• Warranty card
