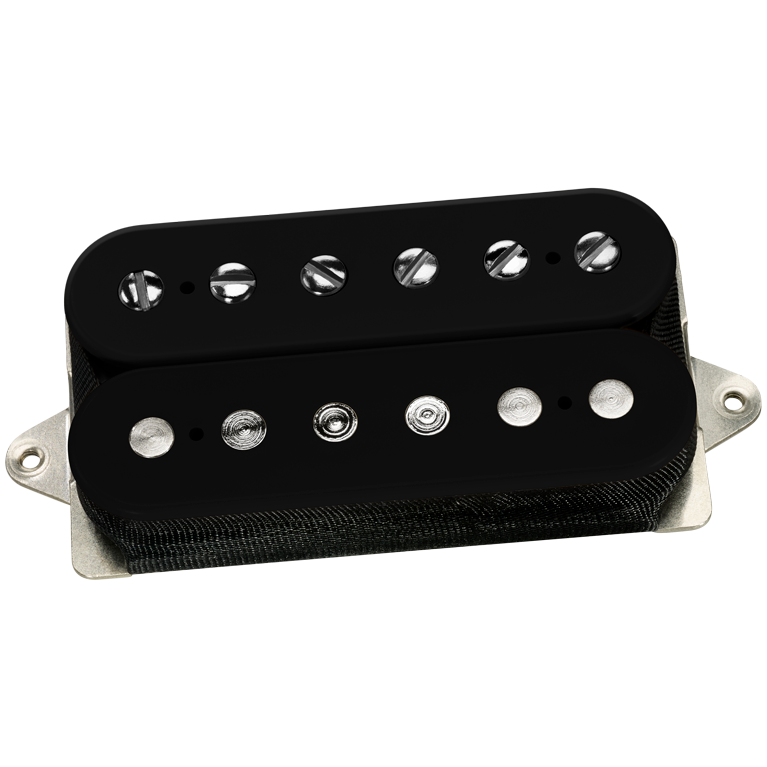

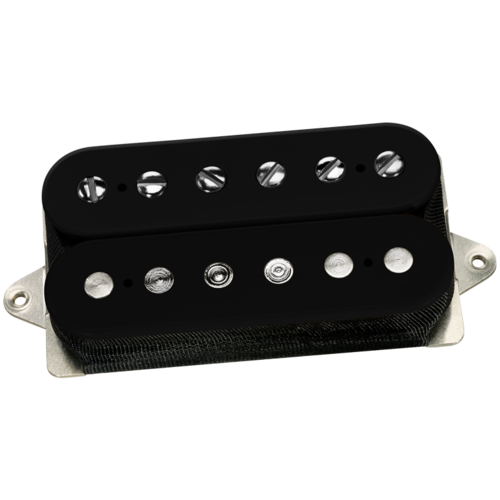

DiMarzio DP223B PAF® 36th Anniversary Bridge - Black

$149.00
RRP $219.00


See more from DiMarzio

SKU: DP223B


Contact Us for Availability
This item is currently out of stock, click below to request an ETA, and we will be in touch soon.

More info.

Make 4 payments of $37.25 over 8 weeks and get it now!


Calculate Shipping


Here are the characteristics that make a great vintage humbucker: a soft magnetic field, sweet tone, perfect balance between warmth and clarity, the ability to go from clean to distorted by pick attack alone.

For the PAF® 36th Anniversary Bridge Dimarzio® wanted to continue in the path of pioneers such as Seth Lover (designer of the original Patent Applied For humbucker) and create pickups that combine all of the characteristics of great vintage humbuckers.

These pickups are not merely clones. Dimarzio® re-engineered the PAF® using their patented technology and Larry DiMarzio’s own 1959 cherry sunburst Gibson® Les Paul® as the reference.

Larry’s Gibson® Les Paul® has a uniquely amazing sound and it’s not only due to the pickups — it’s the total fusion of many elements of the guitar itself. Although the pickups have a weak magnetic field, the sound is well defined: almost like a single-coil.

Dimarzio® duplicated the weaker magnetic field in order to allow the strings to vibrate longer, as well as focus and articulate the attack and output. Using computer-controlled winders to consistently layer the 42-gauge custom-coated wire, achieving the exact frequency response desired. Then it’s dipped in Dimarzio® own custom formula to eliminate squeal and microphonics.

The PAF® 36th Anniversary Bridge It is not only for set neck 24¾” scale guitars - it’s also an excellent bridge pickup for trem-equipped bolt-ons.

Output: 250

Bass: 5.5 Mid: 6.0 Treble: 5.5

Recommended For: Bridge position, can also be used in neck position with higher output bridge models; The PAF® 36th Anniversary Bridge model has the best qualities of the Virtual PAF® bridge and Virtual Hot PAF® pickups and then some. It's as loud as the Virtual Hot PAF®, but has as much low-end and midrange definition as the Virtual PAF® Bridge Model. The highs are actually bigger and smoother than either model.

The 4-conductor version also splits very well - Single-coil mode is bright, but not at all sterile-sounding.

Quick Connect: No
Wiring: 4 Conductor (1 Conductor optional)
Magnet: Alnico 5
Resistance: 8.60 Kohm


Below are the tone, volume and cap values that Dimarzio® recommend with this Pickup:


For more information, click here to visit the manufacturers website.
