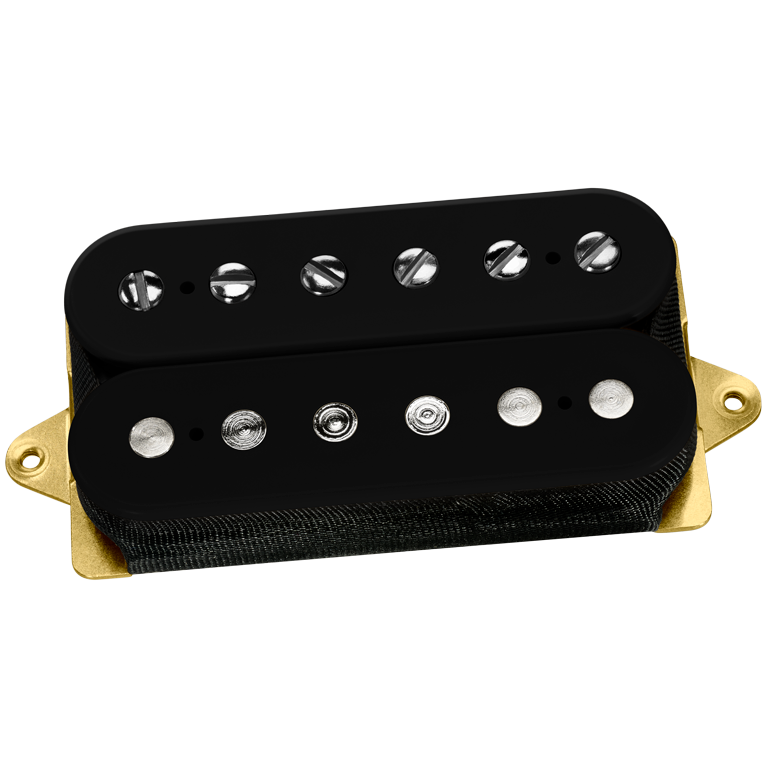

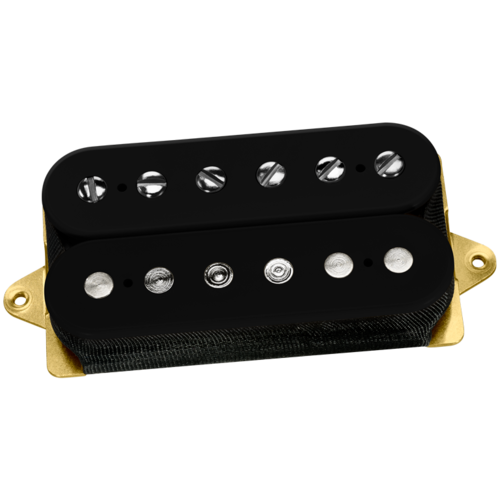

DiMarzio DP155B The Tone Zone® - Black

Guitar Pickup

$169.00
RRP $199.00


See more from DiMarzio

SKU: DP155B


Contact Us for Availability
This item is currently out of stock, click below to request an ETA, and we will be in touch soon.

More info.

Make 4 payments of $42.25 over 8 weeks and get it now!


Calculate Shipping


HAVE YOU EVER HEARD A BRIDGE PICKUP THAT MADE A GUITAR SOUND LIKE A GIANT MOSQUITO-ATTACK?

If you’ve run into this problem, The Tone Zone® is the solution.

The Tone Zone® is hot enough to qualify as a high-output pickup, but it has a wider dynamic range — hard picking will produce a lot of power, and softer picking will be much cleaner and quieter.

It’s got tremendous bass and low-mid response to reinforce the bottom end and make the overall sound bigger. The highest single notes have depth, and chords sound huge.

Patented dual-resonance coils reproduce more overtones than you’d expect from such a fat-sounding pickup. It makes a great match with an Air Norton™, PAF Joe™, or PAF Pro®, and split-coil mode produces an excellent single-coil sound as well.

Recommended For: Bridge position in solid body guitars; The Tone Zone® is hot enough to qualify as a high-output pickup, but it has a wider dynamic range — hard picking will produce a lot of power, and softer picking will be much cleaner and quieter.

Many models can be used in the neck position, from the Air Classic™ to the Air Zone™; the PAF Pro® and the FRED® are also good choices. Higher-output single-coil replacements like The Cruiser® and Fast Track 1™ are also recommended.

Output: 375

Bass: 8.5 Mid: 8.5 Treble: 5.0

Quick Connect: No
Wiring: 4 Conductor
Magnet: Alnico 5
Resistance: 17.31 Kohm

Below are the tone, volume and cap values that Dimarzio® recommend with this Pickup:

500K Volume Pot, 500K Tone Pot, .022 uF Capacitor
