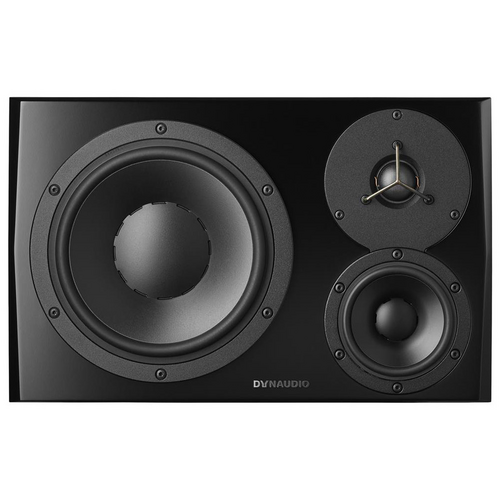

The latest addition to the LYD series: the 3-way LYD 48. The 3-way LYD monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere – with unmatched accuracy at any volume level.
This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP.
SPECIFICATIONS
Segment: Pro
Range: LYD
Type: Near Field Monitor
Analog inputs: XLR, RCA
Maximum SPL (1m, pair): 112
Amplifier Power Woofer (Watt): 80
Amplifier Power midrange (Watt): 50
Amplifier Power Tweeter (Watt): 50
AC Power Input: 100-240V 50/60Hz
Max Stand-by Power Consumption (Watt): 0,5
Max Power Consumption: 100
Lower Cutoff (Hz @85 dB +/- 3 dB): 50
Upper Cutoff k(Hz @ 85dB +/- 3 dB): 21
Box Principle: Rear-loaded bass reflex
Crossover: 3-way DSP-based
Crossover Frequency (Hz): 460/5500 Hz
Tweeter: 1.1in soft dome
Midrange: 4in MSP
Woofer: 8in MSP
Weight kg: 12
Width mm: 369
Height mm: 234
Depth mm: 328
Speakers per packaged box: 1
Finish: Black Satin
