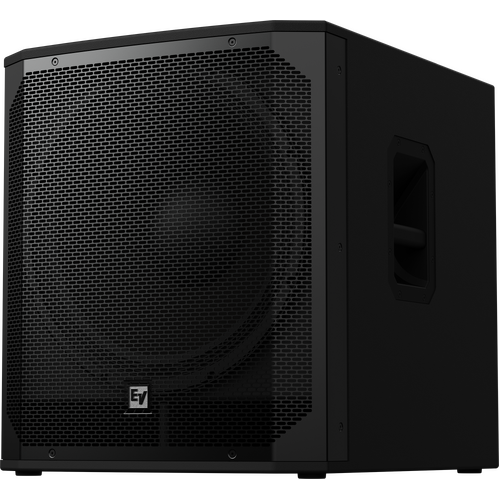

Electro-Voice EVIVA 18SP

The EVIVA 18SP is an 18” powered portable subwoofer that brings Electro-Voice quality sound and durability to aspiring musicians, DJs, and small venues. It has been designed for rapid deployment, so its user-friendly control and easy connectivity combine well with a lightweight design to ensure single-person setup is possible. EVIVA 18SP can be paired with other members of the EVIVA family to create class-leading systems.

Electro-Voice has launched the EVIVA family to deliver best-in-class performance from a performance focused portable powered solution. To ensure optimal sound quality not usually found in this category of subwoofer, EVIVA 18SP features high quality components to drive incredible lows.

Weighing just 30.7 kg, EVIVA 18SP delivers deep, powerful bass across the audience area. EVIVA 18SP has a frequency range of 38 Hz – 200 Hz (-10 dB) and a maximum SPL of 132 dB delivering class-leading low frequency performance. The EVIVA 18SP offers two XLR/TRS combo jack line inputs as well as a pair of XLR pass throughs.

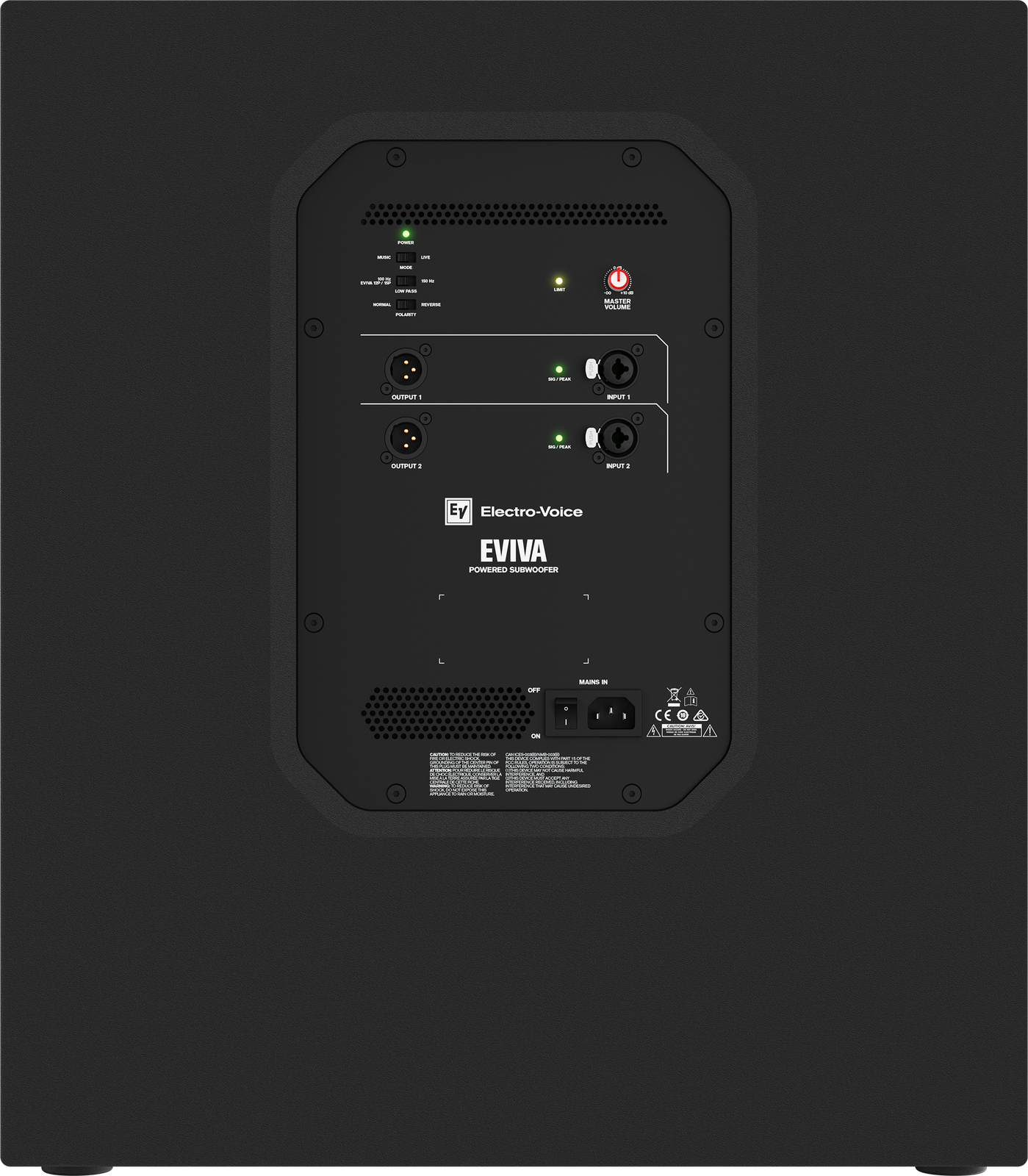

The robust 18” plywood subwoofer features a 1000 W amplifier with 2-channel analog input section. The intuitive control panel features a knob for level adjustment and switches to change the mode between MUSIC and LIVE, low pass between 100 Hz EVIVA 12P/15P and 150 Hz, and polarity between NORMAL and REVERSE. The subwoofer is powered via an IEC mains input with auto-switching universal 100 V ~ 240 V mains voltage input – included power cord varies per region.

EVIVA 18SP also benefits from prestigious Electro-Voice industrial design with durable metal side handles, antiskid bottom feet and M20 threaded pole mount plate. The portable powered subwoofer features a stylish look and a rapid setup process to ensure users can get the most out of their system quicker. The high-quality components and deep low end ensure that any event will benefit from a superior sound and premium styling.

The universal appeal of EVIVA 18SP is backed by a range of existing accessories. M20 poles and tripod stands support mobile deployment.

FEATURES

• Signature Electro-Voice sound quality with selectable MUSIC/LIVE mode

• 1000 watt power rating with large, low-turbulence slot port provide high 132 dB maximum SPL

• Flexible line input connections and easy single-knob adjustment with dual-color input signal metering and peak detection

• Painted plywood enclosure with recessed input panel to protect controls and connectors in transit

• Universal mains voltage 100 V ~ 240 V auto-switching delivers reliable performance

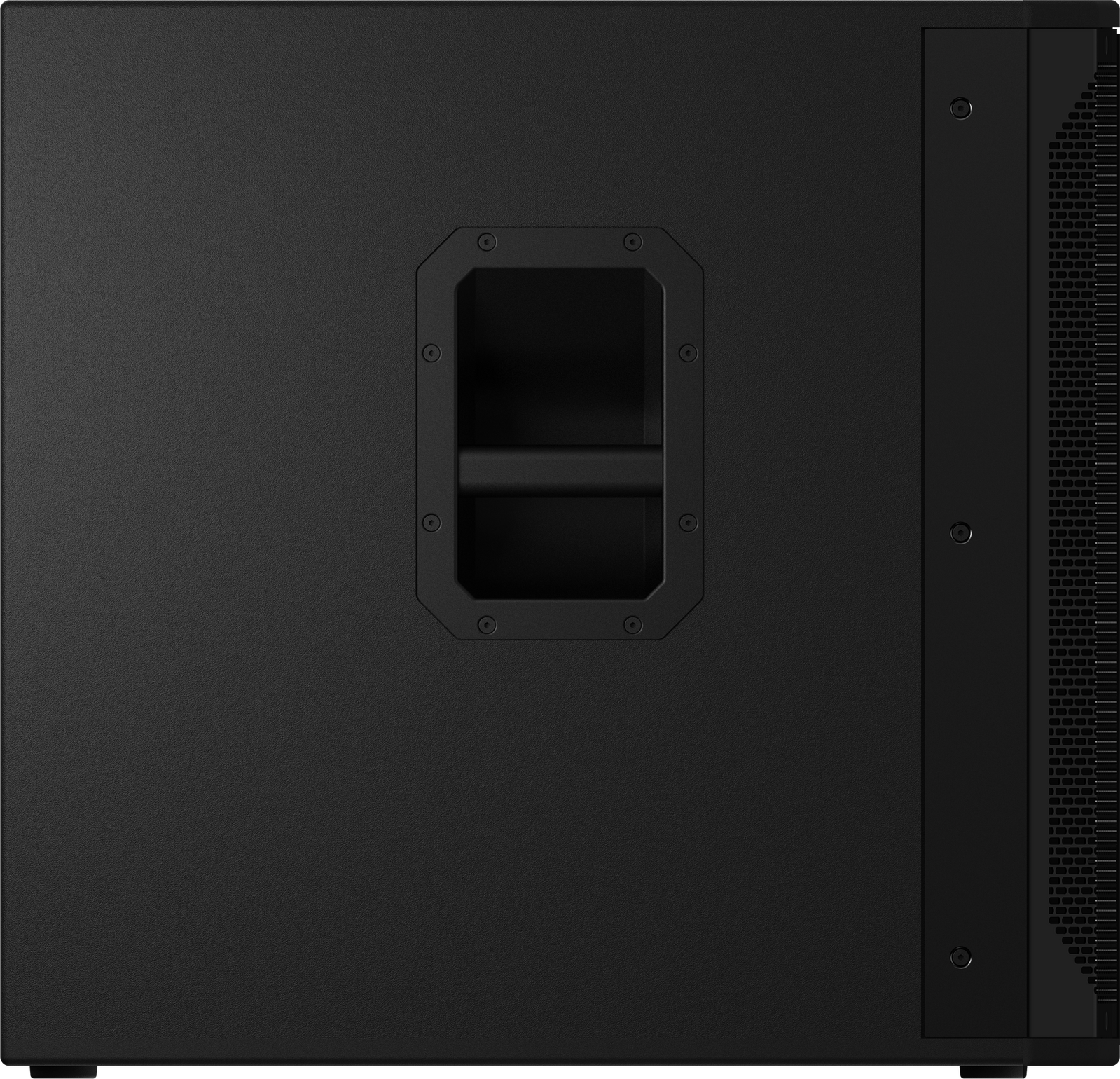

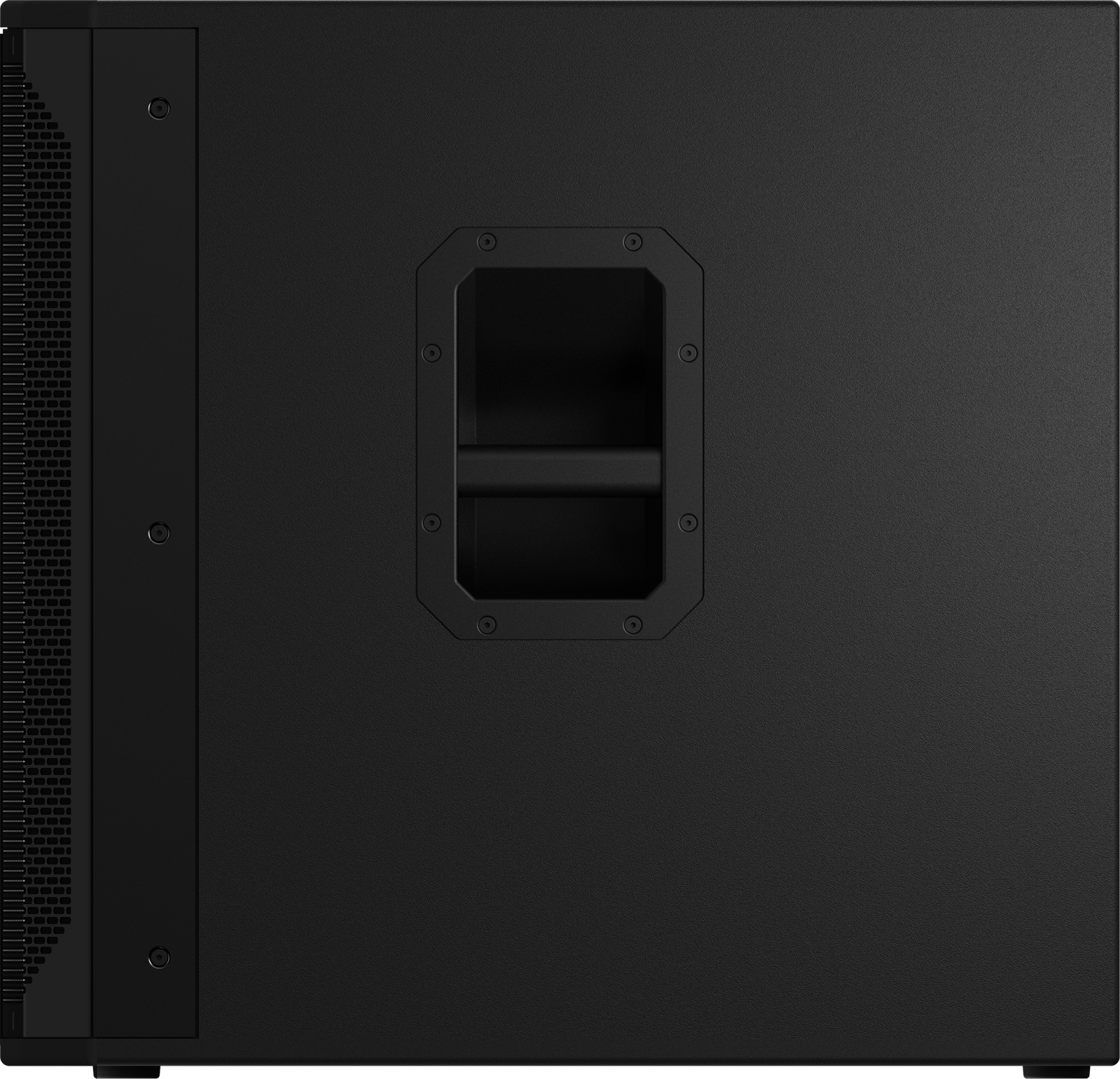

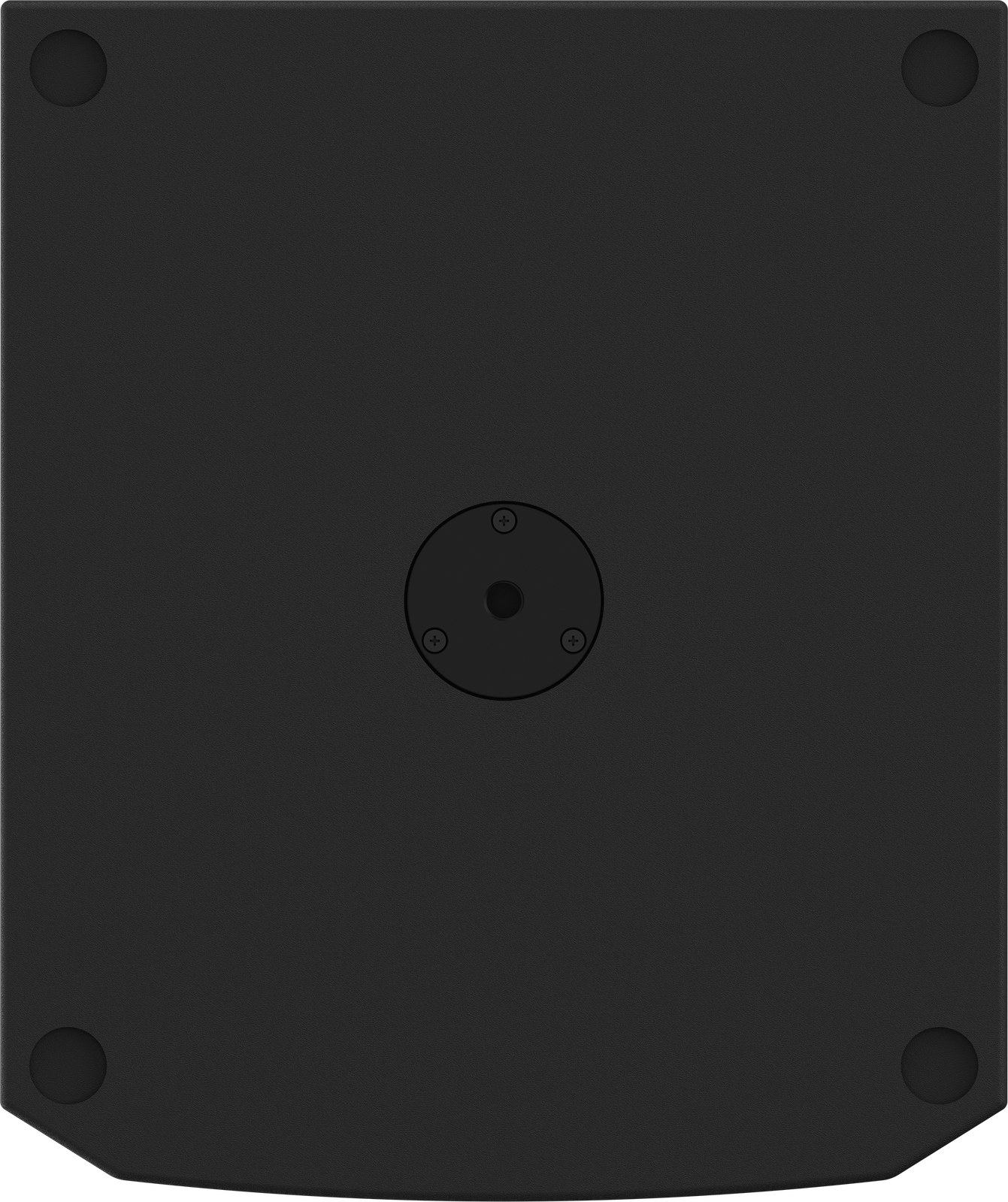

• Ergonomic, lightweight design with durable metal side handles, antiskid bottom feet and M20 threaded pole mount plate

SPECIFICATIONS

Frequency response (-3 dB) (Hz) 1: 45 Hz – 150 Hz
Frequency range (-10 dB) (Hz) 1: 38 Hz – 200 Hz
Maximum sound pressure level at a distance of 1 m (dB) 2, 3: 132 dB
Amplifier rating (W): 1000 W
Power consumption (V, Hz) 4: 100 - 240 V~, 50 - 60 Hz, 1.0 - 0.5 A
LF transducer size (in): 18 in
LF transducer type: WECA2188H woofer
LF transducer magnet material: Ferrite
Crossover frequency (Hz):

• 100 Hz (default)

• 150 Hz (optional)

Connector type:

• (2) XLR/TRS combo jack line in

• (2) XLR pass through out

Enclosure: 15 mm plywood, internally braced, with textured paint
Grille material: Powder coated steel
Color: Black
Dimensions (H x W x D) (mm): 597 mm x 520 mm x 620 mm
Dimensions (H x W x D) (in): 23.50 in x 20.47 in x 24.41 in
Shipping dimensions (H x W x D) (mm): 650 mm x 602 mm x 674 mm
Shipping dimensions (H x W x D) (in): 25.59 in x 23.70 in x 26.54 in
Weight (kg): 30.7 kg​​​​​​​
Weight (lb): 67.6 lb​​​​​​​
Shipping weight (kg): 36.9 kg​​​​​​​
Shipping weight (lb): 81.3 lb

• 1 Full-space measurement using MUSIC DSP preset.

• 2 Full-space measurement using LIVE DSP preset.

• 3 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

• 4 Current rating is 1/8 power.
