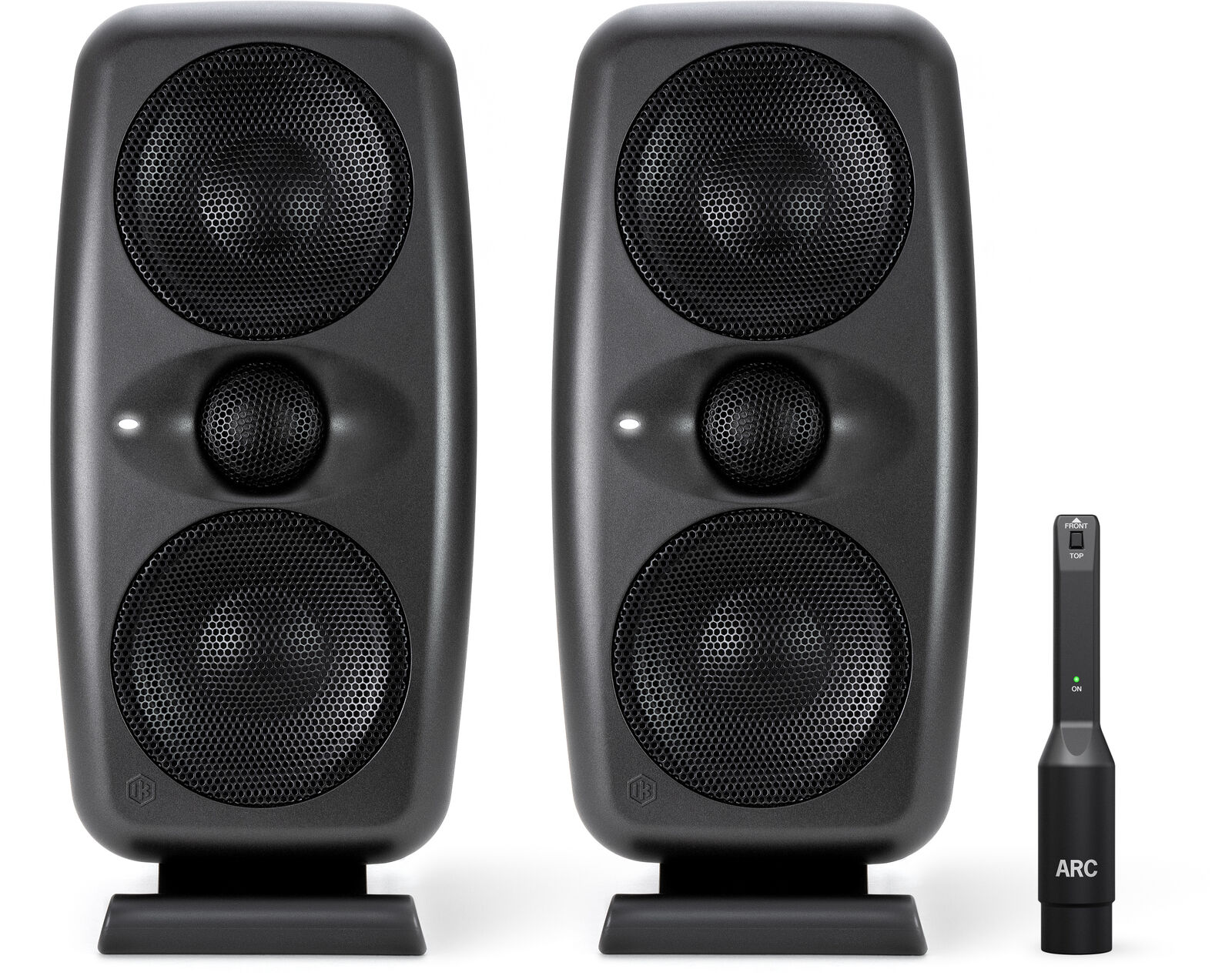

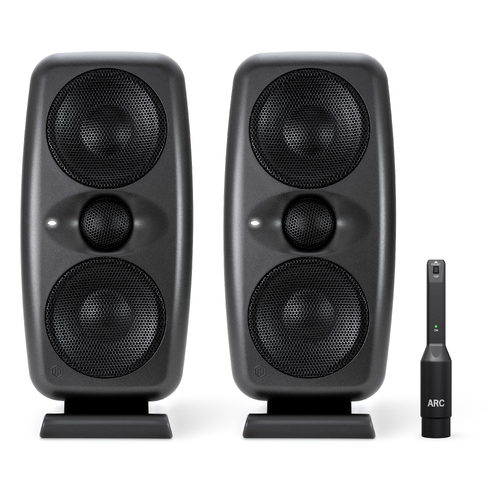

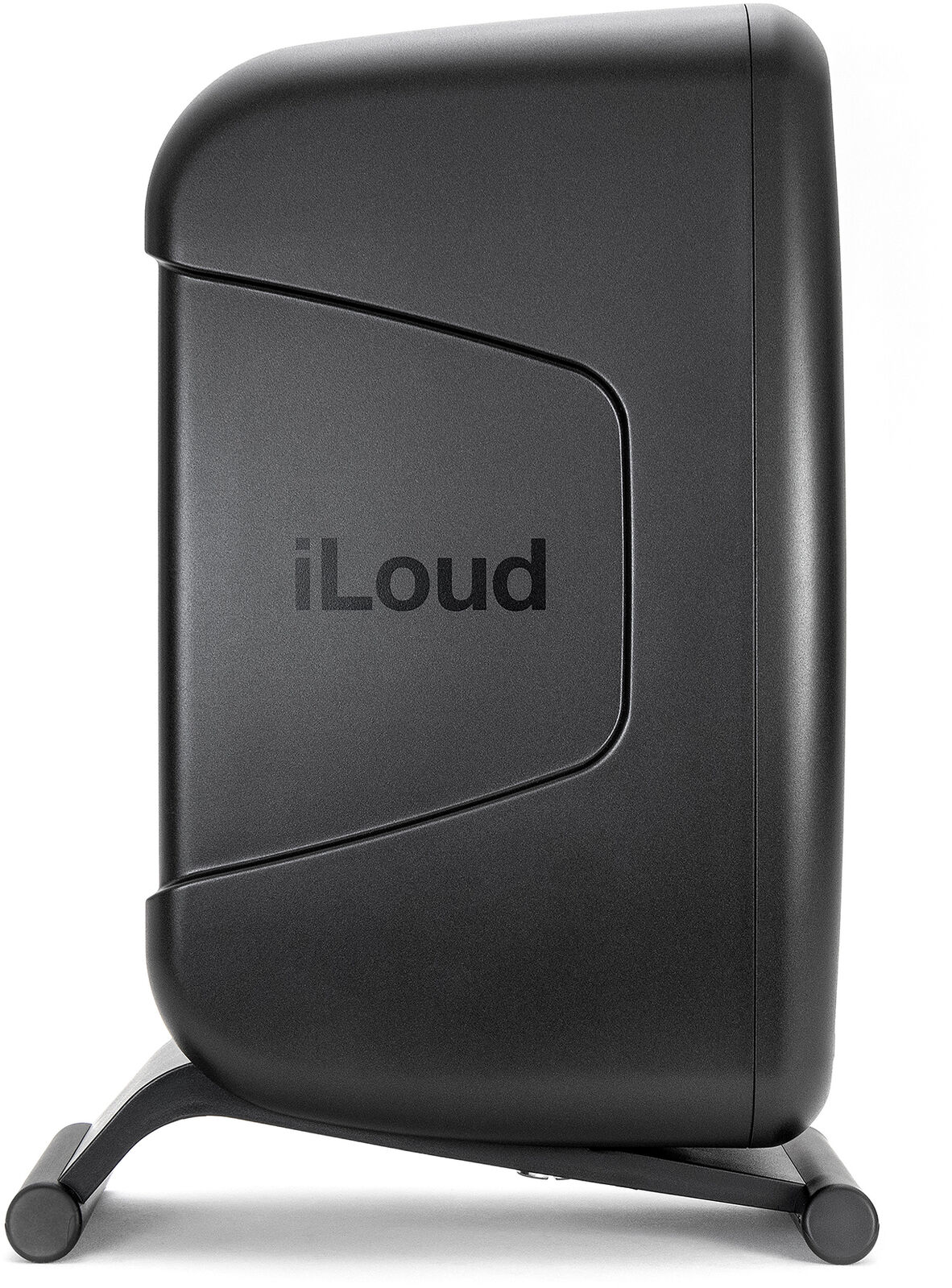

IK Multimedia iLoud MTM MKII (Pair)

Deeper. Louder. More accurate.

iLoud MTM MKII offers sonic perfection and volume levels previously unavailable in this class of reference monitors. Maintaining its iconic form, MTM MKII sports more efficient drivers and twice the processing power under the hood to turn any space into the ideal mixing and mastering setup.

Enjoy clear, neutral sound with the deep, controlled low end you'd expect from a speaker twice the size and linear phase response that rivals speakers twice the price. Its MTM design and precise time alignment make hours of fatigue-free listening possible while minimizing acoustic interactions, which is ideal for desktop use.

With advanced ARC auto-calibration, MTM MKII guarantees improved acoustic performance in any space in seconds. Connected to a computer, award-winning ARC X software adds deep customization and breathtaking emulations of 20+ top studio monitors and other playback systems to A/B your mixes instantly for the perfect translation.

MTM MKII is like having an entire suite of precision-tuned monitoring tools.

FEATURES

• Incredible volume and ultra-flat response

• iLoud physics-defying bass down to 36 Hz

• Improved linear phase offers even more clarity

• Perfectly time-aligned to reduce ear fatigue

• MTM design minimizes troublesome reflections

• Built-in ARC self-calibration adjusts to any space

• Deeply customizable with ARC X software

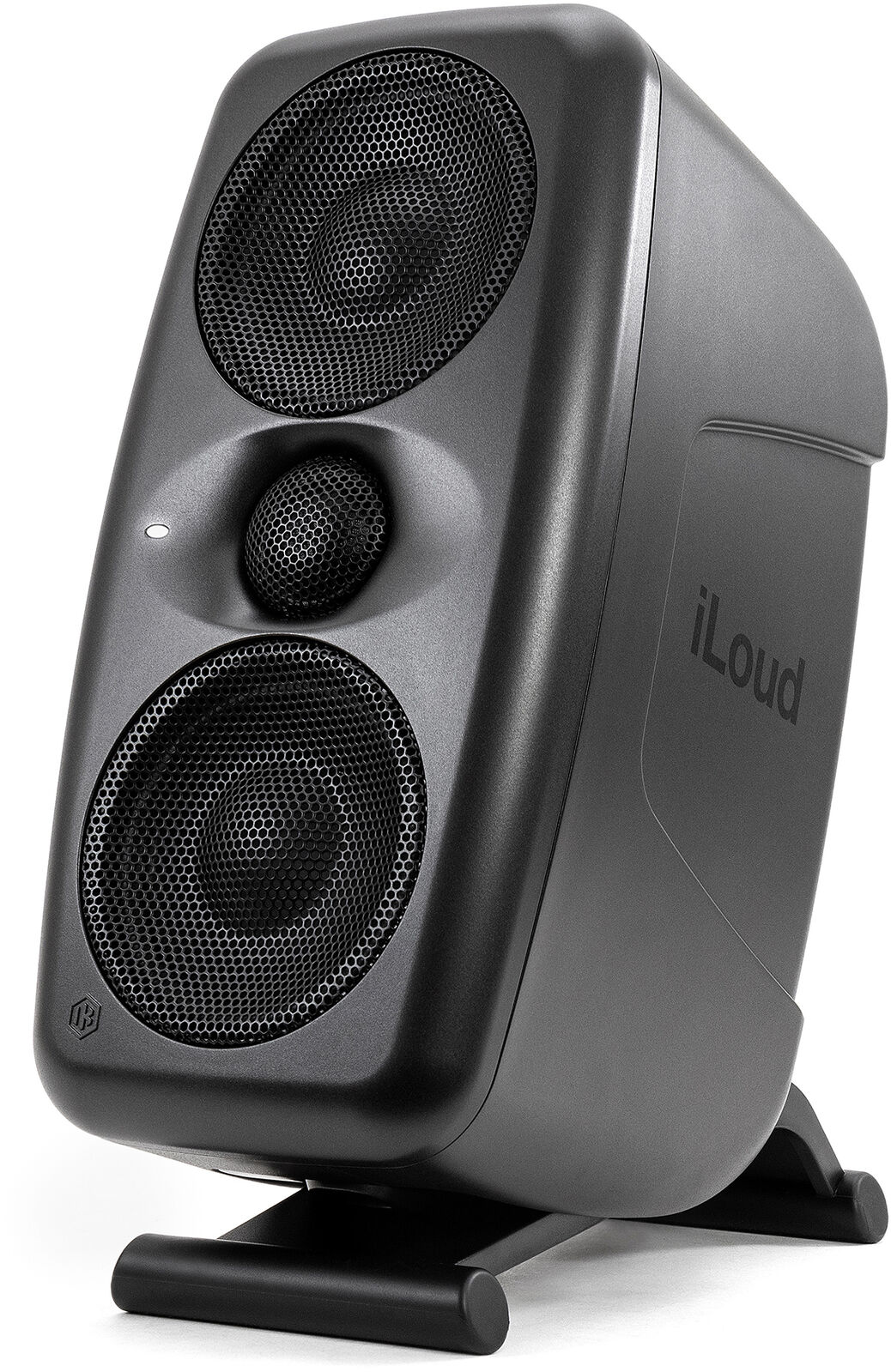

• Tilting base plus threaded insert for mounting

Ultra-nearfield monitors for critical mixing

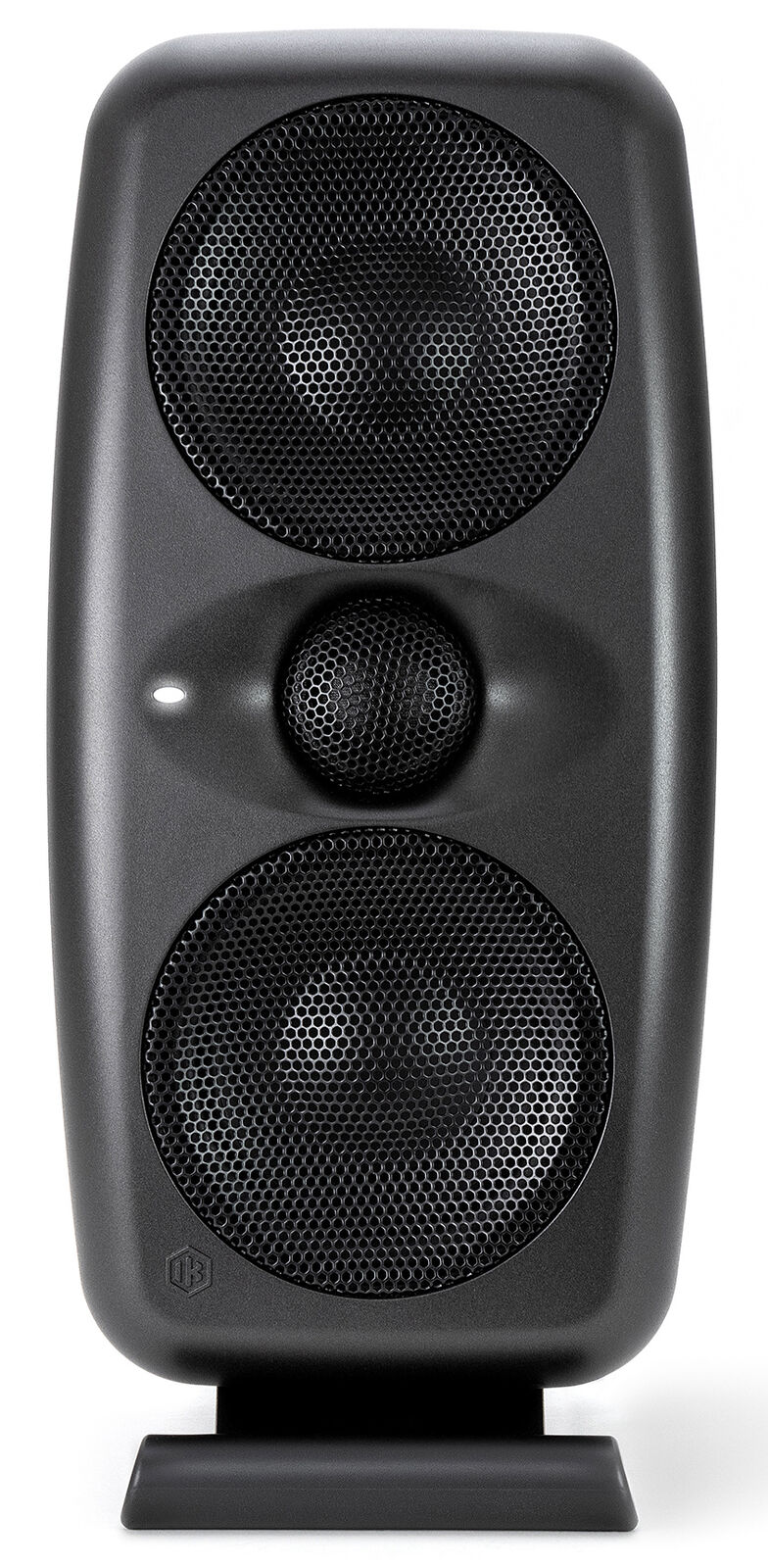

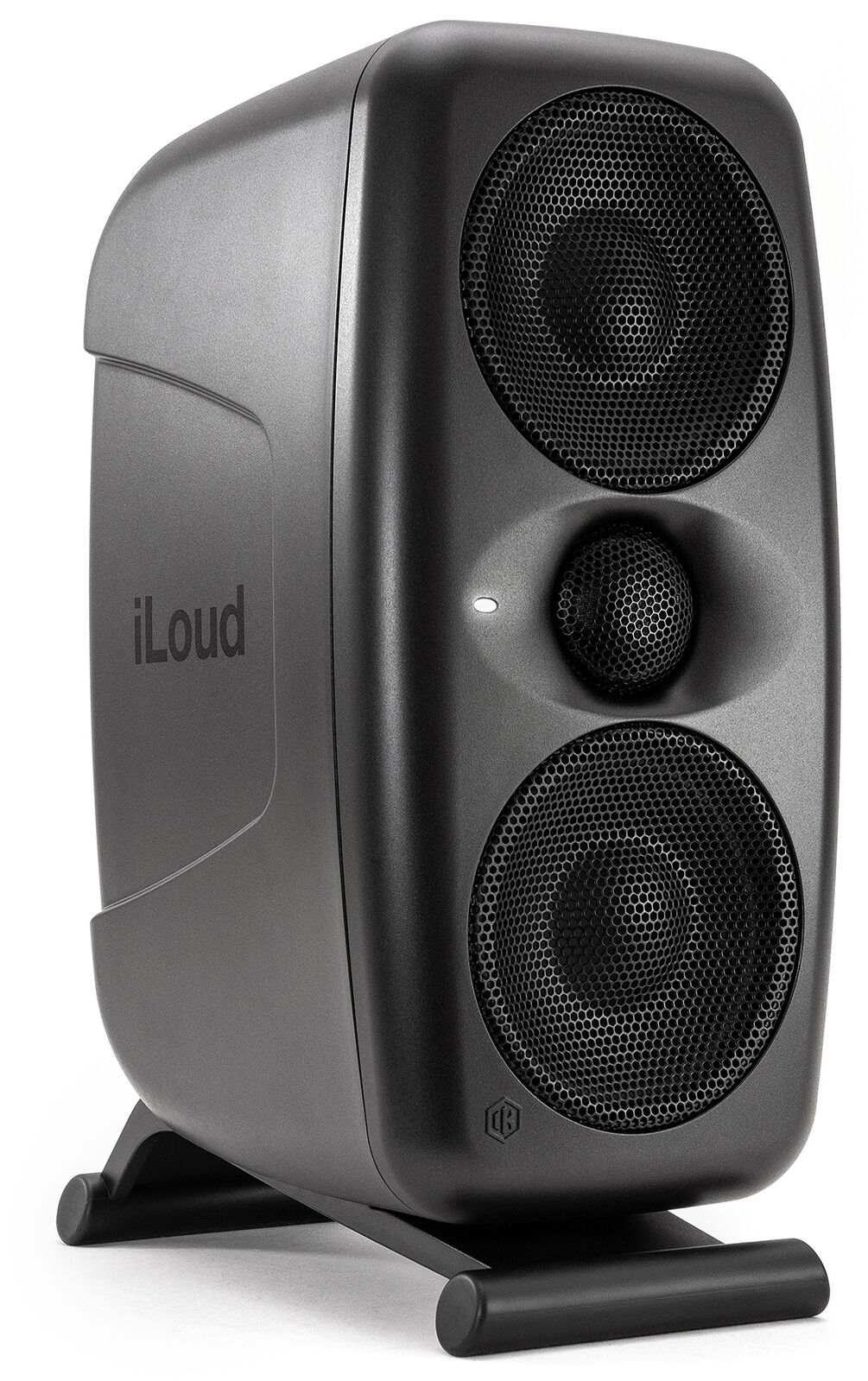

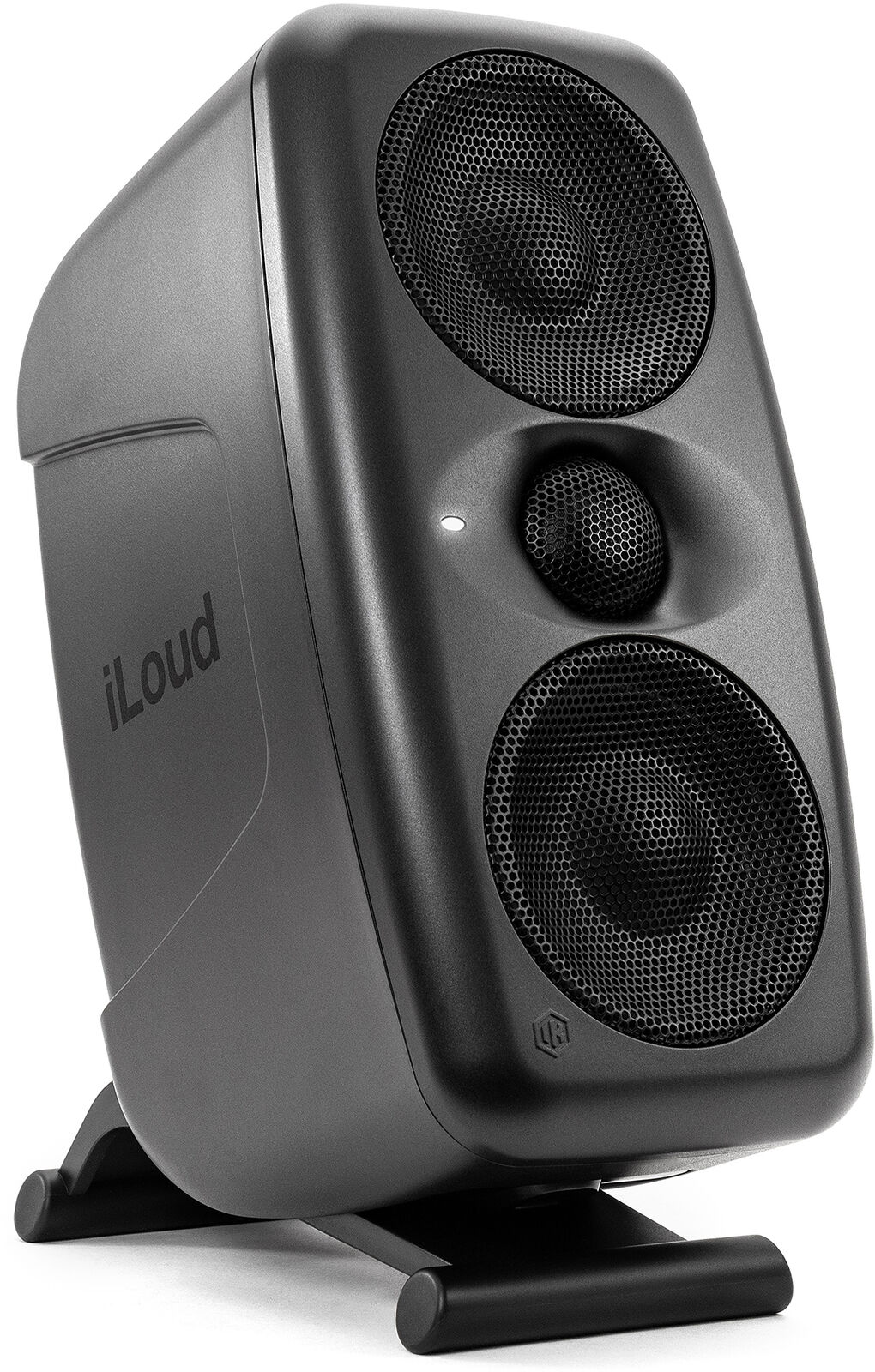

iLoud MTM MKII features a pair of 3.5″ high-performance woofers and one 1″ high-definition, back-chamber loaded tweeter with improved speaker drivers for superior volume and low end, plus improved clarity and articulation in the midrange. The Midrange-Tweeter-Midrange symmetrical design (D’Appolito configuration) provides ultra-precise, defined, point-source sound that can’t be achieved by traditional 2-way systems at close distances, meaning you'll mix better and with less ear fatigue.

Designed to work faster in more situations
In addition to improved speaker drivers, iLoud MTM MKII maintains tight vertical dispersion, minimizing the acoustic impact of desktop placement and ceiling and floor reflections to ensure the most accurate possible sound. MTM MKII offers a wider horizontal dispersion, creating a broader sweet spot for easier mixing than other MTM designs while maintaining the smoothest in-room response. Better power efficiency and extended max SPL mean iLoud MTM MKII also offers superior performance as an FOH mixing monitor, immersive speaker or other volume-dependent tasks.

Smarter Monitoring with ARC X Integration - Your Studio. Perfectly tuned. Automatically.
Full integration with IK’s new ARC X system brings intelligent acoustic calibration directly into your workflow. ARC X automatically analyzes your space and applies precise correction for a flat frequency response, aligns timing across monitors, and balances output levels—eliminating room-induced issues that obscure your mix decisions.

Beyond correction, ARC X enhances your setup with customizable system tuning and advanced speaker emulation. You can tailor your monitoring system to match your personal preferences or simulate over 20 iconic speaker systems—from high-end studio monitors to consumer playback devices.

Set it up in minutes. Mix with total confidence. Whether you’re working in a professional studio, a treated home room, or a portable setup, ARC X guarantees your monitors are always operating at their full potential.

Stereo to immersive sound anywhere

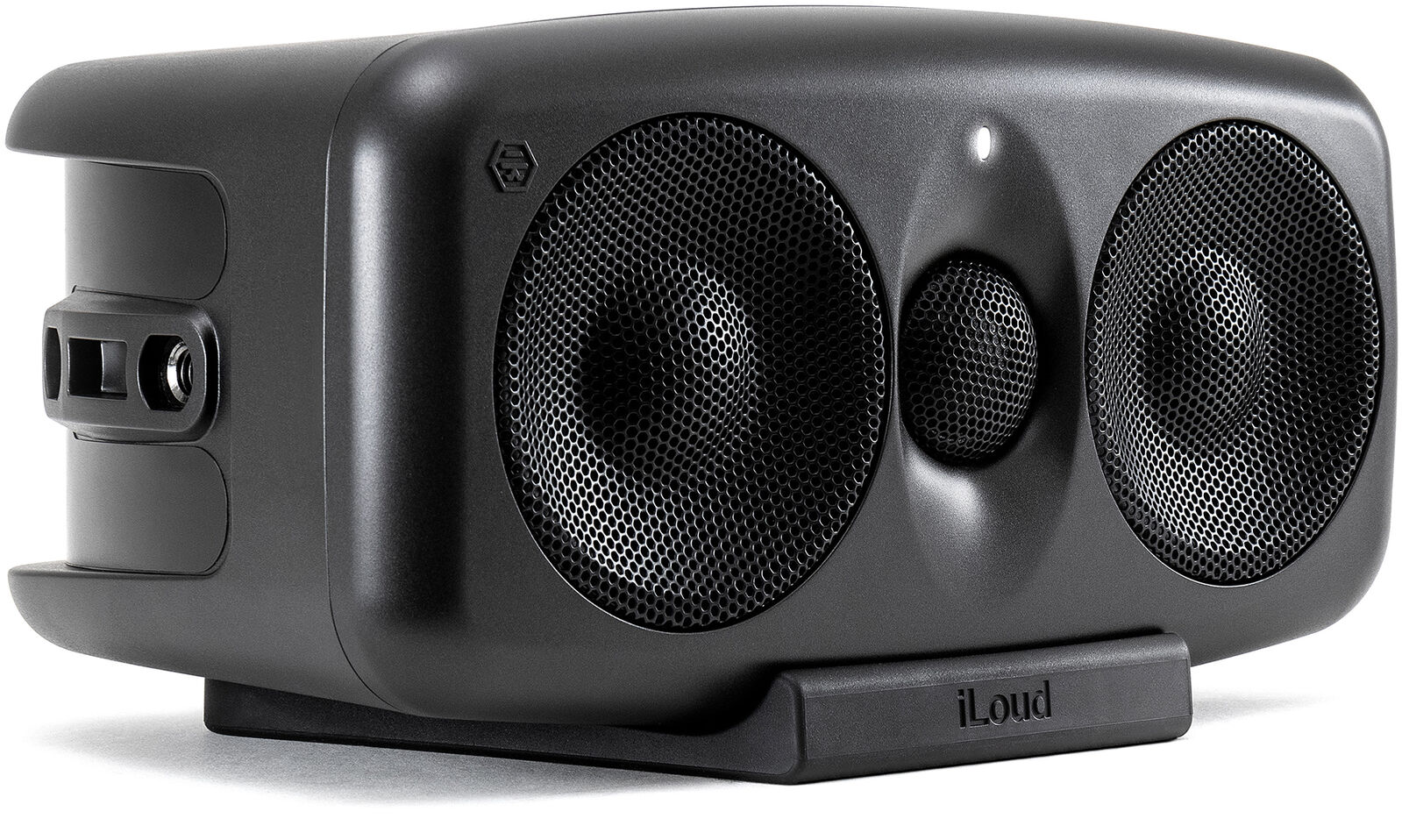

We packed all this technological sophistication into a compact format that takes up 30% - 50% less space than comparable designs and weighs just 5 pounds. With tilting desktop mounts included, it’s the ideal desktop solution for home, project or mobile recording. There's also an included isolation pad for horizontal placement wherever needed.

Bottom mic stand mounts securely position iLoud MTM MKII behind a console for studio or FOH use or even on boom arms to create immersive setups anywhere quickly with no tools required. A custom mounting bracket is also available to easily install MTM MKII as overheads or wall speakers in any studio.

The ideal immersive audio solution
All these amazing features, plus a selectable 80 Hz low-frequency cutoff, also make iLoud MTM MKII the ideal monitor for today’s immersive studios. Learn how iLoud MTM MKII is ideal for use with ATMOS® and other multi-channel audio systems and save big with our 11-speaker bundle!

More power to mix and monitor

• MTM enclosure for accurate sound focus and superior sound dispersion

• 2 x 3.5" composite cellulose fiber, custom-made mid-woofers

• 1" low distortion, high-performance back-chambered silk dome tweeter

• DSP-tuned bass reflex design dramatically extends bass response

• High-efficiency 100 W 2-way bi-amped speaker with class D amplifiers

Optimize your focus and workflow

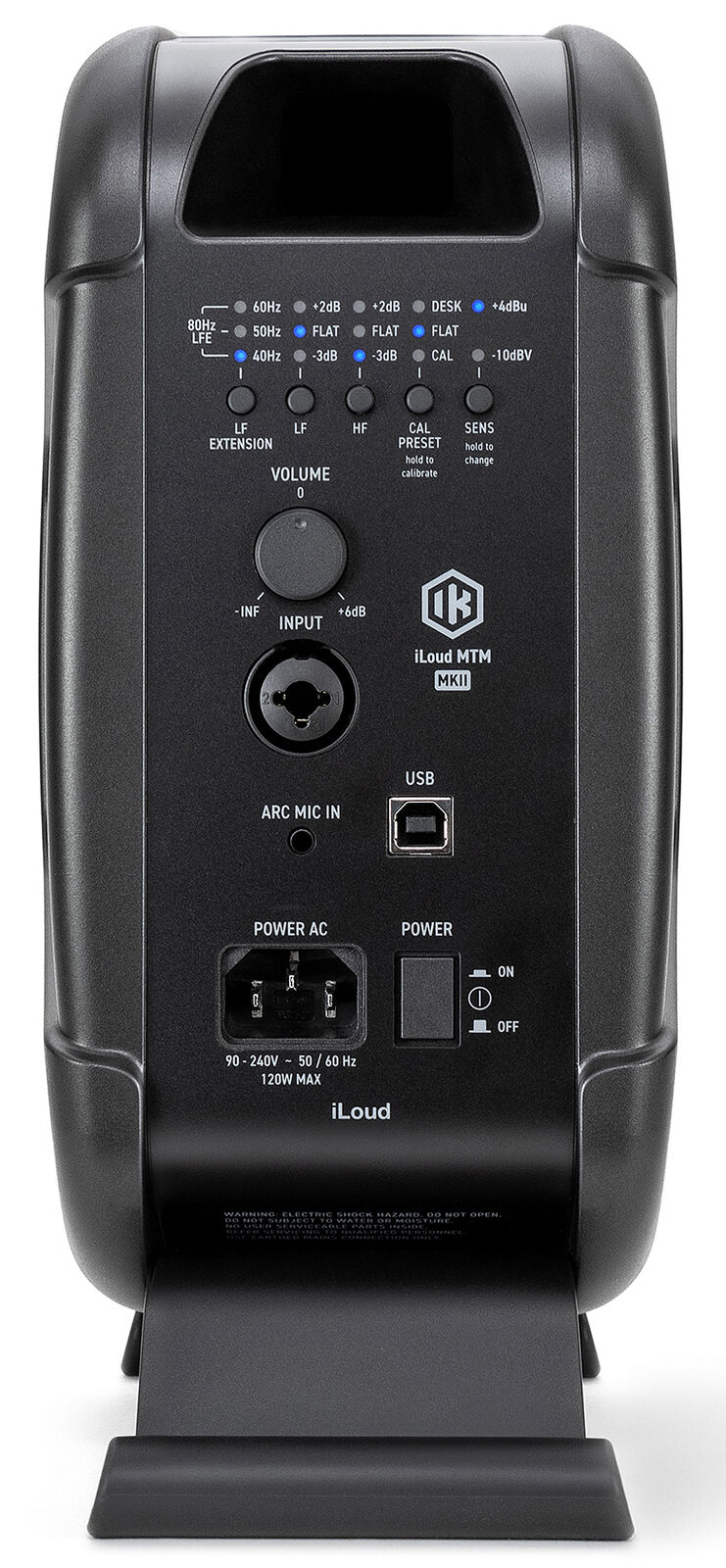

• Back panel switches for LF Extension, LF trim, HF trim, Desk position

• Fully automatic and built-in digital ARC self-calibration with bypass

• Includes ARC X control software for advanced customization

• With over 20 precise emulations of top studio monitors to A/B mixes

• Save and recall settings and manage firmware via ARC X

World-class audio in any space

• Ultra-flat and extended response from 36 Hz to 32 kHz (-10 dB)

• Class-leading phase coherence within +/- 15° from 200 Hz to 20 kHz

• Massive maximum SPL rated at 112.5 dB per speaker at 1 meter

• Compact dimensions for easy positioning even in the smallest place

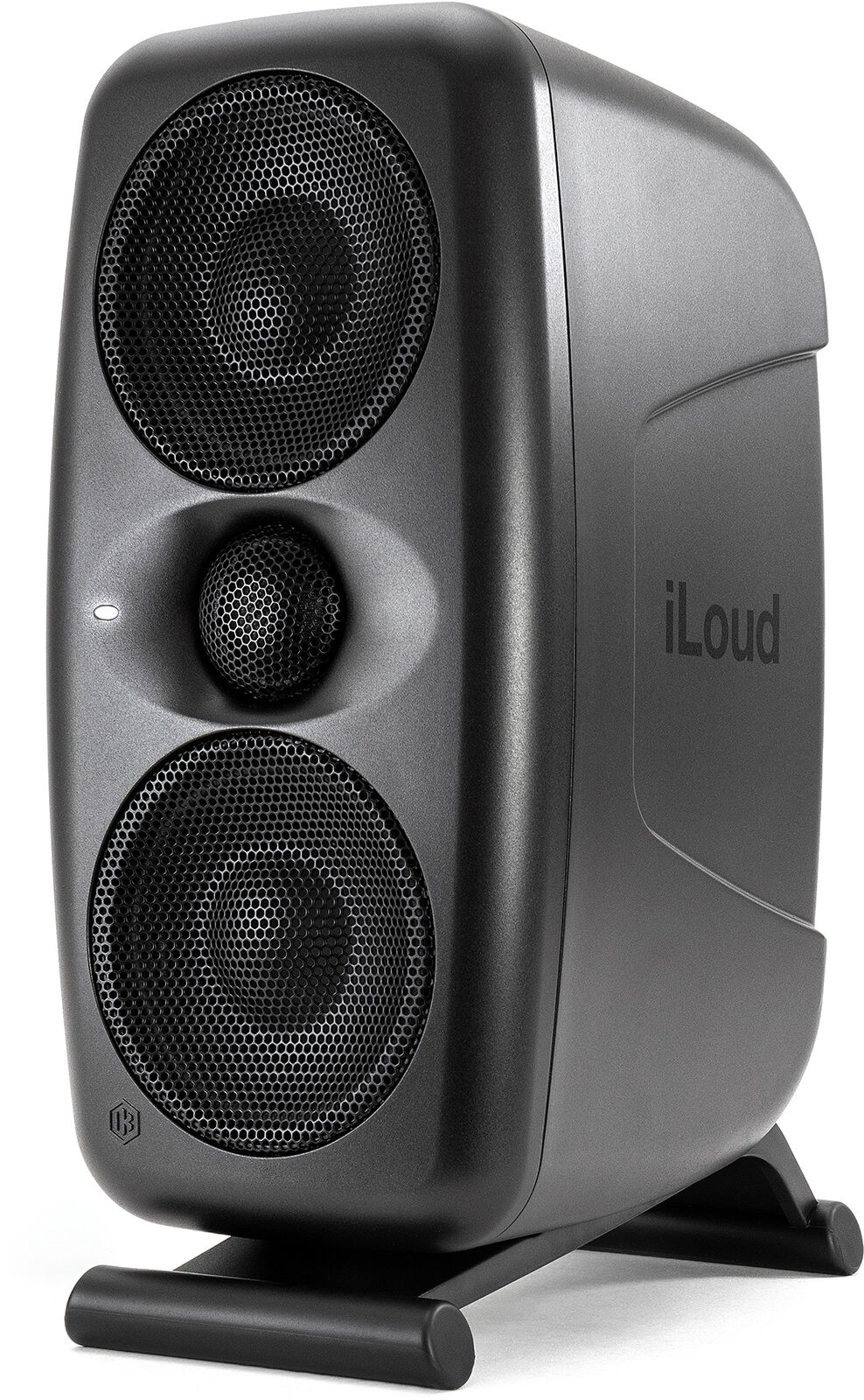

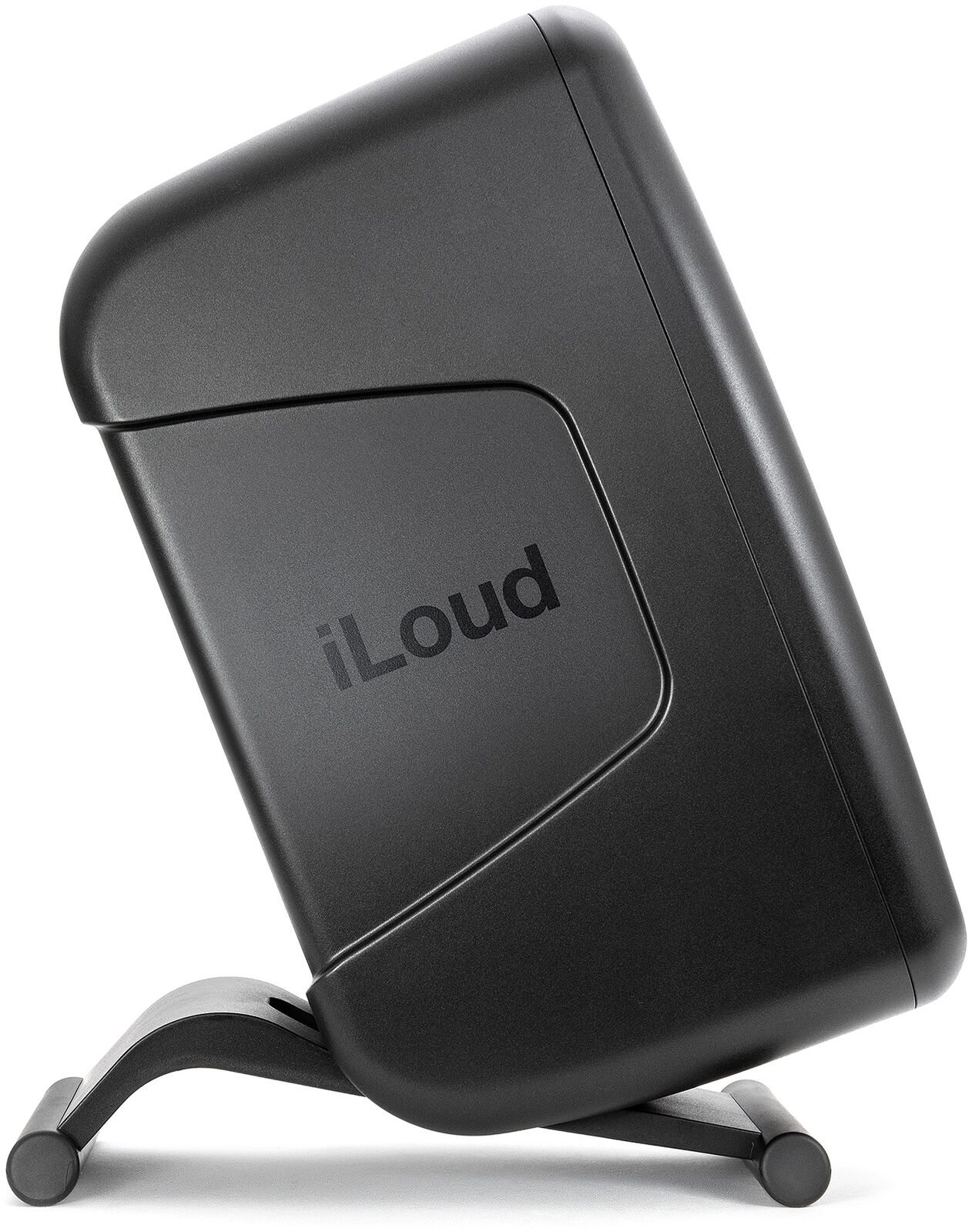

• Includes 20° tiltable base, horizontal base and built-in mic stand thread

SPECIFICATIONS

Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
LF drivers: 2 x 3.5" composite cellulose fiber, custom-made mid-woofers
HF drivers: 1" low distortion, back chambered silk dome tweeter
Acoustic design: DSP tuned bass reflex
Number of amps per speaker: 2
Amplifiers type: High efficiency Class-D
Total power: 100 W RMS
LF power: 70 W RMS
HF power: 30 W RMS
Crossover type: Digital, linear phase
Crossover frequency: 2.8 kHz
Frequency response: 48 Hz to 28 kHz ± 2 dB, 36 Hz to 32 kHz @ -10 dB
Phase response: System remains coherent within +/- 15° from 200 Hz to 20 kHz
Sensitivity at +4 dBu: -6 dBu signal generates a 94 dB SPL @ 1 m
Sensitivity at -10 dBV: -17 dBu signal generates a 94 dB SPL @ 1 m
Continuous, long term SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 97 dB
Peak SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 110.5 dB
Peak SPL, half space, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 112.5 dB
Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
LF extension switch: Sets -3 dB point of the frequency response at 40, 50, 60 or 80 Hz (LFE)
LF switch: Low shelf, +2 dB or -3 dB from 100 Hz down
HF switch: High shelf, +2 dB or -3 dB from 8 kHz up
Desk switch: -4 dB at 160 Hz and +1 dB at 1.8 kHz
Calibration: Fully automatic and built-in digital calibration
Total Latency (TOF): 2.44 ms
Connectors: 1x combo XLR-1/4" TRS balanced input; 1/8" TS ARC microphone input, 1 x USB type-B, AC POWER socket
Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 120 W max power consumption

Dimensions
Size: 264 mm/10.39" x 160 mm/6.3" x 130 mm/5.12"
Weight (per speaker): 2, 5 kg/5.5 lbs (speaker + foot)

Package includes:

• 1 x iLoud MTM MKII monitor

• Power cord

• Tilting stand

• Horizontal support feet

• Locking key

• USB-B to USB-A 2.5 m/8.2 ft. cable

• 1 x ARC Microphone*

• 1 x ARC Microphone clamp*

• 1 x XLR to 1/8” (3.5mm) TS cable for ARC microphone (2.5m/8.2ft)*

*Included only inside Pair version and Immersive Bundle version.

System Requirements - ARC X
Mac® (64-bits)

• Minimal: Apple M1 or Intel® Core i5 Processor, 4 GB of RAM, macOS® 10.15 or newer (macOS 11 or newer required for Apple Silicon Processors).

• Supported Plug-in formats: Audio Units, VST 3, AAX.

• Works with any audio interface with a phantom powered XLR microphone input and a pair of outputs for monitoring.

• 44.1 kHz or 48 kHz sampling rate is required for the measurement process.

Windows® (64-bits)

• Minimal: Intel® Core i5 Processor or equivalent, 4 GB of RAM, Windows 10 (64 bit) or newer.

• Supported Plug-in formats: VST 3, AAX.

• Works with any audio interface with ASIO drivers, a phantom powered XLR microphone input and a pair of outputs for monitoring.

• 44.1kHz or 48kHz sampling rate is required for the measurement process.

Requires an OpenGL 2 compatible graphics adapter.
