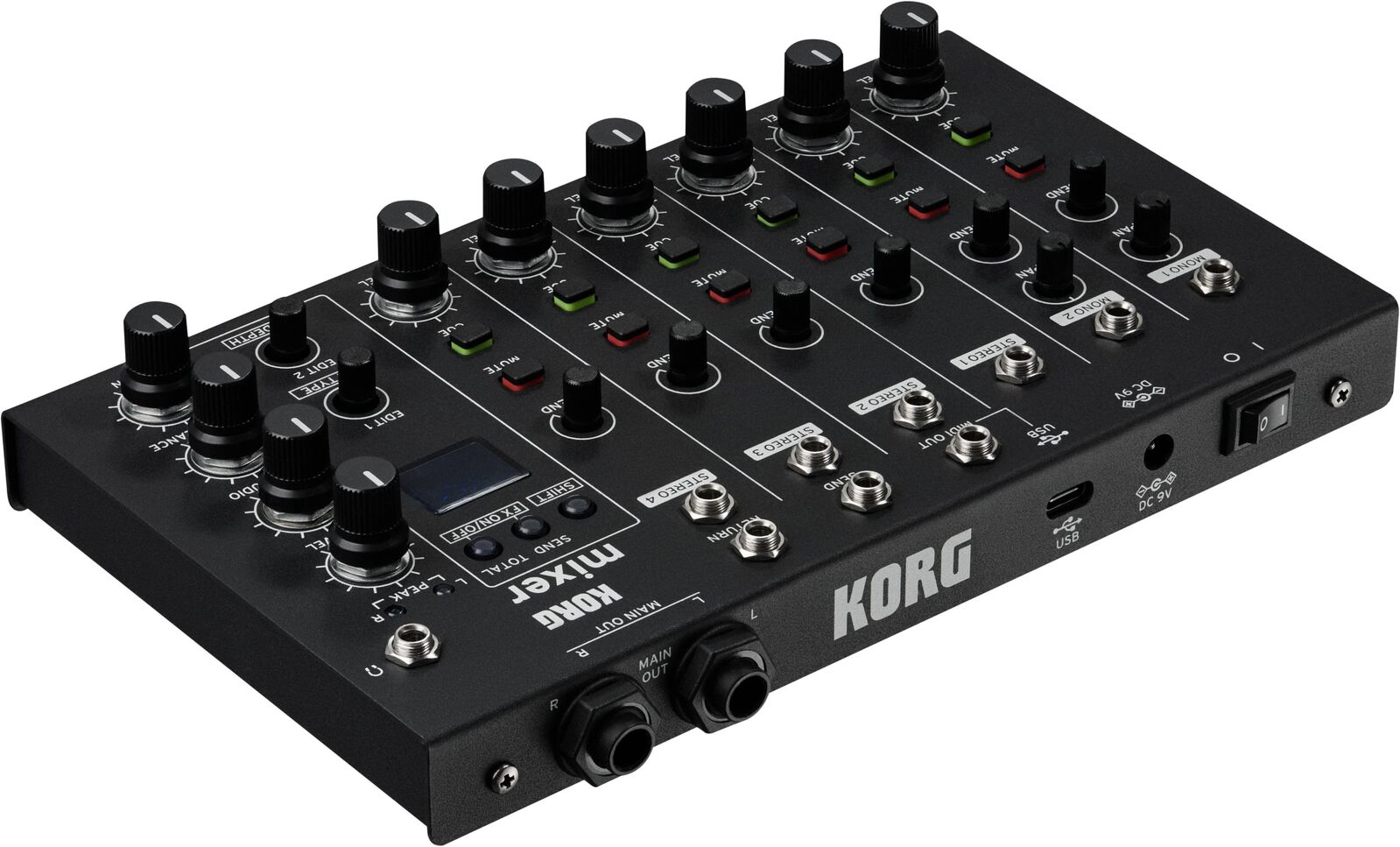

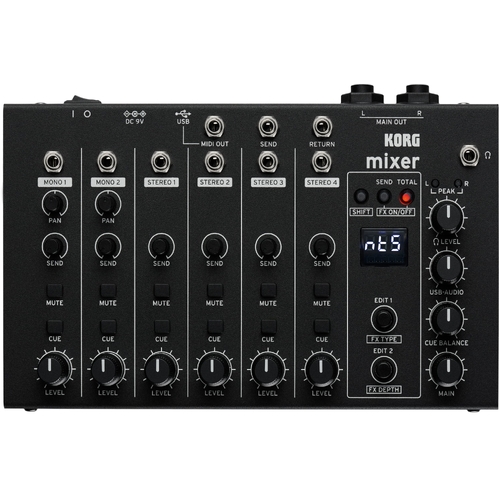

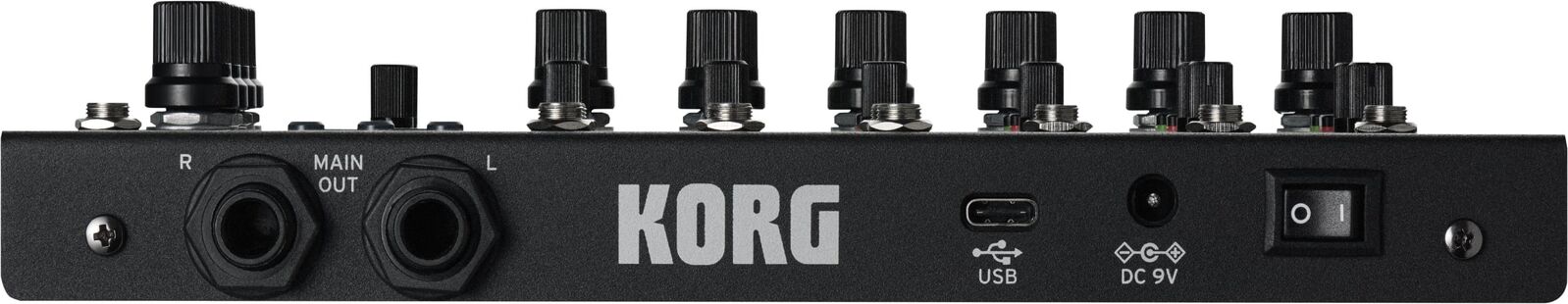

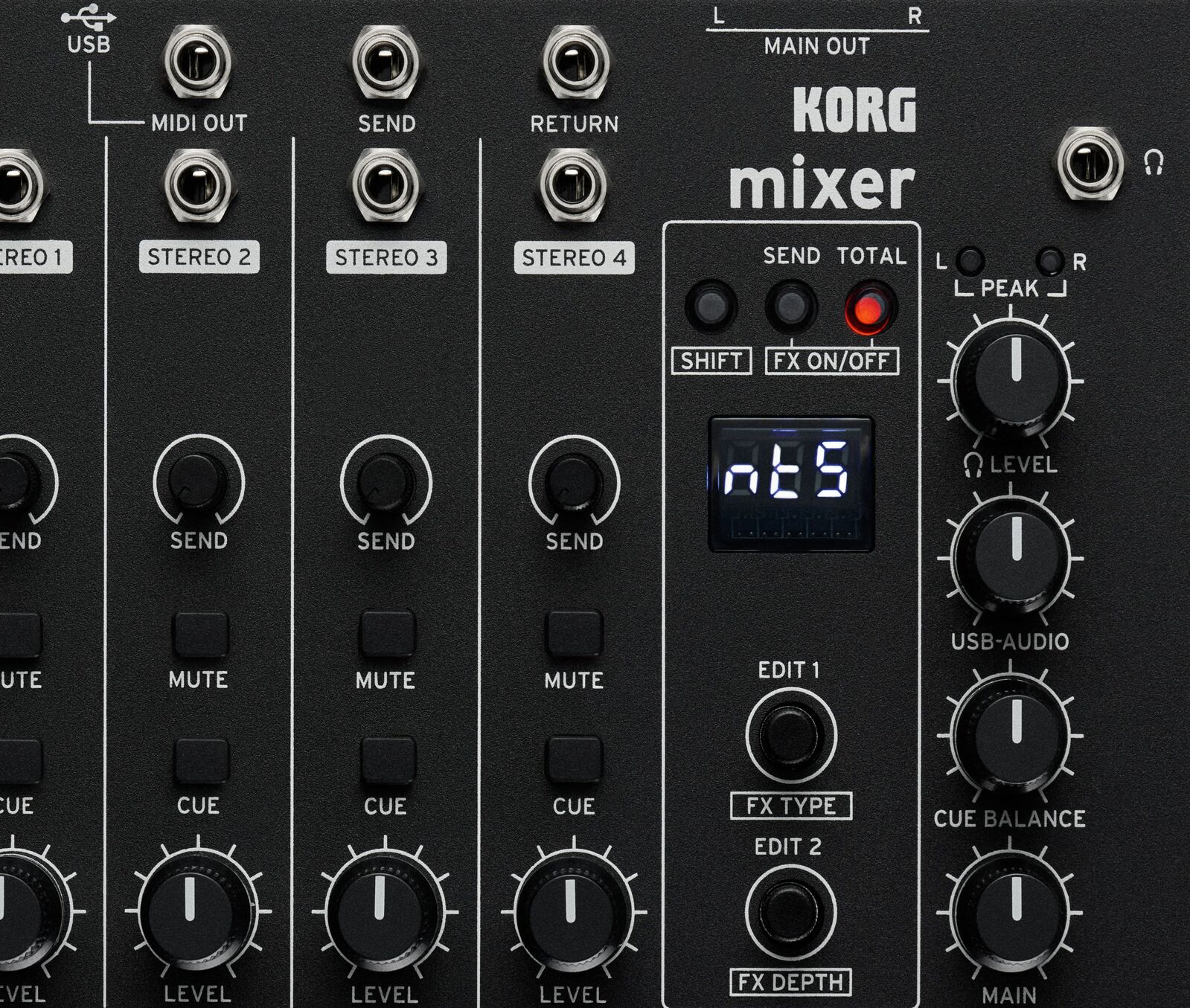

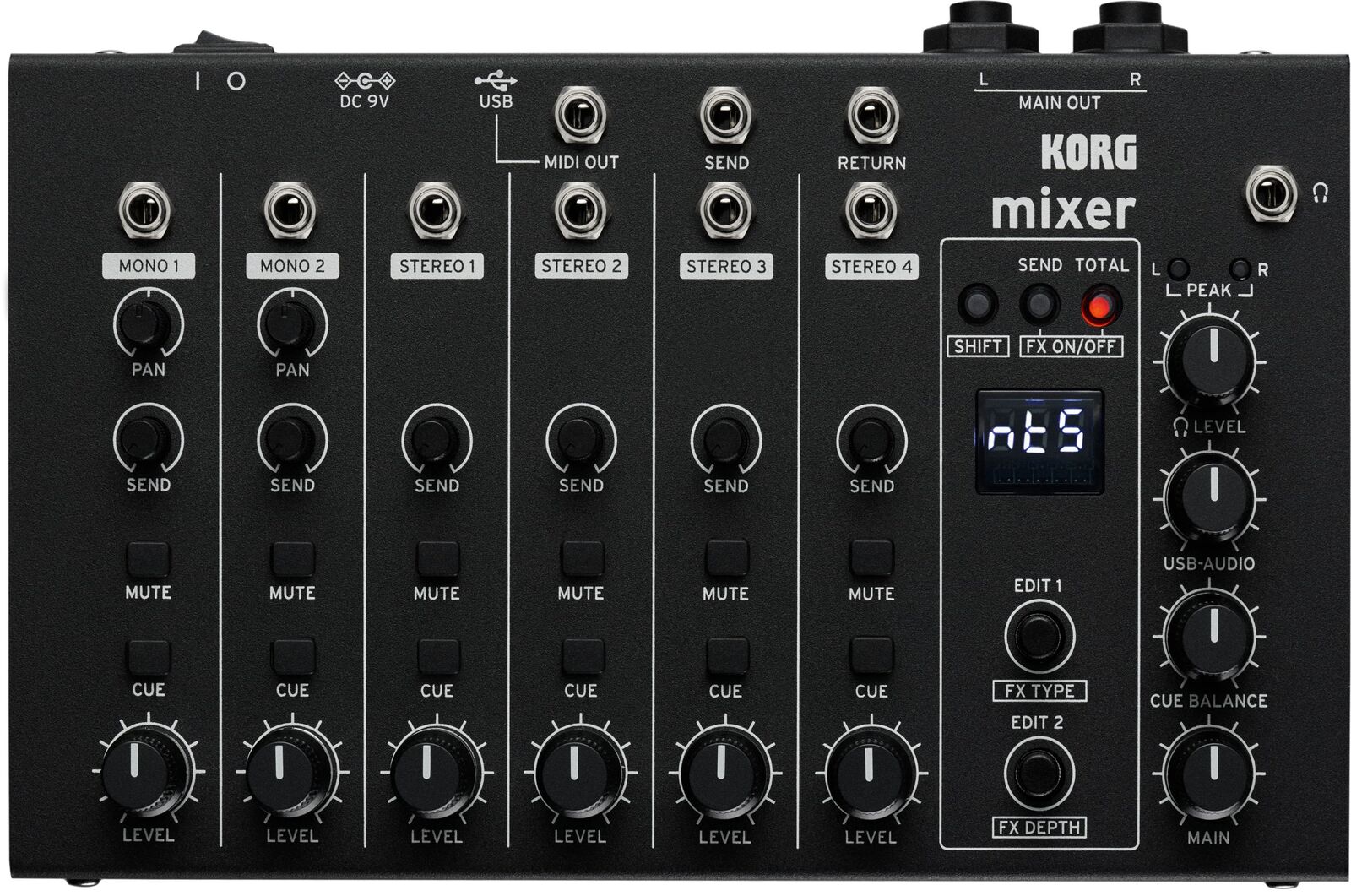

Korg NTS-4 Mixer Kit

Please note: This product is a kit, assembly is required.

The NTS-4 brings the flexibility of the Nu:Tekt series into a powerful performance mixer. With six channels, integrated effects, and USB audio/MIDI connectivity, it’s designed to connect, mix, and perform with volca units, NTS instruments, modular gear, and desktop synths in one streamlined setup.

FEATURES

• 6-Channel Mixer (4 Stereo + 2 Mono)
  Mix up to 10 audio signals from compact instruments in one streamlined setup.

• Eurorack-Compatible Mono Inputs
  Switchable line/modular levels allow direct integration with modular systems.

• Dual Stereo SEND FX + Master TOTAL FX
  Add spatial effects per channel and shape the entire mix with filters, drive, and dynamics.

• Per-Channel CUE & MUTE Buttons
  Preview sounds privately, perform smooth transitions, and create dramatic live drops.

• USB-C Audio & MIDI (48 kHz / 24-bit)
  Record, stream, and connect hardware directly to DAWs, computers, and mobile devices.

• SEND / RETURN Connections
  Easily integrate external effects into the signal chain.

• Build it. Make it yours.
  As part of the Nu:Tekt series, the NTS-4 is a simple DIY kit that can be assembled with ease. Once assembled, it becomes a durable, high-quality performance mixer ready for long-term use.

Six channels. One unified setup.
With four stereo channels and two mono channels, the NTS-4 makes it easy to combine multiple instruments into a single performance rig, supporting up to 10 total audio signals. Each channel includes level control, mute, CUE monitoring, and FX send for flexible mixing and performance control. All inputs use compact 3.5 mm mini-jacks, ideal for volca units, NTS instruments, and other desktop gear.

Designed for synths and modular gear.
The mono inputs support both line-level and modular-level signals via a switchable attenuator, allowing seamless integration with Eurorack systems. Dedicated SEND and RETURN connections make it easy to expand your setup with external effects.

Shape your mix in real time.
Two independent stereo effects engines provide per-channel SEND FX for spatial processing, while a master TOTAL FX section shapes the entire mix. Add delay, reverb, modulation, drive, and compression to bring depth, movement, and cohesion to your sound.

Seamless connection to your setup.
USB-C provides 24-bit audio and MIDI connectivity for recording, streaming, and DAW integration. Mix hardware and software together, or record directly to your computer or mobile device. MIDI received over USB can be routed through the dedicated MIDI OUT to control external hardware. Standard 1/4" outputs provide a reliable connection to studio and live systems.
