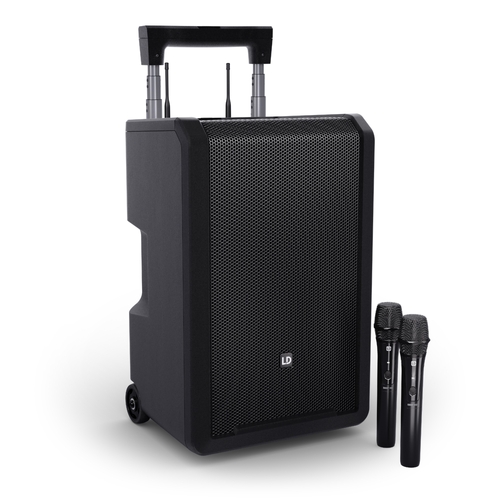

LD Systems ANNY 10 HDD 2 B6 Black

Important: The wireless frequency in this system is B6: 655 - 679 MHz

ANNY – your battery-powered sound solution for truly anywhere: whether in the city, in the garden, at gatherings, at sports events, at school and dance events, in bars, at parties, wherever you are, with ANNY you can provide professional sound and create unforgettable moments.

Equipped with a 10” woofer, 1” tweeter, wheels and telescopic handle, ANNY 10 offers an ideal combination of portability and sound performance.

With an integrated 6-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT) and effects such as reverb & delay, it combines comprehensive features and outstanding sound quality in a compact and robust design. ANNY 10 impresses with its versatile connection options: two microphone/line combo inputs, one stereo channel with 3.5mm jack (AUX) and RCA inputs as well as Bluetooth 5.0 with AAC codec.

This array of inputs enables a wide range of setups with a mix of speech and music. The footswitch input allows you to switch the reverb & delay effects easily and hands-free with an external footswitch while playing or singing.

To guarantee clear and audible announcements in any situation, you can use the "Priority" function. To do this, simply select your microphone in the priority settings and the music will automatically be attenuated when you use your microphone.

The ANNY 10 HHD 2 variant is already equipped with two wireless microphones – simply insert the included AA batteries and you're ready to go. The volume can be adjusted separately on the corresponding receiver module on the back of the ANNY. This expands your connection options by two additional input channels, giving you even more combination options.

Further adding to its versatility, True Wireless Stereo (TWS) allows you to link two ANNY 10 loudspeakers to enjoy your music in stereo – a quick upgrade that creates a powerful sound solution for larger parties and events.

Don't worry, you can turn your ANNY up all the way, because the built-in DynX® DSP (Gen. 2) produces a distortion-free, clean and powerful sound even at maximum volume. Thanks to the energy-saving ECO preset, ANNY can last especially long for background music or voice-only applications. At medium volume, this mode enables continuous operation for up to 25 hours. For your party at maximum volume in MUSIC preset, the battery lasts up to an impressive 5 hours at full capacity. You can further extend the operating time using the optionally available backup batteries; simply replace the empty batteries with fully charged ones in a few seconds and you're ready to continue. To ensure that your mobile phone or tablet is always ready for use, you can place it in the integrated holder and charge it via the USB-C port on the back of ANNY.

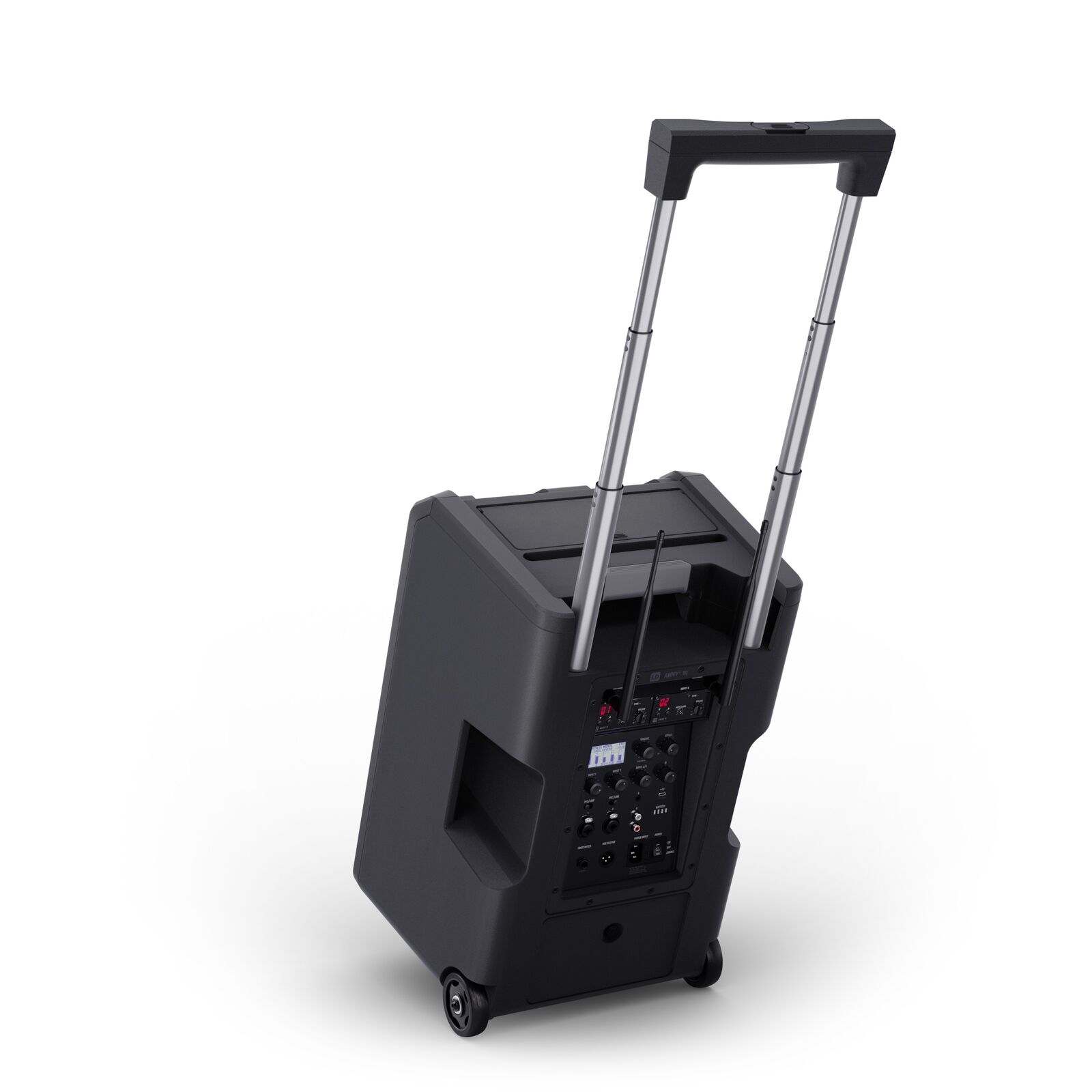

If you travel a lot with your ANNY 10, you'll appreciate the integrated wheels and telescopic handle, which allows you to pull the speaker like a trolley. Thanks to the robust housing and the two handles, ANNY 10 is extremely rugged and suitable for use both on the floor and on a speaker stand. A perfectly fitting, water-repellent transport bag with additional storage space is available as an accessory, which provides protection against the elements and doubles as a practical storage solution.

So go ahead and create unforgettable moments. With ANNY by your side, you'll create a great atmosphere and first-class sound – wherever you are.

FEATURES

• Portable active 2-way full-range loudspeaker

• Built-in 6-channel mixer with 3-band EQ, reverb and delay

• Long battery life: up to 25h (ECO mode) / 5h (max. volume)

• 2x wireless handheld microphone incl. AA batteries

• Bluetooth® 5.0 and stereo streaming (TWS) with two ANNYs

• Clear and distortion-free sound at maximum volume through DynX® DSP (Gen. 2)

• 2x microphone/line inputs for versatile connection options

• 1x stereo channel with 3.5mm jack (AUX) or RCA

• Priority/ducking mode to emphasise the microphone signal

• Wheels and telescopic handle for easy transport

• 35-mm flange for use with a speaker stand

• USB-C port for charging a tablet or smartphone

• Footswitch input for hands-free effect control

• Integrated holder for tablet or smartphone

SPECIFICATIONS

Product type: Battery-powered PA speaker
Type: Set (1x ANNY 10, 2x receiver, 2x handheld microphone)
Frequency range: 655 - 679 MHz
Weight: 18,72 kg

LDANNY10 - LD Systems ANNY® 10 HHD 2 B6 10" Portable battery-powered Bluetooth® PA System with mixer

Product type: Battery-powered PA speaker
Type: Powered
Color: Black
System output (RMS): 80 W
System output (Peak): 160 W
Max. SPL Average (Sine burst): 111 dB
Max. SPL Peak (Sine burst): 118 dB
Frequency response (-10dB): 45 Hz - 20 kHz
Crossover frequency: 1800 Hz
Dispersion (H x V): 120° x 60 °
Channels: 6 channels
Width: 361 mm
Depth: 300 mm
Total Height: 566 mm
Features: 3-band EQ, effects (reverb & delay) , 6-channel mixer with system presets , Priority/ducking mode , TWS , USB-C port für mobile device charging
Weight: 18 kg

Low/mid woofer
Woofer dimensions: 10 "
Woofer dimensions (mm): 254 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil (inch): 2 "
Woofer voice coil (mm): 51 mm
Cabinet construction: Bass Reflex
Housing material: Polypropylene

HF driver
Horn: Constant directivity
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25 mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Tweeter voice coil: 1 "
Tweeter voice coil (mm): 25 mm

Amplifier module (integrated)
Amplifier: Class D
Protection circuits: Short circuit , thermal overload
Ambient temperature (operating): 0°C - 40 °C
Relative Humidity: 0 - 80% (non condensing)
Fuse: T2 AL 250V
Controls: effect , Input 1 Mic/Line switch , Input 1 volume , Input 2 Mic/Line switch , Input 2 volume , Input 3+4 volume , Input: 5+6 (Bluetooth) volume , Main volume / menu navigation , Power
Indicators: multifunction LC display , power/battery status
Mains connector: IEC
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 150 W
Physical inputs: 5
Physical input connectors: 2 x 6.3 mm / XLR combo , 2 x RCA, 3.5 mm jack
Mix output: 1
Mix output connector: XLR male
Bluetooth Standard: 5.0
Bluetooth Audio Decoder: AAC , SBC

Rechargeable battery
Rechargable batteries: 2 x 12V / 5000mAh
Battery technology: Lead Acid
Battery life music (MUSIC, full volume): 5 Hours
Battery life music (ECO, mid volume): 25 Hours
Charging time (80%, no signal): 3.5 hours
Charging time (full recharge): 7 hours (no signal)

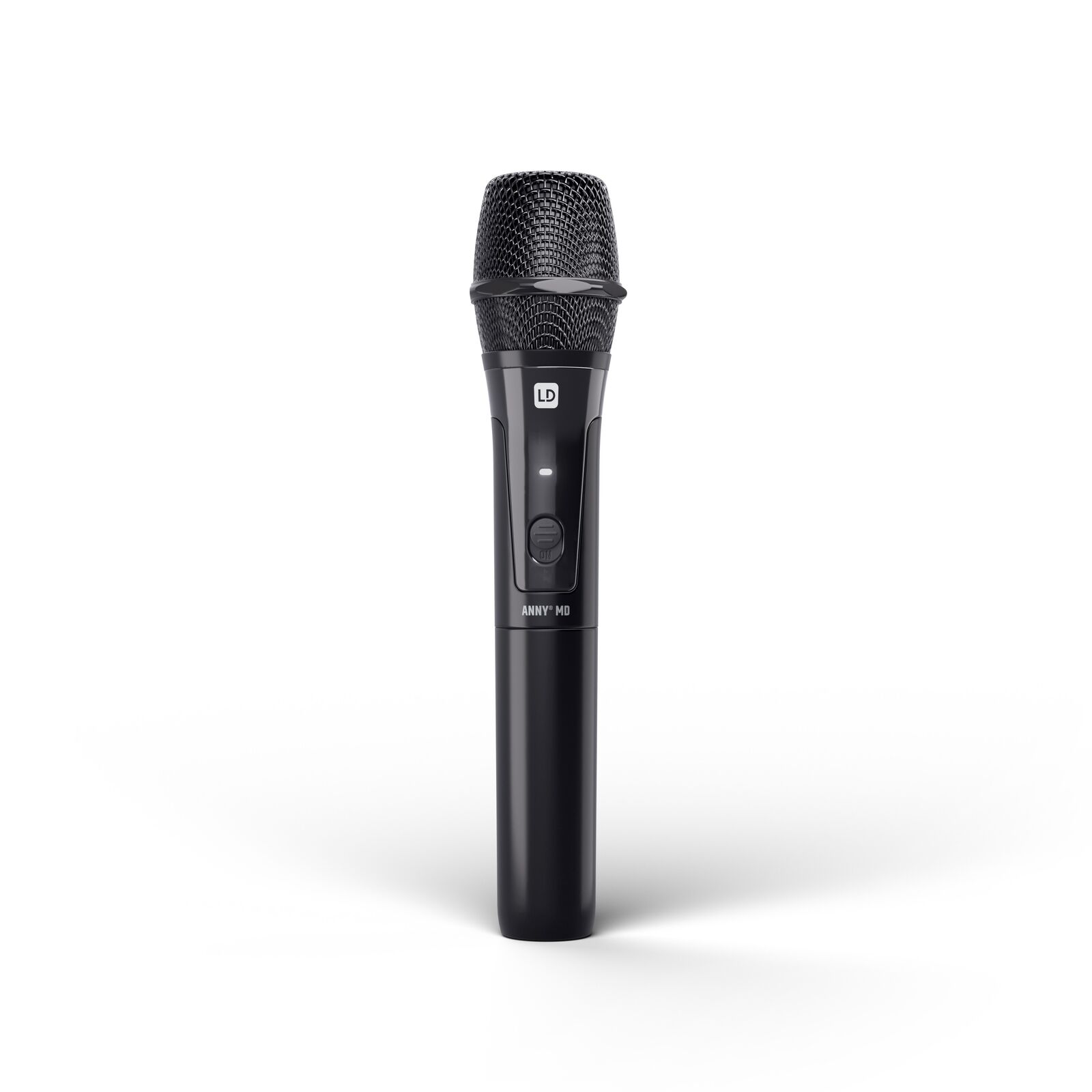

LDANNYMDB6 - LD Systems ANNY® 10 HHD 2 B6 Wireless Handheld Microphone for ANNY®

General
Directivity: Cardioid
Material: Steel
Wireless frequencies: 655 - 679 MHz
Frequency response (-3 dB, rel. Avg): 60 - 20,000 Hz
Colour: Black

Radio transmission
Channels: 12
Transmitting power: 10 mW
Frequency synchronization via IR: Yes

Signal processing
Min. Signal-to-noise ratio (SNR): 104 dB

Dimensions & weight
Length: 250.4 mm
Diameter: 32.5 mm
Weight: 200 g

LDANNYRB6 - LD Systems ANNY® 10 HHD 2 B6 Receiver Module for ANNY®

General
Material: Steel sheet
Coating: Powder coated
Wireless frequencies: 655 - 679 MHz
Frequency response (-3 dB, rel. Avg): 50 - 17,000 Hz
Colour: Black

Radio transmission
Channels: 12
Antenna connector: BNC female
Antennas: BNC female

Dimensions & weight
Width: 72.8 mm
Height: 39.6 mm
Depth: 118.5 mm
Weight: 8 g

For more information, click here to visit the manufacturers website.
