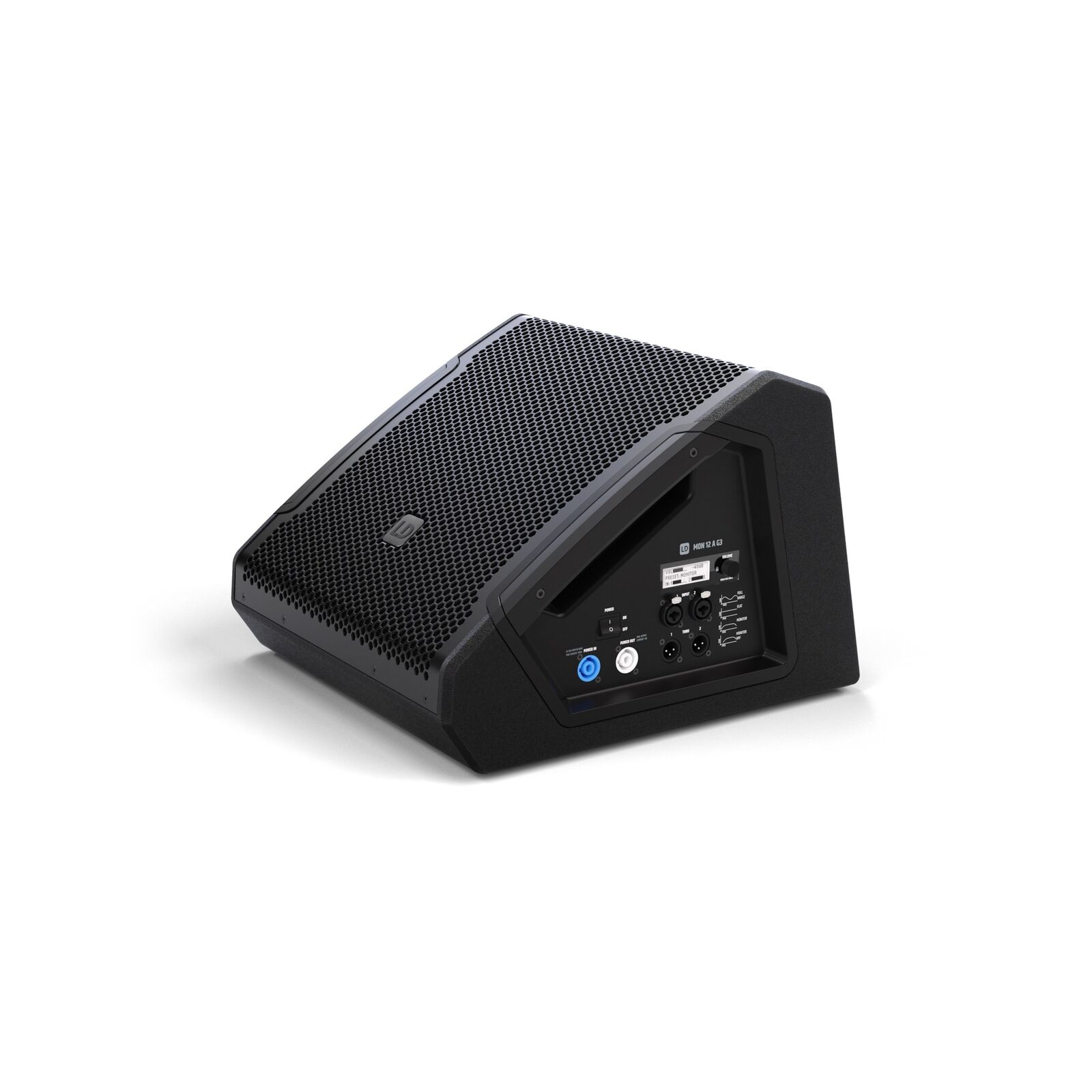

LD Systems MON 12 A G3 Black

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

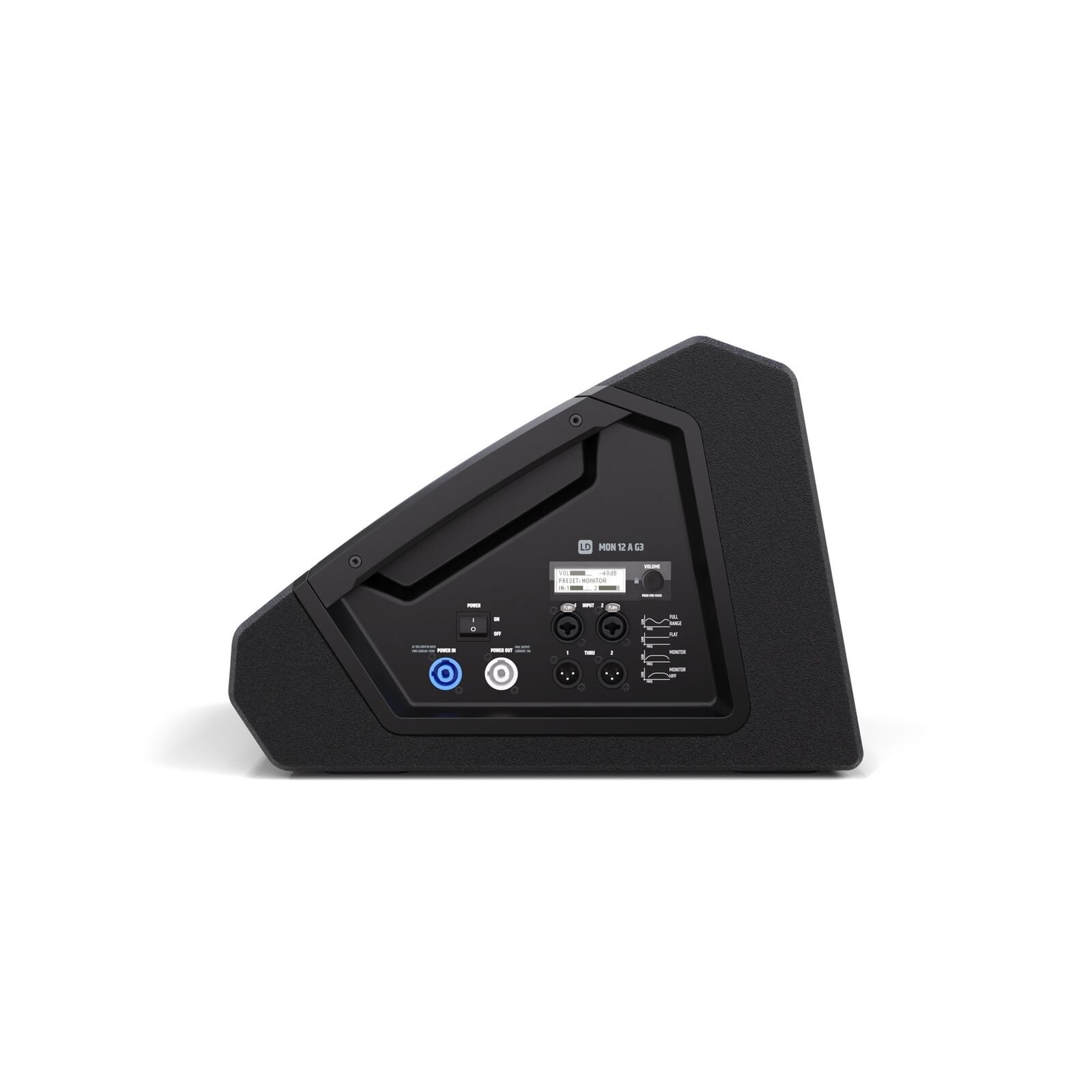

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

FEATURES

• Compact high-performance stage monitor with top-of-the-range technologies

• Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL

• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver

• 12" woofer with 2.5" voice coil

• Optimised, practical radiation pattern due to 50° x 90° CD horn

• DynX® DSP (Gen.2) for distortion-free sound even at maximum volume

• 3-band EQ, Notch filter, 4 application presets and delay function

• PowerCON compatible loop-through professional power connection

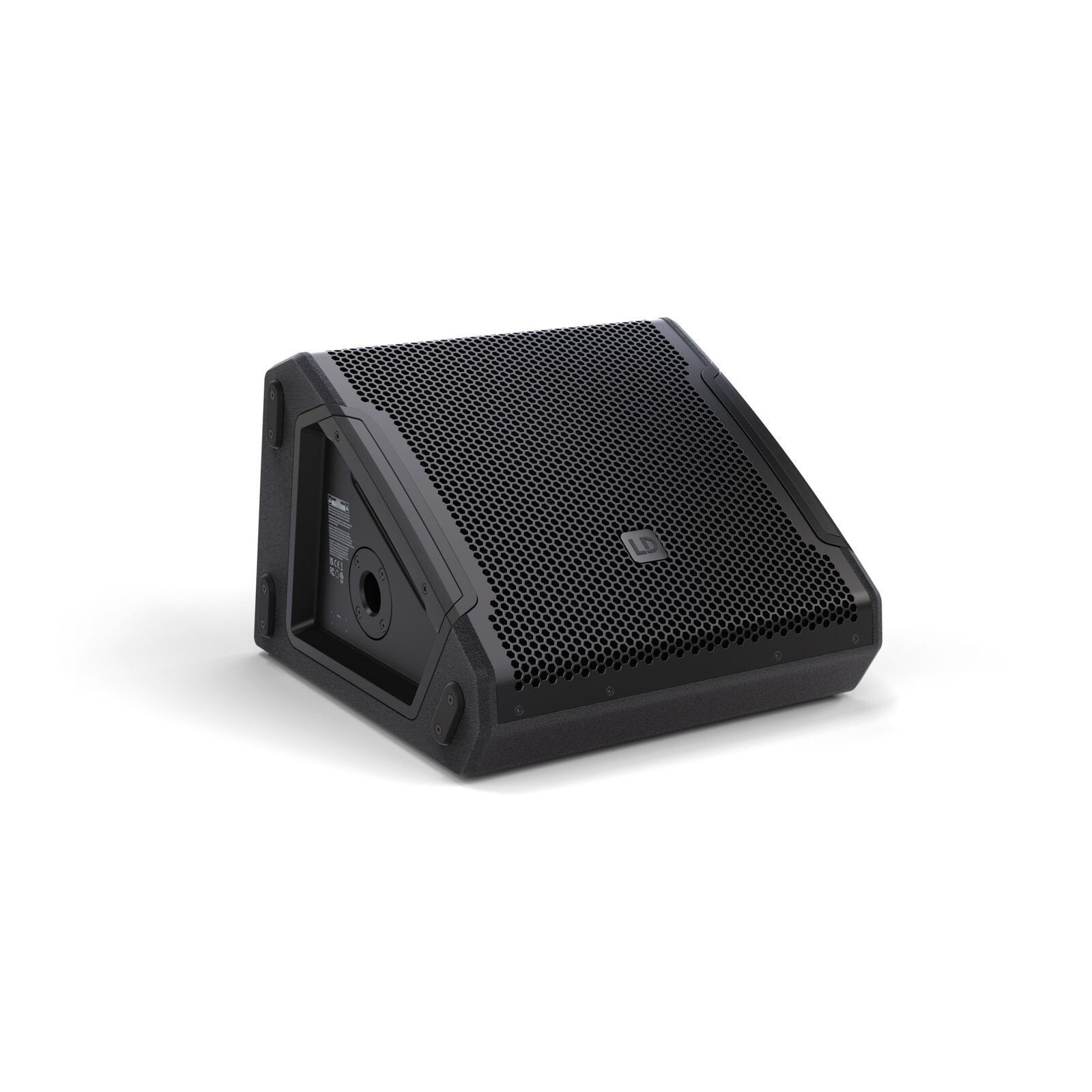

• 35 mm speaker stand flange for FOH applications

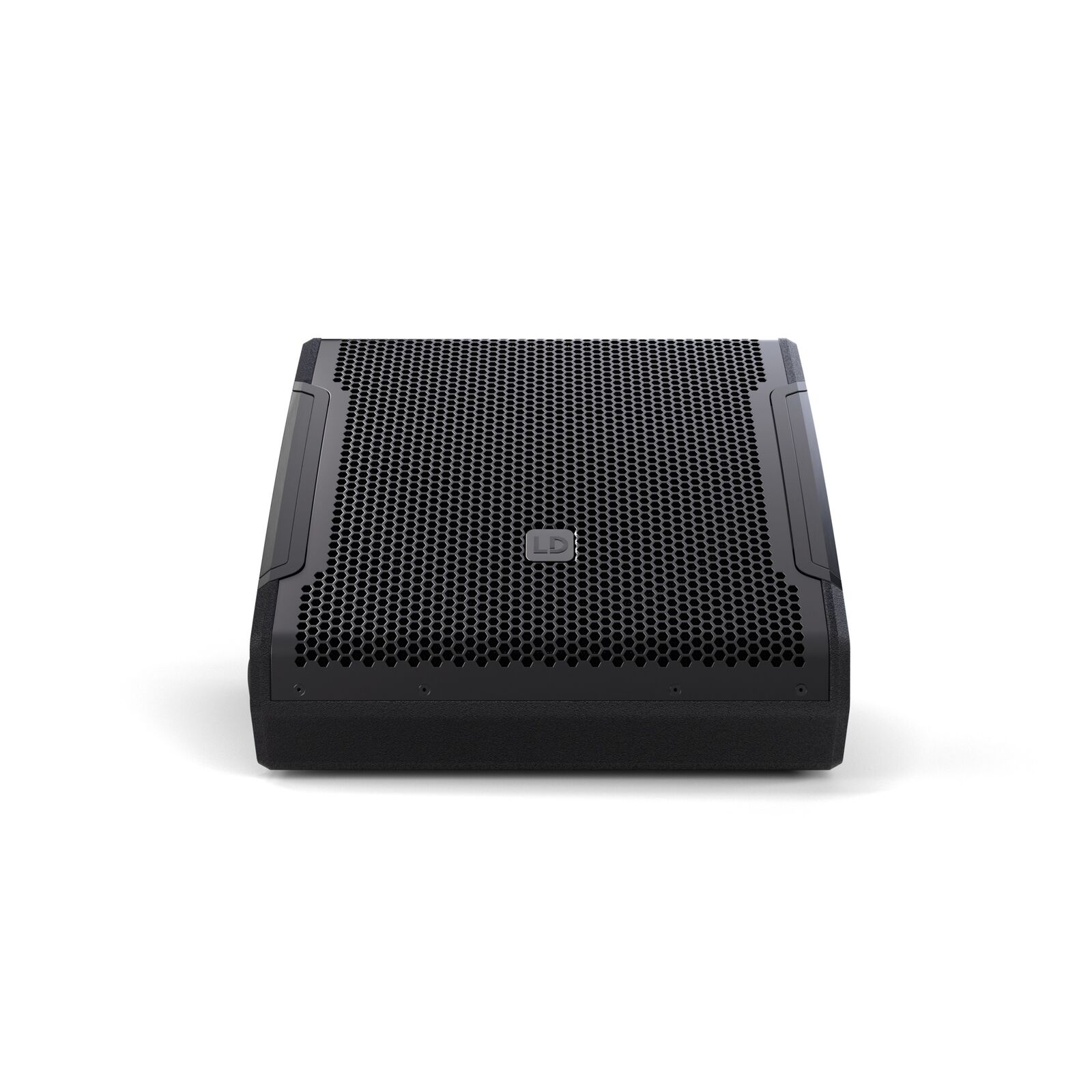

• Durable Polyurea coating and heavy-duty front grille

SPECIFICATIONS

Product type: Stage monitors
Type: Powered
Color: Black
System output (RMS): 300 W
System output (Peak): 1200 W
Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst): 127 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB): 68 - 18000 Hz
Frequency response (-10 dB): 55 - 20000 Hz
Crossover frequency: 1400 Hz
Monitor angle: 33°
Dispersion (H x V): 50° x 90°
Width: 425 mm
Depth: 453 mm
Height: 315 mm
Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
Weight: 17,4 kg

Low/mid woofer
Low/mid Woofer dimensions: 12 "
Woofer dimensions (mm): 304.8 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer type: Coaxial loudspeaker
Woofer voice coil (inch): 2.5 "
Woofer voice coil (mm): 65 mm

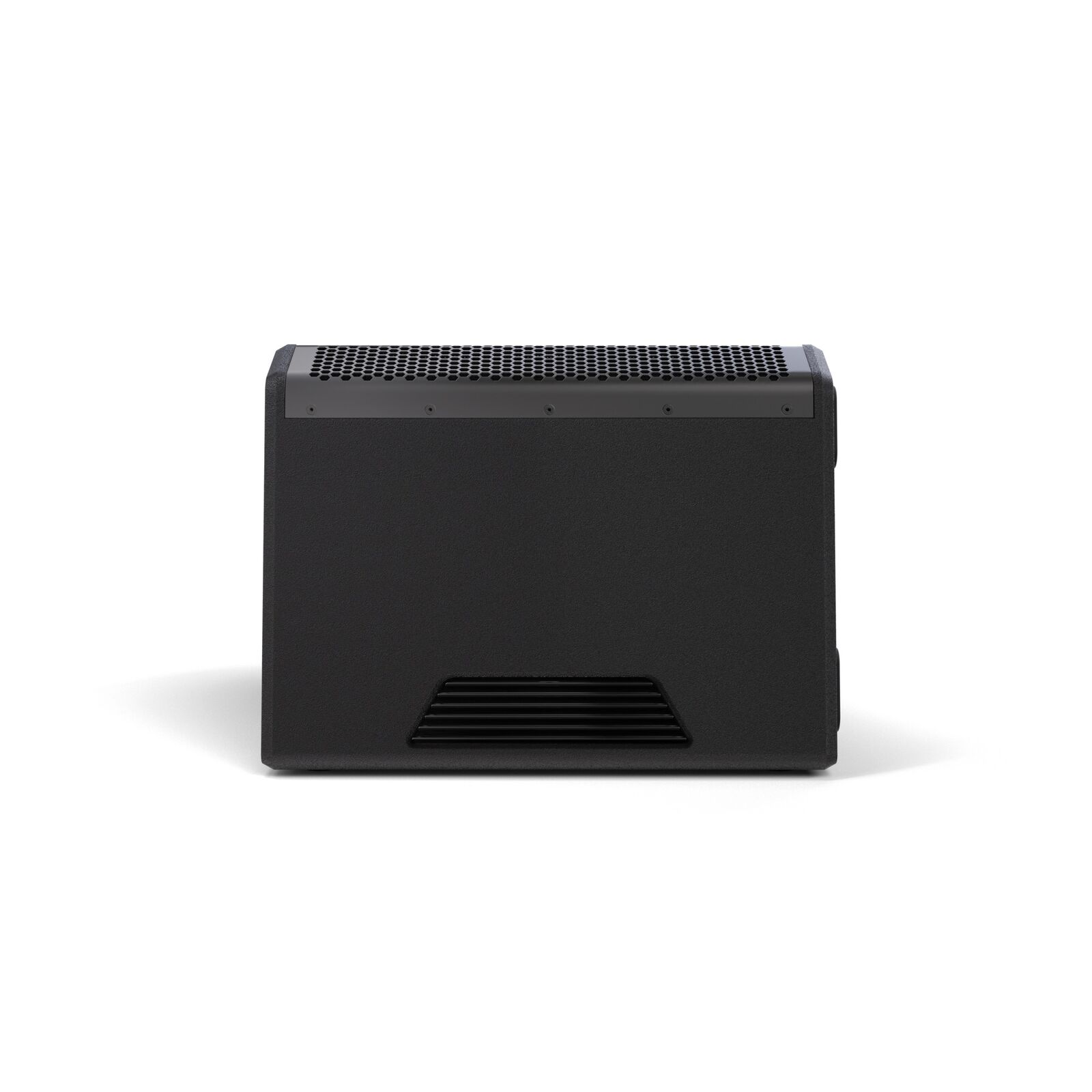

Cabinet construction: Bass Reflex
Cabinet material: 15 mm Birch Plywood, 15 mm MDF

HF
Horn: CD Horn
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Tweeter voice coil: 1.75 "
Tweeter voice coil (mm): 44.45 mm

Amplifier module (integrated)
Amplifier: Class D
Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
Operating Temperature: 0 - 40 °C
Humidity Range: < 80 % ( non-condensing )
Fuse: T4AL 250 V

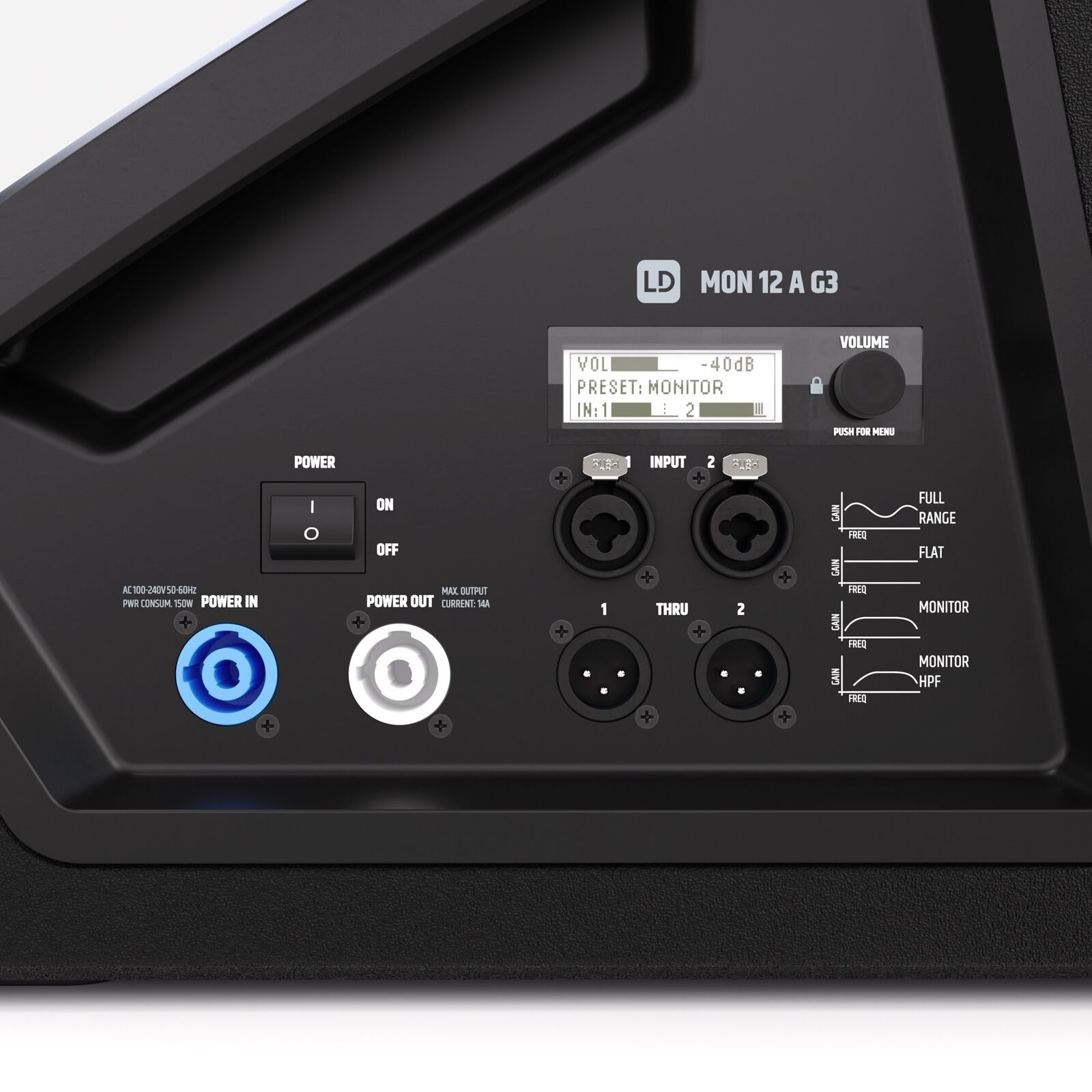

Controls: On / off switch, Rotary/push encoder
Indicators: LC display
Power supply: SMPS
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 150 W
Power in / out: PowerCON compatible
Line inputs: 2
Line input connectors: 6.3 mm jack, XLR - combo
Line thru: 2
Line through connector: XLR
