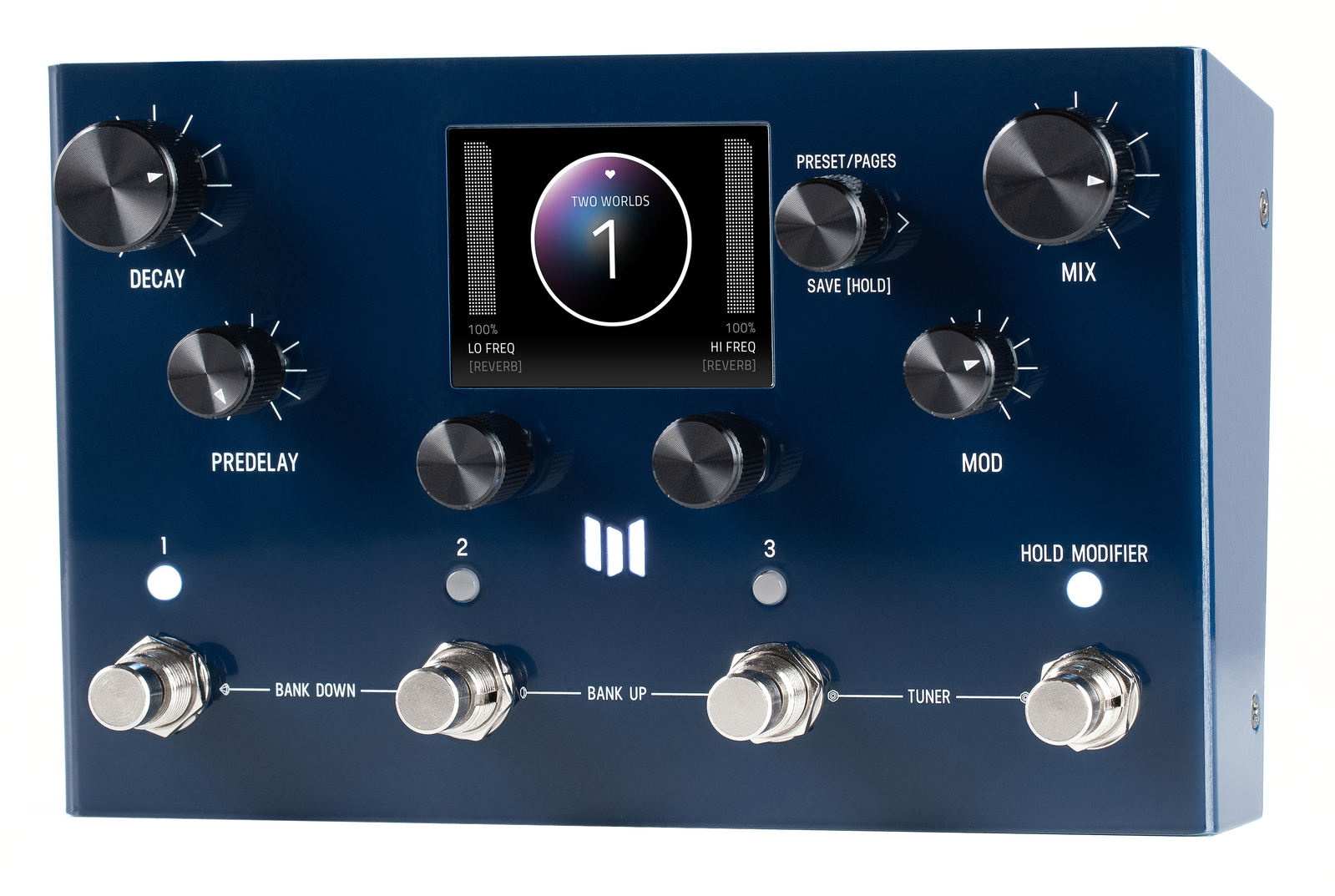

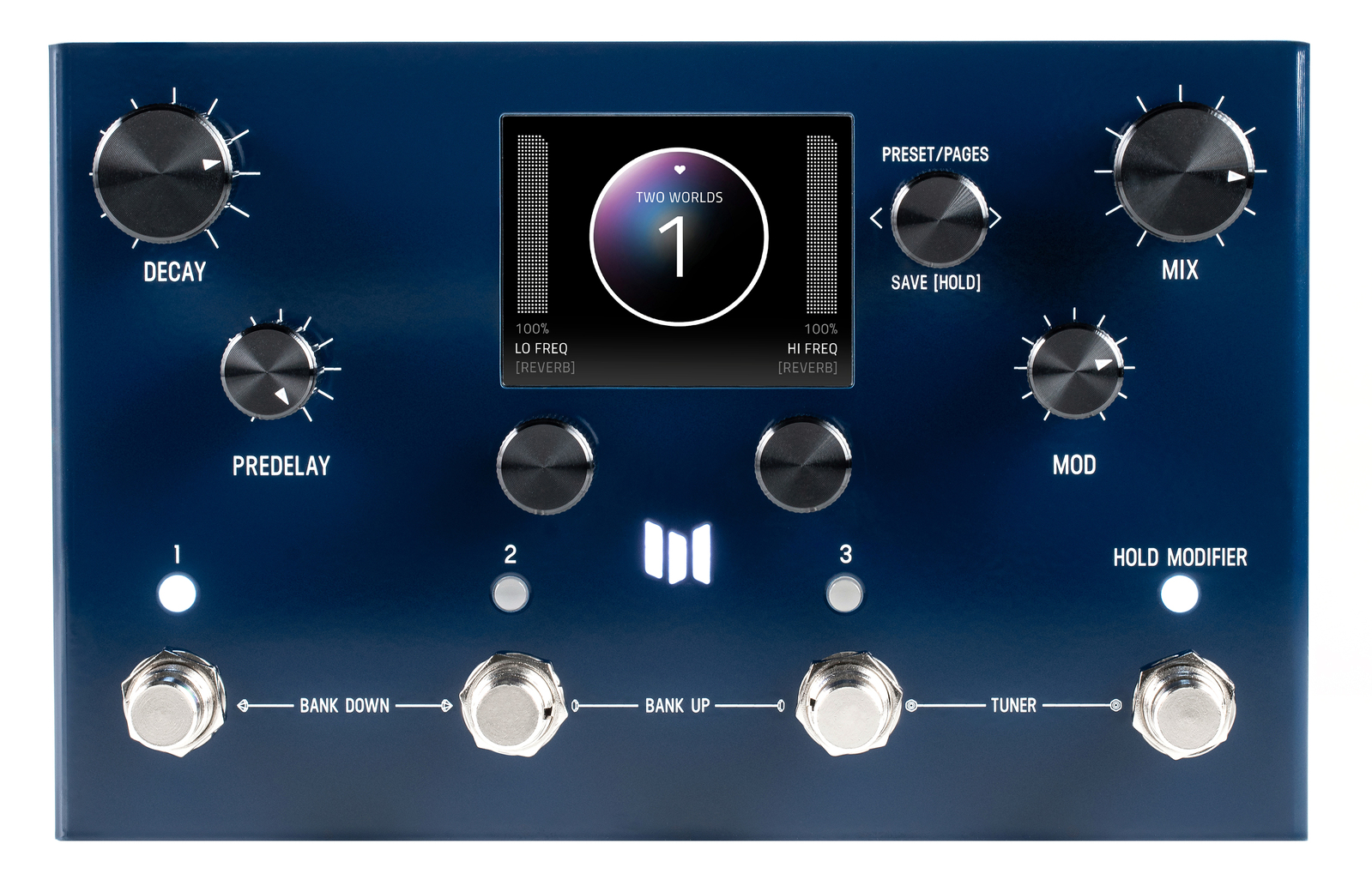

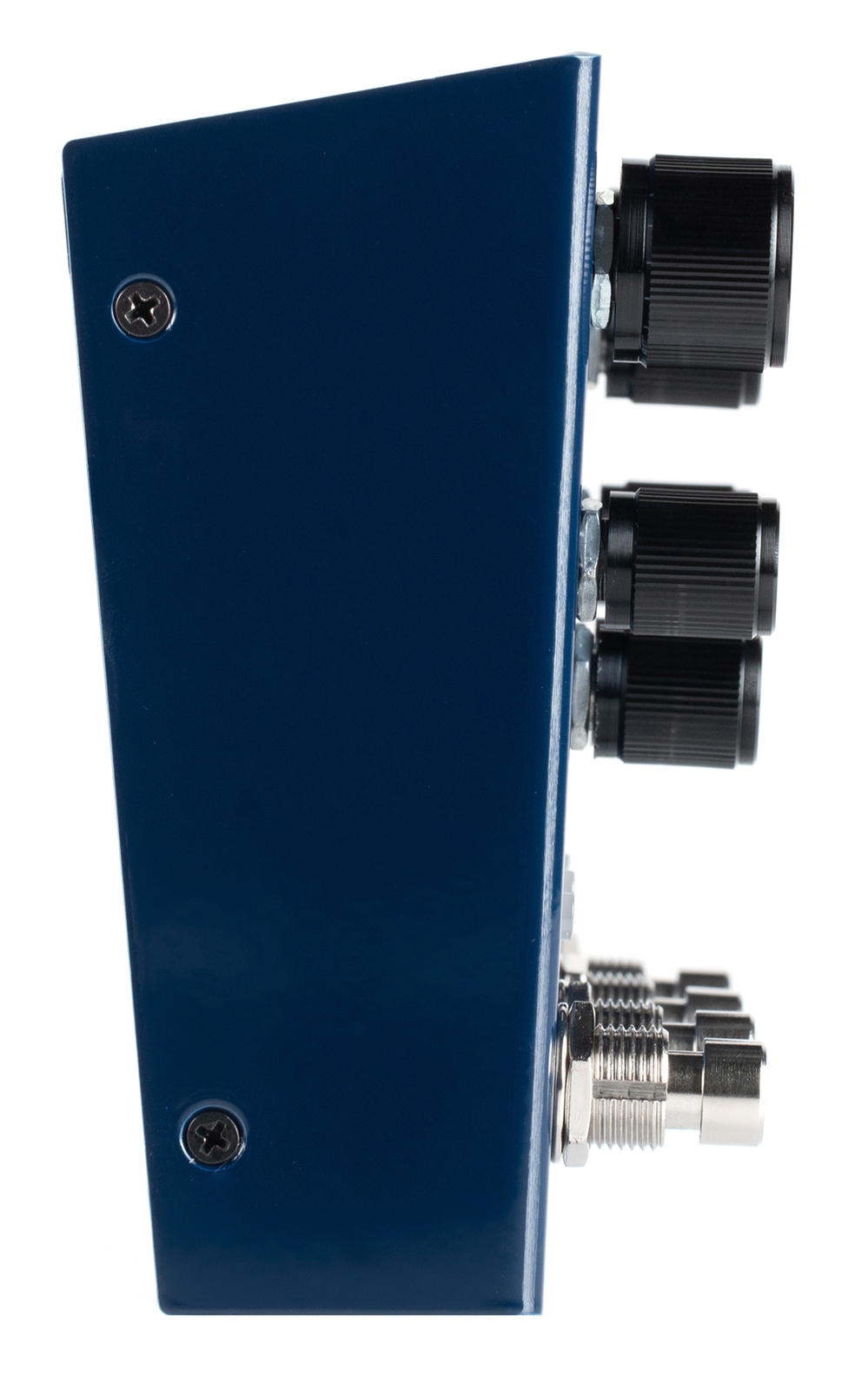

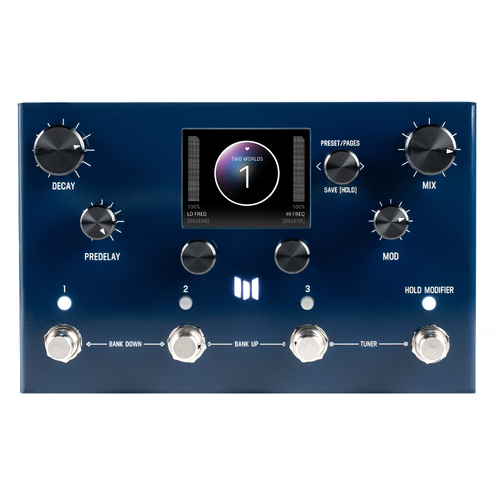

Meris MercuryX

TRANSCENDS TO NEW WORLDS

Modular Reverb System with pro audio & studio rack heritage, advanced processing, and high-performance signal path.

Infinite Voyage: Discovery System
MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format. All of our passion for pro audio has made it into both the algorithms and hardware performance of this pedal.

A New Awakening: 8 Custom Meris Reverbs
MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system UI/architecture that we first introduced with the award winning LVX pedal. Ultraplate and Cathedra are from Mercury7 and are inspired by the moody sci-fi reverbs featured in Blade Runner. The 78 Room, Plate and Hall structures are inspired by the venerable sounds of a studio classic. Spring, Prism, and Gravity are brand new structures unique to MercuryX.

FEATURES

• Modular Reverb System architecture

• 8 Custom Meris Reverbs: Ultraplate, Cathedra, 78 Room, 78 Plate, 78 Hall, Spring, Prism and Gravity

• Expanded 2.54 secs of Stereo Predelay with modular Feedback Routing Location

• Advanced ARM Processor

• Configurable Reverb Structures, Types, and Processing Elements for the ultimate customization in reverb processing

• Intuitive Color Screen based User Interface

• Expressive Hold Modifier Switch for on the fly control

• 99 Preset Locations in 33 Banks

• Favorite Preset Bank for instant access to your 3 favorite presets

• Instant Access Tuner with configurable Reference and Output mode

• Deep Modifier Section lets you route control signals to processing parameters

• New Independent Stereo Freeze alongside reverb

• Gate Envelope Controls for every reverb type

• All New Processing Elements including 79 Chorus, Vibrato, Vowel Mod, Tremolo, Hazy Lo-Fi and more

• Selectable Note Divisions for each side of the stereo Predelay

• Digitally controlled Analog mix bus

• Stereo input and output with separate jacks for each

• Switchable input/output headroom level for Instrument or Synthesizer / Line levels

• MIDI In and Out over standard MIDI Din Jacks

• Assignable Expression Pedal control for multiple parameters simultaneously

• Dedicated Expression Pedal Jack

• MIDI implementation for Continuous Control Parameters

• MIDI Preset Send and Receive

• MIDI beat clock synchronization

• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP

• Premium Analog Devices JFET input section

• Dimmable screen and logo light

• Color – Deep blue glossy coat

• Designed and built in California, U.S.A.

SPECIFICATIONS

Conversion:24 bit A/D and D/A
DSP: 32 bit floating point
Sample Rate: 48000 Hz
Input Impedance: 1 Meg Ohm
SNR: 115 dB Typical
Frequency Response: 20Hz-20kHz
Max Input Level: +9 dBu (instrument level setting), +12.5 dBu (line/synth level setting)
Power: 9V DC center-negative, 300mA, 2.1mm jack
Bypass: Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions: 7.25” wide, 4.5” long, 2” tall.  (Same depth and height as all other pedals.)
Weight: 24 ounces
