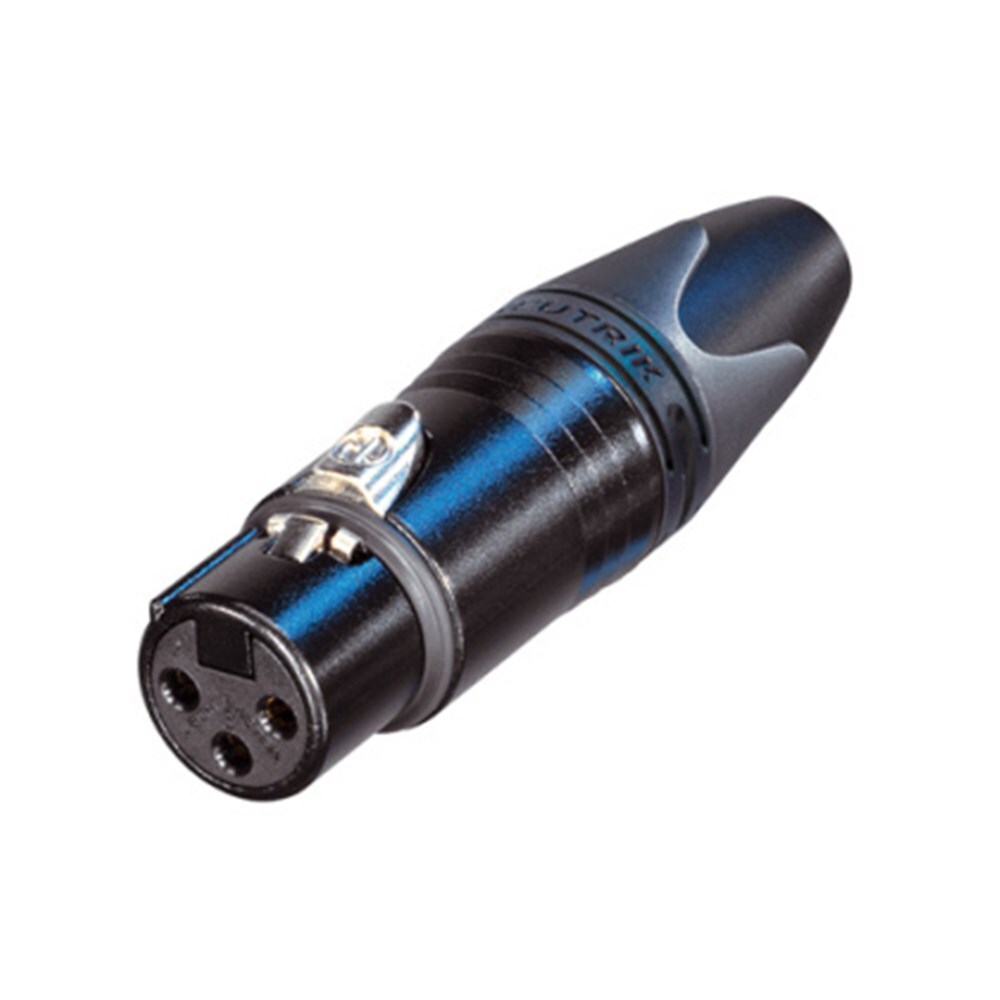

Neutrik NC3FXX-B

3 pole female cable connector with black metal housing and gold contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

FEATURES

• Unique cage design of female contact for low contact resistance and high integrity

• Female contact incorporates a solder barrier to prevent solder running into the contact mating area

• Female connector with improved solid metal latch which is larger and easier to handle

• Additional ground spring contacts for better shell ground continuity

• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster

• Boot with polyurethane gland gives high protection to cable bending stresses

• Colored rings and boots available for coding or identification

• Sleek and ergonomic design - valuable and handy

• Rugged zinc diecast shell, longlasting and dependable

• Internal thread on shell is well protected against any damage

• Branded with unique hologram - guarantees genuine and authentic Neutrik product

SPECIFICATIONS

Connection Type: XLR
Gender: Female
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V
Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyurethan
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA66)
Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Strain relief: Polyacetal (POM)
Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
