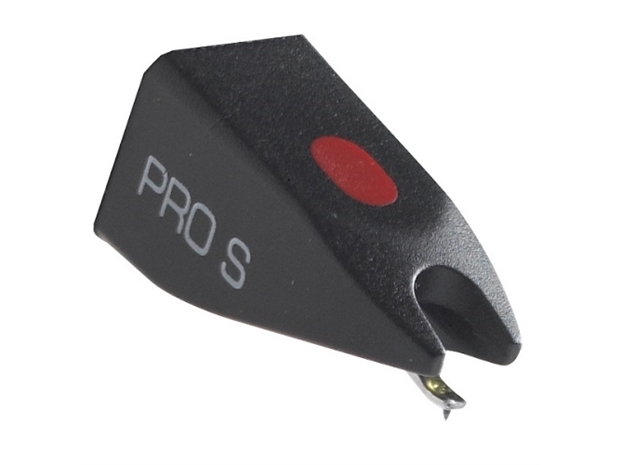

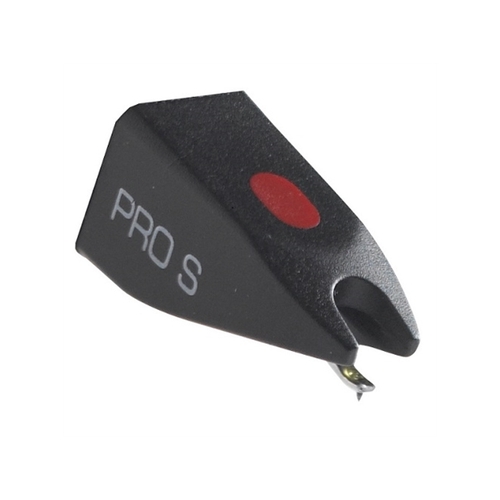

Ortofon Pro S Black Stylus

Ortofon DJ's Pro S cartridges and stylus are the perfect cartridges for beginner DJ's that still want the quality and prestige that is associated with Ortofon products. They feature a spherical diamond stylus and a quality cantilever. This cartridge delivers a solid performance for scratch DJ's and mix DJ's alike. And they look pretty damn good in their black finish.

Made in Denmark.

SPECIFICATIONS

• Output voltage at 1000Hz, 5cm/sec.: 5 mV

• Channel balance at 1kHz: 2 dB

• Channel separation at 1kHz: 20 dB

• Channel separation at 15 kHz: 15 dB

• Frequency range at -3dB: 20-20,000 Hz

• Frequency response: 20-18,000 Hz +/- 2 dB

• Tracking ability at 315 Hz at recommmended tracking force: 70 µm

• Compliance, dynamic lateral: 7 µm/m N

• Stylus type: Spherical

• Stylus tip radius: R 26 µm

• Tracking force range: 3.0-5.0 g (30-50 mN)

• Tracking force recommended: 4.0 g (40 mN)

• Tracking angle: 20°

• Internal impedance, DC resistance: 750 Ohm

• Internal inductance: 450 mH

• Recommended load resistance: 47 kOhm

• Recommended load capacitance: 200-600 pF.
