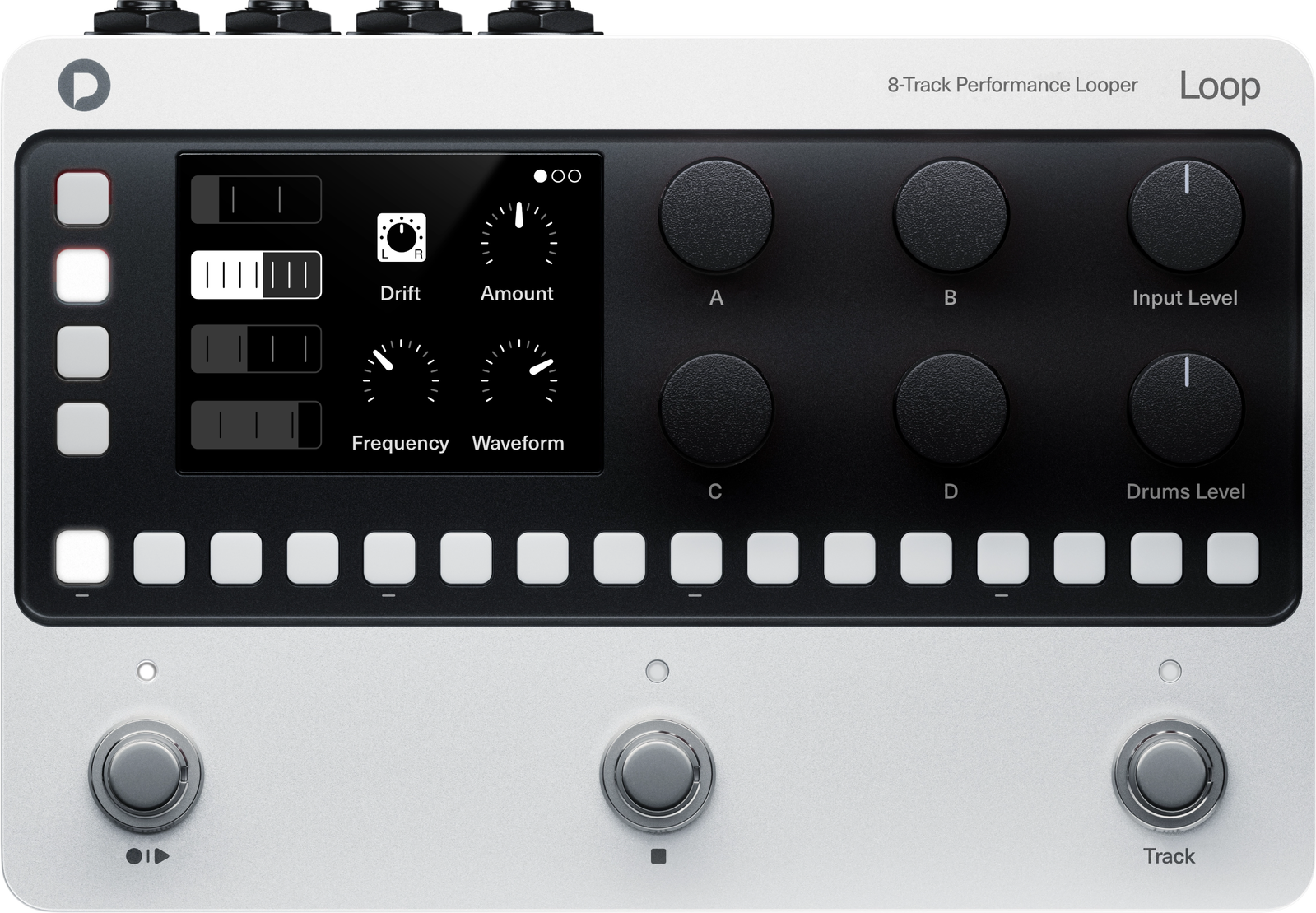

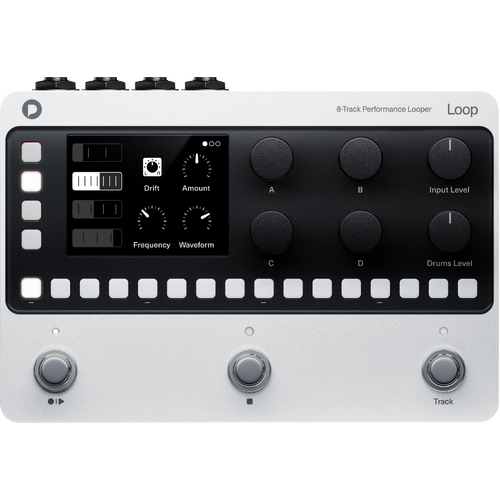

Polyend Loop

From the first idea to a complete song, Loop brings together four independent loop tracks, four drum tracks, scenes and 100+ effects. All in one device, all in perfect sync.

Loops
Record an instrument, a line-level source or a microphone – or load a loop from microSD. Set each loop to Forward, Reverse or Ping-Pong, mix it independently and add one of 100+ effects.

Beats
Build the rhythm on four sample-based drum tracks with a dedicated hardware sequencer. Each scene holds 16 patterns, each with 16 steps. Queue or chain them into longer arrangements. Start with a factory rhythm or record your own drum samples and build original kits and patterns.

Everything in sync
Loop tracks, drum patterns, scene changes and external gear can all follow the same clock. Cue the next pattern or scene while you play and Loop brings it in at the end of the bar. Send or receive clock and transport through MIDI, and keep the entire performance moving as one.

Want it loose? Any loop can run at a free length, while Varispeed lets you choose whether its speed and pitch follow the scene tempo.

Arranging with scenes
Use scenes as complete song sections: intro, verse, chorus, bridge or outro. Queue the next or previous scene and the change happens in sync at the end of the current bar.

Each scene stores its loops, drums, patterns, tempo, effects and performance setup. Keep up to 1,000 scenes ready for songs, sets and new ideas.

Individual WAV files
Each audio loop track is saved as a separate WAV file on microSD. Transfer your recordings to a DAW for editing and mixing, or archive them for another session.

Included sounds and patterns
Start with a complete drum kit, a ready-made rhythm or a loop to play along with.

• 500+ drum kits

• 350+ rhythm patterns

•  2,000+ drum samples

• 180+ loops

SPECIFICATIONS

Product type: Four-track audio looper with a four-track sample-based drum machine and hardware sequencer.
Audio loop tracks: Four independent mono or stereo tracks.
Recording time: Up to 52 seconds per loop track
Recording sources: Instrument-level, line-level or dynamic microphone; stereo or two simultaneous mono signals.
Overdubbing: Unlimited overdubs.
Undo: Single-level undo of the latest overdub.
Playback modes: Independent Forward, Reverse and Ping-Pong mode per loop track.
Timing: Tempo-synchronized or free loop length per track; Varispeed can follow tempo or remain independent.
Loop mixing: Independent volume/gain and panning per track
Loop effects: One independently selectable effect per loop track from more than 100 built-in effects.
Drum machine: Four sample-based drum tracks; four samples per kit, one per track; factory and user-created kits.
Drum patterns: 16 patterns per scene, 16 steps per pattern, with cueing and pattern chaining.
Factory content: 500+ drum kits, 350+ rhythm patterns, 2,000+ drum samples, 180+ loops and 100+ effects.
Tempo: 40–280 BPM with external MIDI clock.
Stored scenes: Up to 1,000 scenes with bar-quantized next/previous switching.
Foot control: All operations except parameter-value editing and drum-sequence editing. Hands-free parameter adjustment via expression pedal or MIDI.
Audio input: 1 × 6.3 mm TRS stereo/mono input for instrument, line-level or dynamic microphone sources. No phantom power.
Audio outputs: 1 × 6.3 mm Left/Mono output and 1 × 6.3 mm Right output.
Expression: 1 × 6.3 mm TRS expression-pedal input with assignable performance control.
MIDI: USB-C with bidirectional USB MIDI only.
Storage and file transfer: microSD for scenes, samples, loops, individual WAV track files, firmware and file transfer.
Dimensions: 180 × 120 × 57 mm / 7.09 × 4.72 × 2.24 in (W × D × H); height includes knobs.
Weight: 0.93 kg / 2.05 lb.
Power: 9–18 V DC, minimum 500 mA; centre-negative or centre-positive; power supply no
