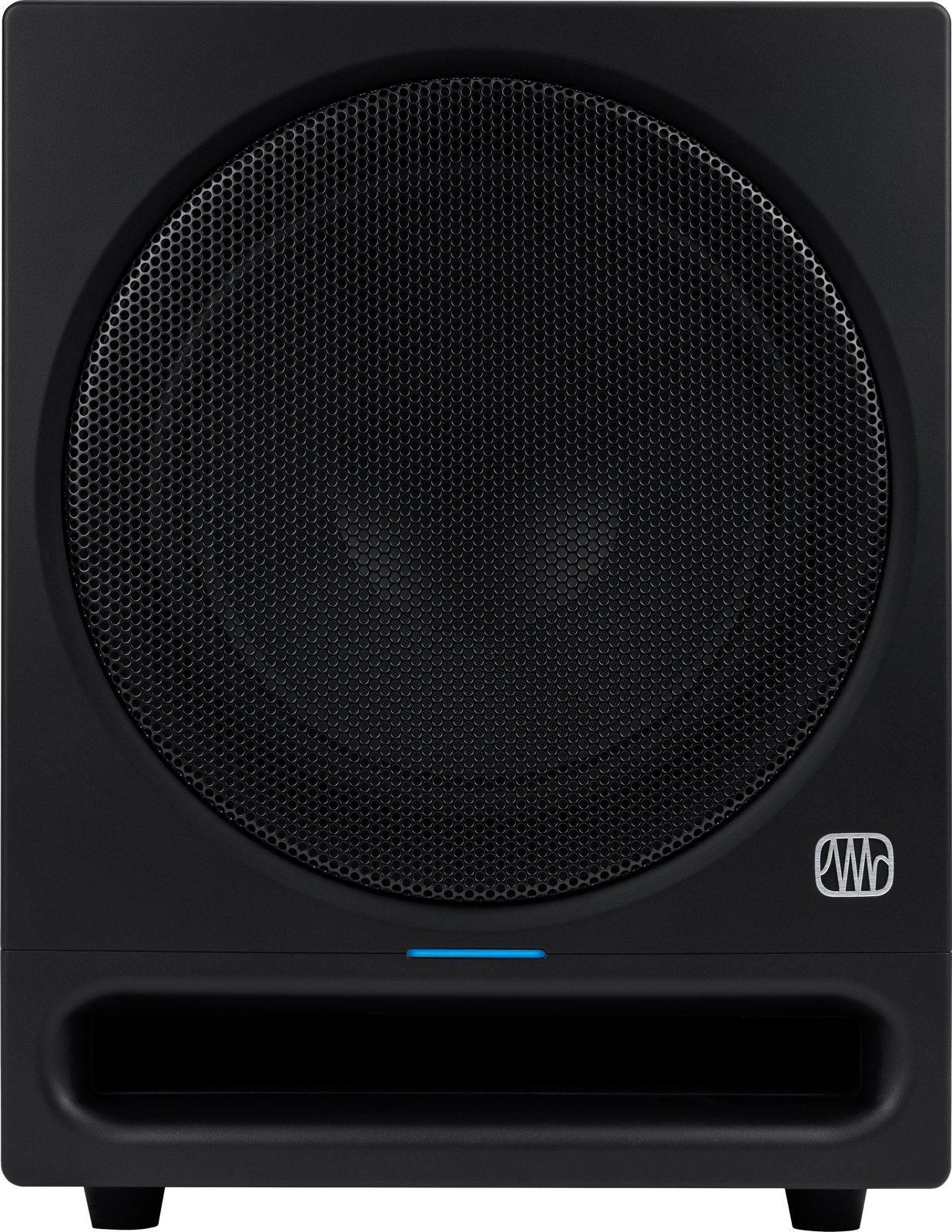

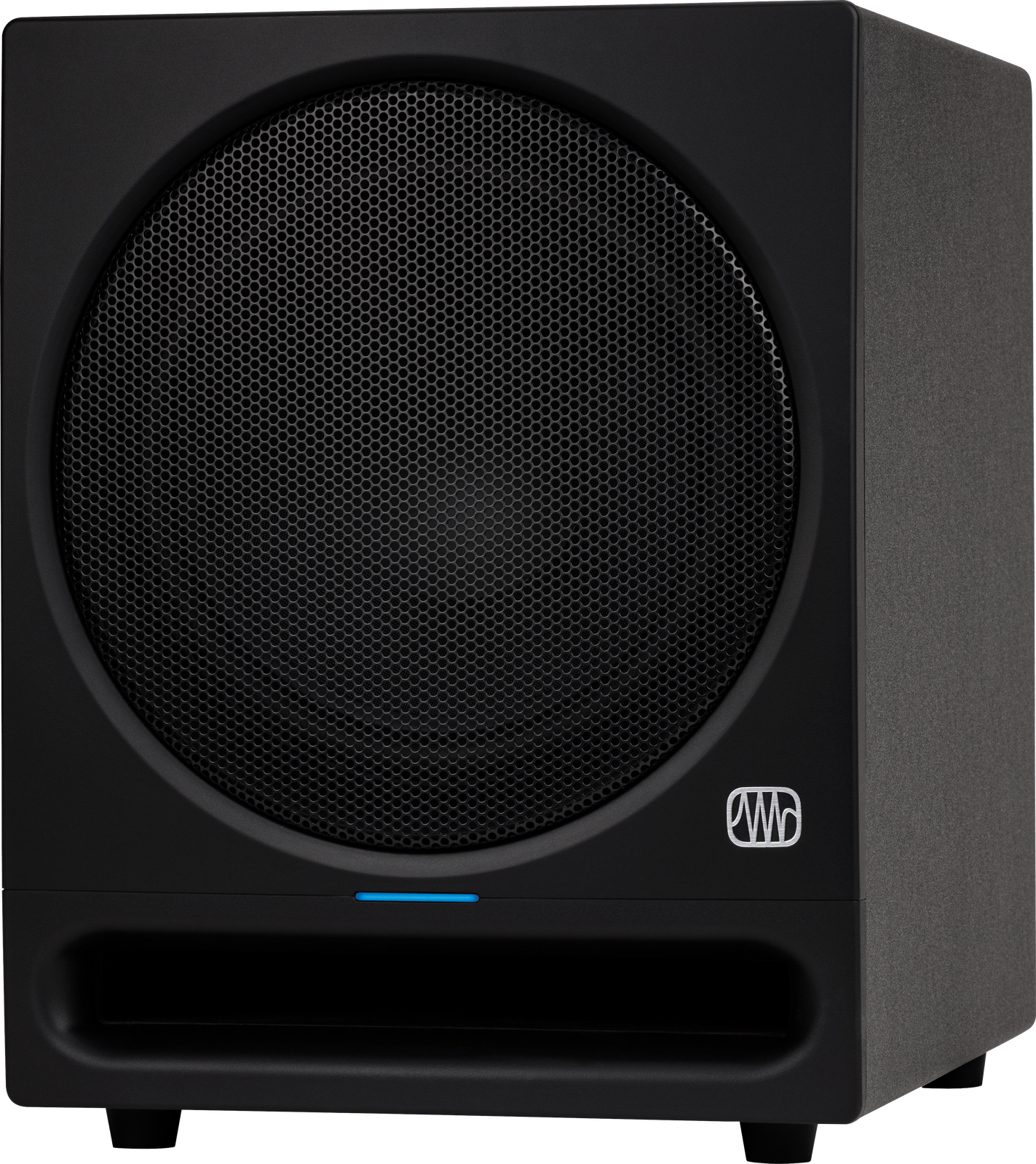

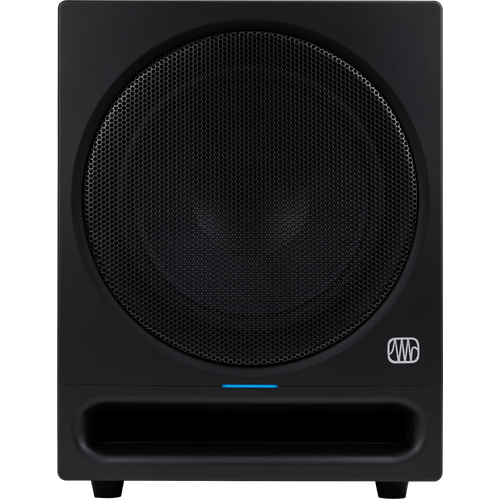

PreSonus Eris Pro Sub 10

10-Inch, Active, Front-Firing Studio Subwoofer

Intended for serious personal studios and professional music-production environments, the Eris® Pro Sub 10 helps you take charge of the low-frequency foundation of your mix. An ideal companion to Eris Pro- and Eris Studio-series reference monitors, the Eris Pro Sub 10 complements full-range monitors without overshadowing them and extends the reach of your full-range system's low end with a natural sound.

Powerful and musical, the PreSonus® Eris Pro Sub 10 active, front-firing studio subwoofer is designed to deliver fast and accurate transient response, extending low frequencies down to 20 Hz, allowing you to hear the full-spectrum range of your mix. Driven by 170W (RMS) Class AB amplification, the Eris Pro Sub 10's 10-inch, glass-composite, low-frequency driver delivers tight, responsive sub-bass, thanks to its lightweight and rigid cone. This design provides lower distortion than other materials for sub-bass reproduction that's as coherent and clear as your full-range monitors.

Extensive user controls include input gain, continuously variable lowpass filter for creating a seamless crossover transition, and a switchable highpass filter that removes content below 80 Hz from the full-range signal sent to the monitors. A continuously variable lowpass filter (50 Hz to 130 Hz) allows you to create a seamless crossover transition between the full-range studio monitors and subwoofer for the most accurate listening environment possible.

FEATURES

• 10-inch, front-firing, glass-composite, low-frequency transducer

• Front-firing, bass-reflex acoustic port

• Continuously variable lowpass filter (50 Hz to 130 Hz) sets the upper frequency reproduced by the subwoofer

• Switchable highpass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors

• Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out

• Input gain control (-30 dB to +6 dB, continuously variable), polarity invert switch, and ground-lift switch

• 170 watt (RMS), Class AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz

• Left and right, balanced XLR and ¼-inch TRS and unbalanced RCA main inputs

• Left and right balanced XLR and ¼-inch TRS outputs and XLR subwoofer output for connecting a second Eris® Pro Sub 10

SPECIFICATIONS

Accessories
Footswitch
1-Button Footswitch Included (Sub On/Off)

Electronics
VoltageRequirements
100-240 VAC, 50-60 Hz

General
Color: Black
Product Name: Eris® Pro Sub 10, Black, NA
Series: Eris®

Hardware
Audio Controls:

• Input Gain Range: -30 to +6 dB

• Low Pass Filter Control: 50 Hz to 130 Hz

Audio Switches:

• Polarity Switch: 0 degrees or 180 degrees

• Ground Lift Switch: On/Off

• High Pass Filter Switch: On/Off

• Bypass Footswitch: On/Off

Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard
LF Transducers: 10" Glass-Composite, Front-Firing
Monitor Inputs: 2- Balanced XLR, 2- Balanced 1/4" TRS, 2- Unbalanced RCA
Monitor Type: Active Subwoofer
Power Amplifier Type: Class AB

Measurements
Product Depth: 16" (40.6 cm)
Product Height: 15.75" (40 cm)
Product Height/Length: 15.75" (40 cm)
Product Width: 12.6" (32 cm)

Miscellaneous
Low Pass Filter Frequency: 50 – 130 Hz (Variable)
Power Cable: IEC
Protections:

• RF Interference

• Output-Current Limiting

• Over-Temperature

• Turn-On/Off Transient

• Subsonic Filter

Performance
Peak SPL: 113 dB (@ 1 Meter)
