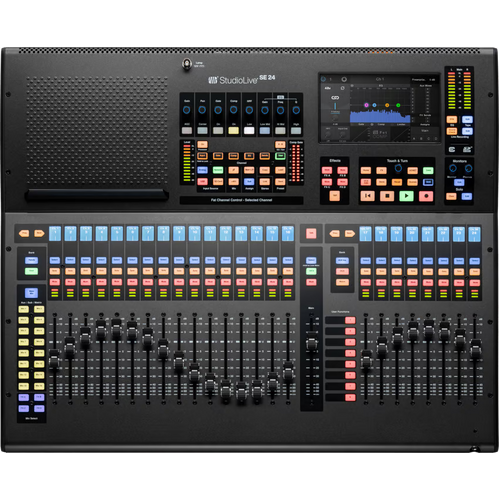

PreSonus StudioLive Series III SE 24

Command every channel. Control every stage.

StudioLive® Series III SE digital mixers go beyond delivering pristine studio sound quality and processing to give front-of-house engineers and integrators the industry-leading recording, playback, and streaming capabilities needed to meet today's demands.

StudioLive® SE 24 is a small-format digital mixer in a well-equipped low profile featuring 32 digitally recallable XMAX preamps, extensive mixing capabilities, studio-grade audio quality, flexible bus configuration, and advanced integrated recording capabilities – plus a full suite of powerful software featuring Studio One Pro.

The StudioLive SE 24 is a 40-channel small-format digital mixer with a full complement of analogue I/O packed into a 25-fader chassis. The split-fader workflow options let you manage your mix in two efficient fader layers while providing access to your mix outputs on eight additional faders. Equipped with 32 studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus, the StudioLive SE 24 makes your mixes sound better, faster. Managing large channel counts has never been easier thanks to 16 FlexMixes that can be configured as subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus making it easy to create the perfect front- and side-fill mixes for large venues or producer mixes for broadcast applications. You also get 24 DCA groups, 4 dedicated subgroup mixes, and 4 FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.

When you’re ready to integrate backing tracks, record your show, or mix your next album, the StudioLive SE 24 has you covered with an integrated, continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder plus a complete suite of integrated software that features both Capture multitracking and virtual soundcheck software as well as a perpetual license of Studio One Pro. Each channel can easily switch between analogue, USB, SD, and AVB sources, making integrating your analogue and digital gear easier than ever before.

More than a mixer, StudioLive SE 24 is part of a complete ecosystem of hardware and software. Remotely control your mixer or dial in an Offline mix with Universal Control from your computer or tablet. Launch PreSonus Metro and you can control your mixer over the internet from anywhere in the world with real-time audio monitoring. Built-in, Milan-certified AVB audio networking, makes it easy to integrate with stage boxes, personal monitor mixers, switches, and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.

FEATURES

• Portable, flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.

• Flexible onboard 32 mic/line inputs with recallable XMAX preamps, 16 mix outputs, and dedicated Main LR outputs plus a Mono sum output.

• 25 Fully recallable touch-sensitive motorized faders.

• Milan-certified AVB audio networking ecosystem makes it easy to connect PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and AVB-D16 Dante bridge.

• Continuously bidirectional 64x64 USB 2.0 interface with deep integration and included PreSonus Capture multitracking software with automated Virtual Soundcheck.

• 7 State-Space modeled EQ and 8 vintage-inspired compressors options available on every input and bus

• Onboard 34x34 multitrack SD Card recording.

• Take charge of your mix with 16 FlexMixes (aux mixes, subgroups, or matrix mixes), 4 dedicated FX mixes, 4 dedicated subgroups, and 24 DCA Groups.

• Free Universal Control lets you remotely control your mixer, dial in mixes of line, or listen in and control your mixer over the Internet using PreSonus Metro.

• PreSonus Metro lets you remotely control your mixer from anywhere with an Internet connection and monitor your audio in real time.

• Free QMix-UC for iPhone and Android with easy-to-use Wheel of Me puts musicians’ monitor mixes in the palms of their hands.

• Includes both Studio One Pro DAW and Capture Multitrack software

• Optional Dante support with AVB-D16

• 3-year warranty

Integrated Multitrack Recording

• Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface

• One-click Virtual Soundcheck with Capture

• Seamless compatibility with Studio One Pro and leading DAWs

Pristine Studio Sound on Stage

• 33 XMAX-Remote preamps for transparent analogue tone and digital recall

• 32-bit floating-point DSP processing

• 115 dB A/D–D/A converters with ultra-low jitter clocking

Expanded Routing and I/O

• 16 FlexMixes configurable as auxes, subgroups, or matrix mixes

• AVB networking with StudioLive Stage Boxes and Milan-compatible gear

• Four dedicated effects buses, four subgroups, and 24 DCAs

Advanced Fat Channel Processing

• Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization

• All 7 EQs and 8 Compressors from the Fat Channel Collection included

• Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more

• Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping

Metro™ Remote Access and Universal Control

• Control every aspect of your mix remotely—from routing to effects

• Provide technical support and reconfiguration remotely

• Use QMix®-UC for personal monitor mixing from mobile devices

Mixing Comfort and Control

• 25 touch-sensitive motorized faders deliver smooth automation and tactile mixing

• Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort

Mix. Record. Stream. Control.
StudioLive SE lets you manage your entire workflow—live mixing, multitrack recording, playback, and even streaming—without leaving the console. Integrated Capture® software enables one-click Virtual Soundcheck, while the 64x64 USB interface and onboard SD multitrack recorder offer seamless capture options. And everything works right out of the box with Studio One® Pro DAW.

Remote Control from Anywhere
With Metro™, our most advanced remote access suite ever, you can control routing, levels, processing—even complete configuration—via the internet from anywhere in the world. Use Universal Control locally on any tablet or mobile device, and let performers manage their own monitor mixes using QMix®-UC.

Next-Level Audio Processing
Powered by our dual-core FLEX DSP Engine, StudioLive SE includes studio-grade effects and signal processing—featuring all 8 Fat Channel compressor models and all 7 EQs from the Fat Channel Collection, now standard. Add expanded Digital Reverb XL presets, a variable limiter release, and intuitive FAT channel workflow—and you’ve got an analog-style experience with modern precision.

SPECIFICATIONS

Electronics
Headphone Jack: 1/4" TRS Active Stereo
Phantom Power: +48 VDC (±2 VDC)
Power Consumption: 85W (Continuous)
Voltage Requirements: 100-230 VAC, 50-60 Hz

General
Color: Black
Product Name: StudioLive® Series III SE 24 Digital Console Mixer
Series: StudioLive®

Hardware
Digital Audio AES EBU Output: XLR Male
Digital Audio AVB Audio Network Ports: Neutrik® etherCONN®
Digital Audio Network Control Port: RJ-45
Digital Audio USB Recording Port: USB 2.0, Type-B
Tape Connection Type: RCA Female, Unbalanced (Stereo Pair)

Inputs
Line Input Connection Type: 1/4" TRS Female, Balanced
Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance: 10 kΩ
Line Inputs Maximum Level: =+18 dBu
Line Inputs Signal To Noise Ratio: 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type: XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range: 0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance: 1 kΩ
Microphone Preamp Maximum Input Level: =+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Tape Maximum Input Level: +12 dBu, ±0.5 dBu

Measurements
Media Storage Capacity: SD Card: 2 GB; SDHC Card: 32 GB
Product Depth: 22.97” (583.84 mm)
Product Height: 6.51” (165.36 mm)
Product Height/Length: 6.51” (165.36 mm)
Product Width: 25.98” (659.81 mm)
Refinement Weight: 26-50

Miscellaneous
Digital Audio Internal Processing: 32-Bit, Floating Point
Power Cable: IEC
Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format: WAV
Supported Media Format: FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates: 48 kHz, 44.1 kHz

Output
Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω load
Headphone Outputs Signal To Noise Ratio: 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type: 1/4" TRS Female, Balanced
Line Outputs Maximum Output Level: =+18 dBu, ±0.5 dBu
Line Outputs Output Impedance: 100 Ohms
Tape Maximum Output Level: +18 dBu, ±0.5 dBu
Tape Output Impedance: 100 Ohms
XLR Outputs Maximum Output Level: +24 dBu, ±0.5 dBu
XLR Outputs Output Impedance: 100 Ohms

Performance
Crosstalk (Adjacent Channels): -87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth: 24
Digital Audio Dynamic Range: ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS: +18 dBu
Digital Audio Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth: Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate: 44.1 or 48 kHz
