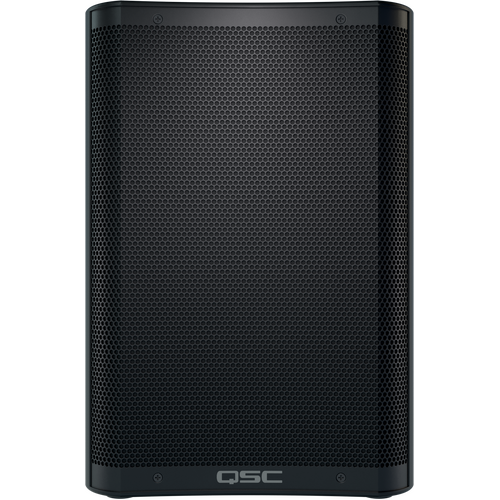

QSC CB10

The CB10 is a compact, battery-powered loudspeaker system offering unrivaled audio performance and versatility. It features a 10-inch LF driver, 1-inch compression driver and 3-channel mixer for microphones, instruments and Bluetooth® streaming. Ideal for DJs, event professionals and musicians, it offers easy plug-and-play operation and customization via the QSC Loudspeaker Control app.

FEATURES

• High-performance, compact 2-way system featuring a high excursion 10-inch (254 mm) low-frequency driver and a 1-inch (25.4 mm) compression driver for clear high-frequency response without distortion.

• Light and portable with battery and AC power options for versatile use.

• Integrated 3-channel mixer with remote control via QSC Loudspeaker Control App for easy operation and customization.

• Two combo XLR inputs with independent Factory Presets, ideal for small event’s needs.

• Useful on-board Room Delay (up to 200 ms) for larger distributed PA deployments.

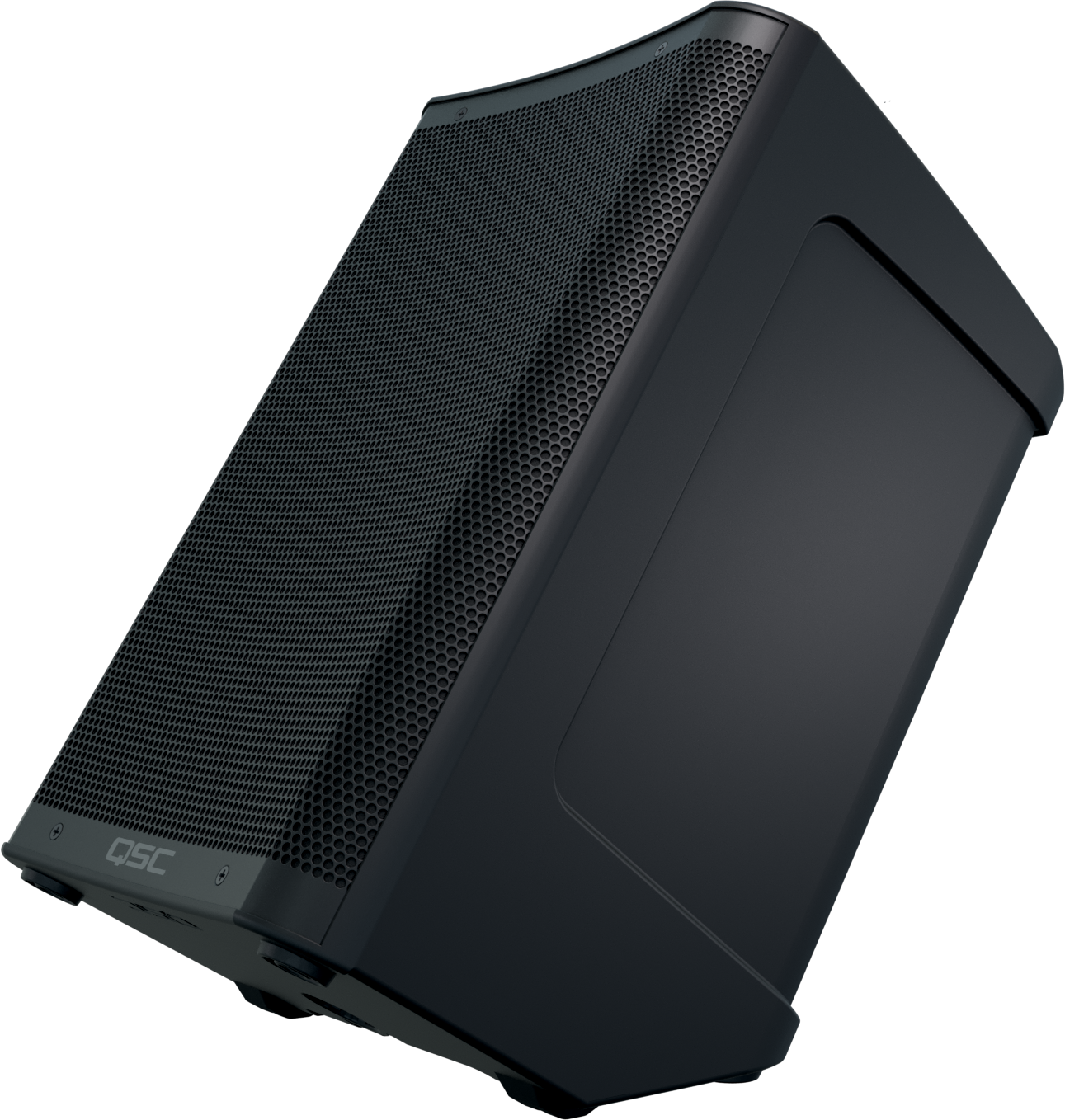

• Tilt-back angle for perfect floor deployment and sound coverage; can also be stand or pole mounted.

• Bluetooth 5.1 for control and audio with True Wireless Stereo (TWS) for low latency pairing between loudspeakers and music source.

• 6 Year Warranty with product registration within 30 days of purchase (1 Year Warranty on battery).

The CB10 is the ultimate compact loudspeaker system, offering unrivaled audio performance, unmatched versatility and battery-powered portability. Ease-of-use is further enhanced with Bluetooth® audio and control via the QSC Loudspeaker Control App.

The CB10 is ideal for DJs and mobile entertainers, event production professionals, musicians and bands, and any application where high performance audio is needed with the portability and versatility of a battery-powered system.

The CB10’s compact but powerful 10-inch LF driver delivers exceptional low-end reproduction and extension, while its class-leading 1-inch compression driver ensures superior high-frequency response and coverage, without distortion. The integrated 3-channel mixer allows simple and easy connections of microphones and instruments, as well as the option to stream Bluetooth® music. Input presets and DSP further optimize system performance and ease of setup, while the intuitive rear panel coupled with expanded control via the QSC Loudspeaker Control app, offers simple plug-and-play operation and more expansive customization. Additionally, programmable room delay makes the CB10 an ideal system extension for distributed PA deployments.

The CB10 can be mounted on a loudspeaker stand or deployed on the floor via its tilt-back angle. CB10 is backed by a 6-Year Warranty with product registration within 30 days of purchase (1 Year Warranty on battery).

SPECIFICATIONS

Model: CB10
Configuration: Two-way Rechargeable Loudspeaker System
LF Transducer: 254 mm (10-inch), cone
HF Transducer: 25.4 mm (1-inch), compression driver
Frequency Response (-6 dB): 51 Hz - 18 kHz
Frequency Range (-10 dB): 47 Hz - 20 kHz
Nominal Coverage Angle: 90° Axisymetric
Maximum Rated SPL¹: 127 dB @ 1 m
Amplification (peak): Class D, 440 W
Cooling: Convection cooling

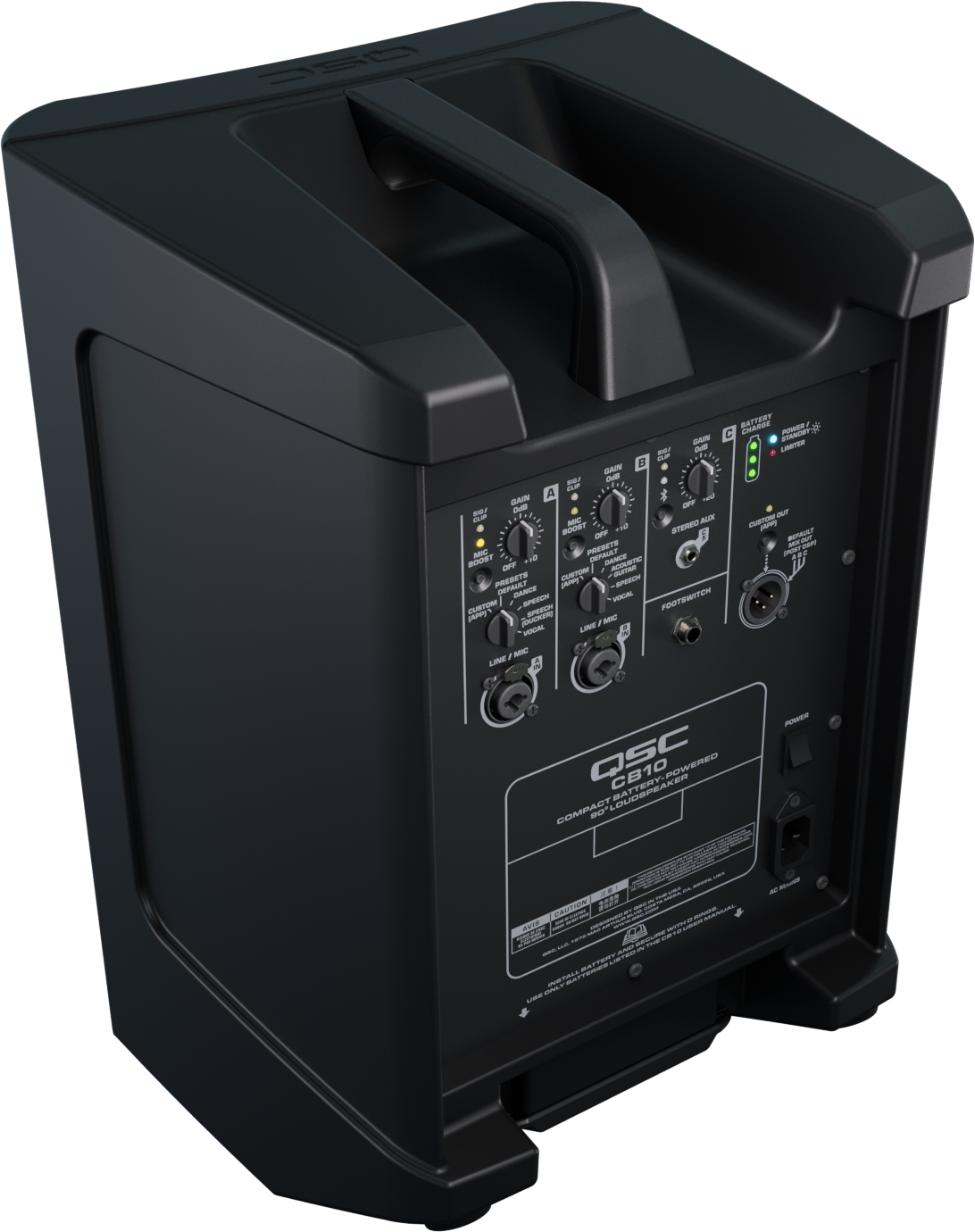

Backpanel Controls:

• 3 x Rotary level potentiometers (Gain)

• 2 x MIC Boost Push-Switch

• 2 x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls)

• 1 x Bluetooth Switch

• 1 x Output Select Switch

• 1 x AC Power Switch

Loudspeaker Control App Functions:

• Input Channels: Gain Control, Presets (Channels A and B), EQ

• Reverb (Channels A and B )

• Ducker (Channel A)

• Contour Selection

• Custom Output Routing

• Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost

• Bluetooth Audio Configuration

• Loudspeaker Firmware Updates

Backpanel Indicators:

• 3 × Input Signal/Clip LEDs

• 2 x MIC selected LEDs

• 3 x Battery Charge LEDs

• 1 x Limiter Active LED

• 1 x Bluetooth LED

• 1 x Output Select LED

• 1 x Power/Standby LED

Connectors:

• 2 × locking XLR/F ¼ inch combo (Line Input and Mic/Line Input)

• 1 × 3.5 mm TRS (Stereo Input)

• 1 x 6.3 mm TS (Footswitch)

• 1 × XLR/M (Mix Output)

• 1 × locking IEC Power Connector

DC Power (Battery):

• Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1x unit included with CB10)

• Battery life: up to 12 hours / Battery charging time: approx. 4 hours

AC Power Input: Universal Power Supply: 100-240 VAC, 50/60 Hz
AC Power Consumption²: 100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
Enclosure Material: Polypropylene
Color: Black (RAL 9011)
Grille: Powder-coated steel with internal lining (18 Gauge)
Loudspeaker Dimensions (H×W×D): 465 x 313 x 287 mm / 18.3 x 12.3 x 11.3 in
Carton Dimensions (H×W×D): 559 x 406 x 381 mm / 22 x 16 x 15 in
Net Weight: 12.2 kg / 26.9 lb
Shipping Weight: 14.5 kg / 32 lb
Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide
Regulatory: CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
Optional Accessories:

• CB10-CVR: Weatherized Cover for the CB10 Loudspeaker System

• CB10-BATTERY: Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module

¹Measured at 1 meter, on-axis, in full space, using IEC268 filtered noise.
²1/8 power is representative of current draw with typical music program material with occasional clipping.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
All specifications are subject to change without notice.
