Radial Bigshot I/O

The BigShot i/o is an easy-to-use instrument selector that lets you quickly transition between any two instruments, while balancing the levels between them and feeding the output to your amplifier.

• Toggle between two instruments with a single foot stomp

• Adjustable volume control to match instrument levels

• True-bypass operation retains the tone of the instruments

• Separate tuner output and mute footswitch for silent tuning

Easy instrument changeovers on stage
The BigShot i/o allows you to switch between instruments on stage without pops through your amp or the need to adjust levels, while featuring 100% true-bypass for the most demanding purist. Input-2 is equipped with a volume control that lets you reduce the input sensitivity of the louder instrument so that the levels are matched when played through your amplifier. When passive instruments are used, a unique three-position Bright switch lets you compensate for instruments that lack shine in the high frequencies. The BigShot i/o is also equipped with a separate tuner output; with a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments.

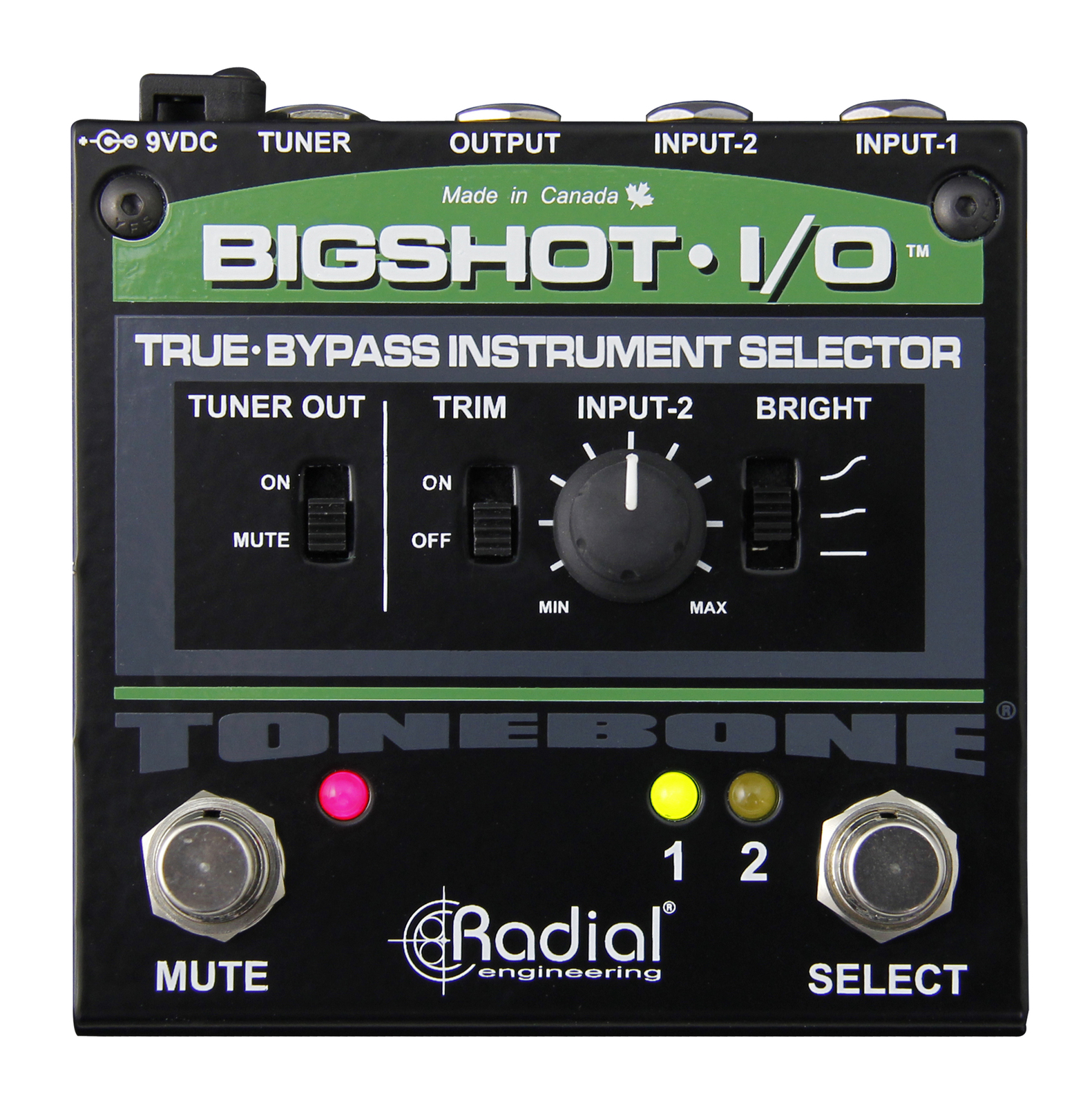

FEATURES

Mute
Footswitch turns the output jack off for silent on-stage tuning through the tuner output.

Tuner
Switch determines whether the tuner output is on all the time or only when mute footswitch is depressed.

Mute LED
Lets you know when mute is activated.

Trim
Bypass switch for the Trim level control.

Input-2 Level
Control lets you reduce the level of the instrument connected to Input-2

Bright
Three position switch counteracts any effects from the INPUT-2 level control circuit and the capacitive filtering effects from long cables.

Select
Footswitch toggles INPUT-1 and 2 to select the desired instrument.

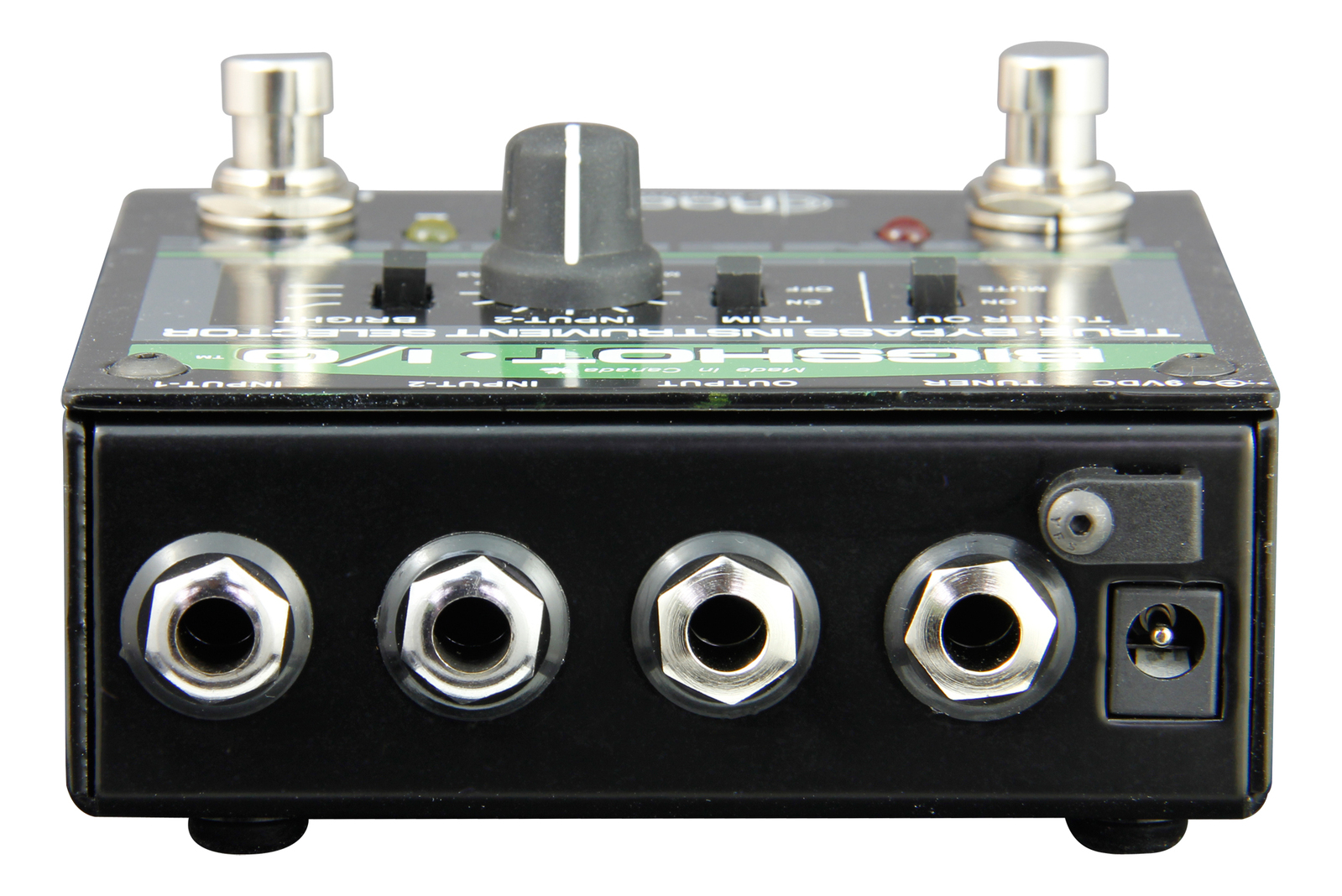

Input 1 & 2
¼” jack for instrument connections.

Output
¼” jack connects to amplifier.

Tuner
¼” jack connects to tuner.

PSU
Connection for 9-12 volt DC (center pin negative)

Extra Durable
Switches with metal outer casing are rated at over 20,000 cycles for added durability.

14-Gauge Steel
Prevents circuit board from being torqued which could lead to part failure.

Mil-Spec PCB
Full ground plane for noise free performance. Double sided through hole solder points for durability.

Footswitch
Heavy duty 9 pole footswitches control signal flow and LED indicators.

SPECIFICATIONS

Audio circuit type: Passive, true bypass
Frequency response: 20Hz – 20kHz
Gain: -0.3dB
Switch: Dim Switch, Bright Switch
Input Connectors: ¼" jack for first instrument connection Input-2, ¼" jack with dim and bright controls
Output Connectors: ¼" jack is switchable between always-on, or engaged by Mute switch
Extras: Tuner/toggle switch
Construction: 14-gauge steel
Finish: Durable powder coat
Size (L  x W x D): 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)
Weight: 1.25 lb (0.56 kg)
Shipping size (L x W x D): 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
Shipping weight: 1.55 lb (0.70 kg)
Power: 9VDC, center pole negative
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
